DORMER M9007 Rotary Burrs

Product Code: M9007

$47.48$43.16 Ex. GST

Product Code: M9007 SKU M9007 Categories CUTTING TOOLS (HSS & Carbide), Drilling

DORMER M9007 Rotary Burrs

DORMER M9007 Rotary Burrs - Image 2

DORMER M9007 Rotary Burrs - Image 3

DORMER M9007 Rotary Burrs - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

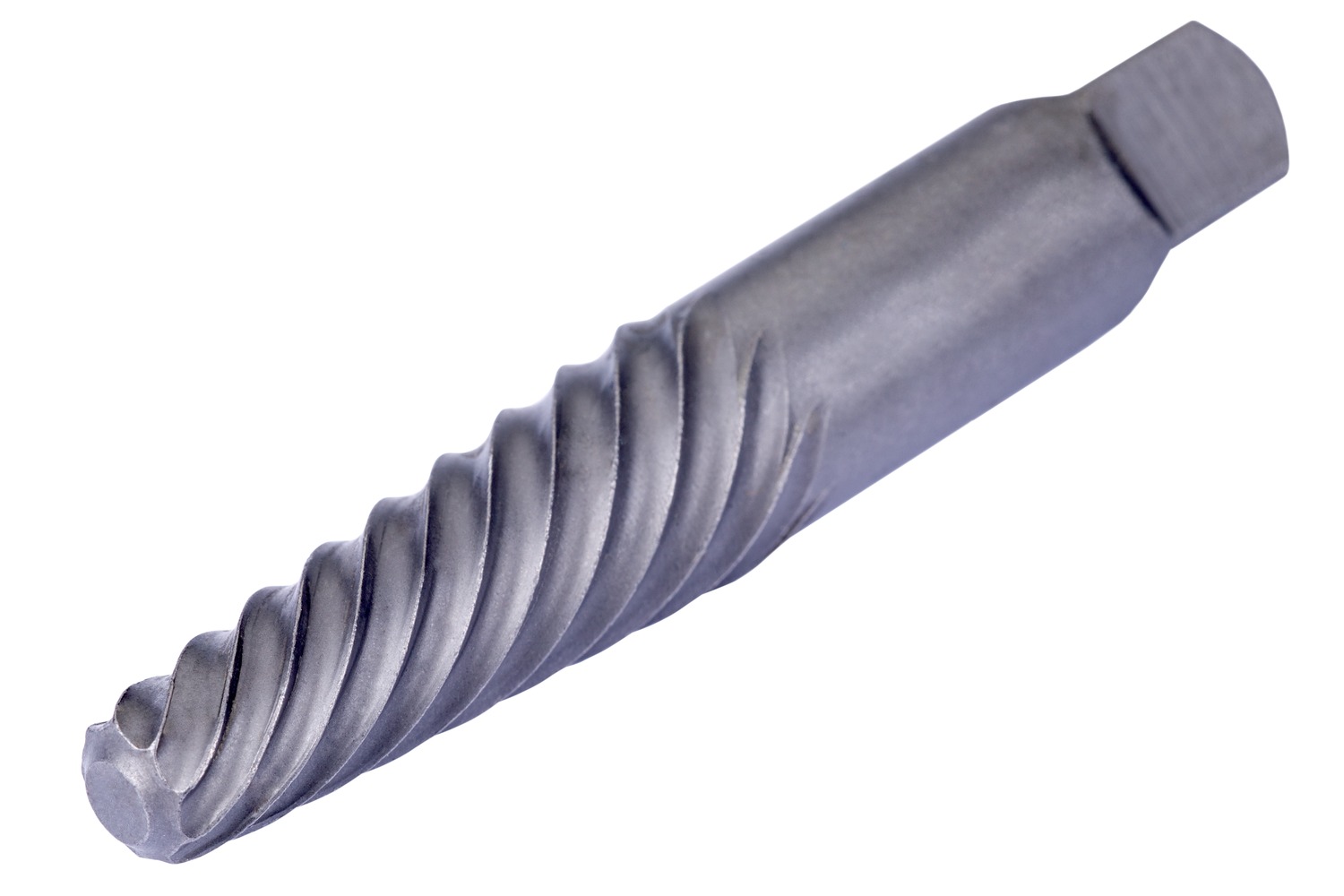

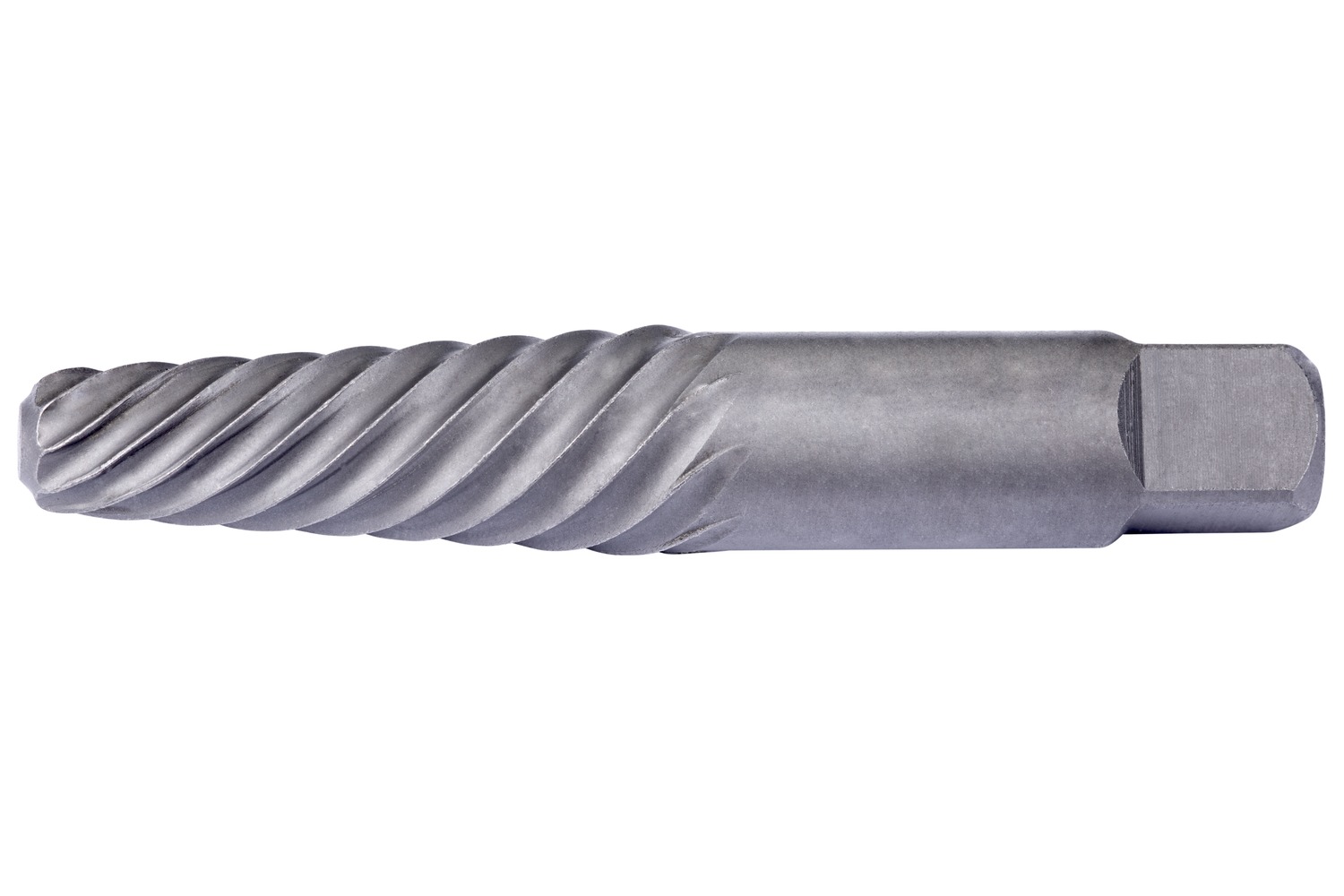

Screw extractor is used counter-clockwise to remove broken right-handed bolts from threaded holes without damaging threads. It’s necessary to drill guide hole of proper size before using the extractor.

Additional information

Weight	0.1800 kg
Dimensions
barcode	3603607088937

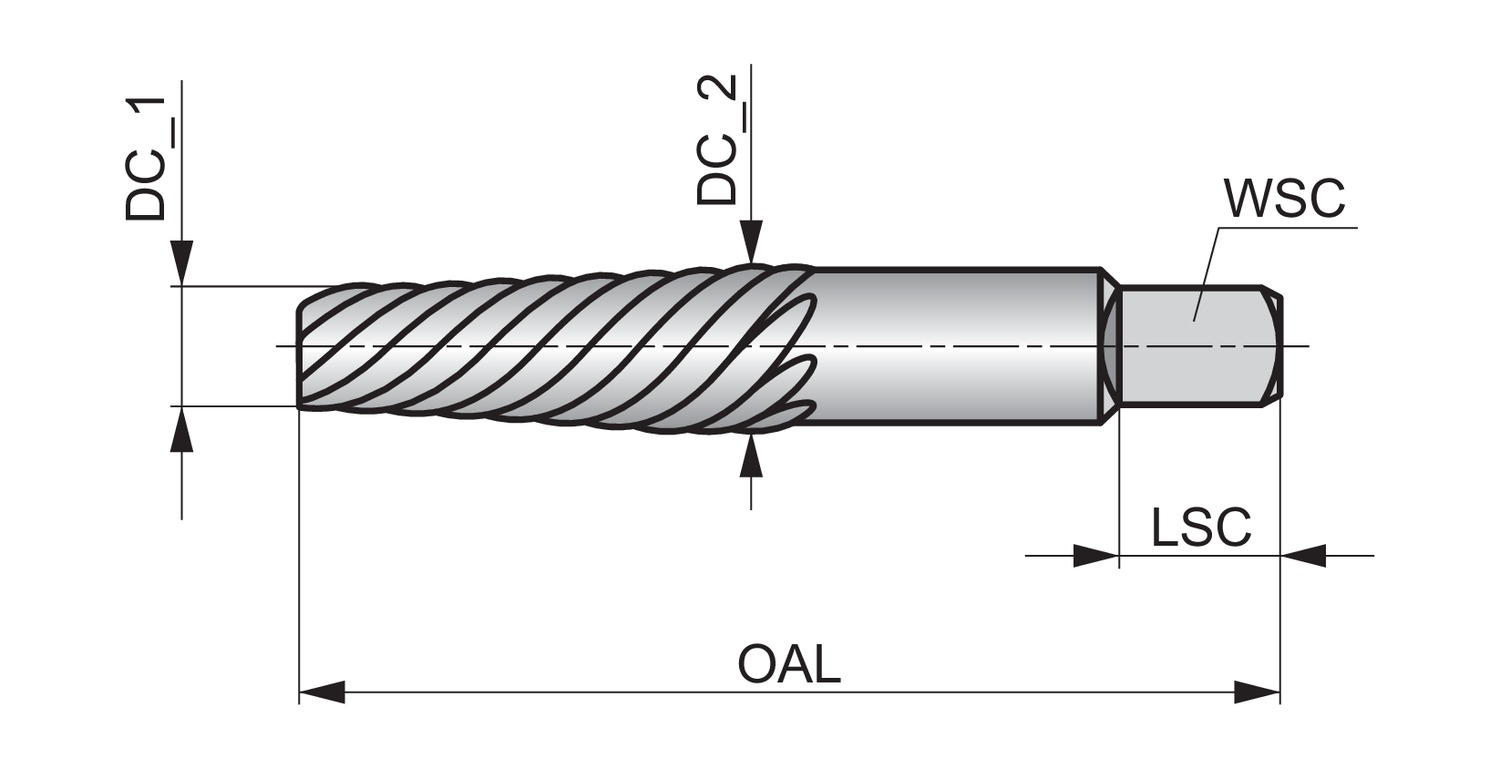

Additional Information	Description: Value Product name: M9007 Bolt size: M30 – M42 Drill size for low or medium tensile screws – millimeters: 13.5 mm Drill size for high tensile screws +75 tons/sq.inch – millimeters: 14.5 mm Bolt size imperial: 1" – 1.3/8" Drill size for low or medium tensile screws – inch: 17/32 Drill size for high tensile screws +75 tons/sq.inch – inch: 9/16 Cutting diameter step – millimeter: 12.3 mm Cutting diameter second cutting step – millimeters (DC_2): 19.1 mm Clamping width – millimeter (WSC): 14.3 mm Clamping Length – millimeter (LSC): 17.9 mm Overall length – millimeter (OAL): 107.4 mm Net weight – grams: 180
