DORMER M9009 Rotary Burrs

Product Code: M9009

$111.61$101.46 Ex. GST

Product Code: M9009 SKU M9009 Categories CUTTING TOOLS (HSS & Carbide), Drilling

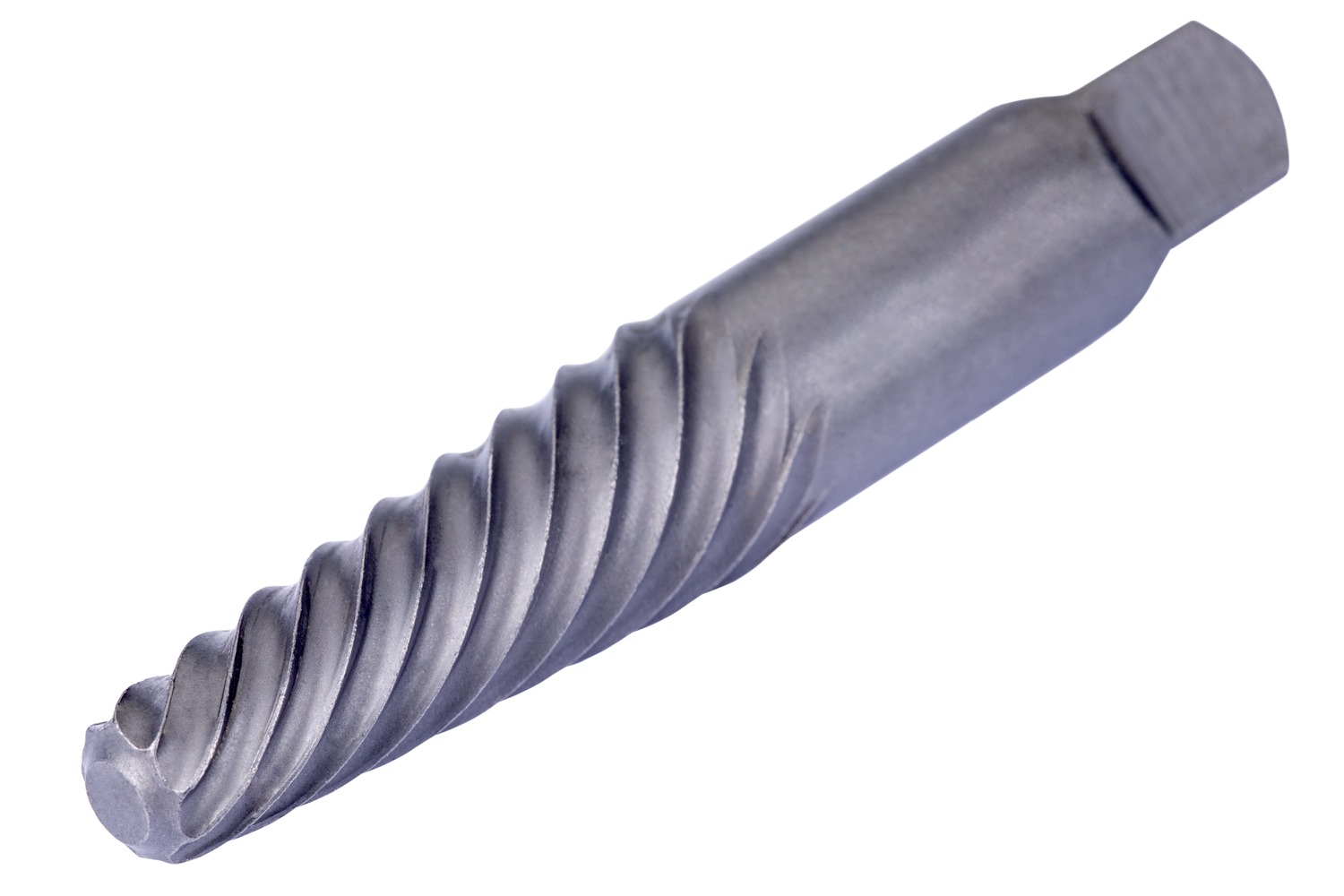

DORMER M9009 Rotary Burrs

DORMER M9009 Rotary Burrs - Image 2

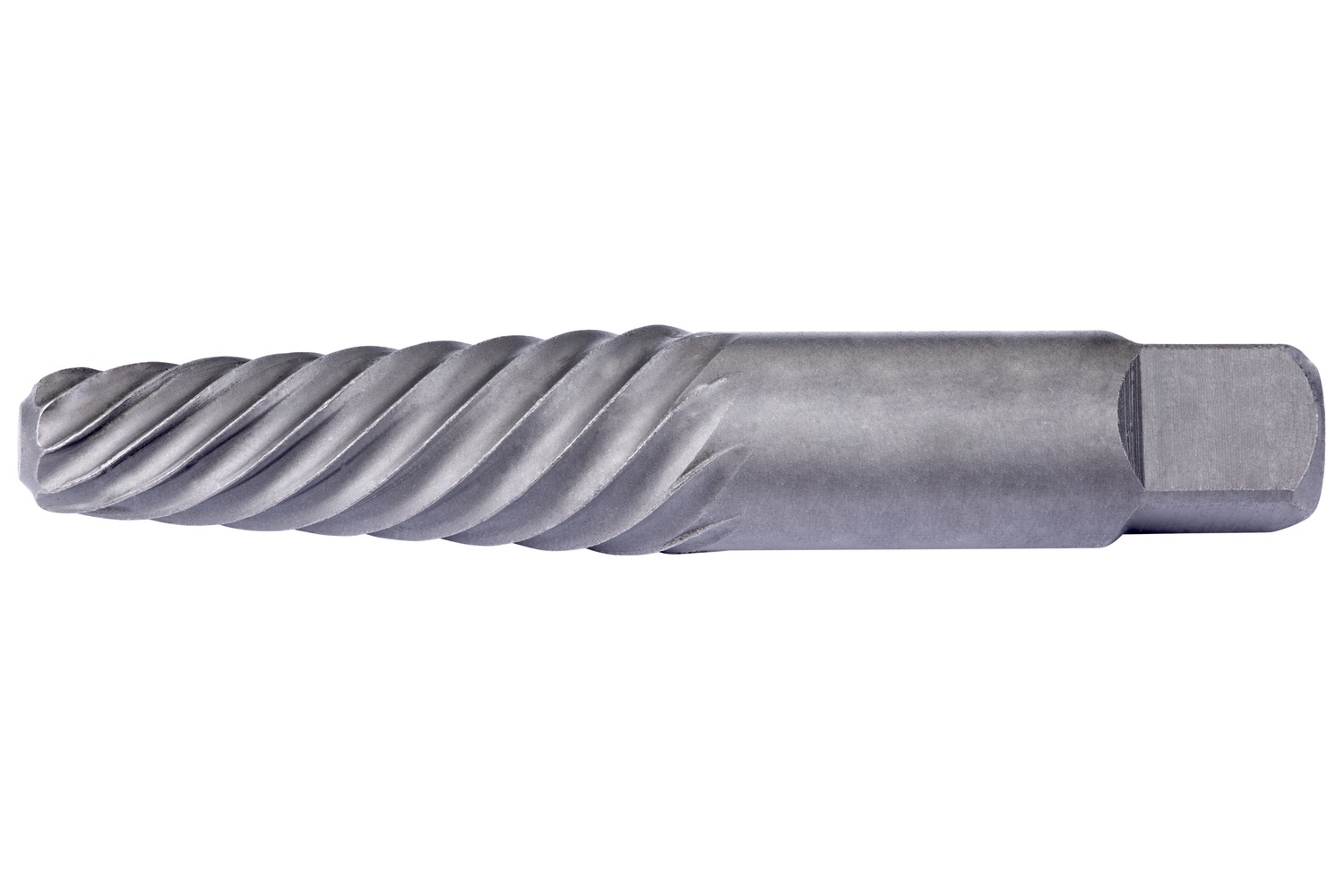

DORMER M9009 Rotary Burrs - Image 3

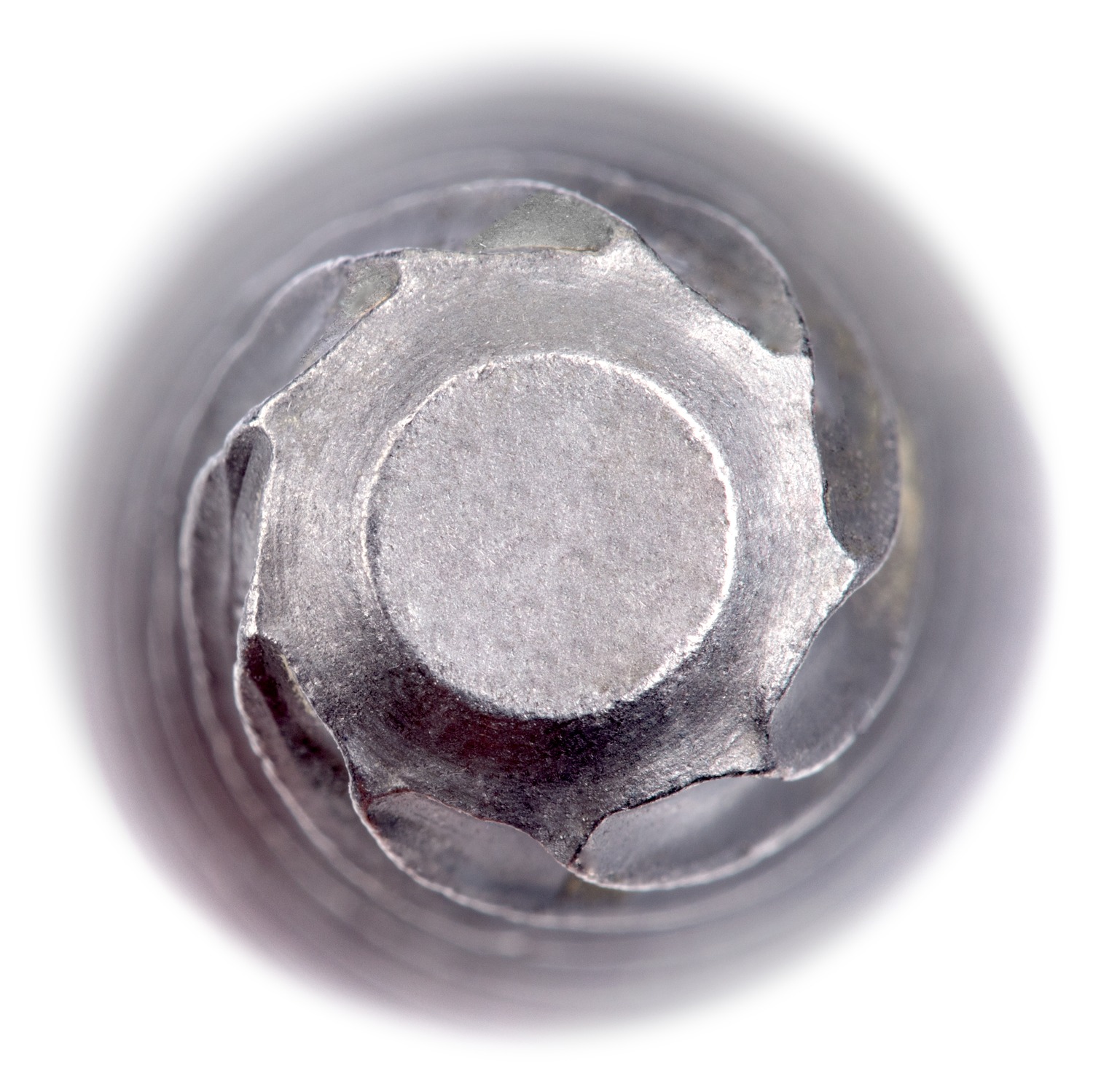

DORMER M9009 Rotary Burrs - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Screw extractor is used counter-clockwise to remove broken right-handed bolts from threaded holes without damaging threads. It’s necessary to drill guide hole of proper size before using the extractor.

Additional information

Weight	0.6400 kg
Dimensions
barcode	3603607088951

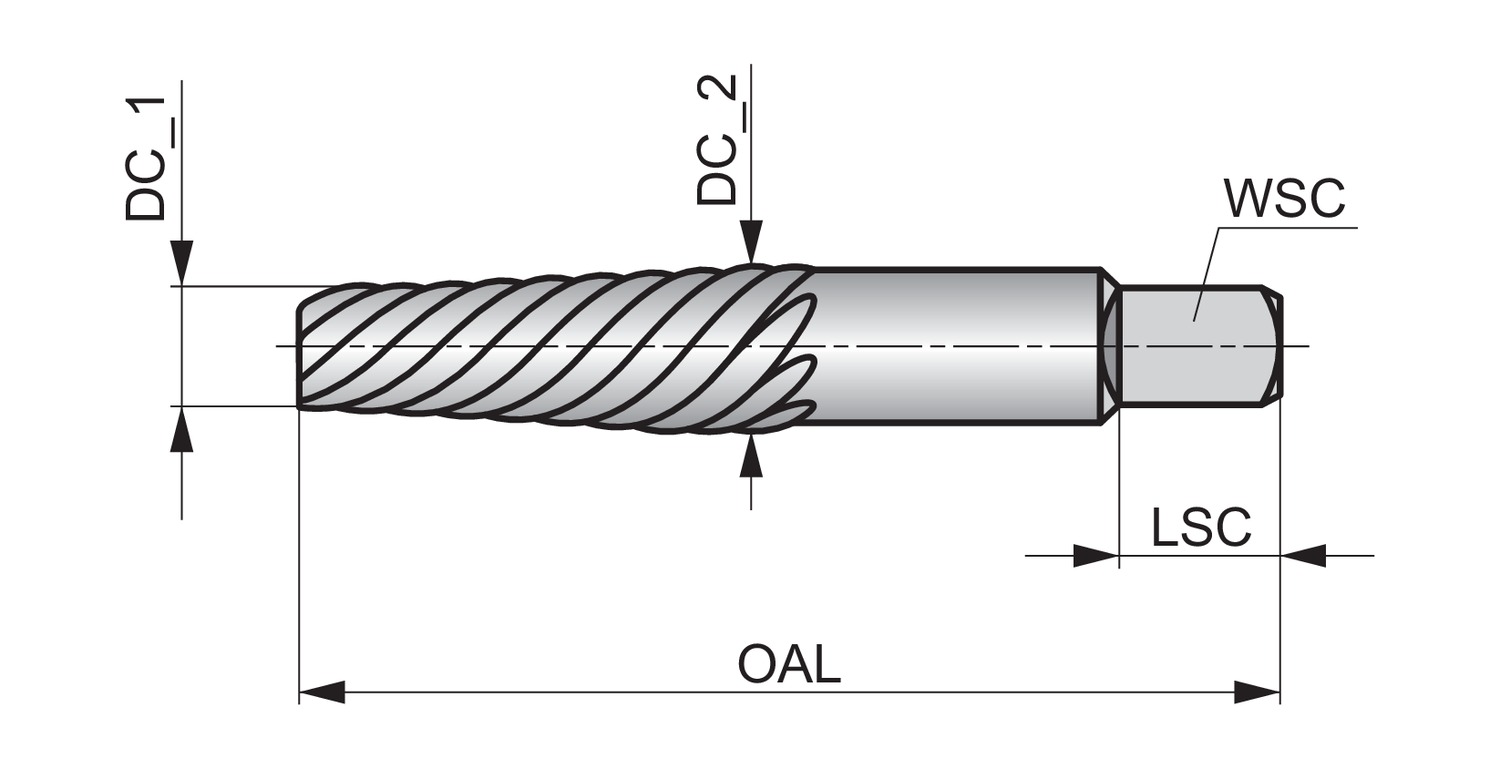

Additional Information	Description: Value Product name: M9009 Bolt size: M45 – M50 Drill size for low or medium tensile screws – millimeters: 27 mm Drill size for high tensile screws +75 tons/sq.inch – millimeters: 28 mm Bolt size imperial: 1.3/4 – 2.1/8 Drill size for low or medium tensile screws – inch: 1.1/16 Drill size for high tensile screws +75 tons/sq.inch – inch: 1.3/32 Cutting diameter step – millimeter: 24.61 mm Cutting diameter second cutting step – millimeters (DC_2): 32.3 mm Clamping width – millimeter (WSC): 24.6 mm Clamping Length – millimeter (LSC): 22.6 mm Overall length – millimeter (OAL): 121.3 mm Net weight – grams: 640
