DORMER P8253.0X3.0 Rotary Burrs

Product Code: P8253.0X3.0

$15.75$14.32 Ex. GST

Product Code: P8253.0X3.0 SKU P8253.0X3.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

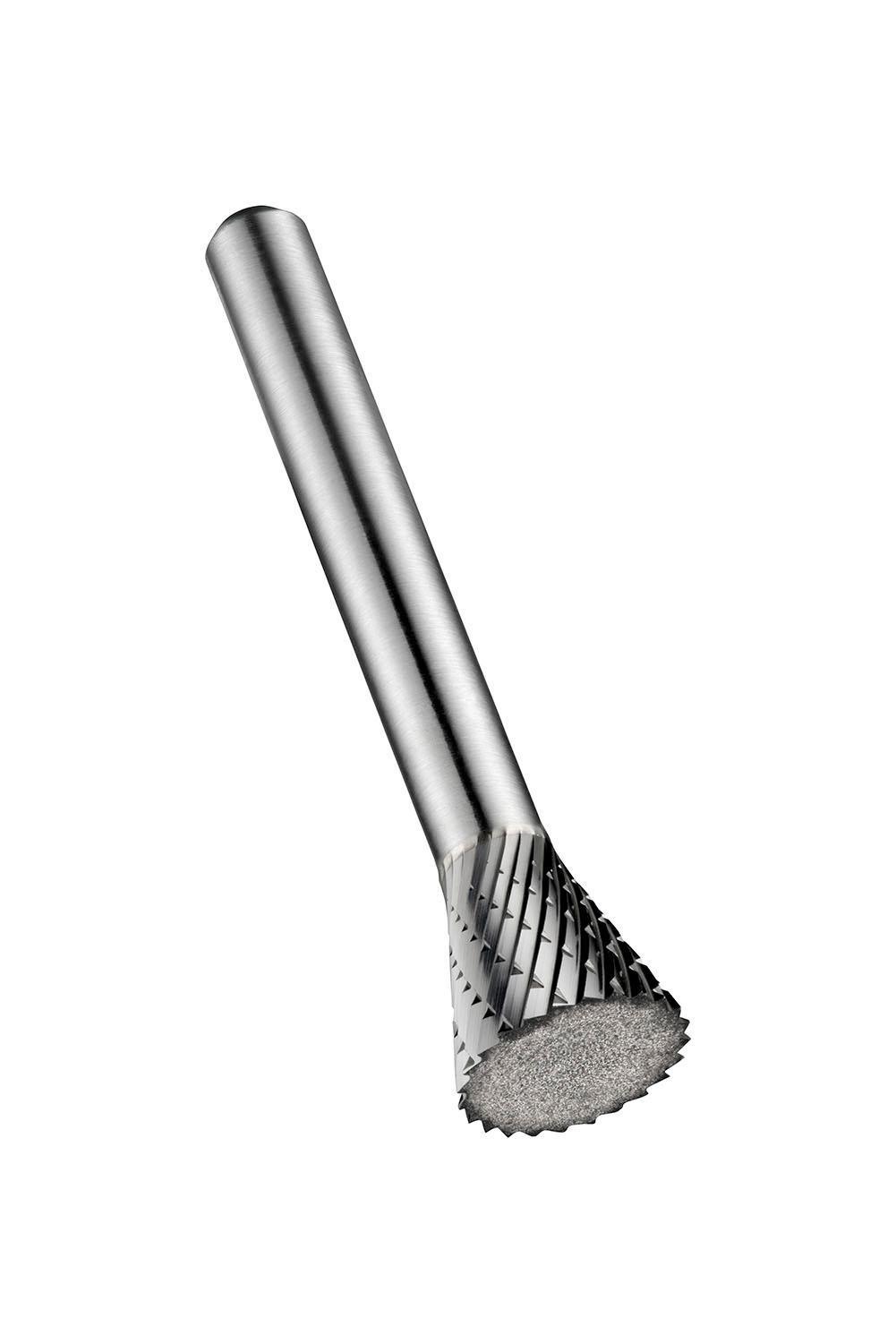

Inverted cone burr (N shape), diameter 3mm with 4mm length of cut, 38mm overall length and 3mm shank, solid carbide with bright finish, DC double cut flute style with close spaced edges for making inverted v-cuts and rear-side chamfering in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials

Additional information

Weight 0.0153 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760688373
Product number (SAP): 86024716
Ordering code ANSI: P8253.0X3.0
Gross weight – grams: 5.2
Cutting diameter – millimeter (DC): 3 mm
Connection diameter – millimeter (DCON MS): 3 mm
Usable Length – millimeter (LU): 4 mm
Overall length – millimeter (OAL): 38 mm
Profile angle (PRFA): 10
ISO: P8253.0X3.0

Brand

DORMER
