DORMER P8256.3X3.0 Rotary Burrs

Product Code: P8256.3X3.0

$27.19$24.72 Ex. GST

Product Code: P8256.3X3.0 SKU P8256.3X3.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

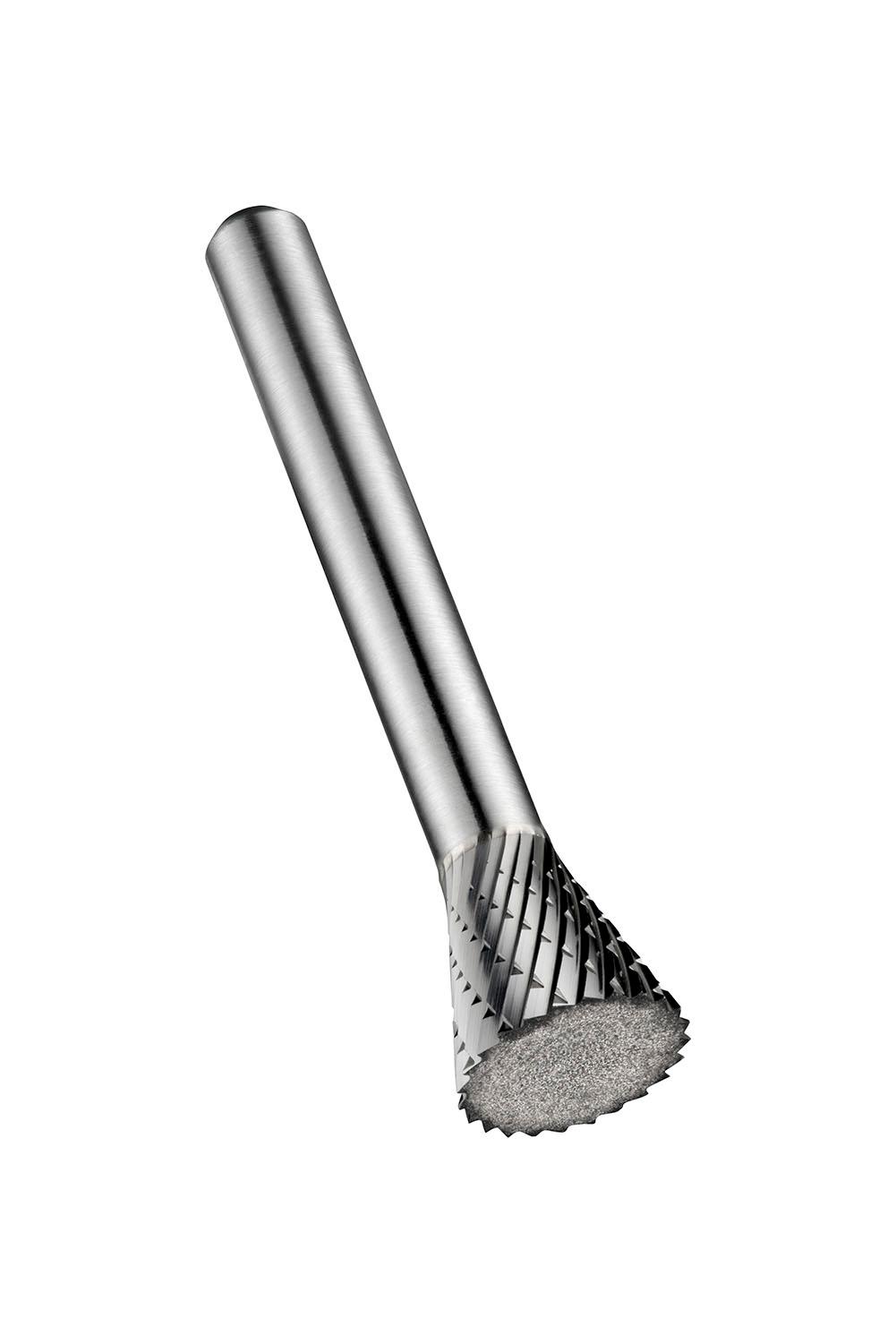

Inverted cone burr (N shape), diameter 6.3mm with 6mm length of cut, 39mm overall length and 3mm shank, carbide tipped with toughened and hardened steel shank and bright finish, DC double cut flute style with close spaced edges for making inverted v-cuts and rear-side chamfering in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials

Additional information

Weight 0.0264 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760688380
Product number (SAP): 86024717
Ordering code ANSI: P8256.3X3.0
Gross weight – grams: 5.9
Cutting diameter – millimeter (DC): 6.3 mm
Connection diameter – millimeter (DCON MS): 3 mm
Usable Length – millimeter (LU): 6 mm
Overall length – millimeter (OAL): 39 mm
Profile angle (PRFA): 12
ISO: P8256.3X3.0

Brand

DORMER
