DORMER R003F Carbide Drills

Product Code: R003F

$105.94$96.31 Ex. GST

Product Code: R003F SKU R003F Categories CUTTING TOOLS (HSS & Carbide), Drilling

DORMER R003F Carbide Drills

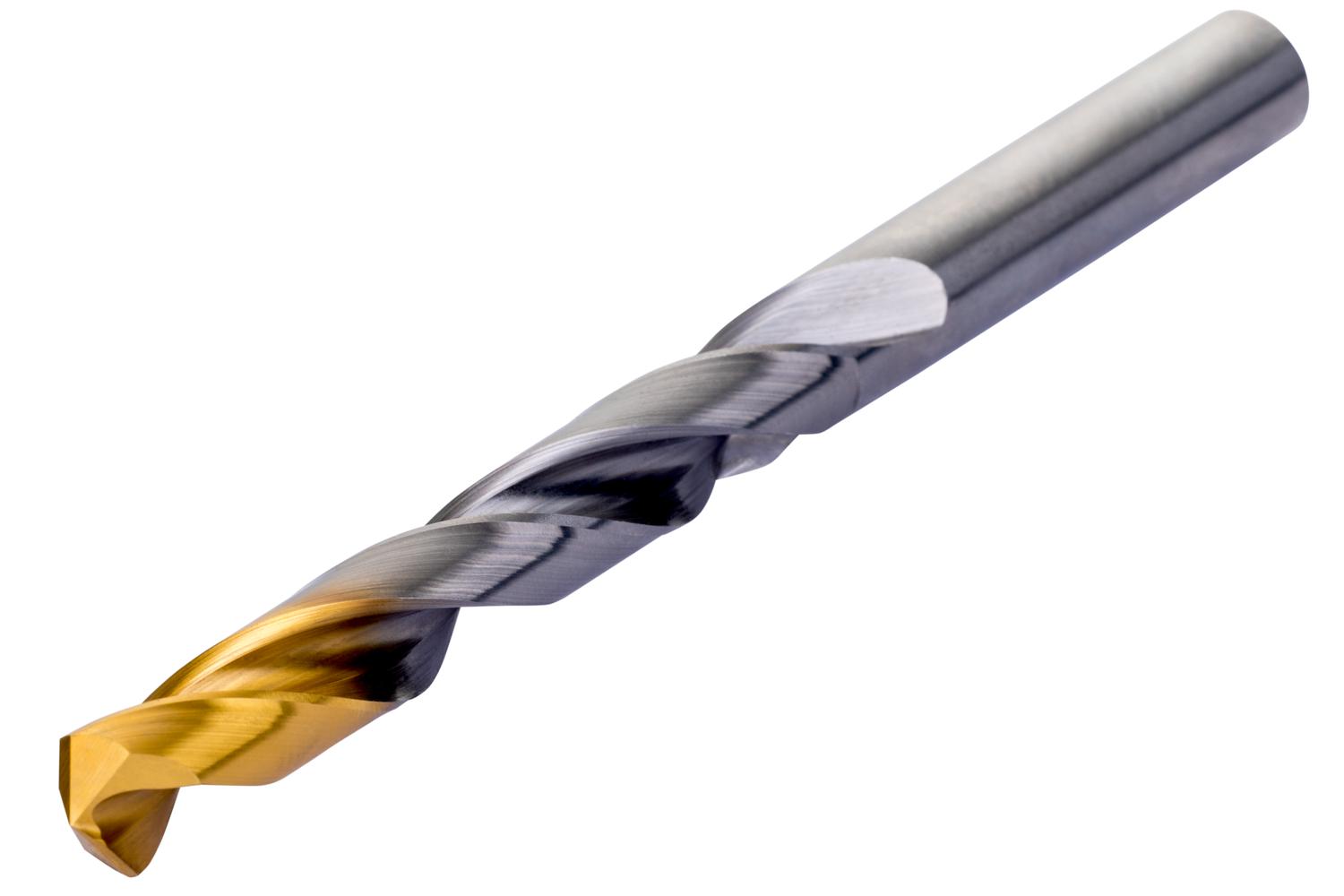

DORMER R003F Carbide Drills - Image 2

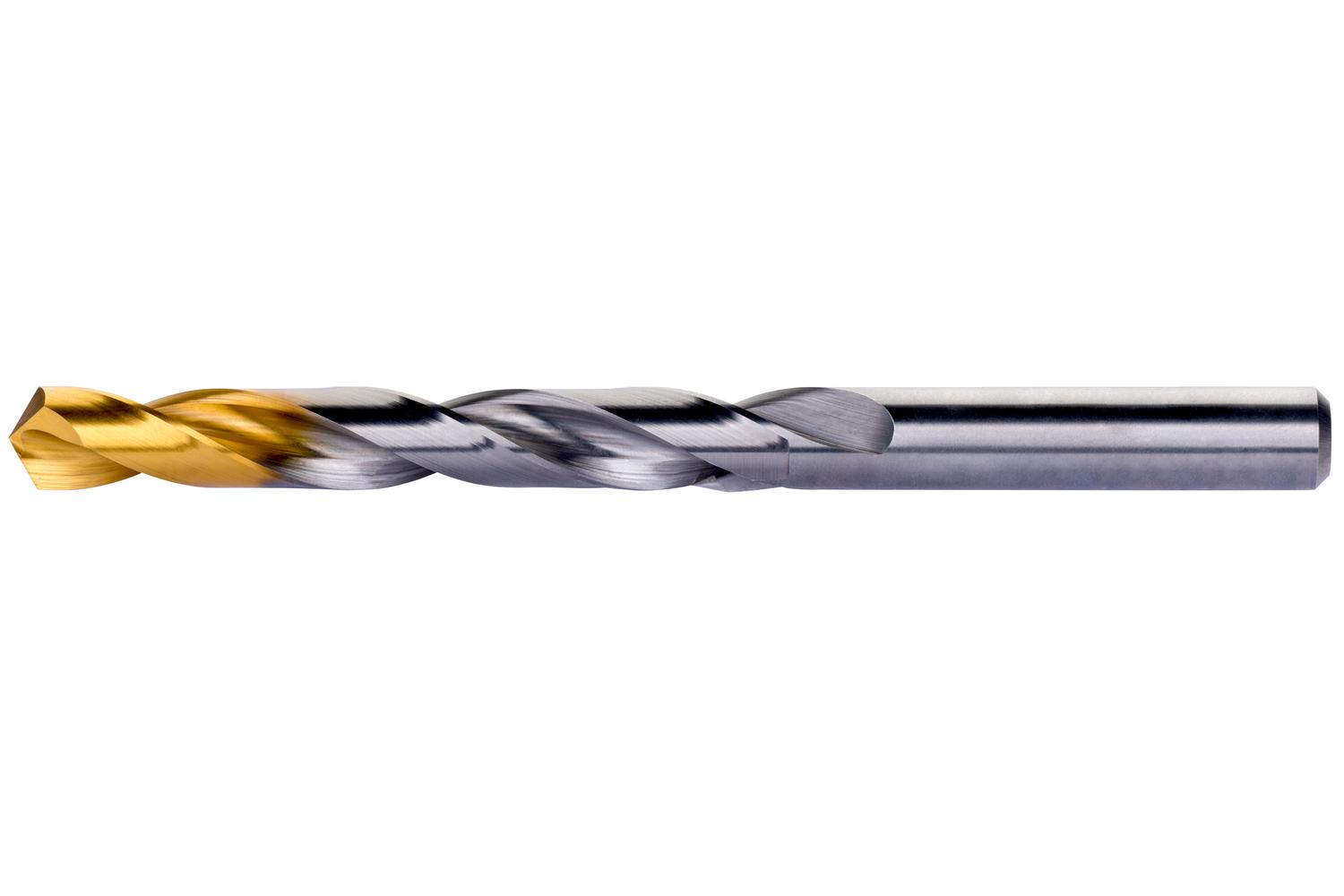

DORMER R003F Carbide Drills - Image 3

DORMER R003F Carbide Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Cutting diameter 0.257 inch, overall length 3.9764 inch, flute length 2.4803 inch, and maximal drilling depth 1.028 inch without pecking.

Additional information

Weight	0.0324 kg
Dimensions
barcode	3603607082447

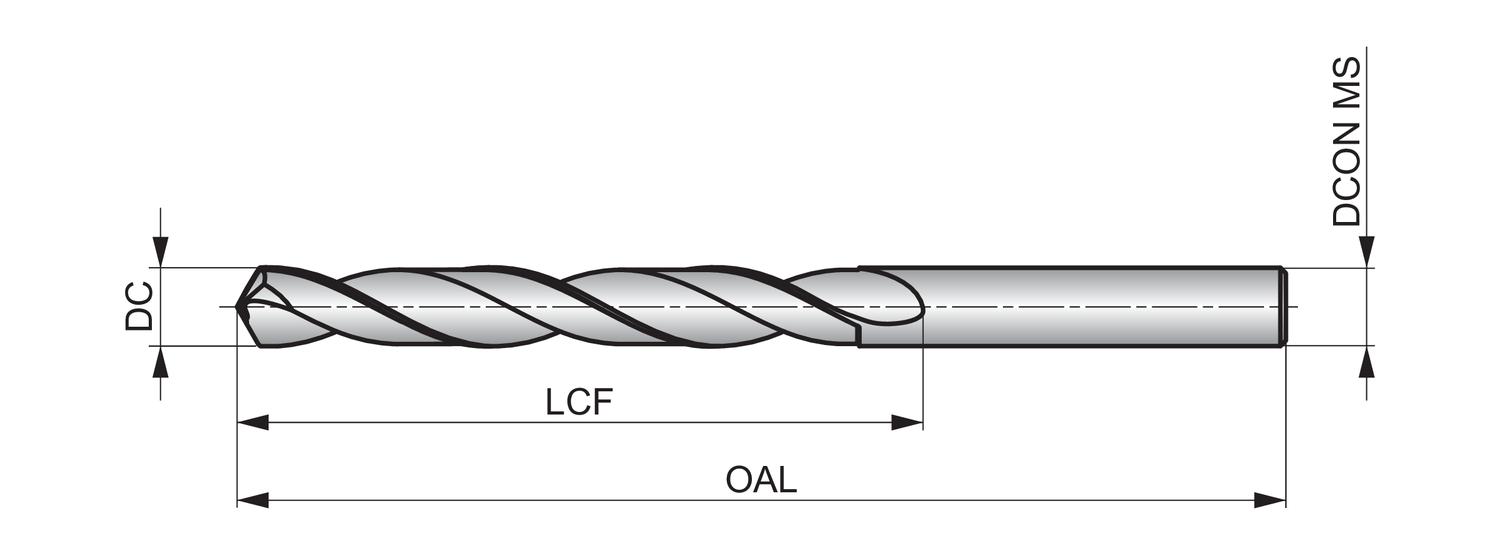

Additional Information	Description: Value EAN number: 3603607082447 Product number (SAP): 86046494 Ordering code ANSI: R003F Gross weight – grams: 35.95 Cutting diameter – millimeter (DC): 6.528 mm Cutting diameter – inch (DC): 0.257 inch Length chip flute – millimeter (LCF): 63 mm Overall length – millimeter (OAL): 101 mm Connection diameter – millimeter (DCON MS): 6.528 mm Length chip flute – inch (LCF): 2.4803 inch ISO: R003F
