DORMER R003N10 Carbide Drills

Product Code: R003N10

$83.84$76.22 Ex. GST

Product Code: R003N10 SKU R003N10 Categories CUTTING TOOLS (HSS & Carbide), Drilling

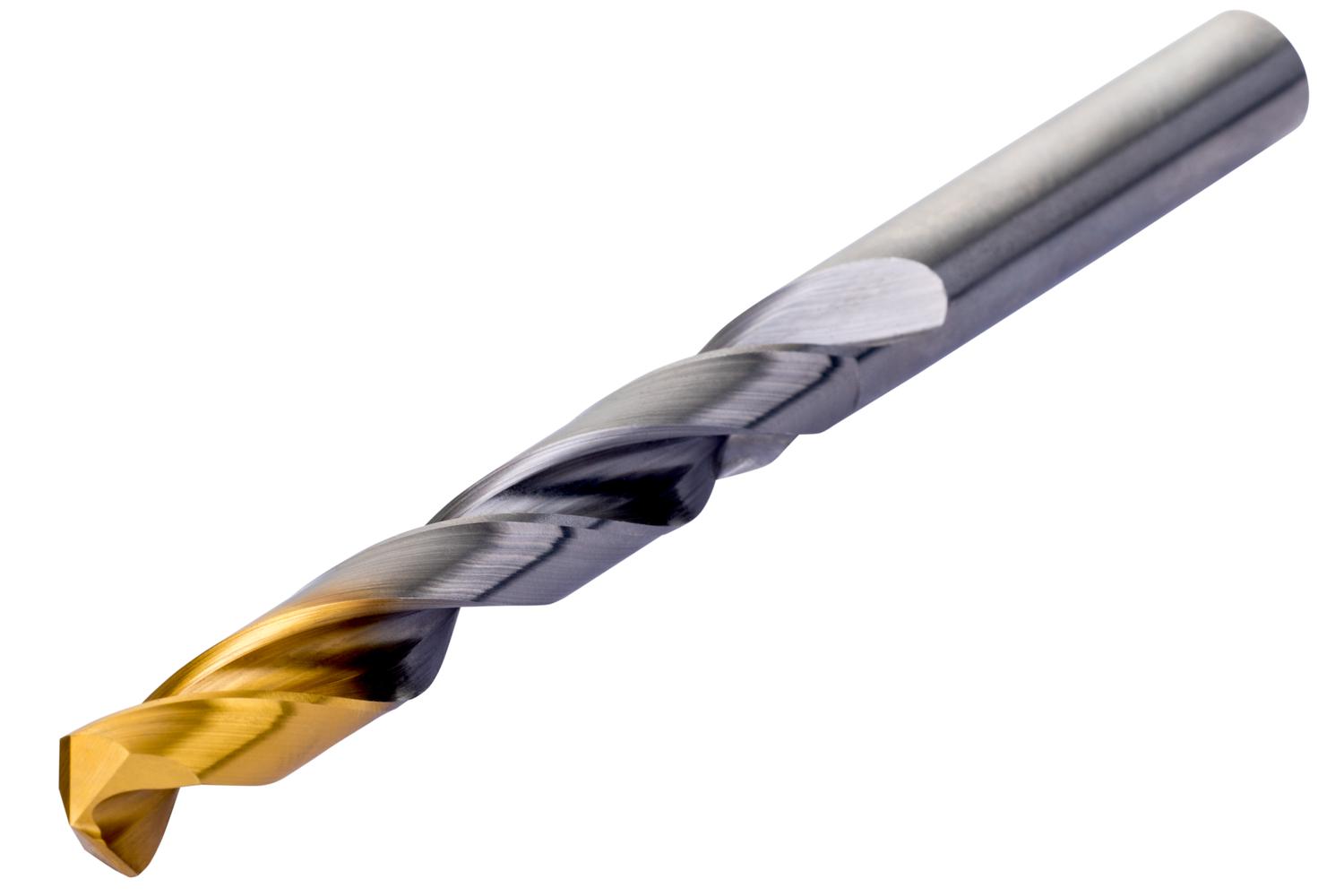

DORMER R003N10 Carbide Drills

DORMER R003N10 Carbide Drills - Image 2

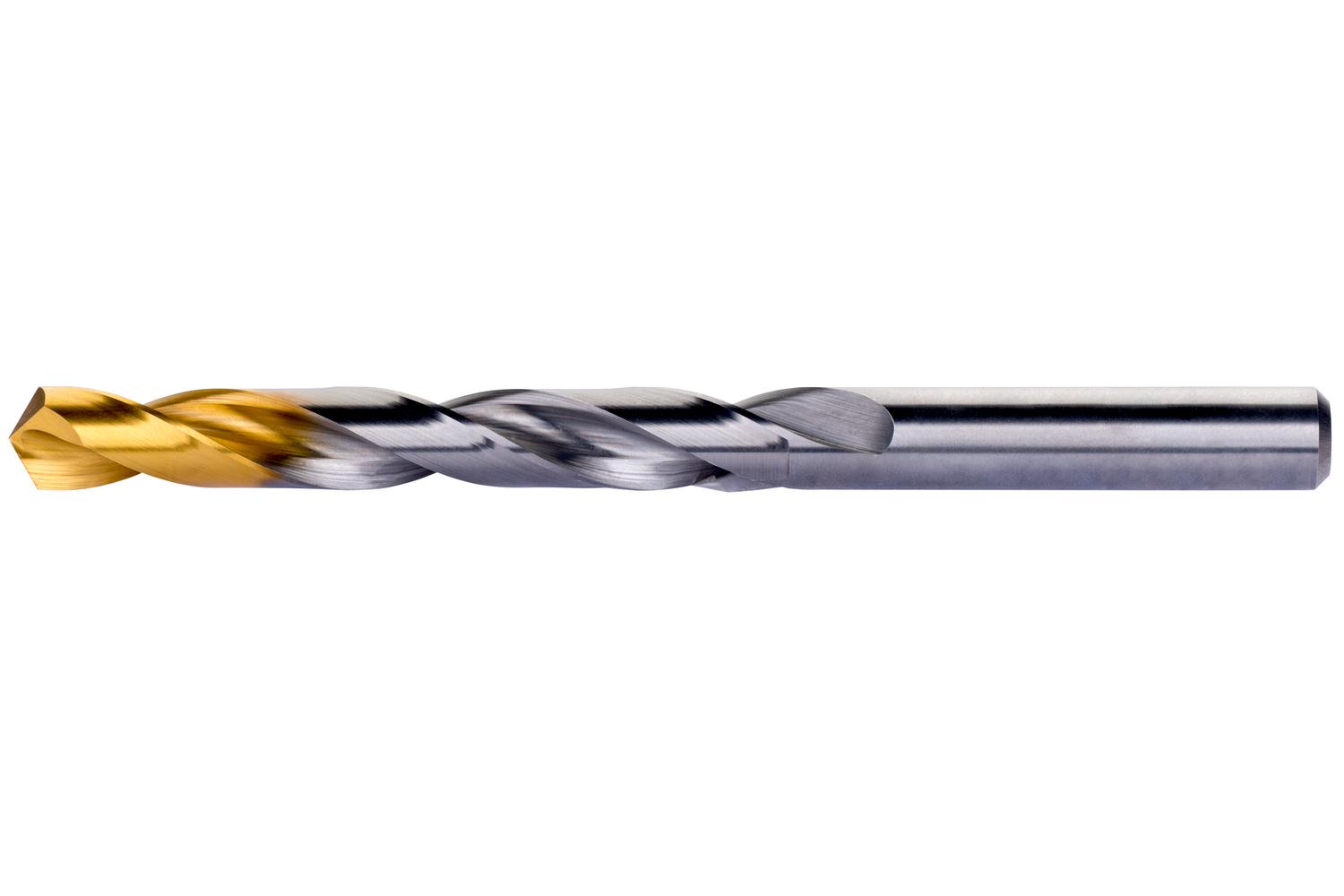

DORMER R003N10 Carbide Drills - Image 3

DORMER R003N10 Carbide Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Cutting diameter 0.1935 inch, overall length 3.3858 inch, flute length 2.0472 inch, and maximal drilling depth 0.774 inch without pecking.

Additional information

Weight	0.0161 kg
Dimensions
barcode	3603607083239

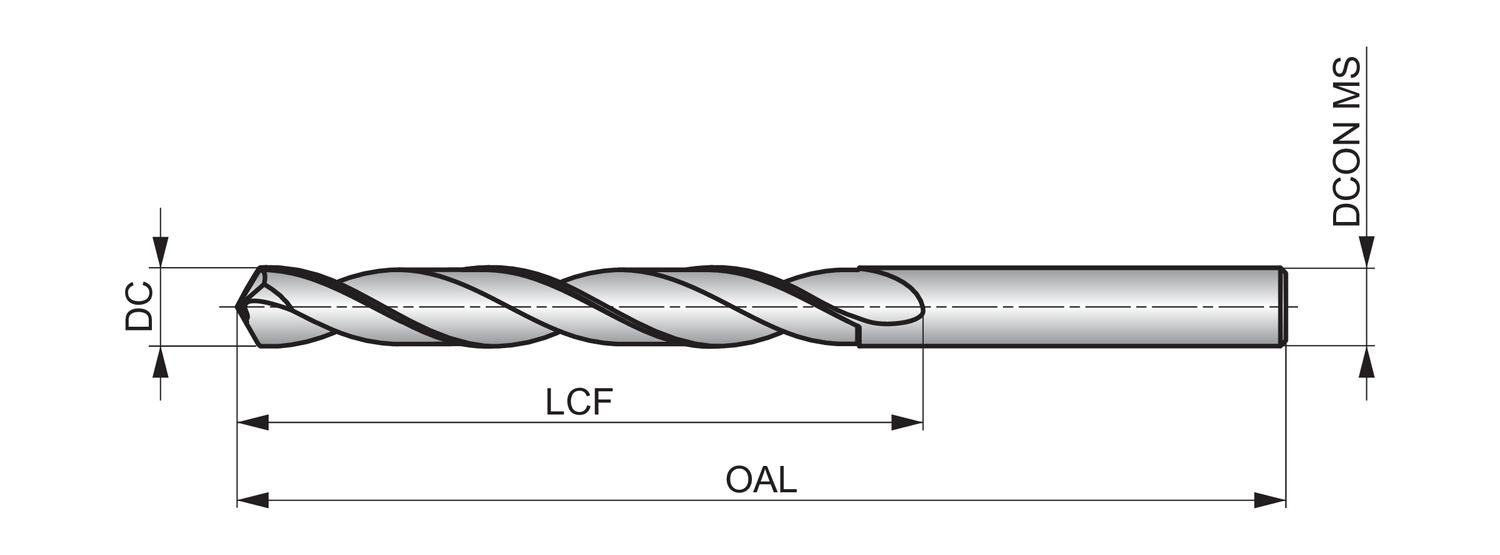

Additional Information	Description: Value EAN number: 3603607083239 Product number (SAP): 86046531 Ordering code ANSI: R003N10 Gross weight – grams: 25 Cutting diameter – millimeter (DC): 4.915 mm Cutting diameter – inch (DC): 0.1935 inch Length chip flute – millimeter (LCF): 52 mm Overall length – millimeter (OAL): 86 mm Connection diameter – millimeter (DCON MS): 4.915 mm Length chip flute – inch (LCF): 2.0472 inch ISO: R003N10
