DORMER R003N12 Carbide Drills

Product Code: R003N12

$83.84$76.22 Ex. GST

Product Code: R003N12 SKU R003N12 Categories CUTTING TOOLS (HSS & Carbide), Drilling

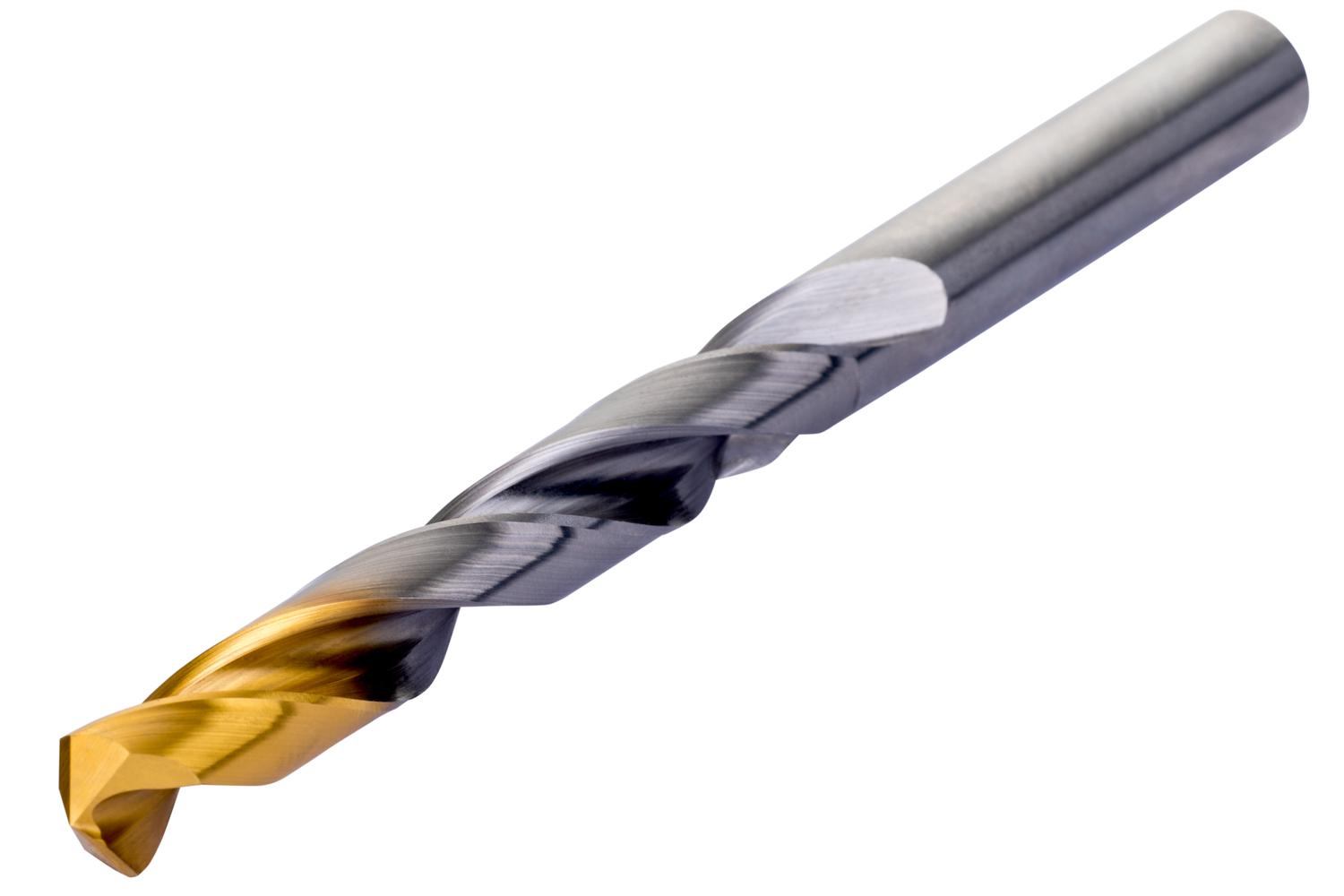

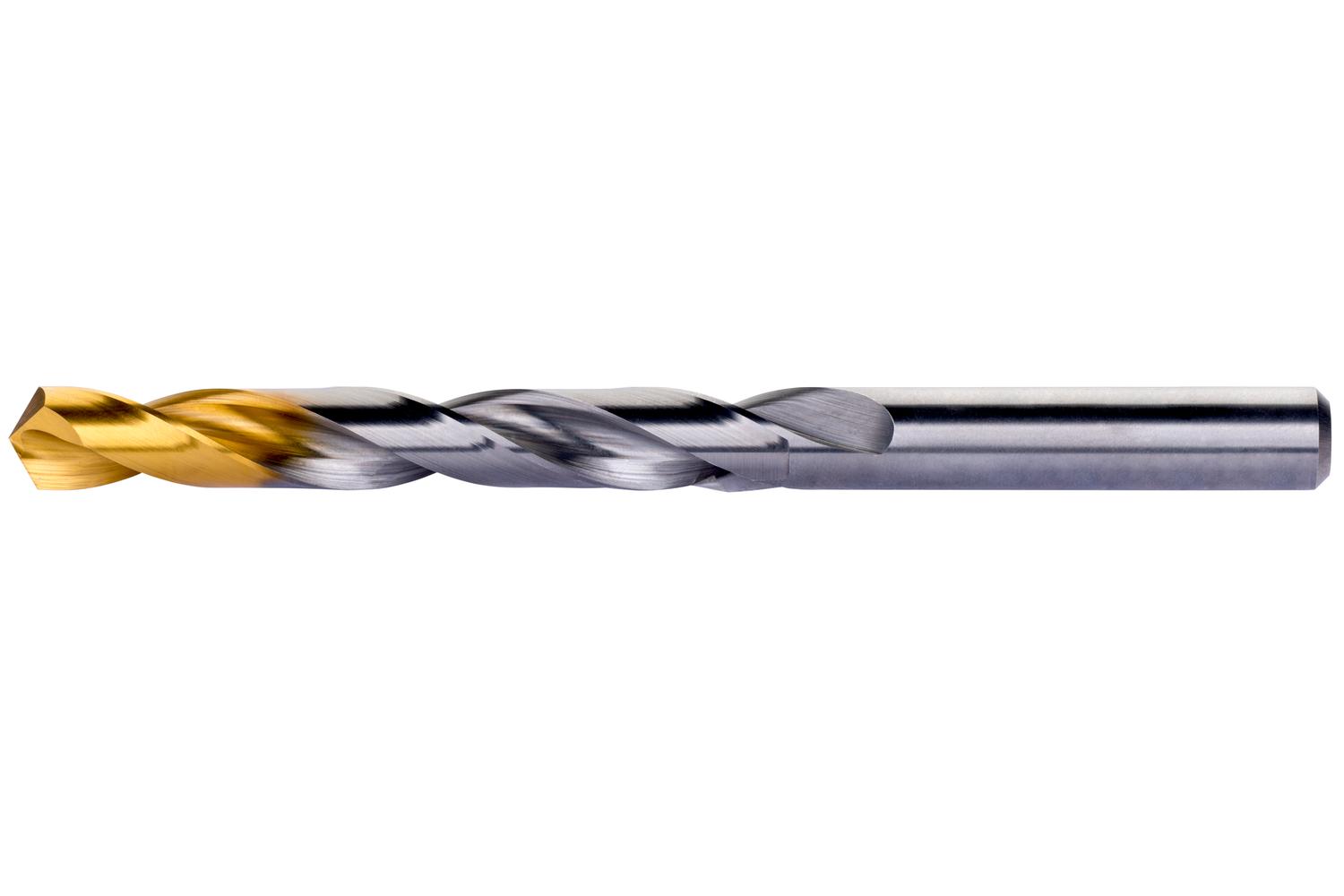

DORMER R003N12 Carbide Drills

DORMER R003N12 Carbide Drills - Image 2

DORMER R003N12 Carbide Drills - Image 3

DORMER R003N12 Carbide Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Cutting diameter 0.189 inch, overall length 3.3858 inch, flute length 2.0472 inch, and maximal drilling depth 0.756 inch without pecking.

Additional information

Weight	0.0153 kg
Dimensions
barcode	3603607083215

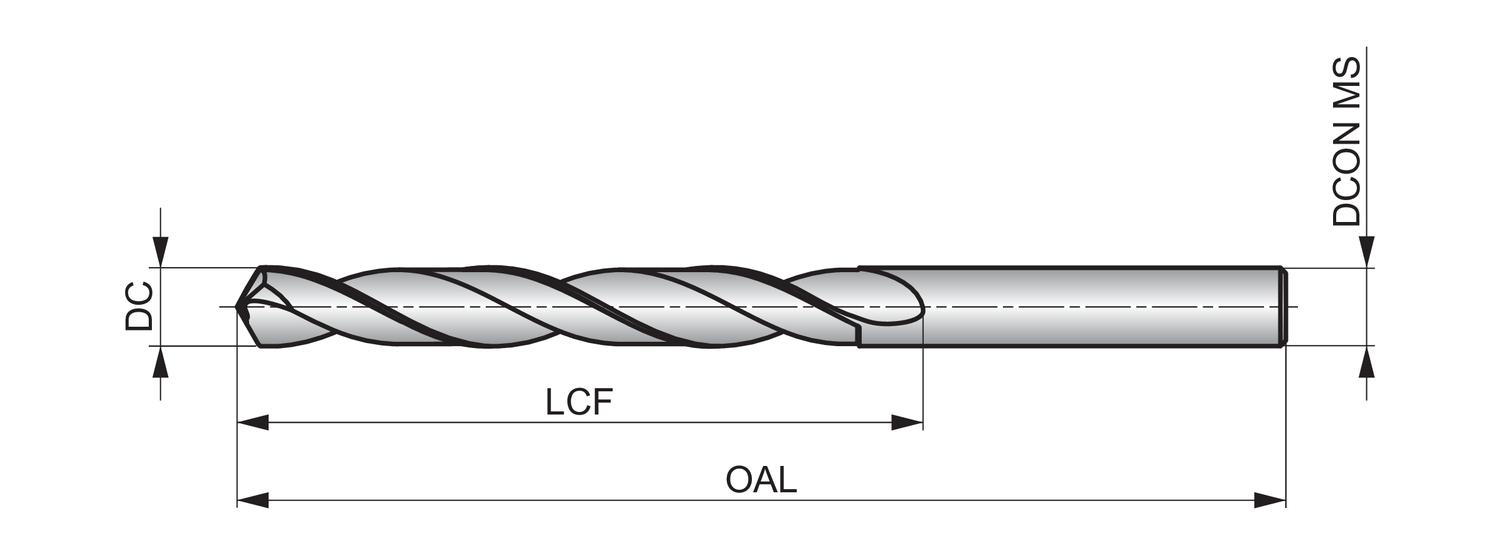

Additional Information	Description: Value EAN number: 3603607083215 Product number (SAP): 86046529 Ordering code ANSI: R003N12 Gross weight – grams: 25 Cutting diameter – millimeter (DC): 4.8 mm Cutting diameter – inch (DC): 0.189 inch Length chip flute – millimeter (LCF): 52 mm Overall length – millimeter (OAL): 86 mm Connection diameter – millimeter (DCON MS): 4.8 mm Length chip flute – inch (LCF): 2.0472 inch ISO: R003N12
