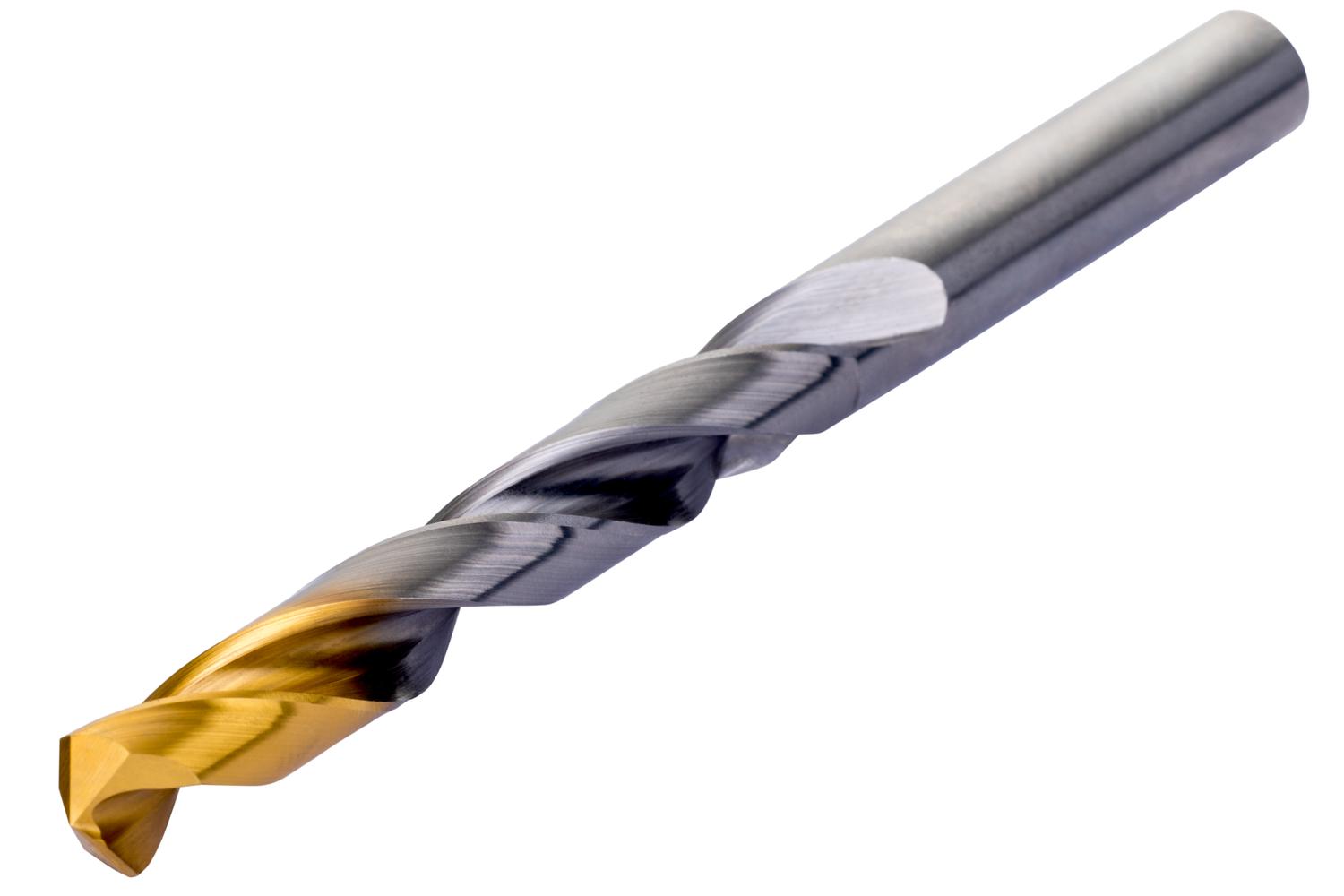

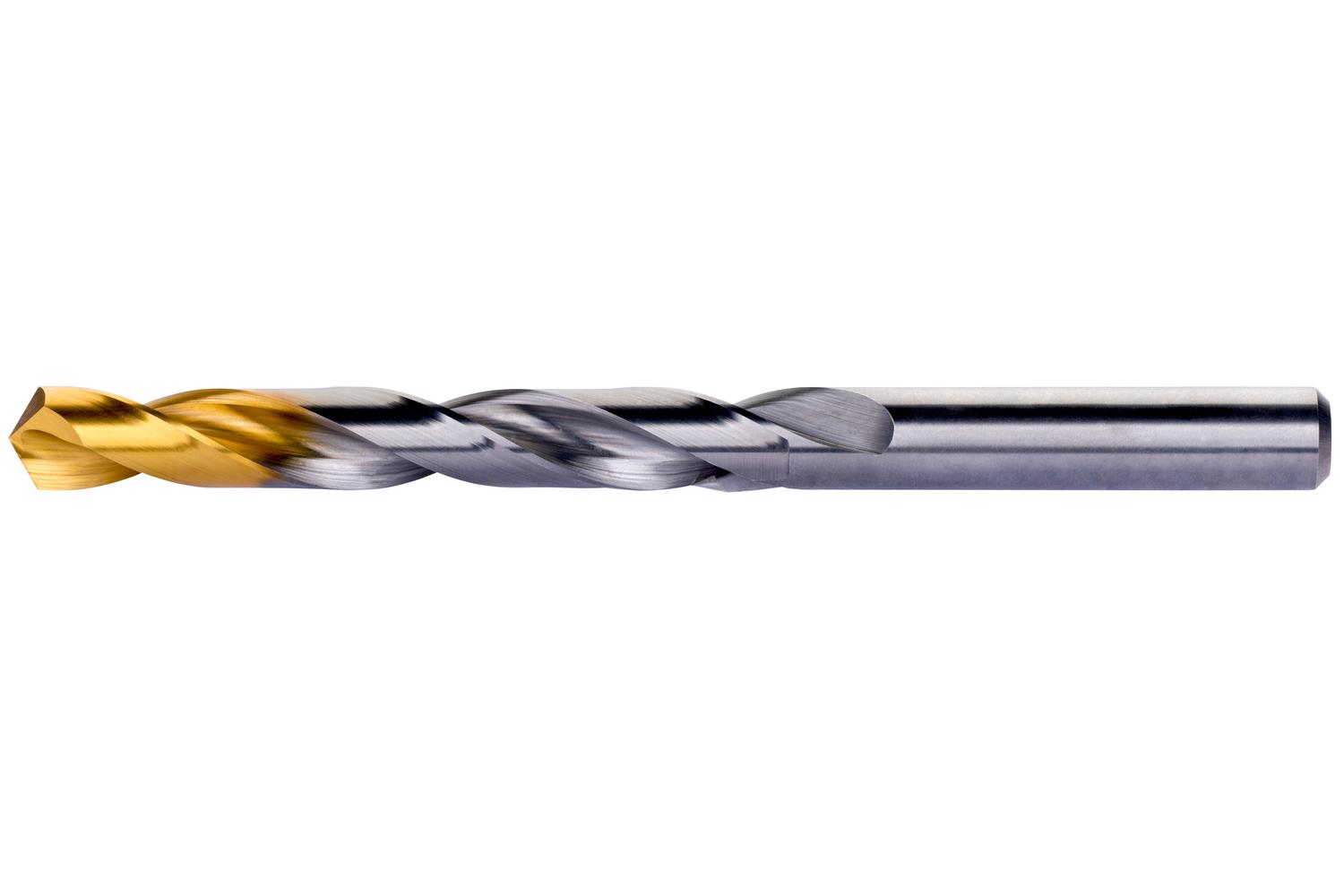

DORMER R003N17 Carbide Drills

Description

Cutting diameter 0.173 inch, overall length 3.1496 inch, flute length 1.8504 inch, and maximal drilling depth 0.692 inch without pecking.

Weight	0.0122 kg
Dimensions
barcode	3603607083161

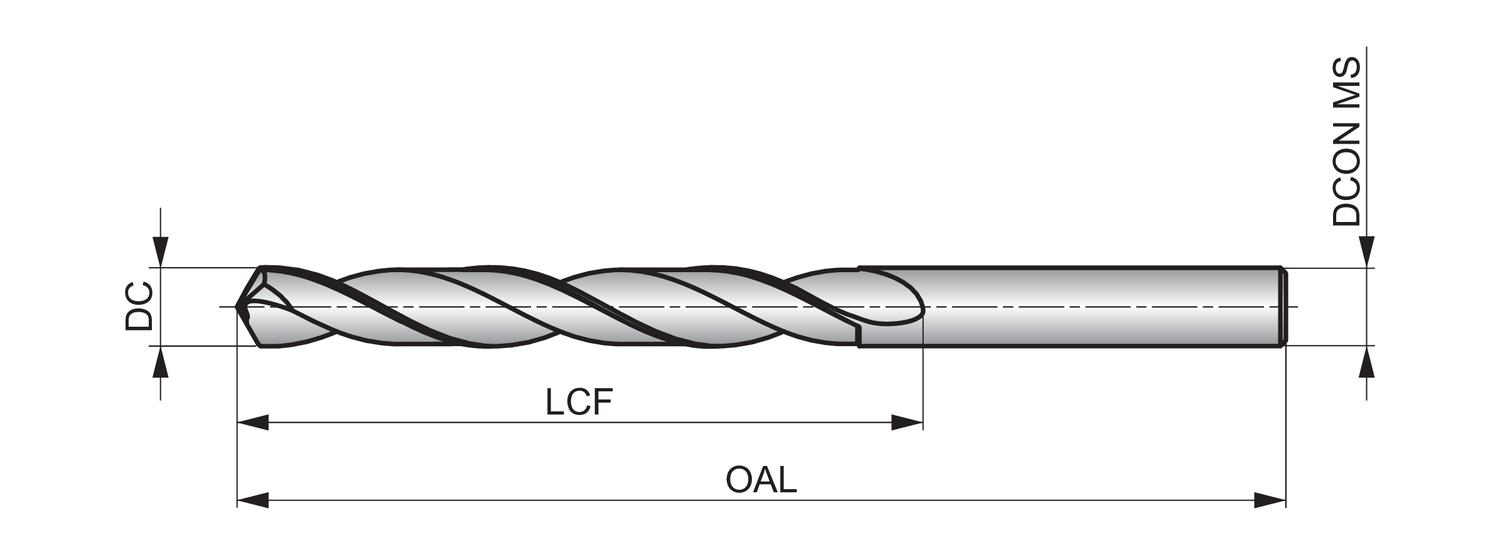

Additional Information	Description: Value EAN number: 3603607083161 Product number (SAP): 86046527 Ordering code ANSI: R003N17 Gross weight – grams: 12.223 Cutting diameter – millimeter (DC): 4.394 mm Cutting diameter – inch (DC): 0.173 inch Length chip flute – millimeter (LCF): 47 mm Overall length – millimeter (OAL): 80 mm Connection diameter – millimeter (DCON MS): 4.394 mm Length chip flute – inch (LCF): 1.8504 inch ISO: R003N17
