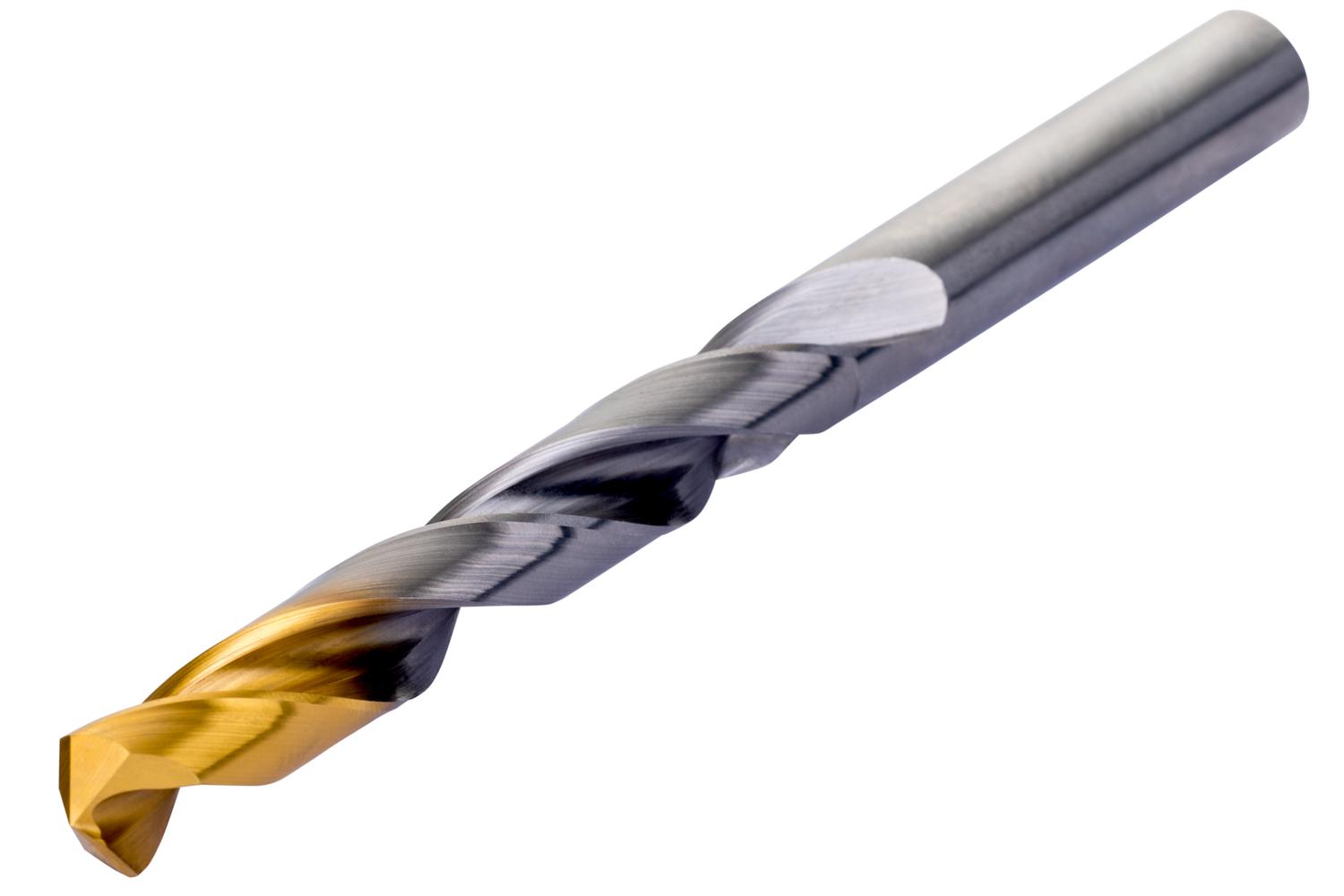

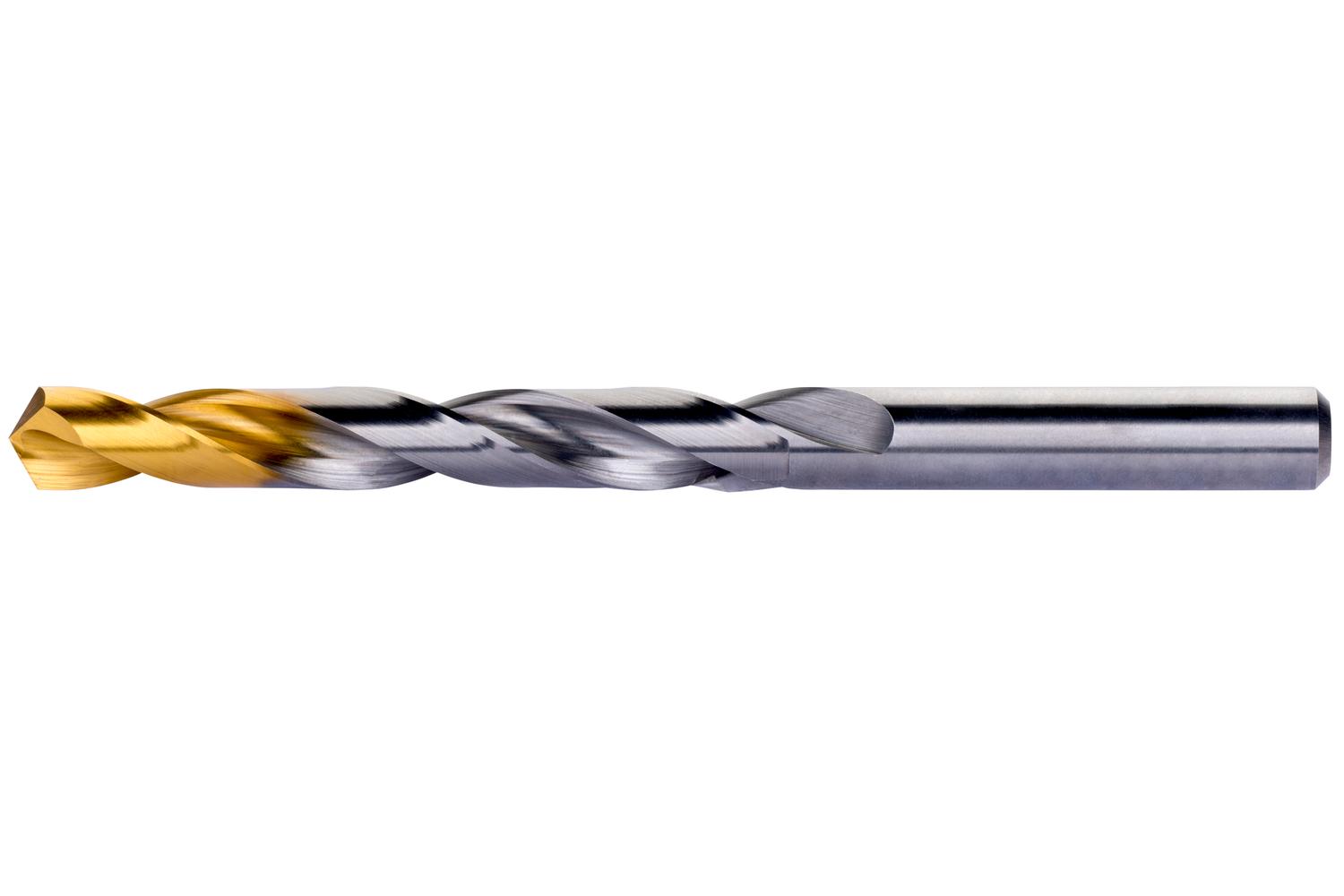

DORMER R003N20 Carbide Drills

Product Code: R003N20

$63.45$57.68 Ex. GST

Product Code: R003N20 SKU R003N20 Categories CUTTING TOOLS (HSS & Carbide), Drilling

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Cutting diameter 0.161 inch, overall length 2.9528 inch, flute length 1.6929 inch, and maximal drilling depth 0.644 inch without pecking.

Weight	0.0101 kg
Dimensions
barcode	3603607083130

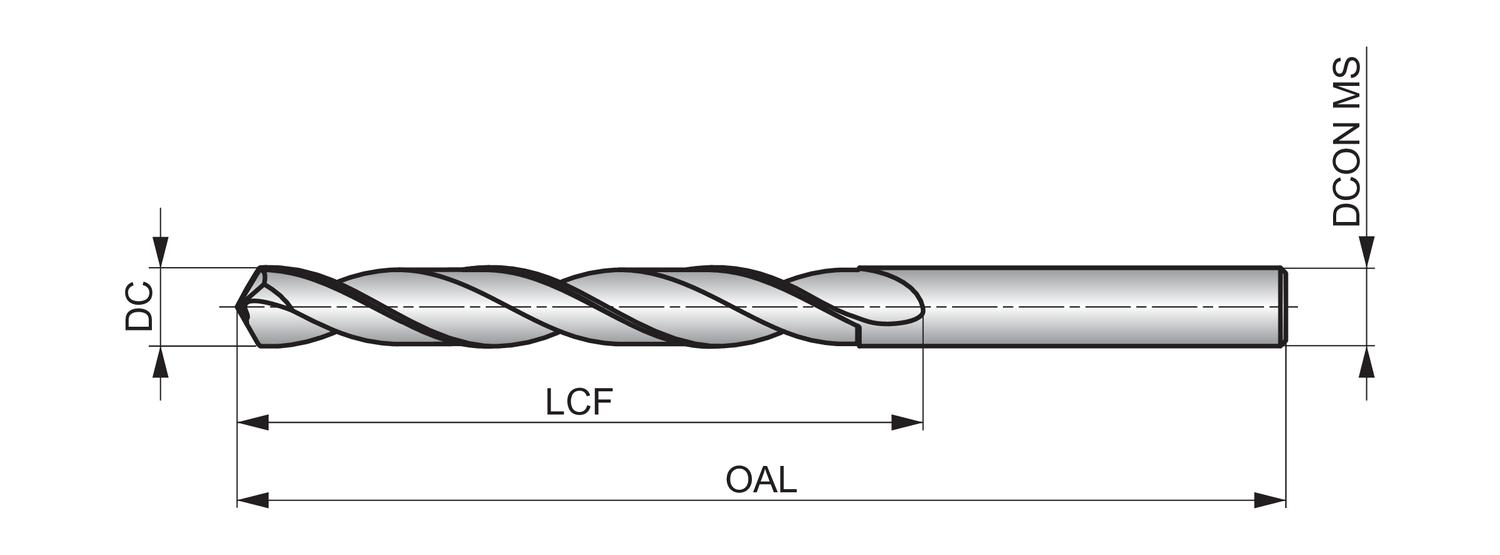

Additional Information	Description: Value EAN number: 3603607083130 Product number (SAP): 86046525 Ordering code ANSI: R003N20 Gross weight – grams: 12.57 Cutting diameter – millimeter (DC): 4.089 mm Cutting diameter – inch (DC): 0.161 inch Length chip flute – millimeter (LCF): 43 mm Overall length – millimeter (OAL): 75 mm Connection diameter – millimeter (DCON MS): 4.089 mm Length chip flute – inch (LCF): 1.6929 inch ISO: R003N20
