DORMER R003N3 Carbide Drills

Product Code: R003N3

$96.88$88.07 Ex. GST

Product Code: R003N3 SKU R003N3 Categories CUTTING TOOLS (HSS & Carbide), Drilling

DORMER R003N3 Carbide Drills

DORMER R003N3 Carbide Drills - Image 2

DORMER R003N3 Carbide Drills - Image 3

DORMER R003N3 Carbide Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Cutting diameter 0.213 inch, overall length 3.6614 inch, flute length 2.2441 inch, and maximal drilling depth 0.852 inch without pecking.

Additional information

Weight	0.0208 kg
Dimensions
barcode	3603607083307

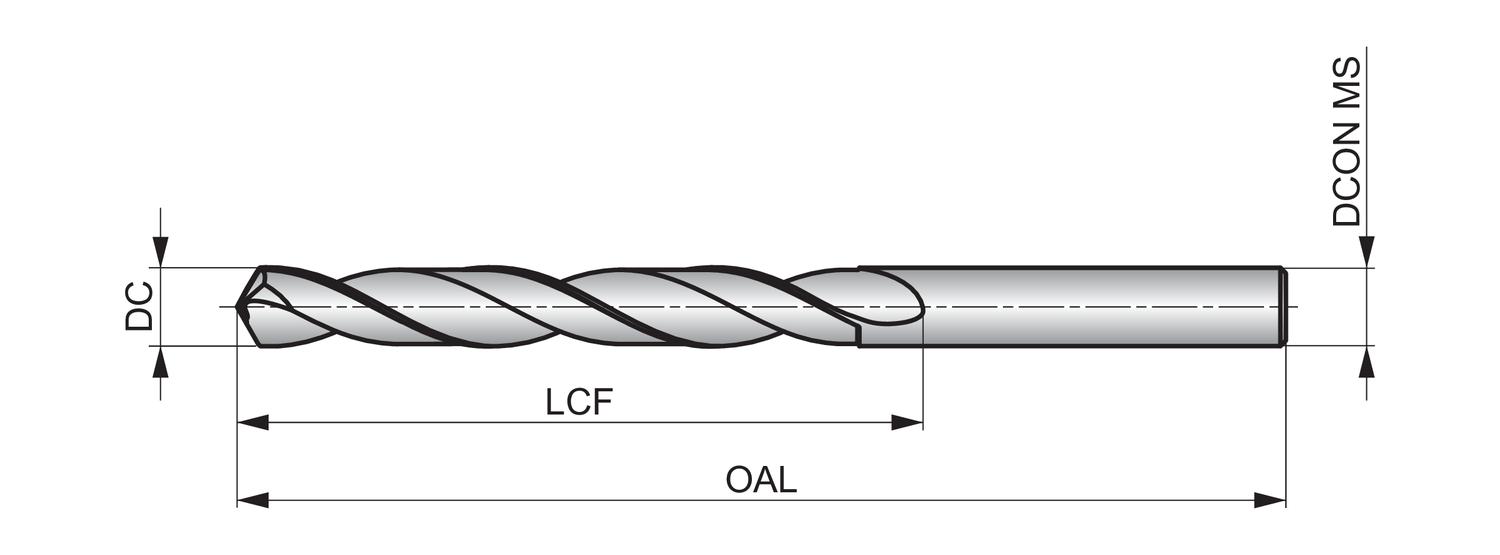

Additional Information	Description: Value EAN number: 3603607083307 Product number (SAP): 86046533 Ordering code ANSI: R003N3 Gross weight – grams: 29.82 Cutting diameter – millimeter (DC): 5.41 mm Cutting diameter – inch (DC): 0.213 inch Length chip flute – millimeter (LCF): 57 mm Overall length – millimeter (OAL): 93 mm Connection diameter – millimeter (DCON MS): 5.41 mm Length chip flute – inch (LCF): 2.2441 inch ISO: R003N3
