ABN 37 114 870 012

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Drilling » DORMER R003U Carbide Drills

DORMER R003U Carbide Drills

Product Code: R003U

$129.16$117.42 Ex. GST

Product Code: R003U SKU R003U Categories CUTTING TOOLS (HSS & Carbide), Drilling

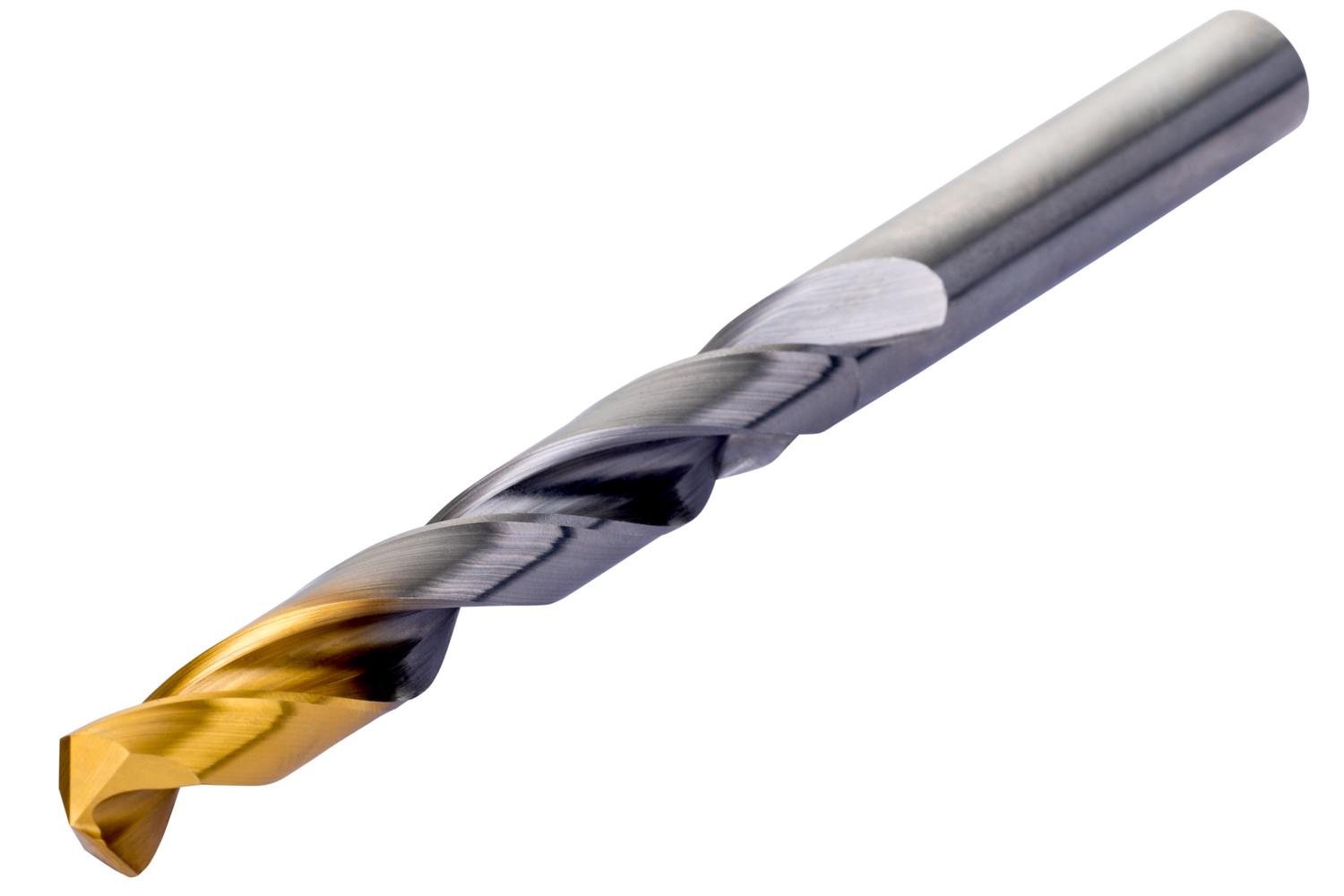

DORMER R003U Carbide Drills

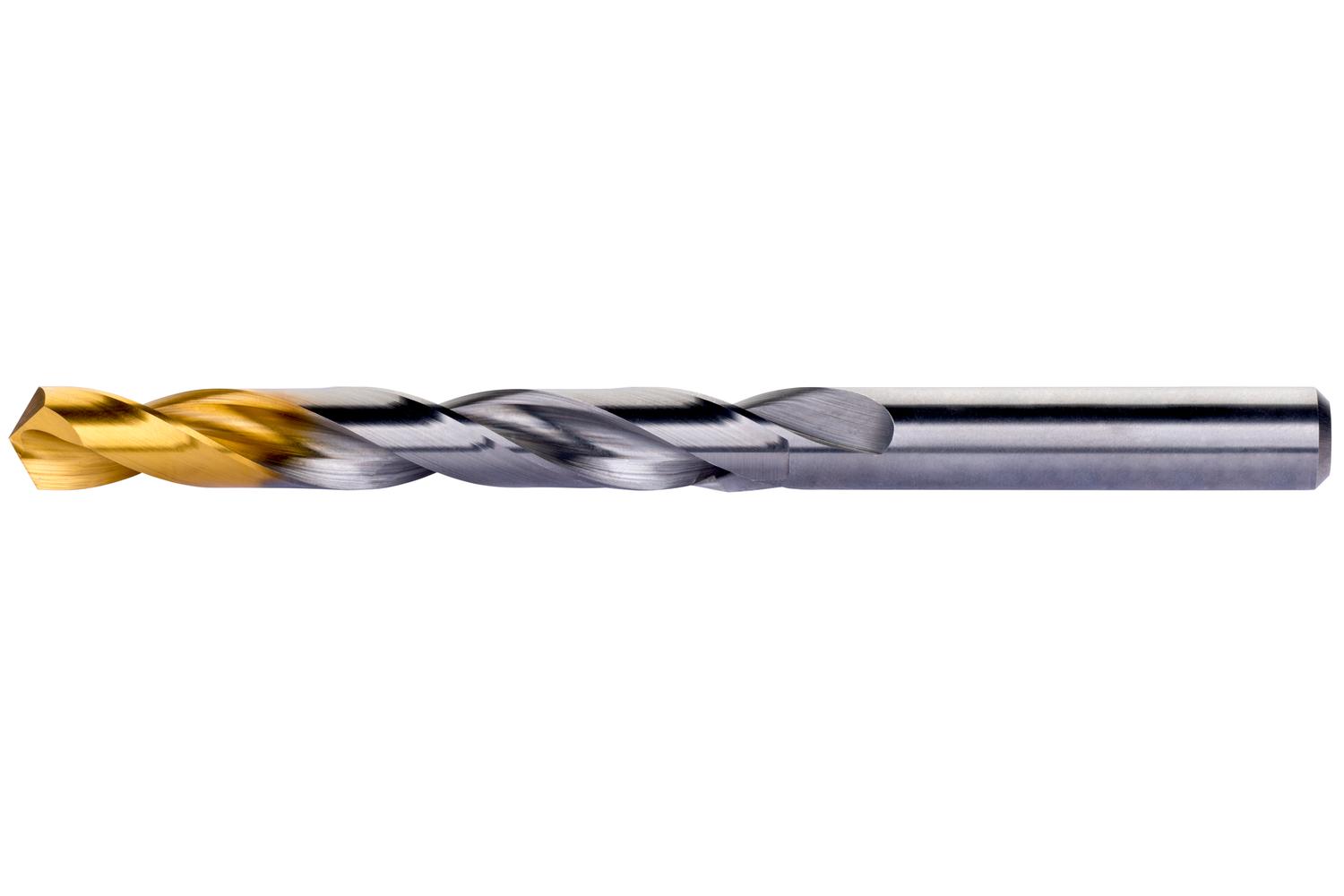

DORMER R003U Carbide Drills - Image 2

DORMER R003U Carbide Drills - Image 3

DORMER R003U Carbide Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Cutting diameter 0.368 inch, overall length 4.9213 inch, flute length 3.189 inch, and maximal drilling depth 1.472 inch without pecking.

Additional information

Weight	0.0796 kg
Dimensions
barcode	3603607082591

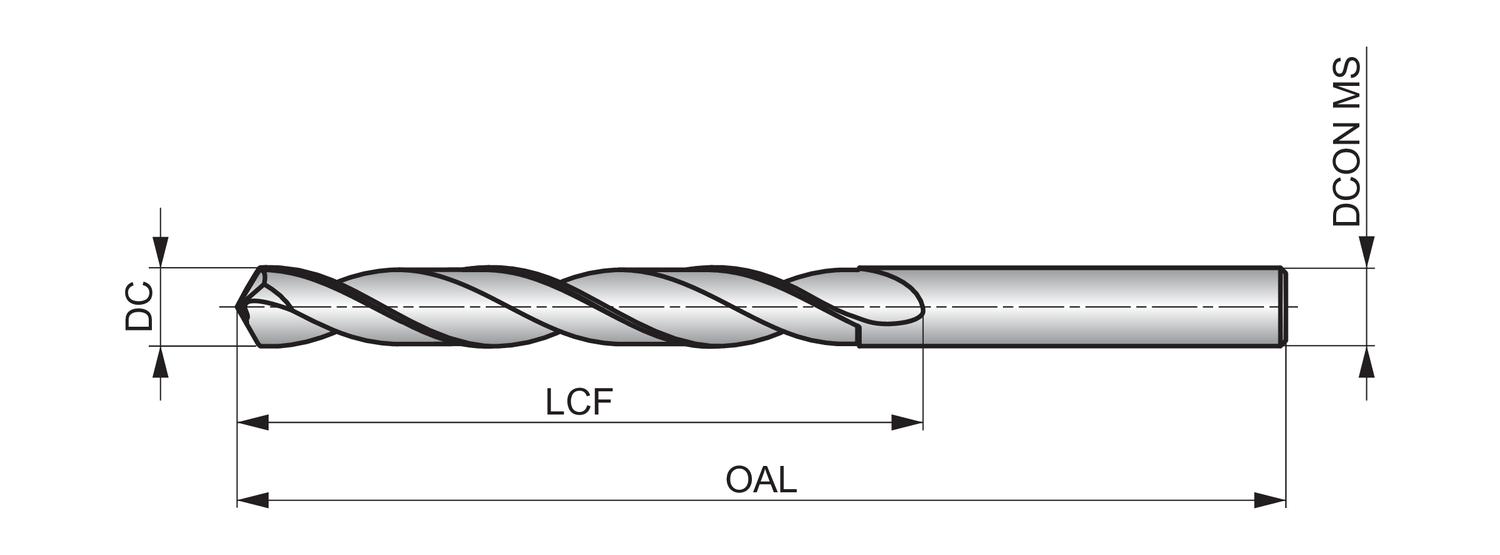

Additional Information	Description: Value EAN number: 3603607082591 Product number (SAP): 86046498 Ordering code ANSI: R003U Gross weight – grams: 91.69 Cutting diameter – millimeter (DC): 9.347 mm Cutting diameter – inch (DC): 0.368 inch Length chip flute – millimeter (LCF): 81 mm Overall length – millimeter (OAL): 125 mm Connection diameter – millimeter (DCON MS): 9.347 mm Length chip flute – inch (LCF): 3.189 inch ISO: R003U
