DORMER R02311.0 Carbide Drills

Product Code: R02311.0

$145.02$131.84 Ex. GST

Product Code: R02311.0 SKU R02311.0 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

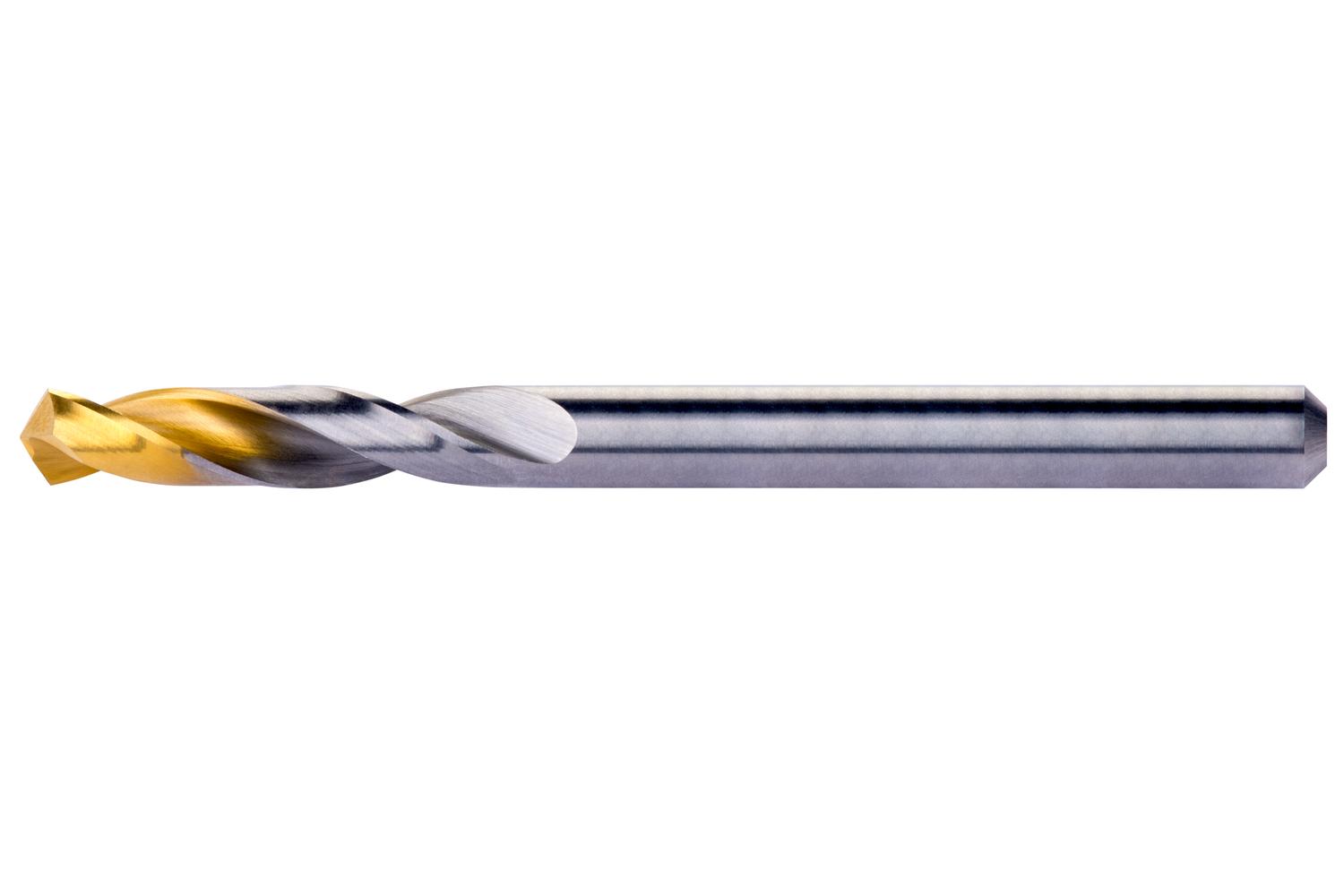

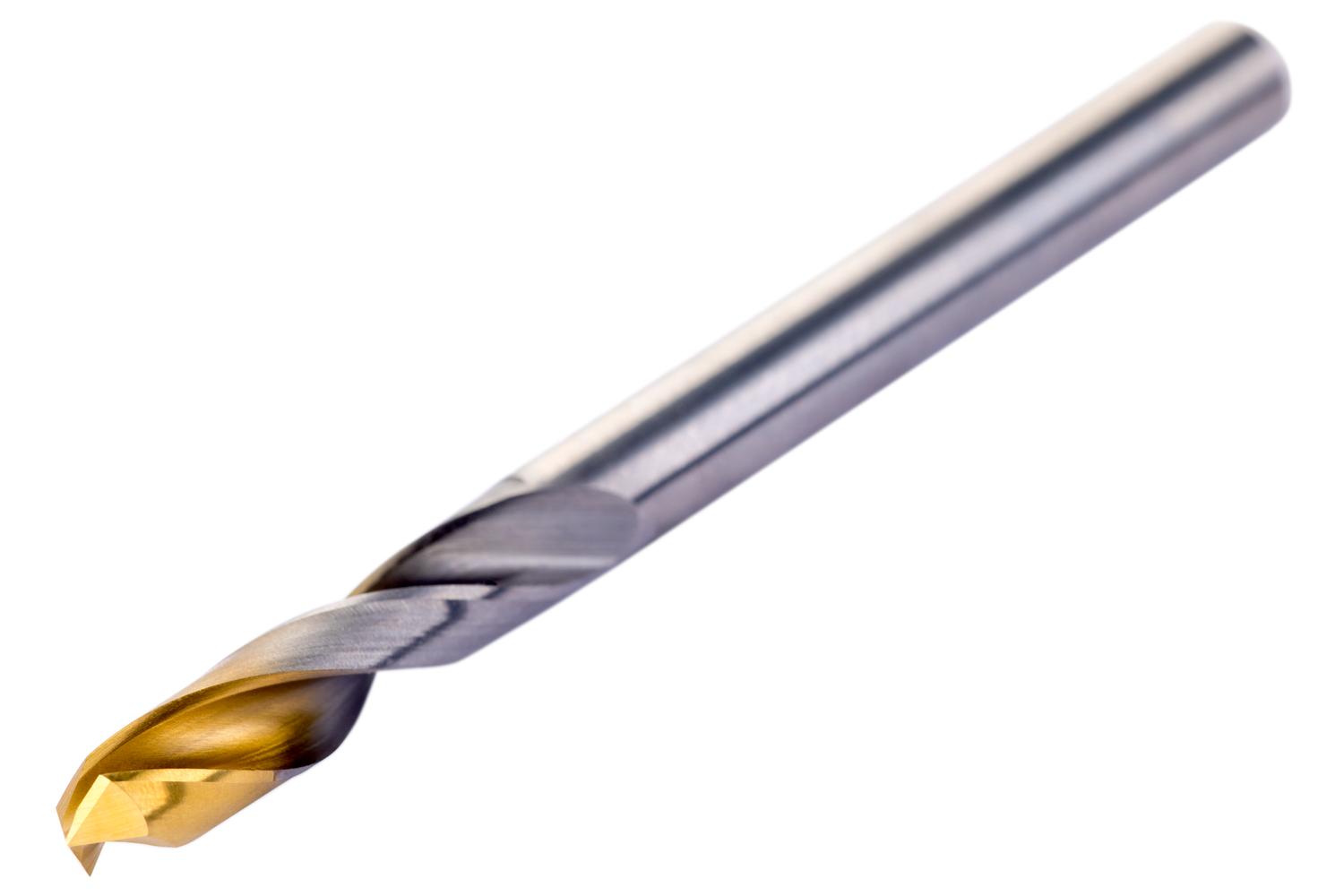

Cutting diameter 11 mm, overall length 95 mm, flute length 47 mm, and maximal drilling depth 27.5 mm without pecking.

Additional information

Weight 0.1020 kg
Dimensions
barcode

3603607085844

Additional Information

Description: Value
EAN number: 3603607085844
Product number (SAP): 86046726
Ordering code ANSI: R02311.0
Gross weight – grams: 102.013

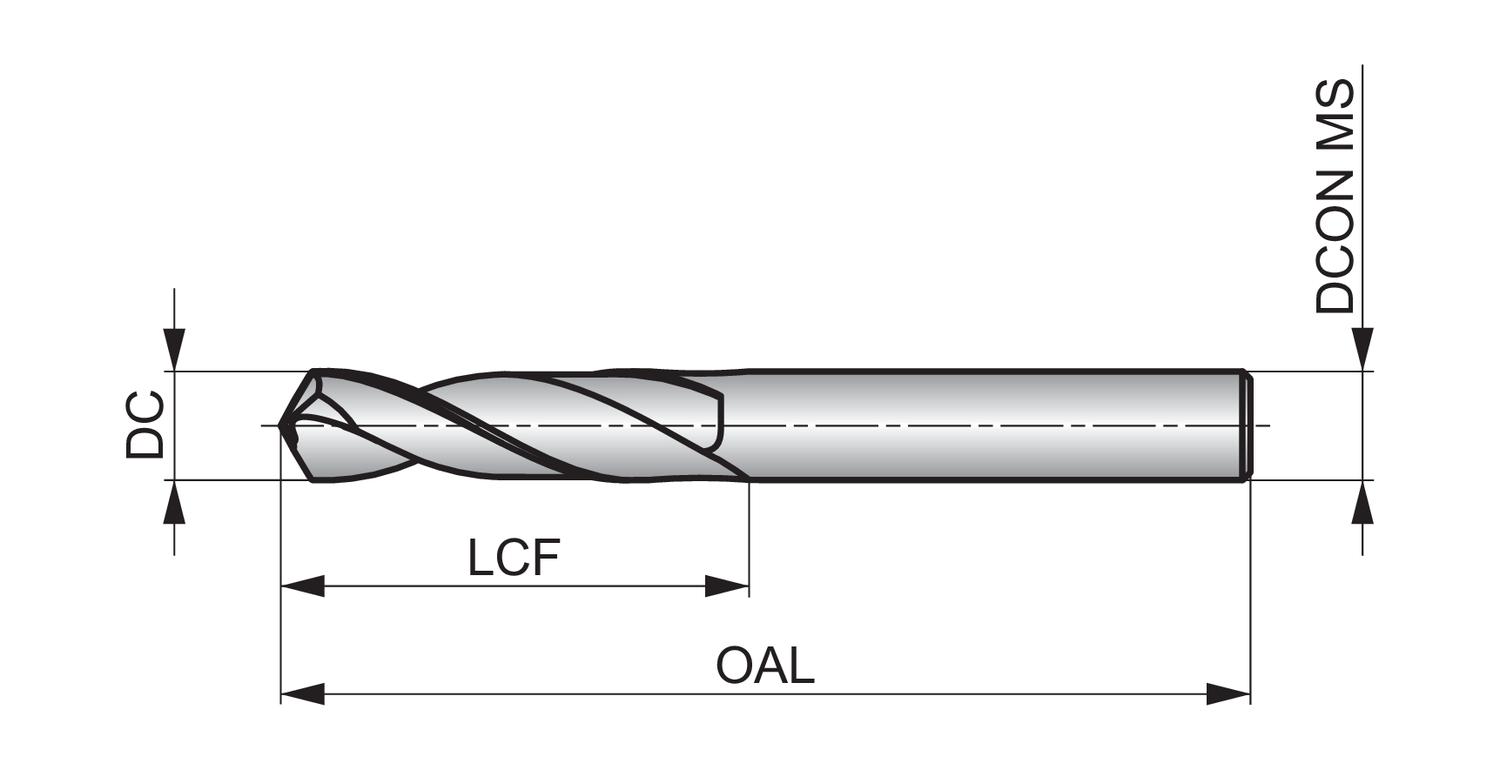

Cutting diameter – millimeter (DC): 11 mm
Cutting diameter – inch (DC): 0.4331 inch
Length chip flute – millimeter (LCF): 47 mm
Overall length – millimeter (OAL): 95 mm
Connection diameter – millimeter (DCON MS): 11 mm
Length chip flute – inch (LCF): 1.8504 inch
ISO: R02311.0
