DORMER R0234.3 Carbide Drills

Product Code: R0234.3

$44.08$40.07 Ex. GST

Product Code: R0234.3 SKU R0234.3 Categories CUTTING TOOLS (HSS & Carbide), Drilling

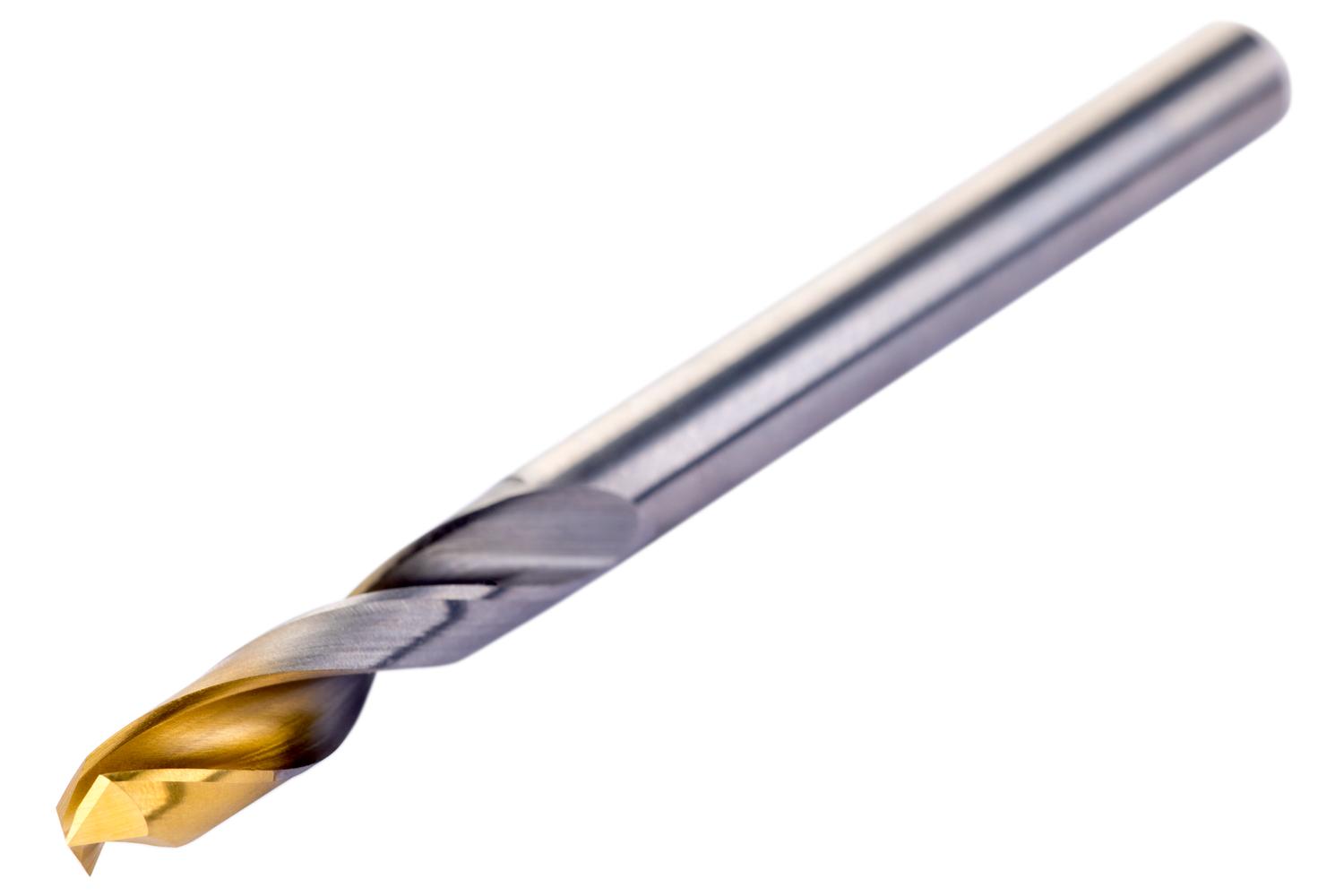

DORMER R0234.3 Carbide Drills

DORMER R0234.3 Carbide Drills - Image 2

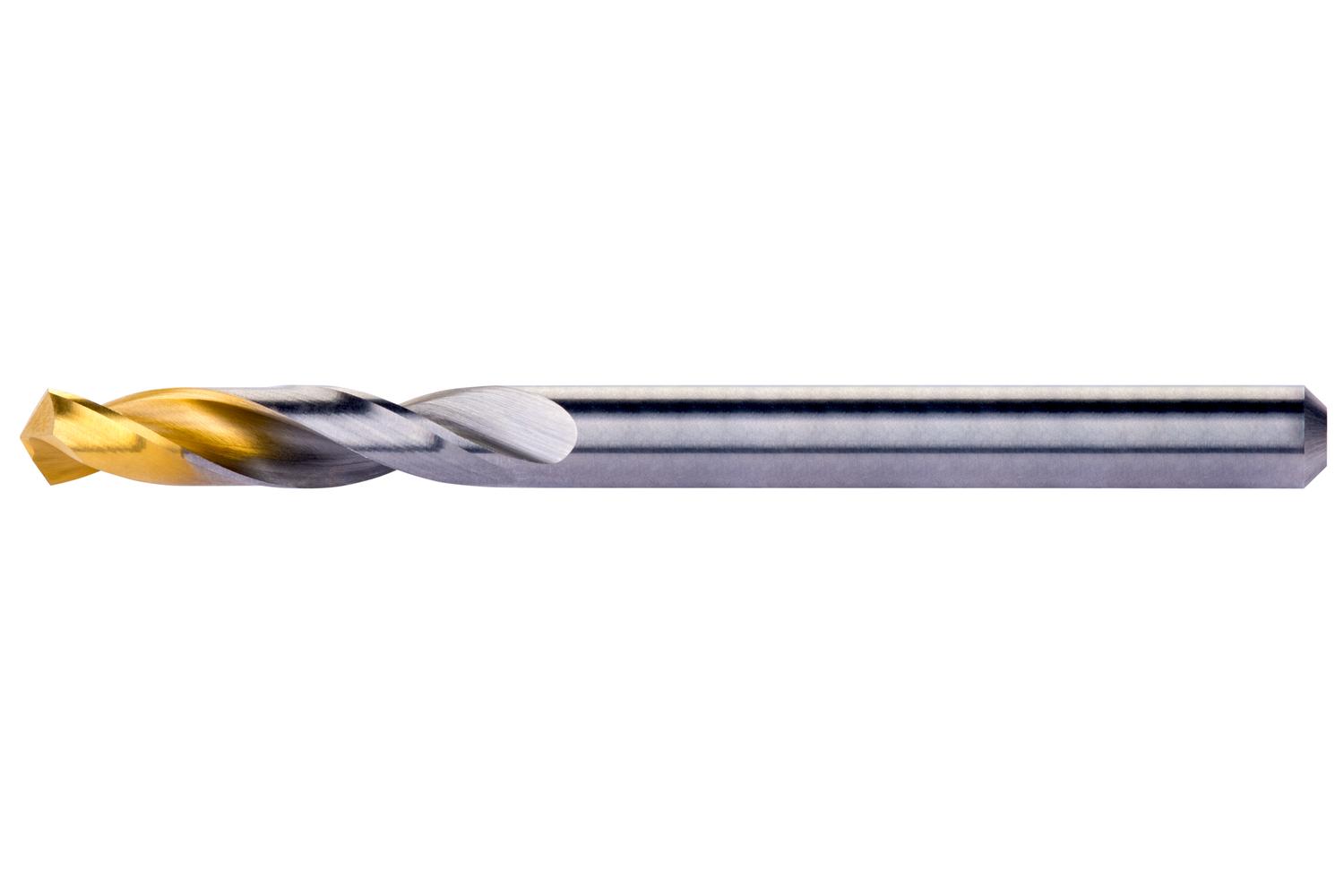

DORMER R0234.3 Carbide Drills - Image 3

DORMER R0234.3 Carbide Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Cutting diameter 4.3 mm, overall length 58 mm, flute length 24 mm, and maximal drilling depth 10.75 mm without pecking.

Additional information

Weight	0.0104 kg
Dimensions
barcode	3603607085240

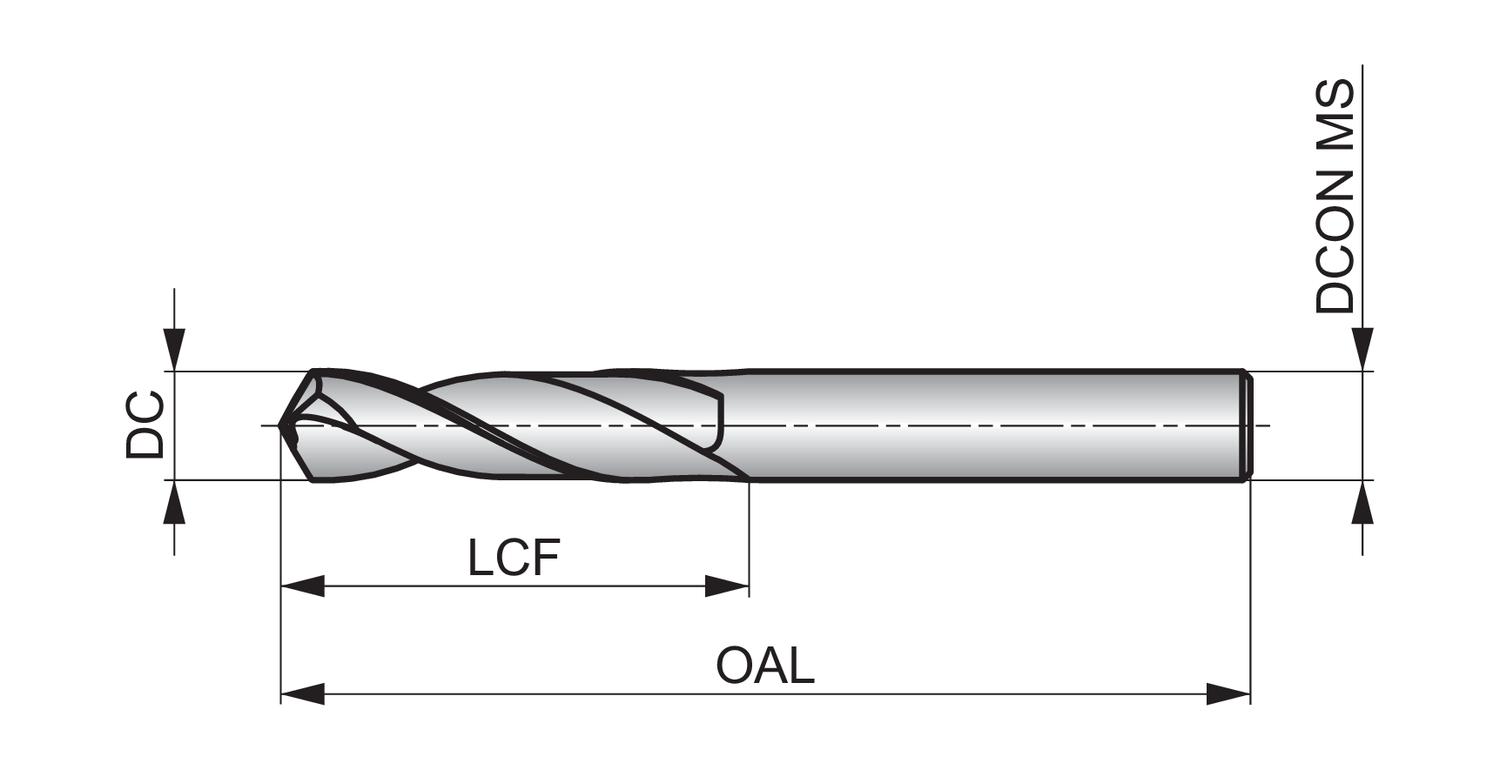

Additional Information	Description: Value EAN number: 3603607085240 Product number (SAP): 86046666 Ordering code ANSI: R0234.3 Gross weight – grams: 10.417 Cutting diameter – millimeter (DC): 4.3 mm Cutting diameter – inch (DC): 0.1693 inch Length chip flute – millimeter (LCF): 24 mm Overall length – millimeter (OAL): 58 mm Connection diameter – millimeter (DCON MS): 4.3 mm Length chip flute – inch (LCF): 0.9449 inch ISO: R0234.3
