DORMER R0234.4 Carbide Drills

Product Code: R0234.4

$44.08$40.07 Ex. GST

Product Code: R0234.4 SKU R0234.4 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Cutting diameter 4.4 mm, overall length 58 mm, flute length 24 mm, and maximal drilling depth 11 mm without pecking.

Additional information

Weight 0.0109 kg
Dimensions
barcode

3603607085257

Additional Information

Description: Value
EAN number: 3603607085257
Product number (SAP): 86046667
Ordering code ANSI: R0234.4
Gross weight – grams: 10.907

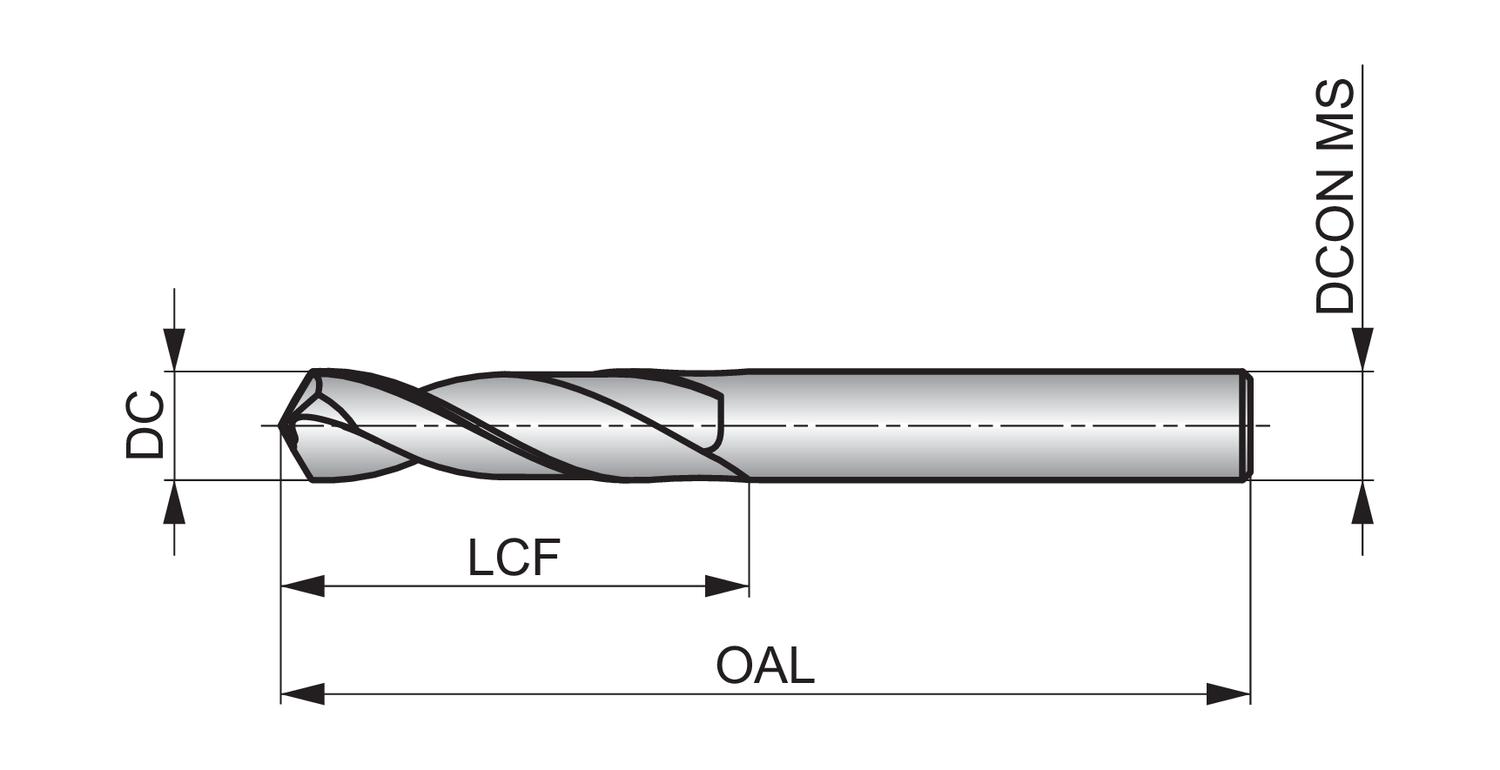

Cutting diameter – millimeter (DC): 4.4 mm
Cutting diameter – inch (DC): 0.1732 inch
Length chip flute – millimeter (LCF): 24 mm
Overall length – millimeter (OAL): 58 mm
Connection diameter – millimeter (DCON MS): 4.4 mm
Length chip flute – inch (LCF): 0.9449 inch
ISO: R0234.4
