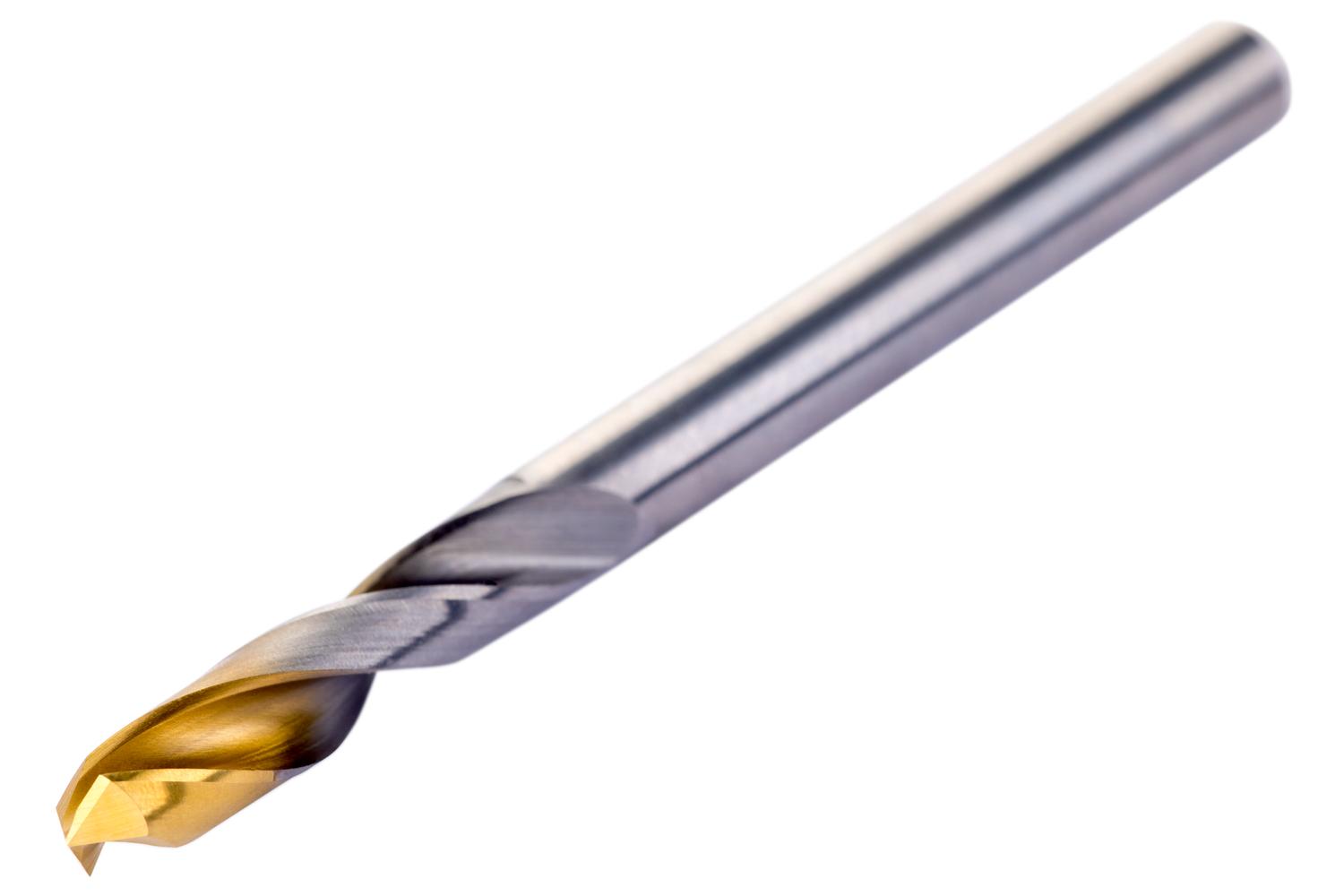

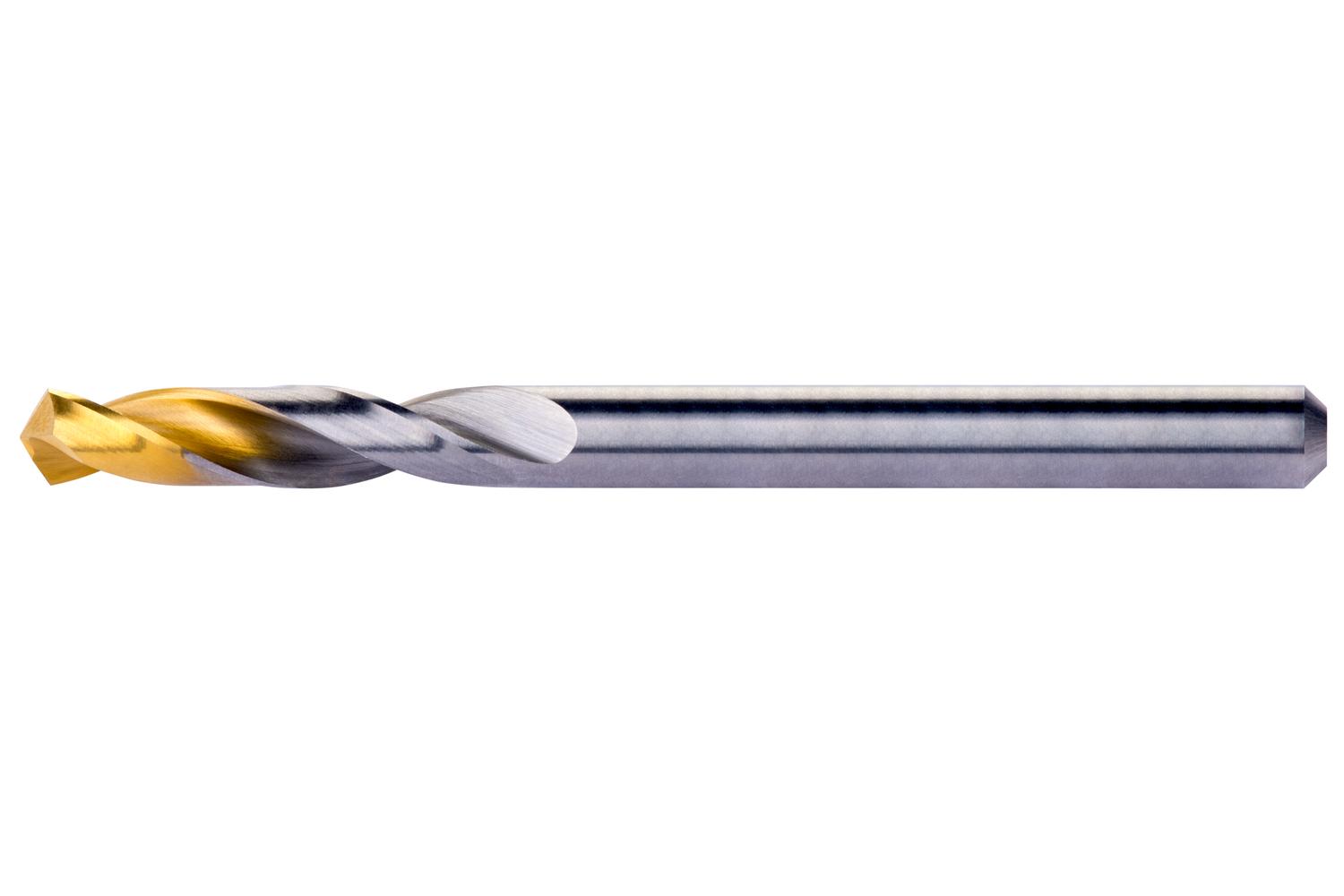

DORMER R0237.6 Carbide Drills

Product Code: R0237.6

$105.37$95.79 Ex. GST

Product Code: R0237.6 SKU R0237.6 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Cutting diameter 7.6 mm, overall length 79 mm, flute length 37 mm, and maximal drilling depth 19 mm without pecking.

Additional information

Weight 0.0417 kg
Dimensions
barcode

3603607085578

Additional Information

Description: Value
EAN number: 3603607085578
Product number (SAP): 86046699
Ordering code ANSI: R0237.6
Gross weight – grams: 41.742

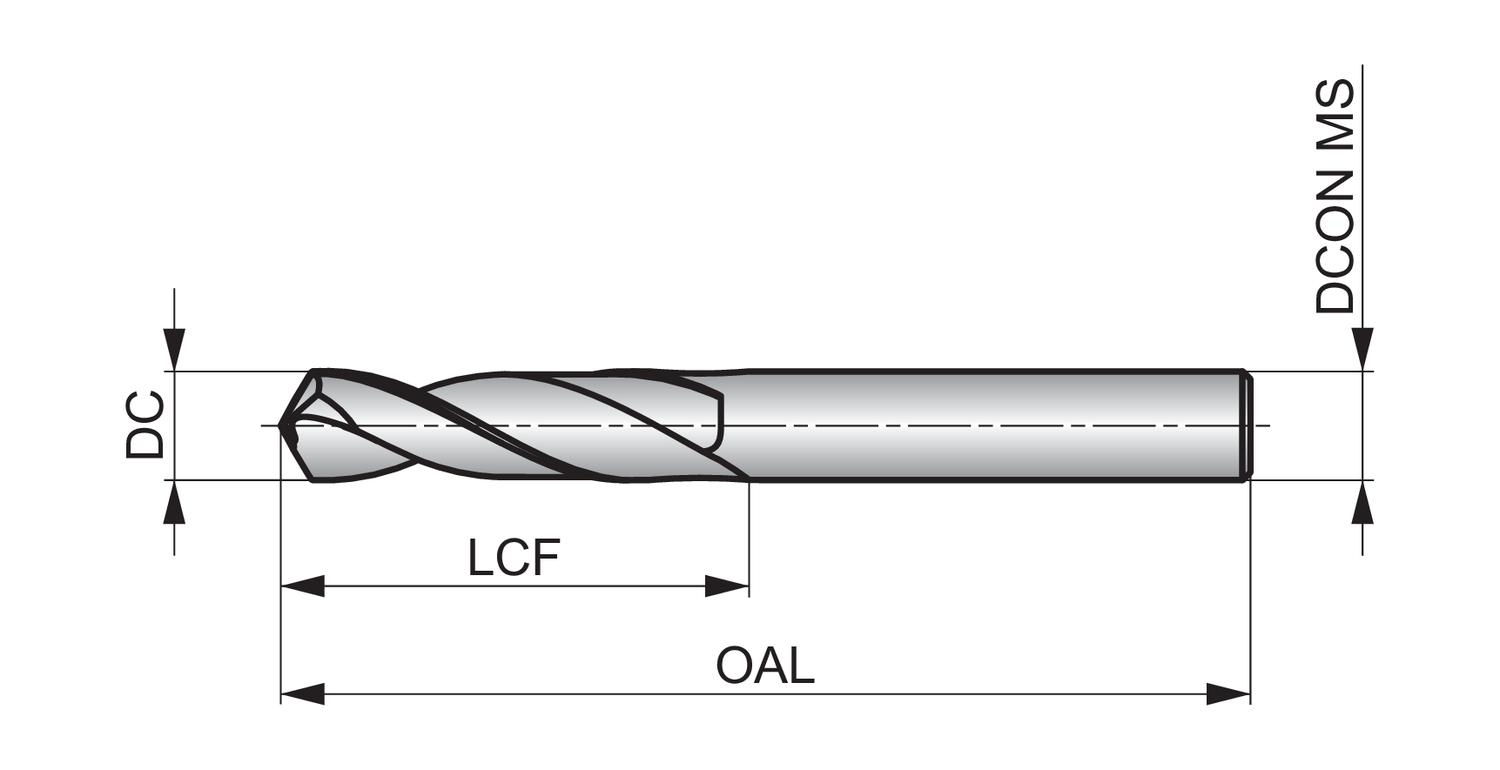

Cutting diameter – millimeter (DC): 7.6 mm
Cutting diameter – inch (DC): 0.2992 inch
Length chip flute – millimeter (LCF): 37 mm
Overall length – millimeter (OAL): 79 mm
Connection diameter – millimeter (DCON MS): 7.6 mm
Length chip flute – inch (LCF): 1.4567 inch
ISO: R0237.6
