DORMER R0238.8 Carbide Drills

Product Code: R0238.8

$111.03$100.94 Ex. GST

Product Code: R0238.8 SKU R0238.8 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Cutting diameter 8.8 mm, overall length 84 mm, flute length 40 mm, and maximal drilling depth 22 mm without pecking.

Additional information

Weight 0.0590 kg
Dimensions
barcode

3603607085691

Additional Information

Description: Value
EAN number: 3603607085691
Product number (SAP): 86046711
Ordering code ANSI: R0238.8
Gross weight – grams: 58.978

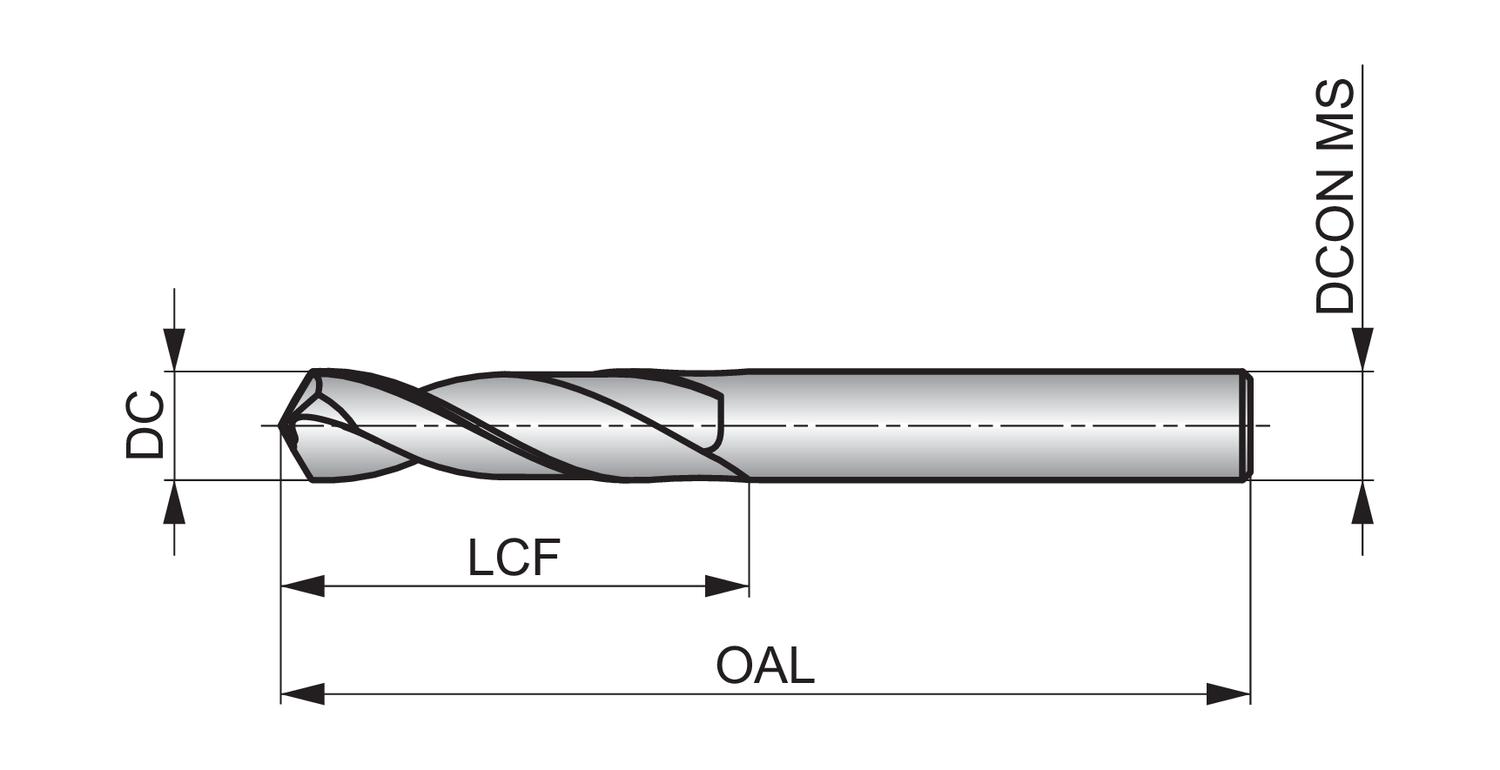

Cutting diameter – millimeter (DC): 8.8 mm
Cutting diameter – inch (DC): 0.3465 inch
Length chip flute – millimeter (LCF): 40 mm
Overall length – millimeter (OAL): 84 mm
Connection diameter – millimeter (DCON MS): 8.8 mm
Length chip flute – inch (LCF): 1.5748 inch
ISO: R0238.8
