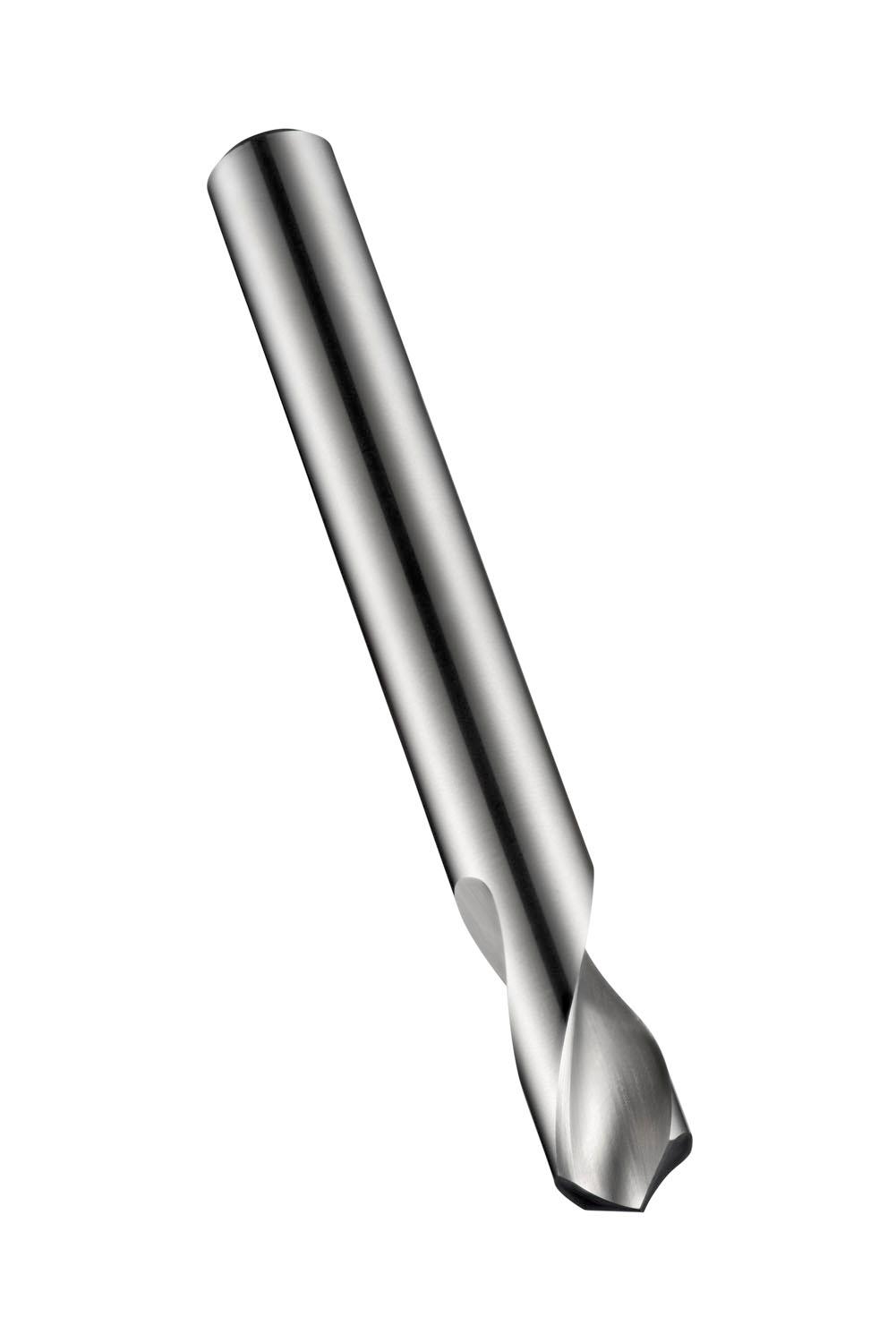

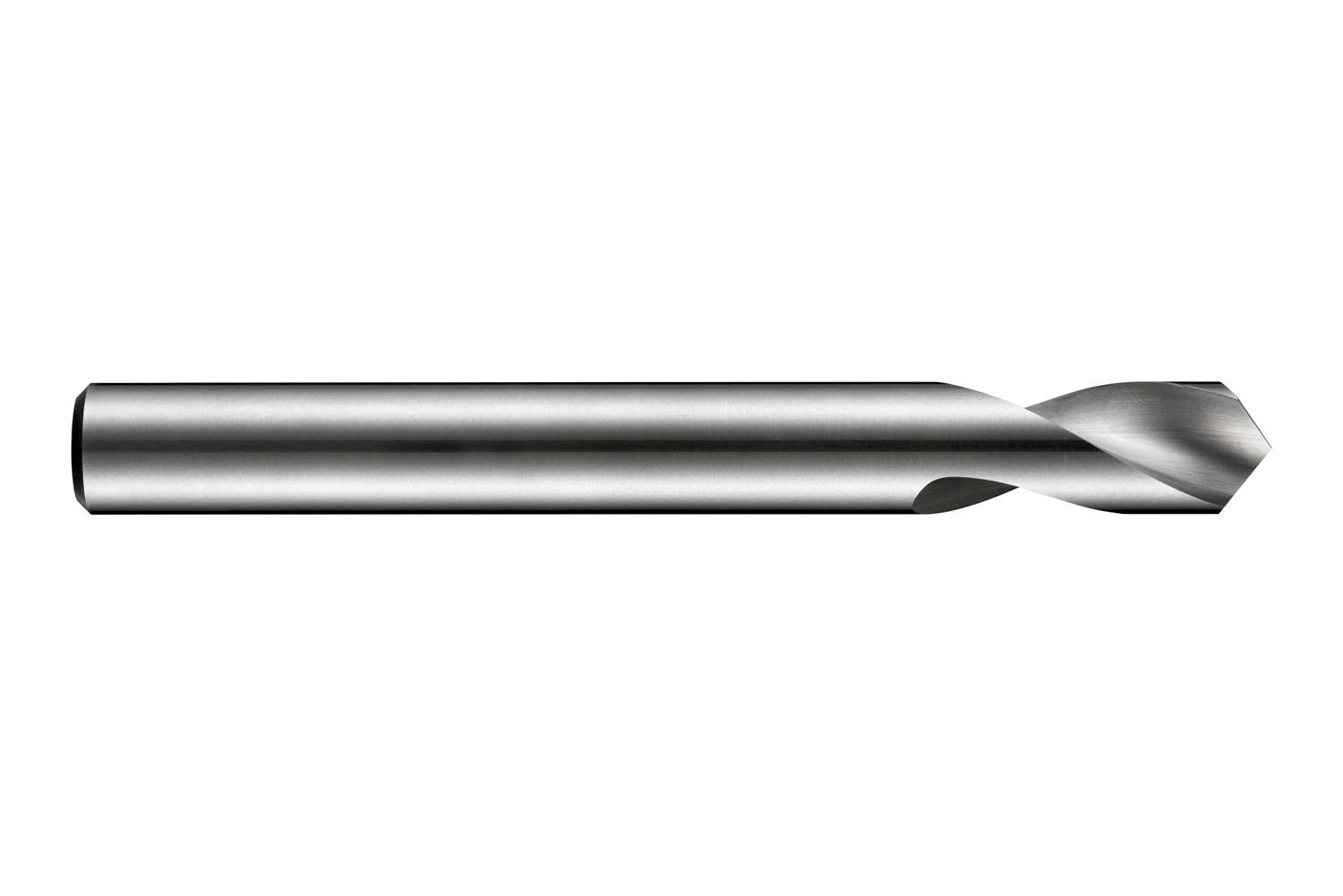

DORMER R12210.0 Carbide Drills

Product Code: R12210.0

$173.35$157.59 Ex. GST

Product Code: R12210.0 SKU R12210.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Dormer’s R122 spotting drills have a 120 degree point which helps with self-centering and reduces the push force needed to drill into the application material. The precision engineered point angle provides an accurate guide to help with centering of follow-up drilling of the hole, whilst the bright finish prevents workpiece material from sticking to the cutting edges of the tool to make sure you get clean and accurate results. R122 drills are manufactured from premium carbide for drilling a wide range of materials including steels, aluminium and stainless steel and come in a large selection of sizes to suit most drilling applications, making them a very versatile choice.

Additional information

Weight 0.1683 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760114643
Product number (SAP): 86018961
Ordering code ANSI: R12210.0
Gross weight – grams: 91

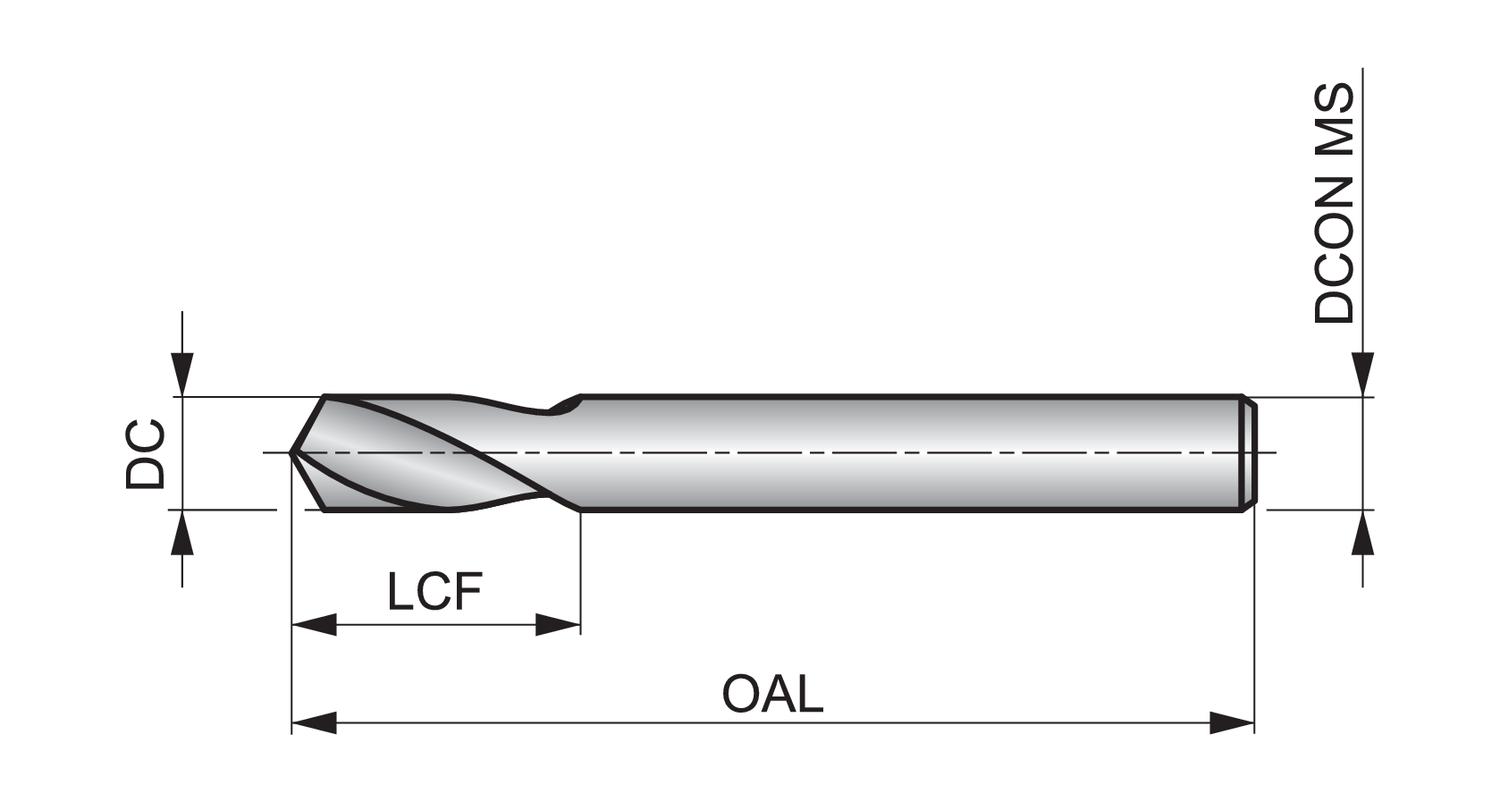

Cutting diameter – millimeter (DC): 10 mm
Cutting diameter – inch (DC): 0.3937 inch
Length chip flute – millimeter (LCF): 26 mm
Overall length – millimeter (OAL): 89 mm
Connection diameter – millimeter (DCON MS): 10 mm
ISO: R12210.0

Brand

DORMER
