DORMER R1236.0 Carbide Drills

Product Code: R1236.0

$80.44$73.13 Ex. GST

Product Code: R1236.0 SKU R1236.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

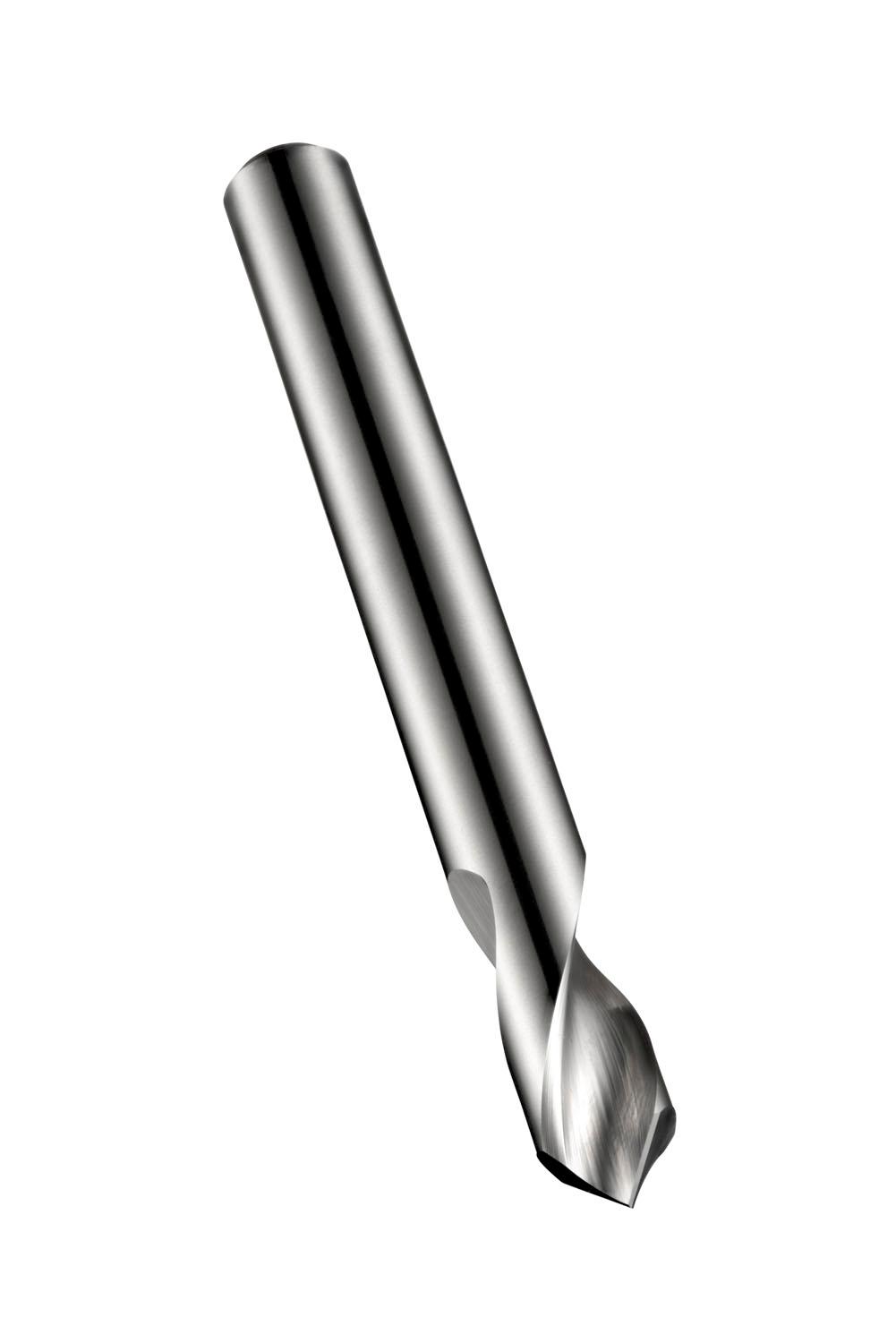

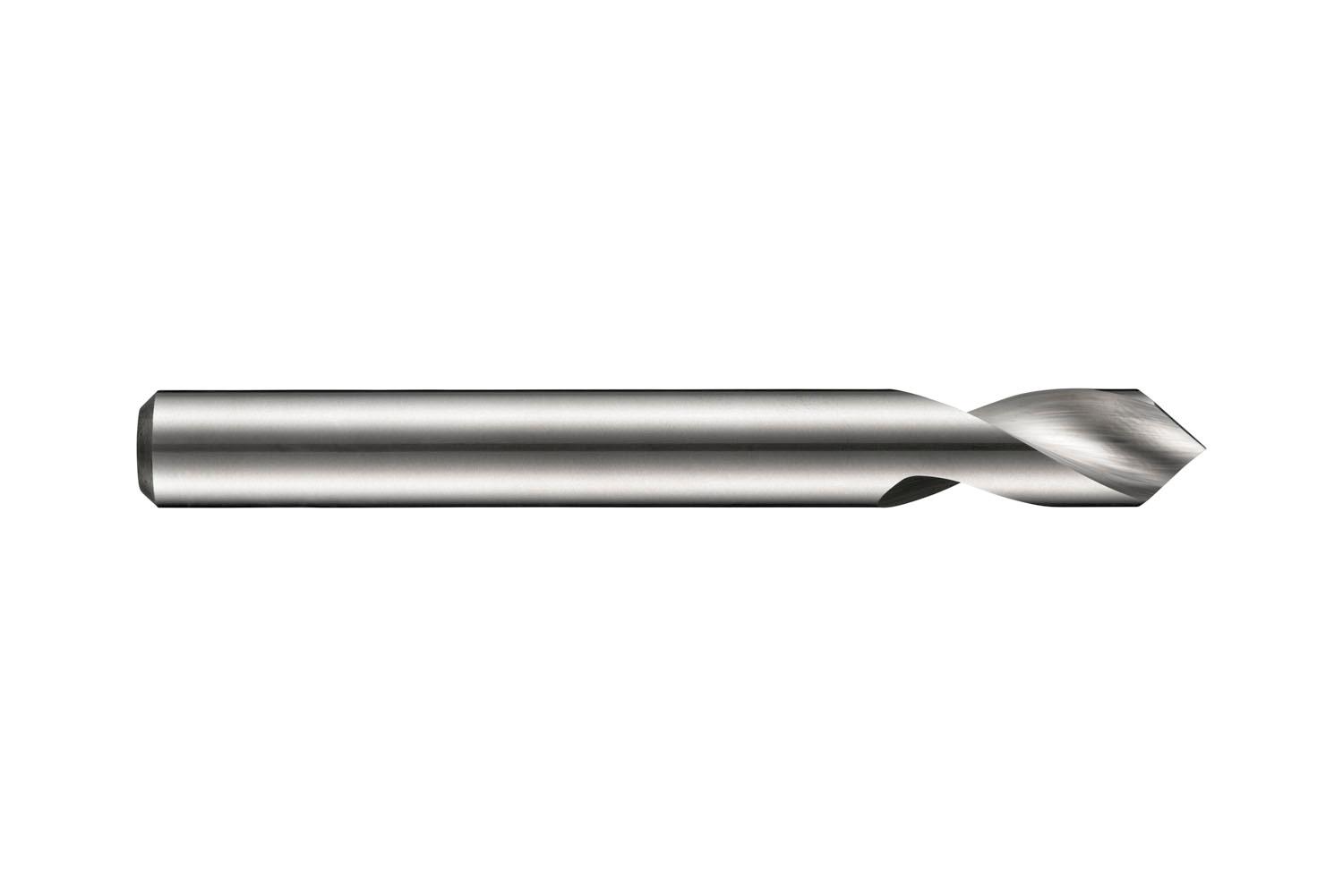

Part of Dormer’s range of solid carbide drills, R123 spotting drills have a precision 90 degree point angle for accurate chamfering to accommodate standard screws, and also reduces the amount of force needed to machine the workpiece and helps to self-center the drill. The bright finish assures a clean result by preventing workpiece material from sticking to the cutting edges of the tool. R123 spotting drills are very versatile, being available in a wide range of sizes to suit most needs, and manufactured from premium carbide so they are suitable for drilling many different materials, including stainless steel, steels and aluminium.

Additional information

Weight 0.0781 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760114742
Product number (SAP): 86018973
Ordering code ANSI: R1236.0
Gross weight – grams: 30.1

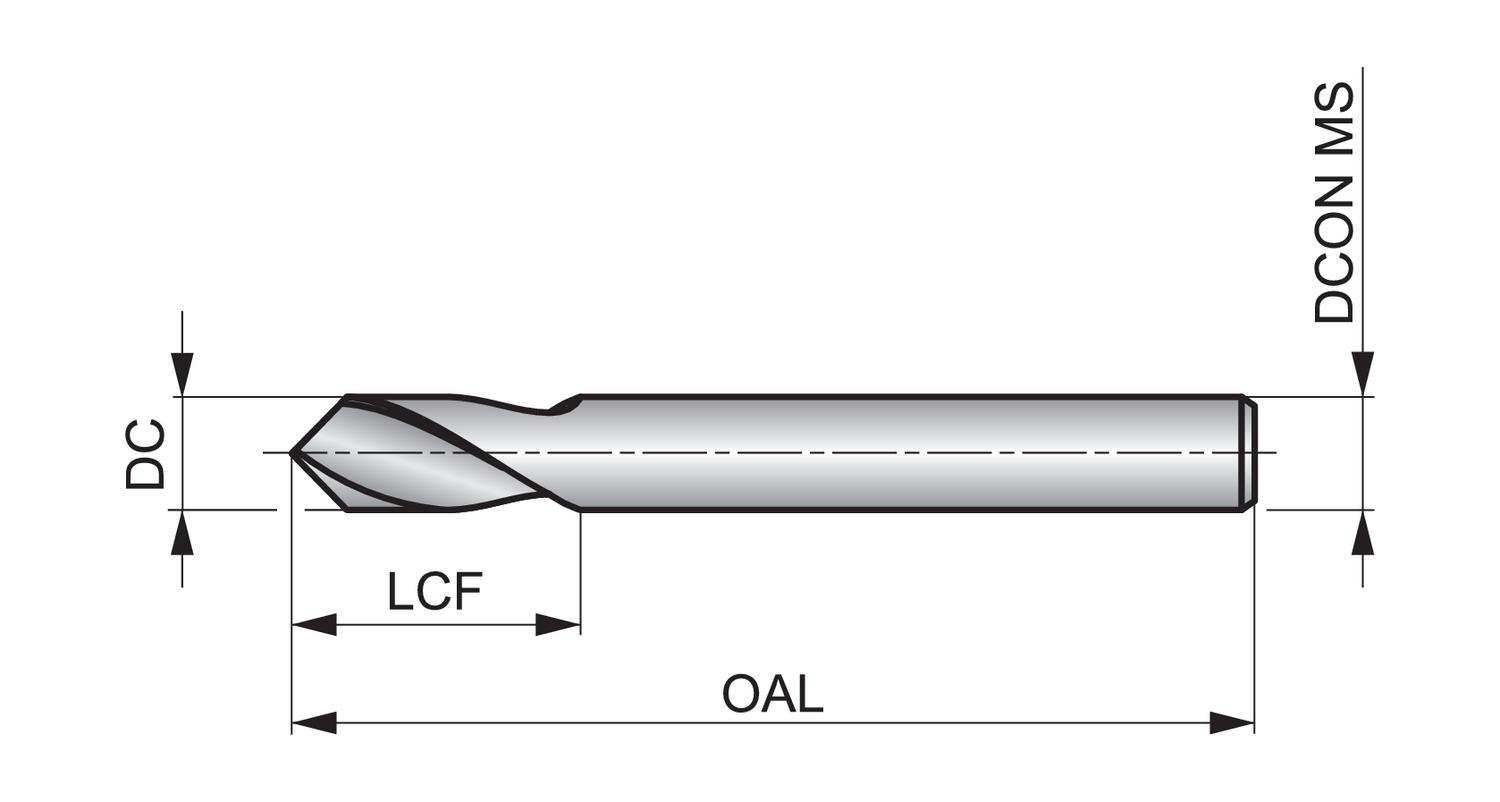

Cutting diameter – millimeter (DC): 6 mm
Cutting diameter – inch (DC): 0.2362 inch
Length chip flute – millimeter (LCF): 17 mm
Overall length – millimeter (OAL): 66 mm
Connection diameter – millimeter (DCON MS): 6 mm
ISO: R1236.0

Brand

DORMER
