DORMER R2001.0X3.15 Carbide Drills

Product Code: R2001.0X3.15

$98.01$89.10 Ex. GST

Product Code: R2001.0X3.15 SKU R2001.0X3.15 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

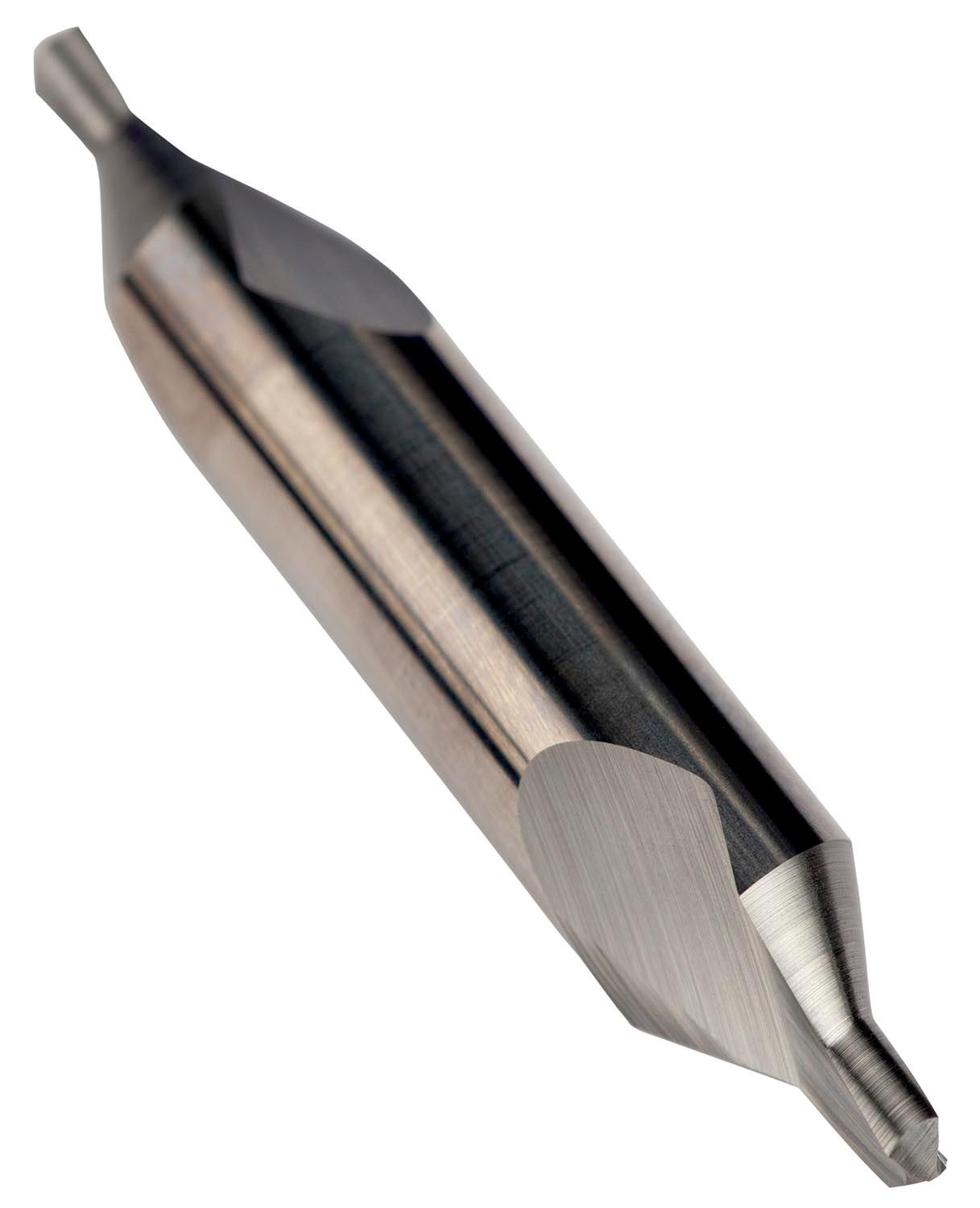

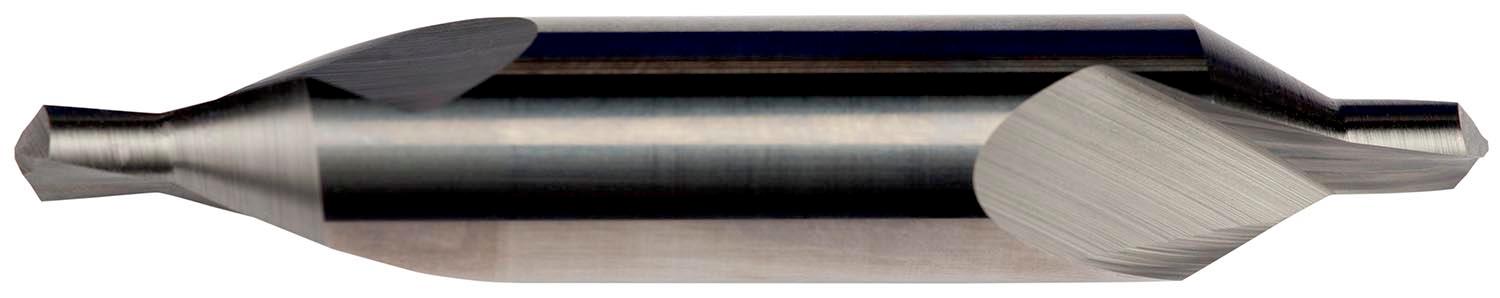

R200 solid carbide centre drills have a 180 degree pilot and 60 degree cone and are recommended for creating center holes in shafts for secure holding. Suitable for use with all CNC machines, the drills are very versatile and are able to drill many materials including steels, stainless steel and aluminium, being manufactured from premium carbide. The tools come with a bright finish to ensure clean, accurate results by stopping workpiece material from sticking to the cutting edges of the tool. For further improvements in productivity and increased economy, R200 center drills are double-ended so twice the productivity in a single tool.

Additional information

Weight 0.0952 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760708668
Product number (SAP): 86031068
Ordering code ANSI: R2001.0X3.15
Gross weight – grams: 5

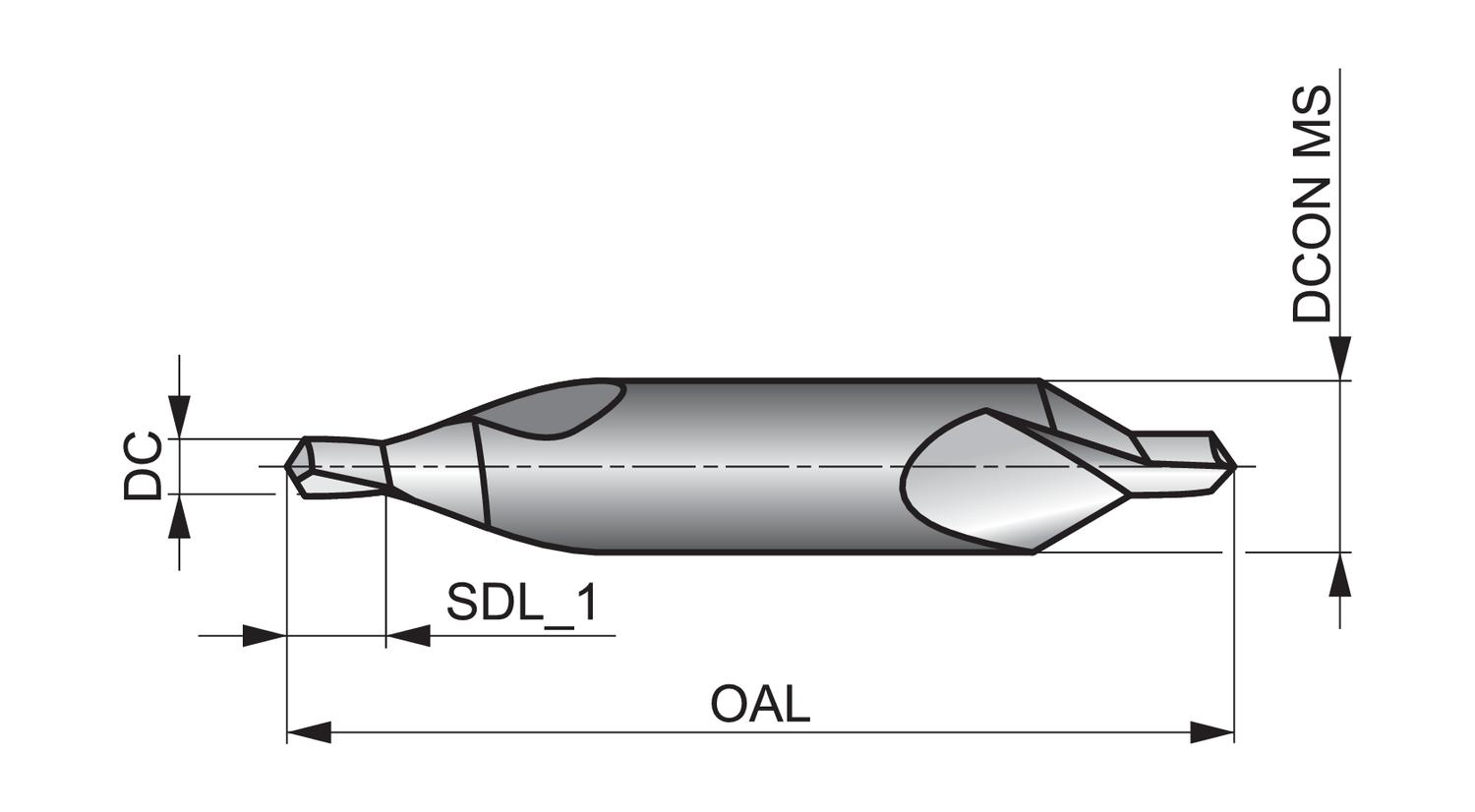

Cutting diameter – millimeter (DC): 1 mm
Cutting diameter – inch (DC): 0.0394 inch
Step diameter length range – millimeters (SDL_1): 1.7 – 1.3
Overall length – millimeter (OAL): 31 mm
Connection diameter – millimeter (DCON MS): 3.15 mm
ISO: R2001.0X3.15

Brand

DORMER
