DORMER R45310.4 Carbide Drills

Product Code: R45310.4

$311.58$283.25 Ex. GST

Product Code: R45310.4 SKU R45310.4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

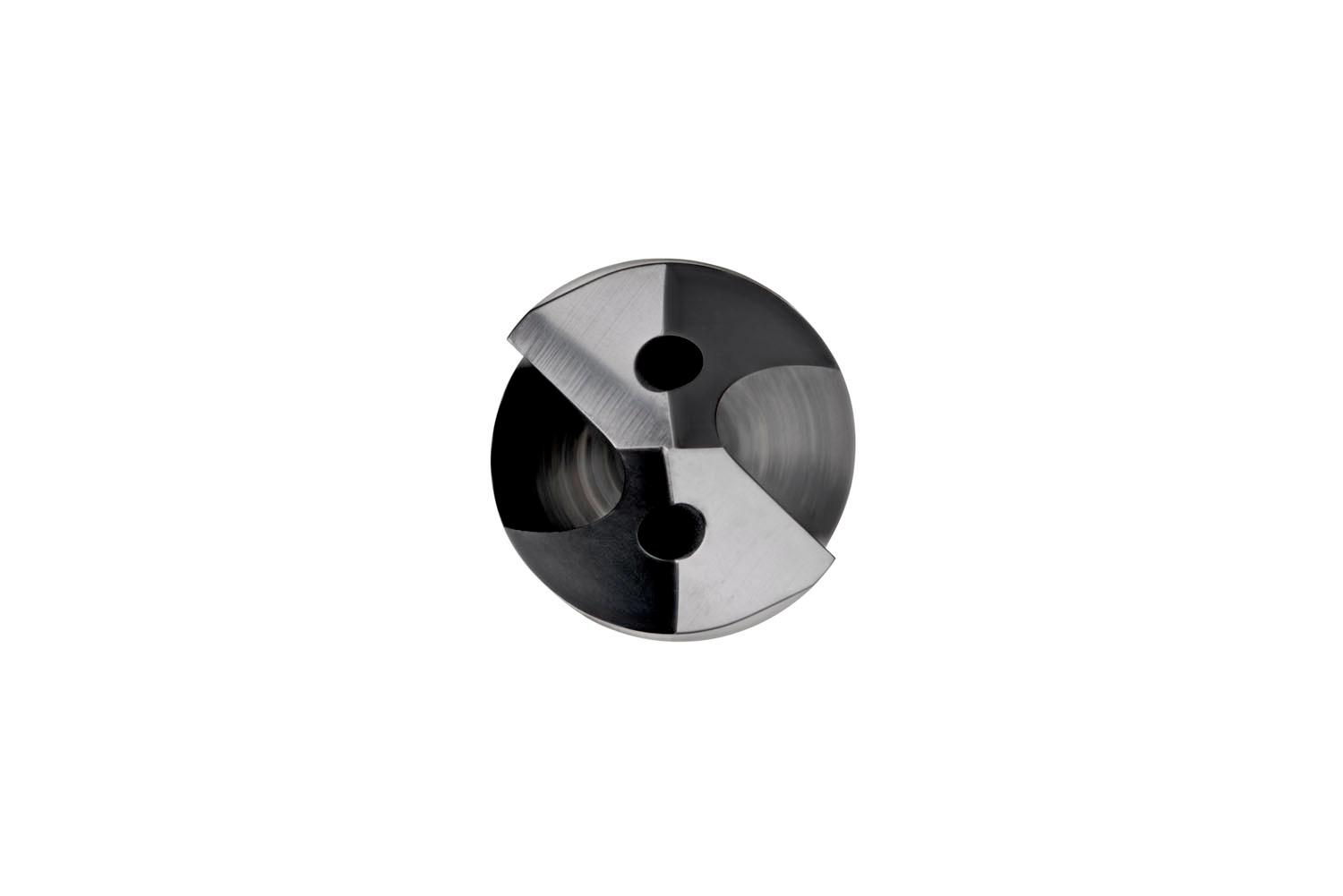

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 10.4mm with an overall length of 118mm and flute length of 70mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.3025 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760616130
Product number (SAP): 86018983
Ordering code ANSI: R45310.4
Product Line: FORCE X
Gross weight – grams: 127

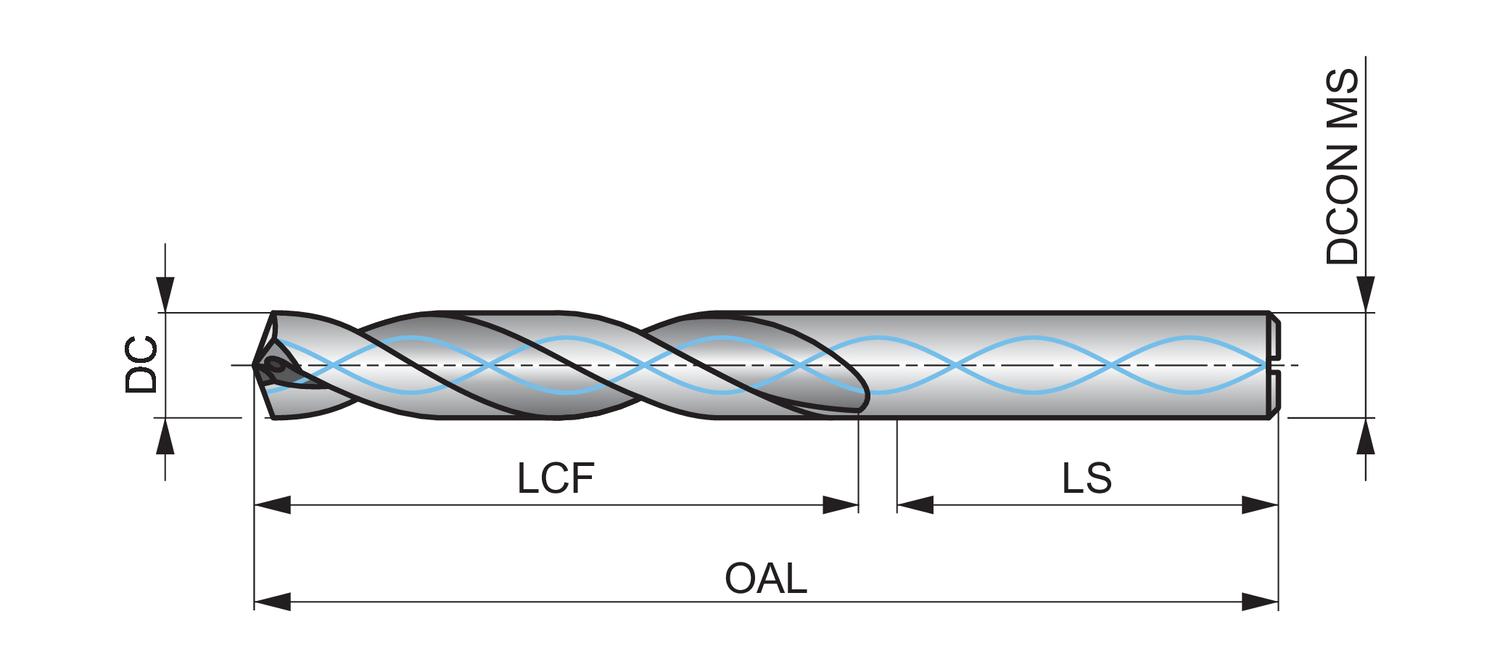

Cutting diameter – millimeter (DC): 10.4 mm
Cutting diameter – inch (DC): 0.4094 inch
Length chip flute – millimeter (LCF): 70 mm
Overall length – millimeter (OAL): 118 mm
Shank length – millimeter (LS): 45 mm
Connection diameter – millimeter (DCON MS): 12 mm
Length chip flute – inch (LCF): 2.7559 inch
ISO: R45310.4

Brand

DORMER
