DORMER R45311/32 Carbide Drills

Product Code: R45311/32

$214.14$194.67 Ex. GST

Product Code: R45311/32 SKU R45311/32 Categories , ,
DORMER R45311/32 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

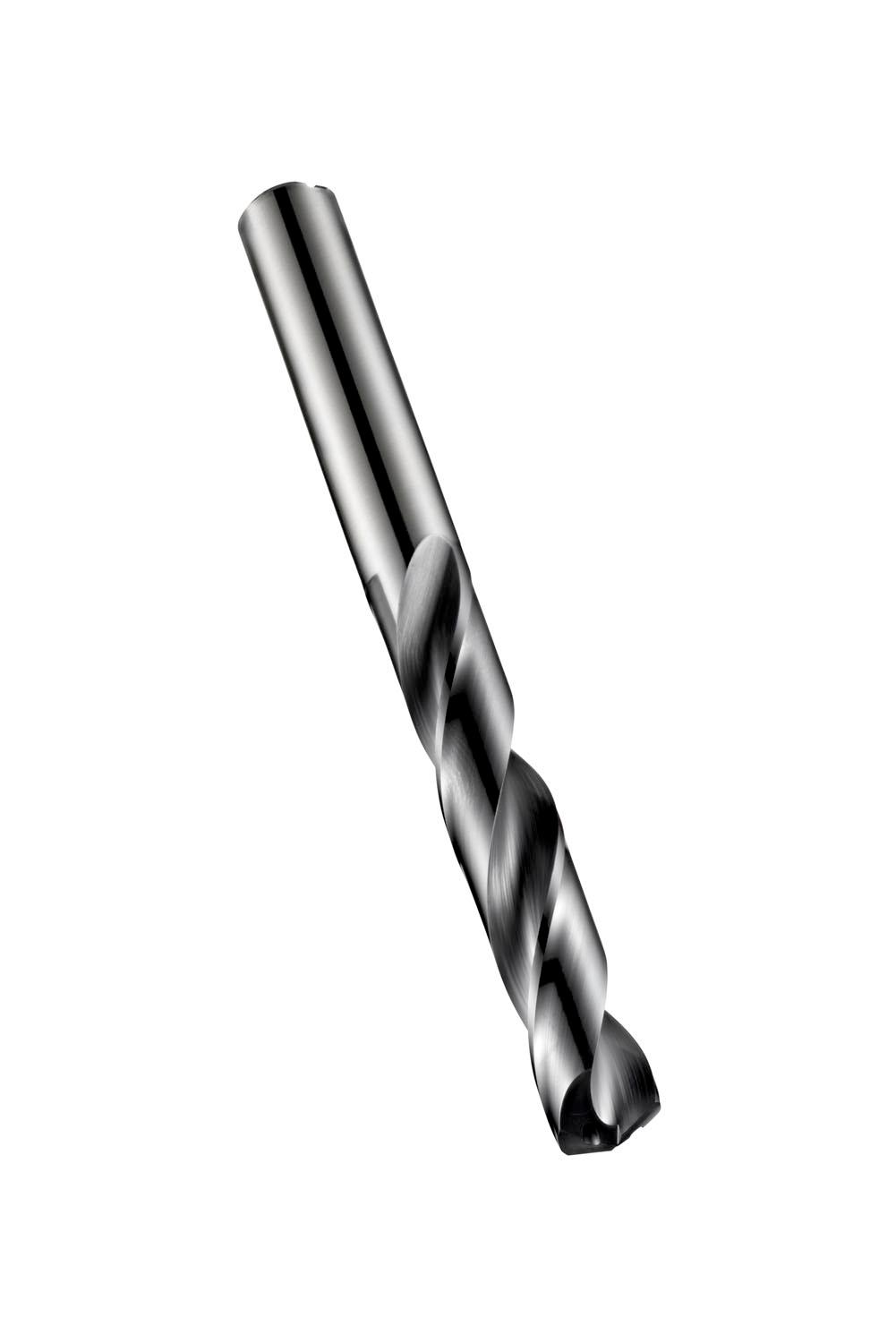

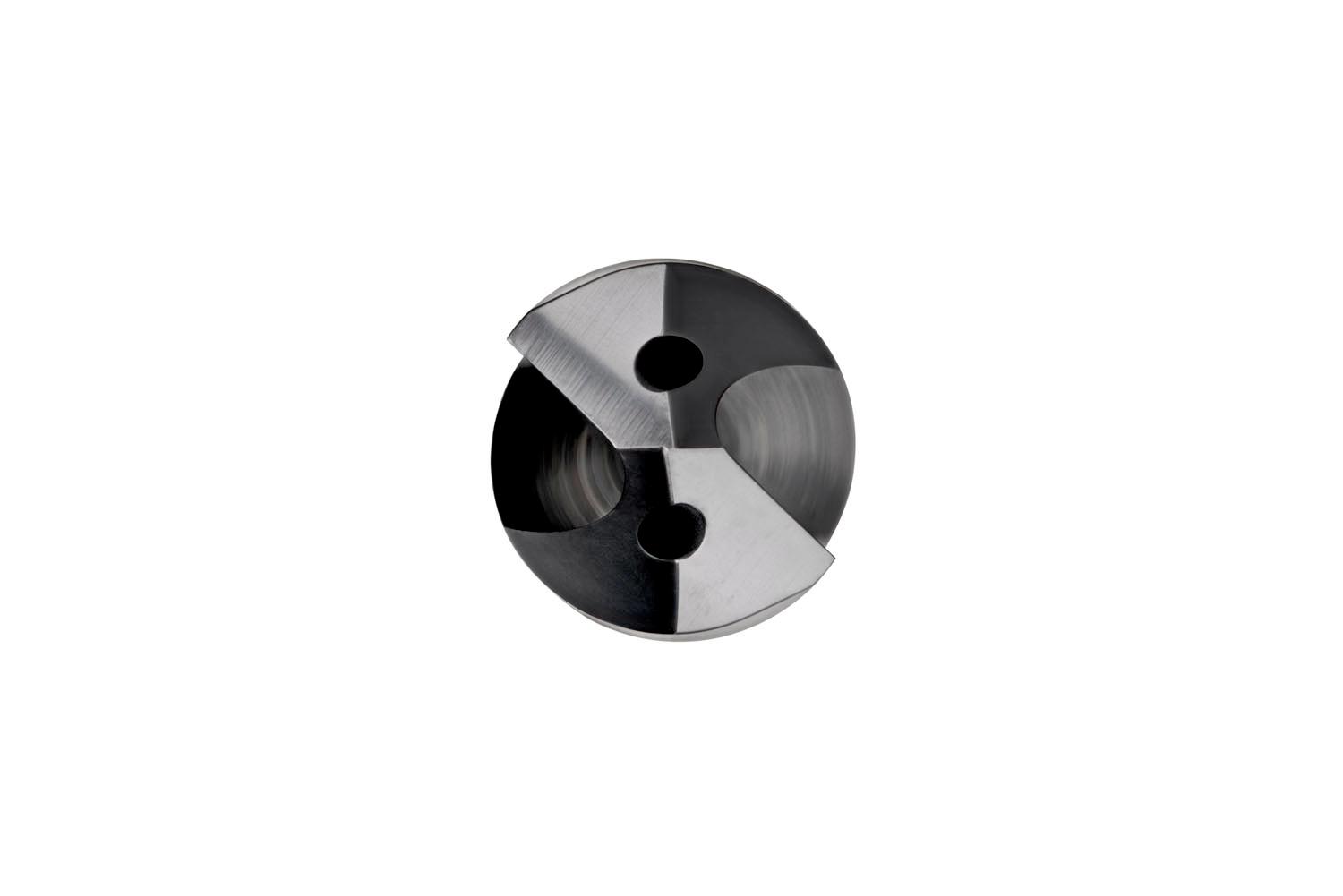

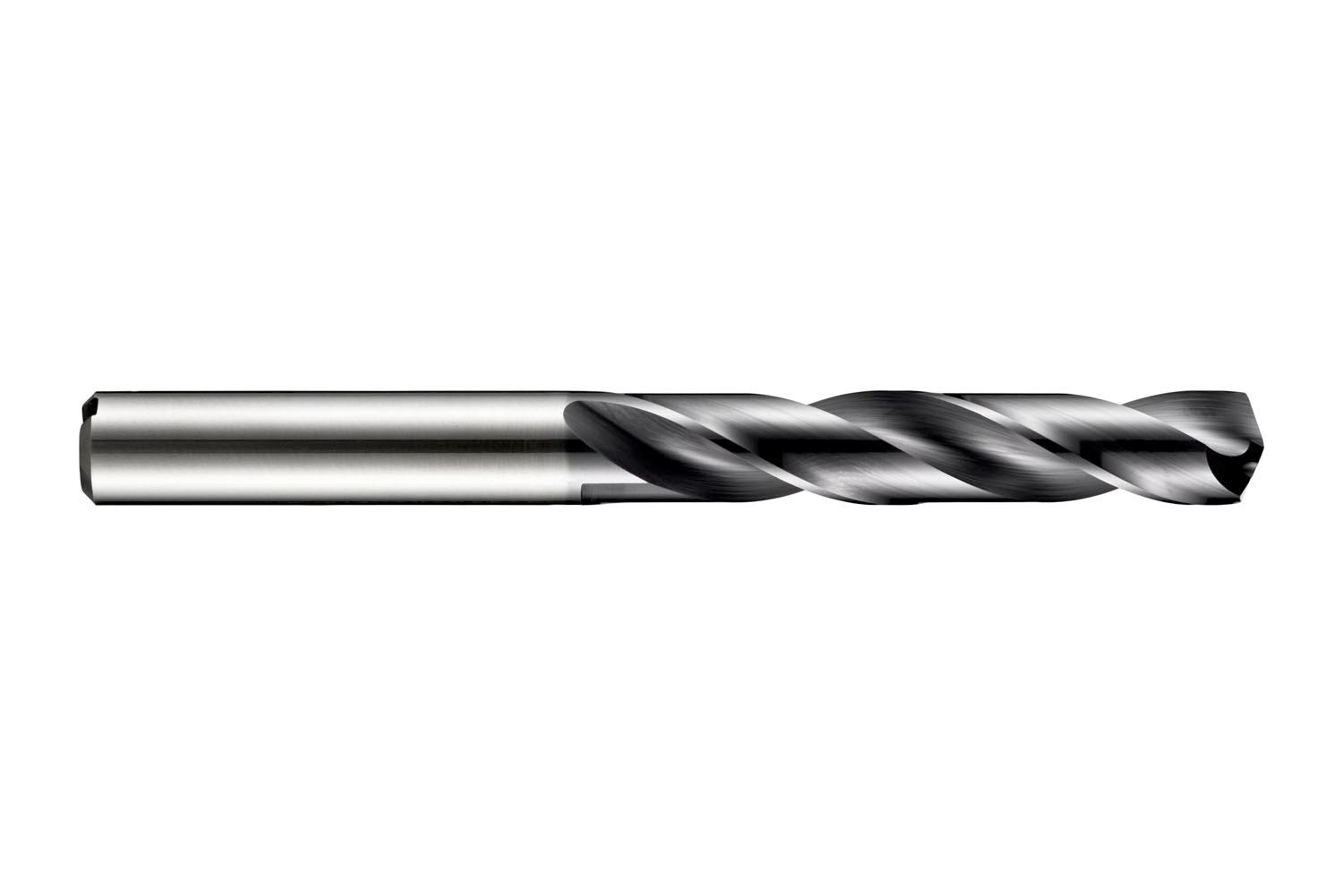

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.3438″ (11/32) with an overall length of 103mm and flute length of 61mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.2079 kg
Dimensions
barcode
Additional Information

Description: Value

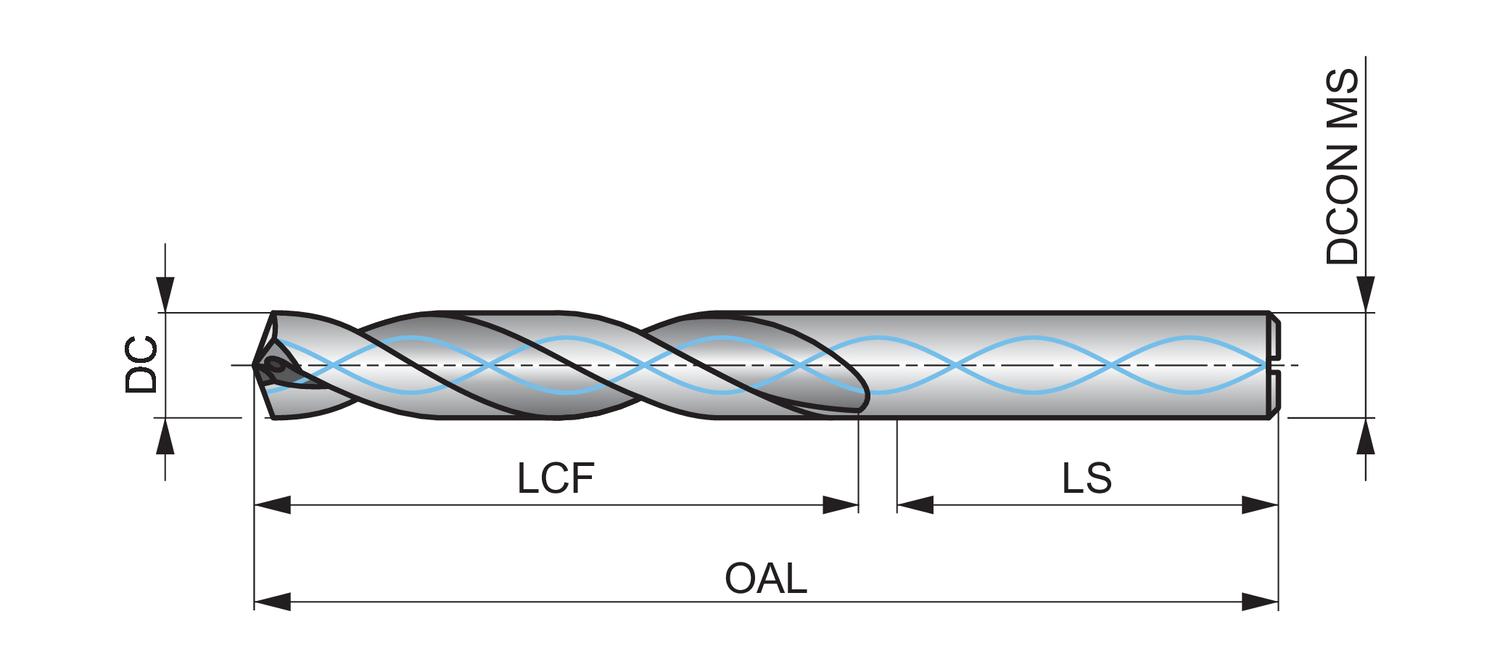

EAN number: 7320760623633 Product number (SAP): 86018993 Ordering code ANSI: R45311/32 Product Line: FORCE X Gross weight: 78.9 g Cutting diameter: 11/32 inch Cutting diameter: 8.73 mm Cutting diameter: 0.3438 inch Length chip flute: 61 mm Overall length: 103 mm Shank length: 40 mm Connection diameter: 10 mm Length chip flute: 2.4016 inch ISO: R45311/32

Brand

DORMER
