DORMER R45311/64 Carbide Drills

Product Code: R45311/64

$165.42$150.38 Ex. GST

Product Code: R45311/64 SKU R45311/64 Categories , ,
DORMER R45311/64 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

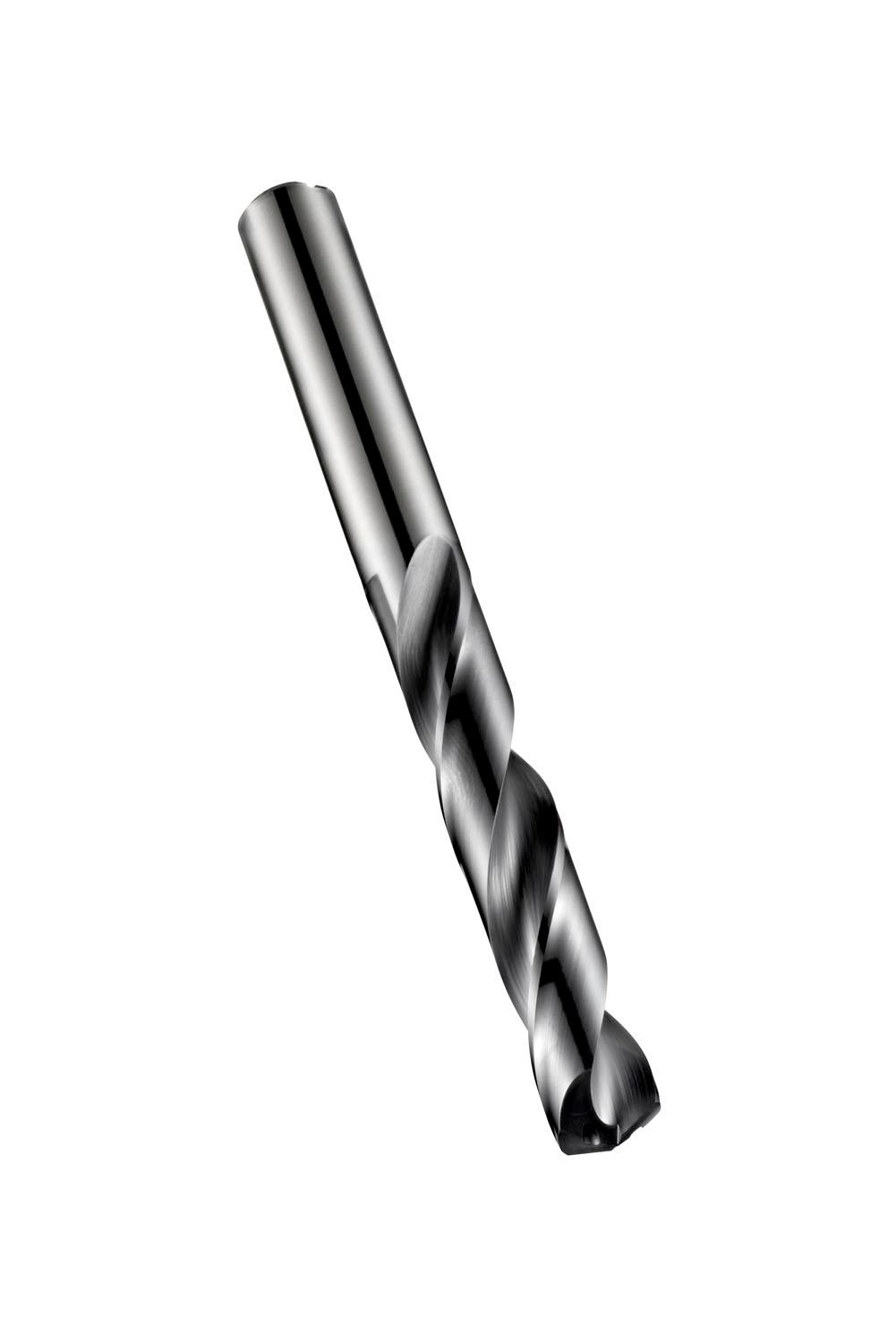

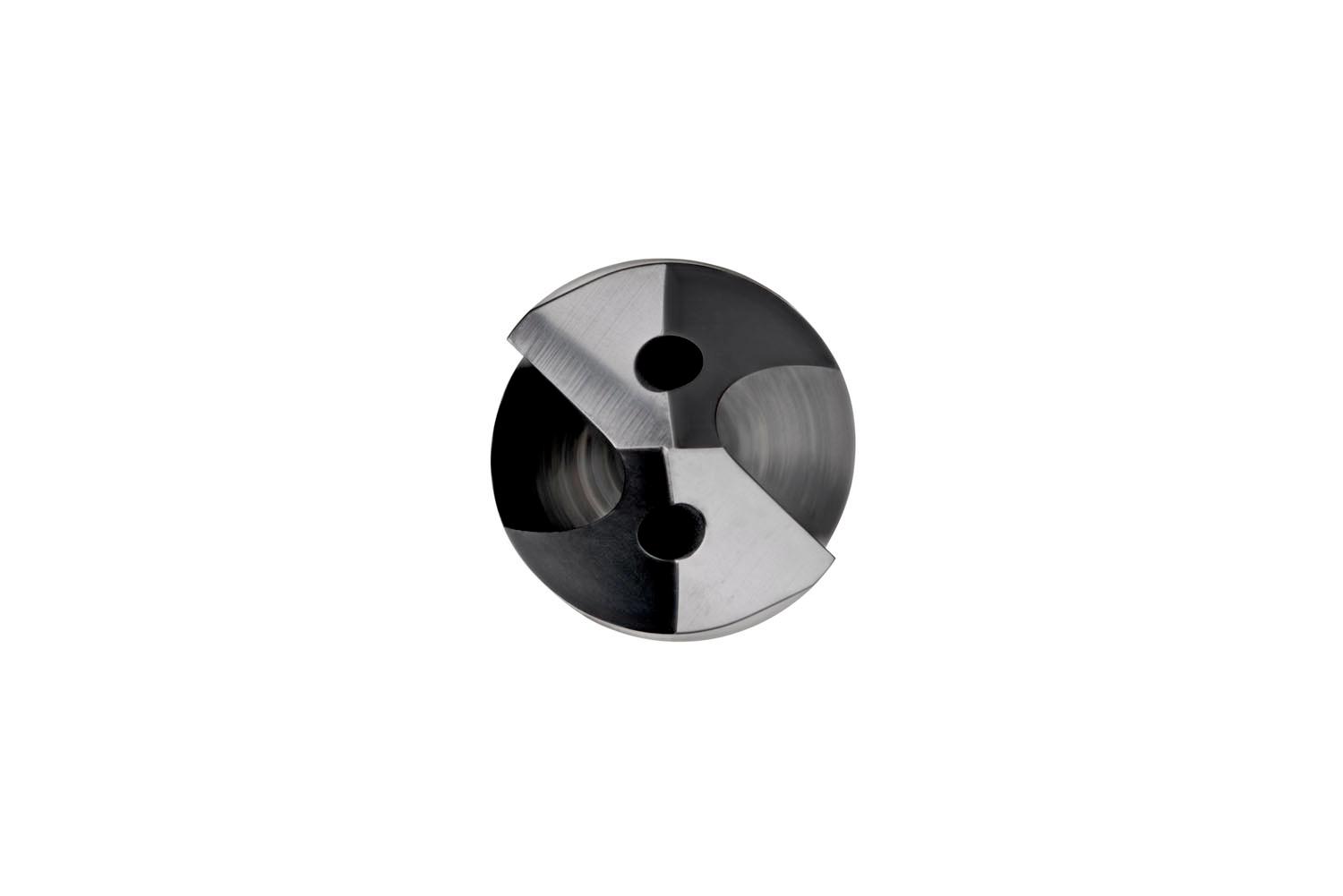

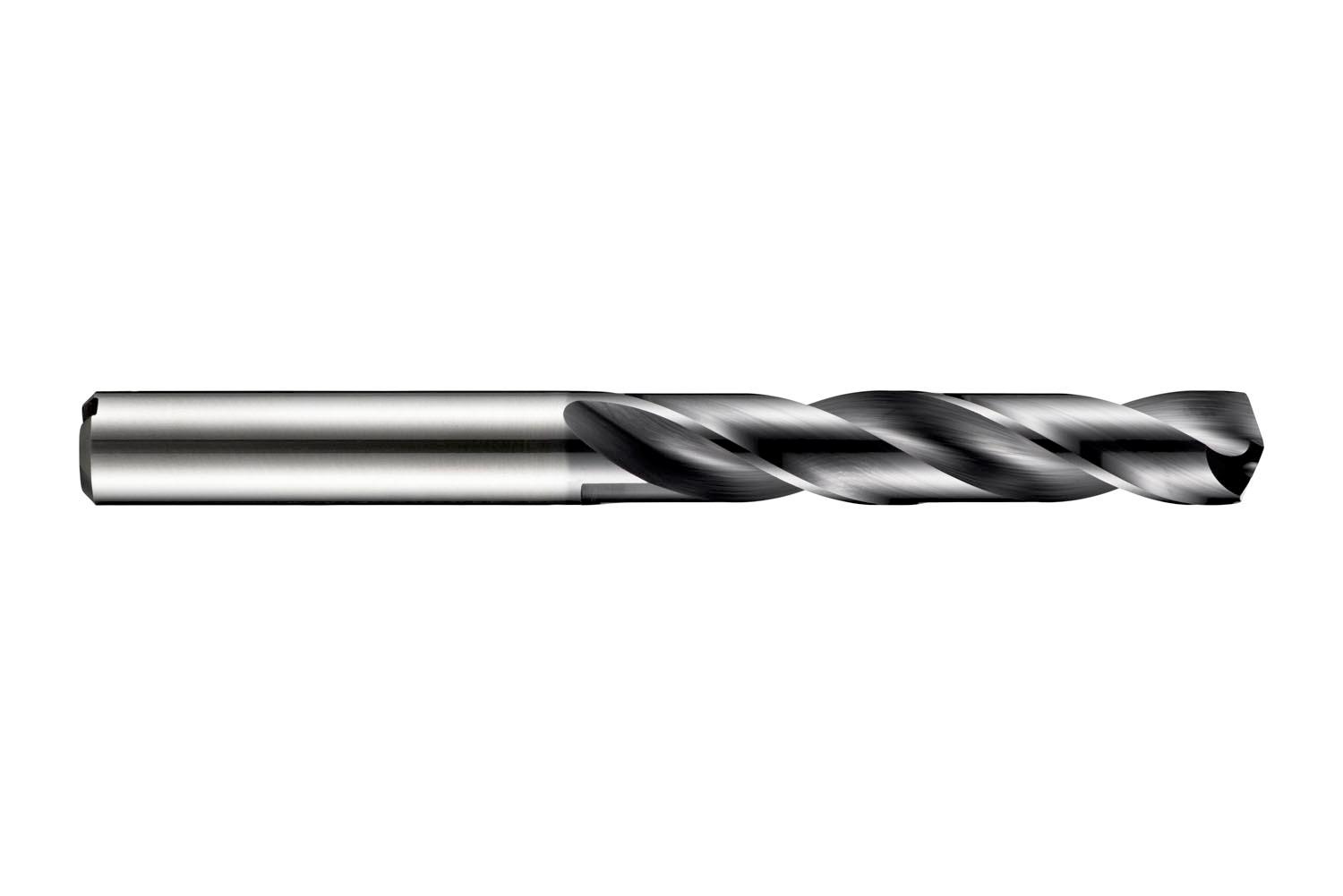

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.1719″ (11/64) with an overall length of 74mm and flute length of 36mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.1606 kg
Dimensions
barcode
Additional Information

Description: Value

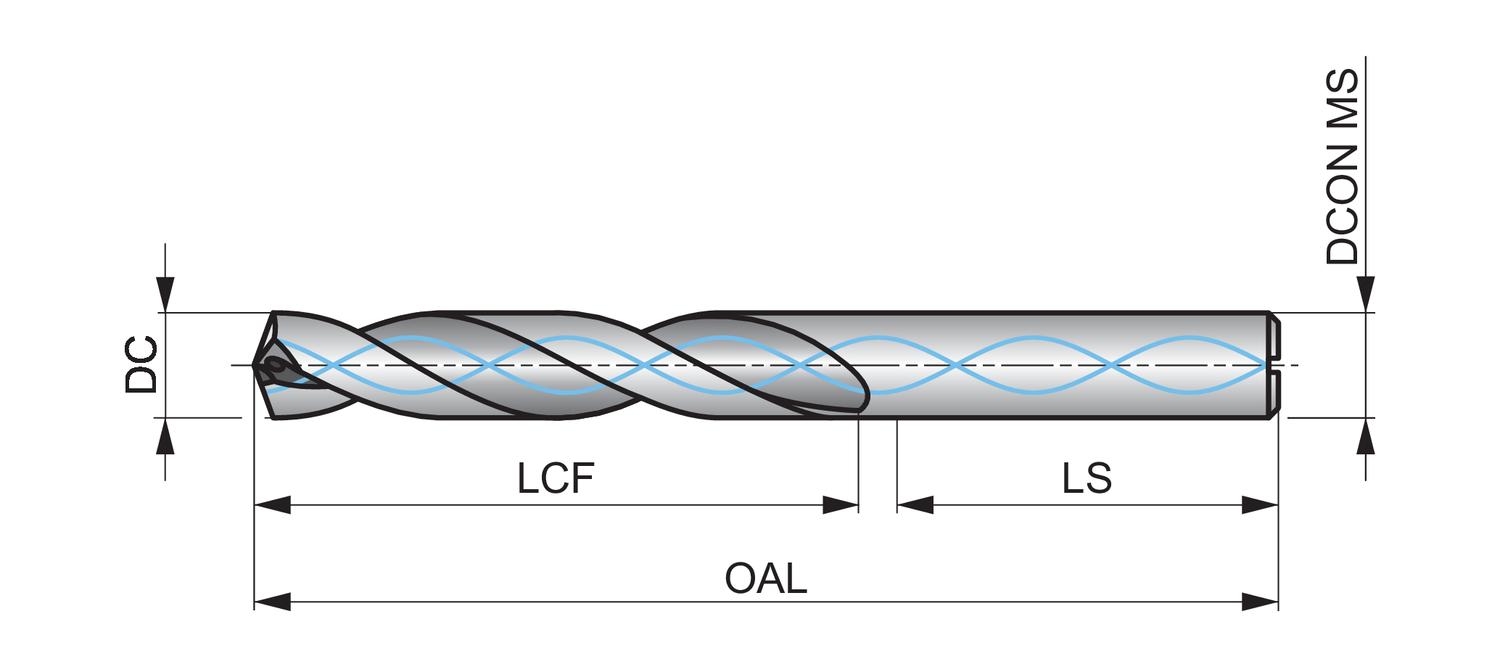

EAN number: 7320760623640 Product number (SAP): 86018994 Ordering code ANSI: R45311/64 Product Line: FORCE X Gross weight: 12.14 g Cutting diameter: 11/64 inch Cutting diameter: 4.37 mm Cutting diameter: 0.1719 inch Length chip flute: 36 mm Overall length: 74 mm Shank length: 36 mm Connection diameter: 6 mm Length chip flute: 1.4173 inch ISO: R45311/64

Brand

DORMER
