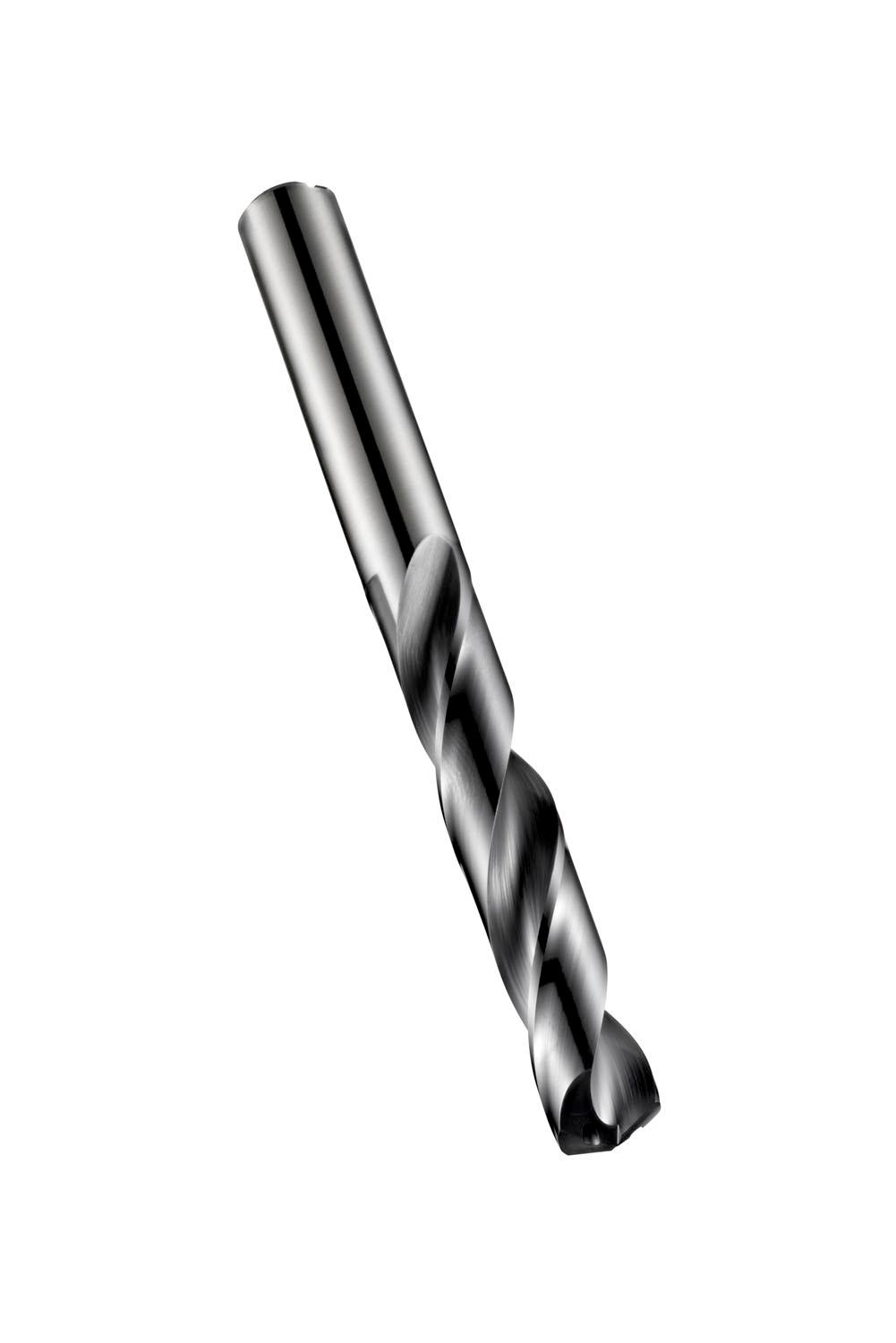

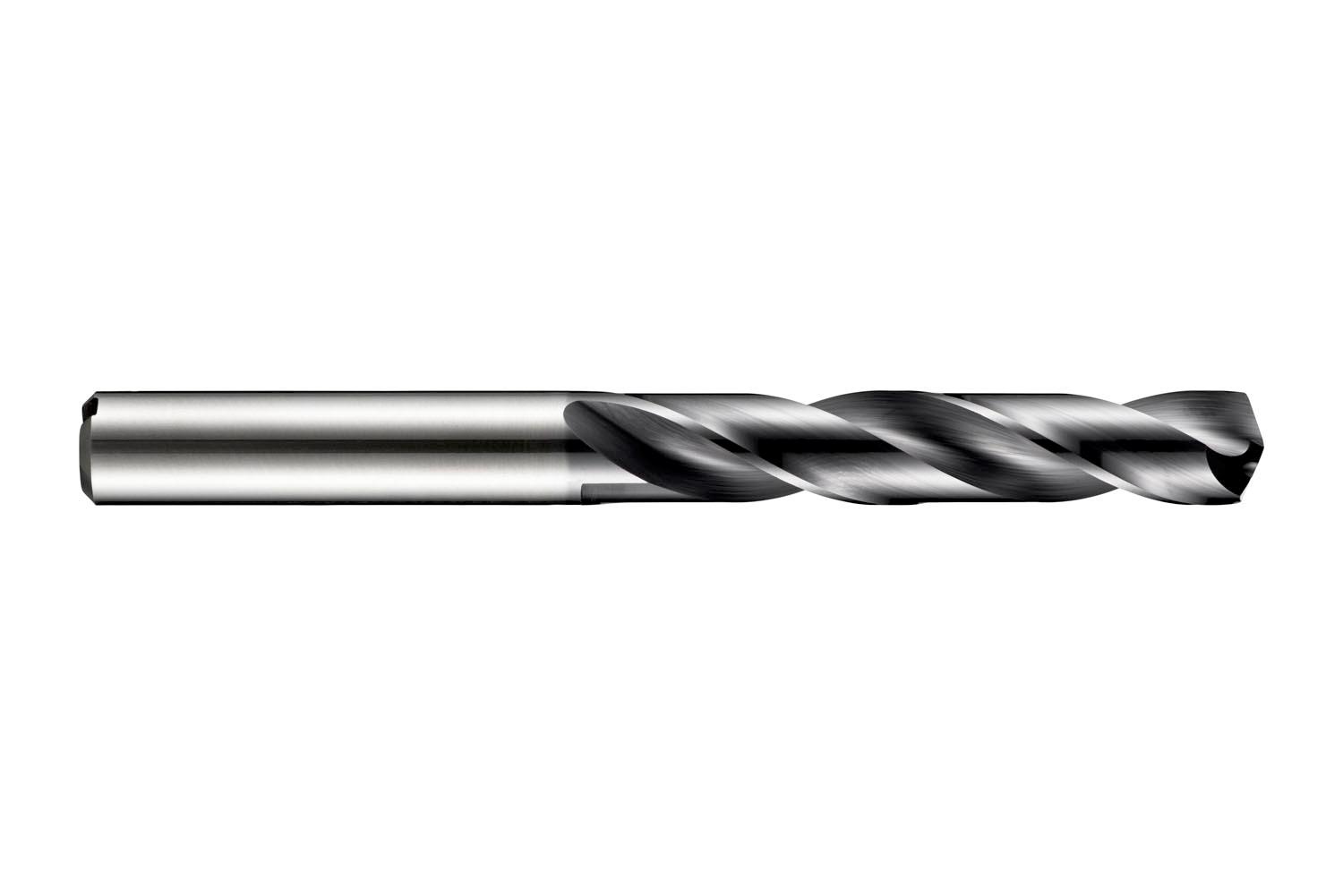

DORMER R45313/64 Carbide Drills

Product Code: R45313/64

$165.42$150.38 Ex. GST

Product Code: R45313/64 SKU R45313/64 Categories , ,
DORMER R45313/64 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

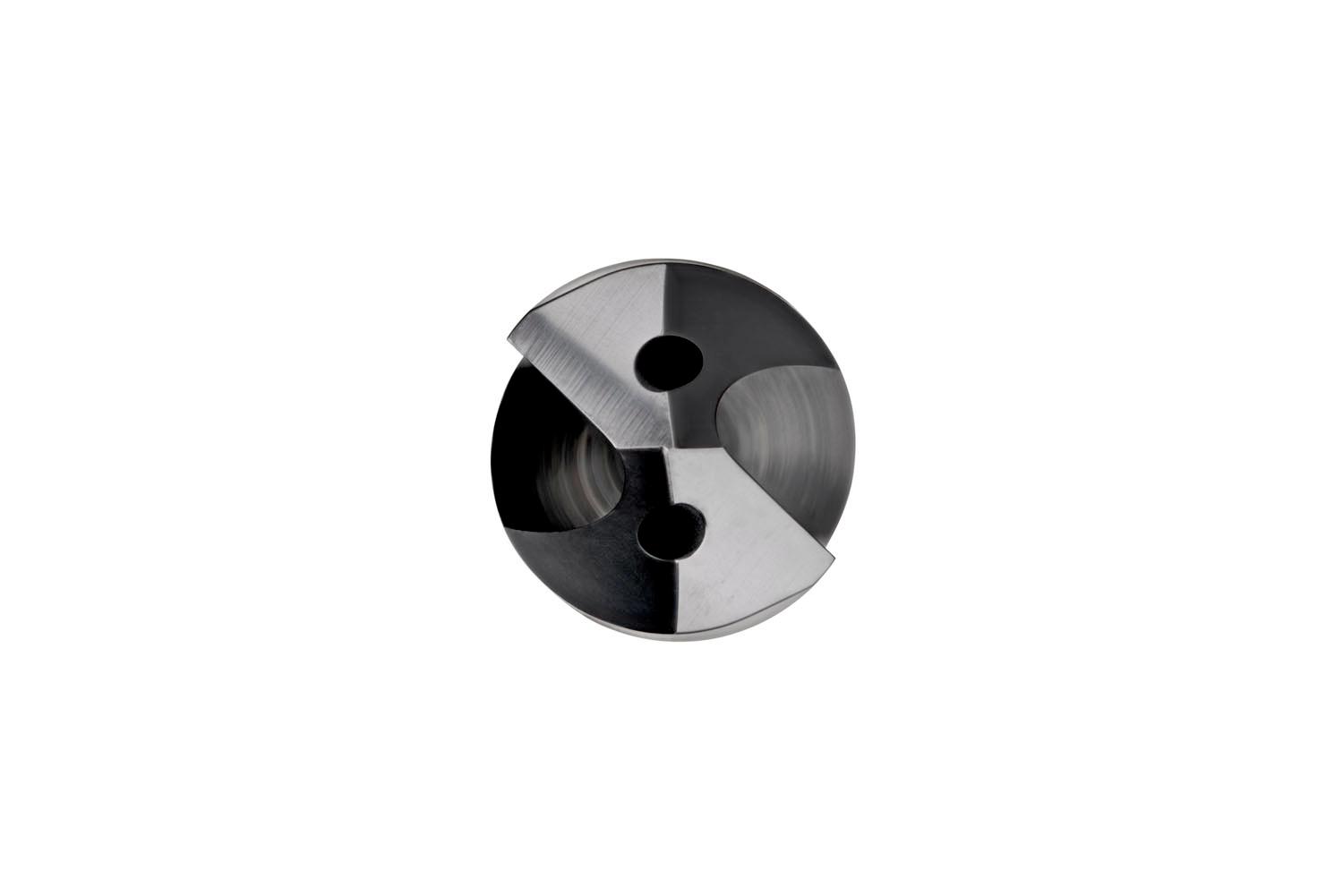

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.2031″ (13/64) with an overall length of 82mm and flute length of 44mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.1606 kg
Dimensions
barcode
Additional Information

Description: Value

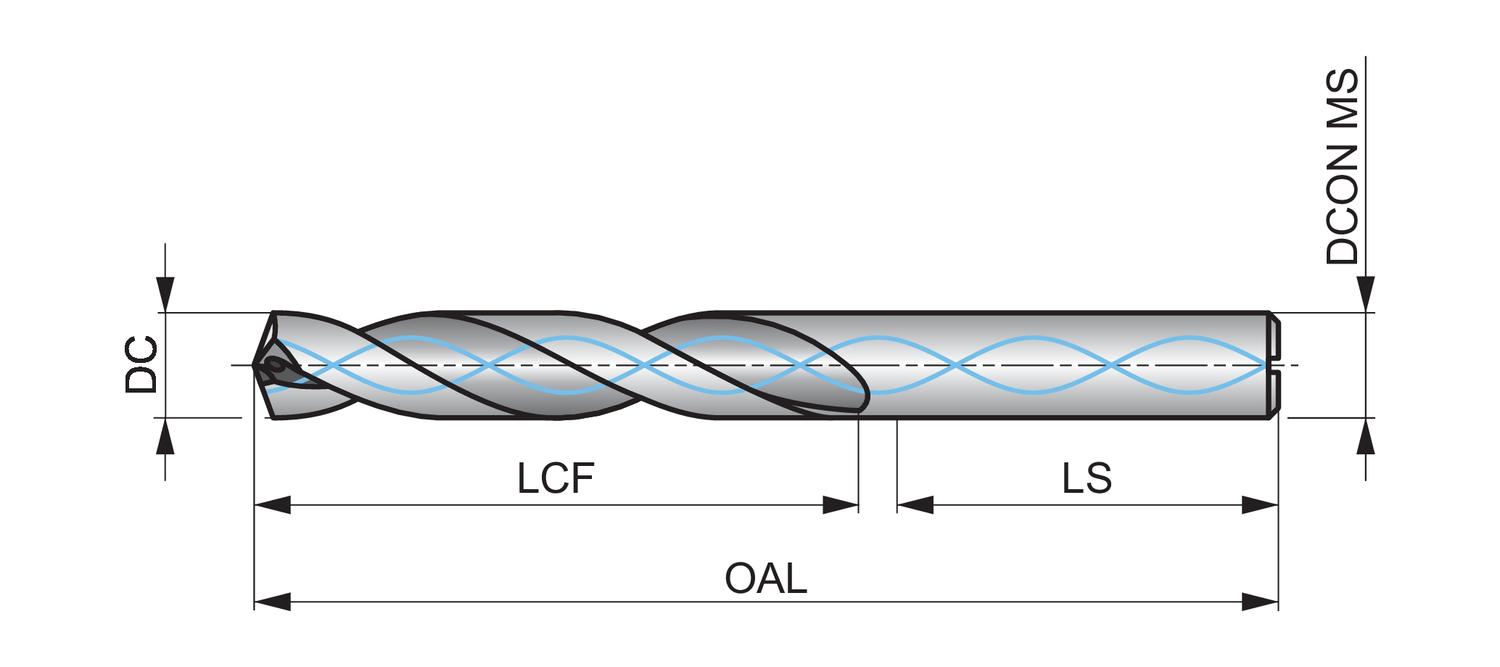

EAN number: 7320760623664 Product number (SAP): 86019005 Ordering code ANSI: R45313/64 Product Line: FORCE X Gross weight: 25 g Cutting diameter: 13/64 inch Cutting diameter: 5.16 mm Cutting diameter: 0.2031 inch Length chip flute: 44 mm Overall length: 82 mm Shank length: 36 mm Connection diameter: 6 mm Length chip flute: 1.7323 inch ISO: R45313/64

Brand

DORMER
