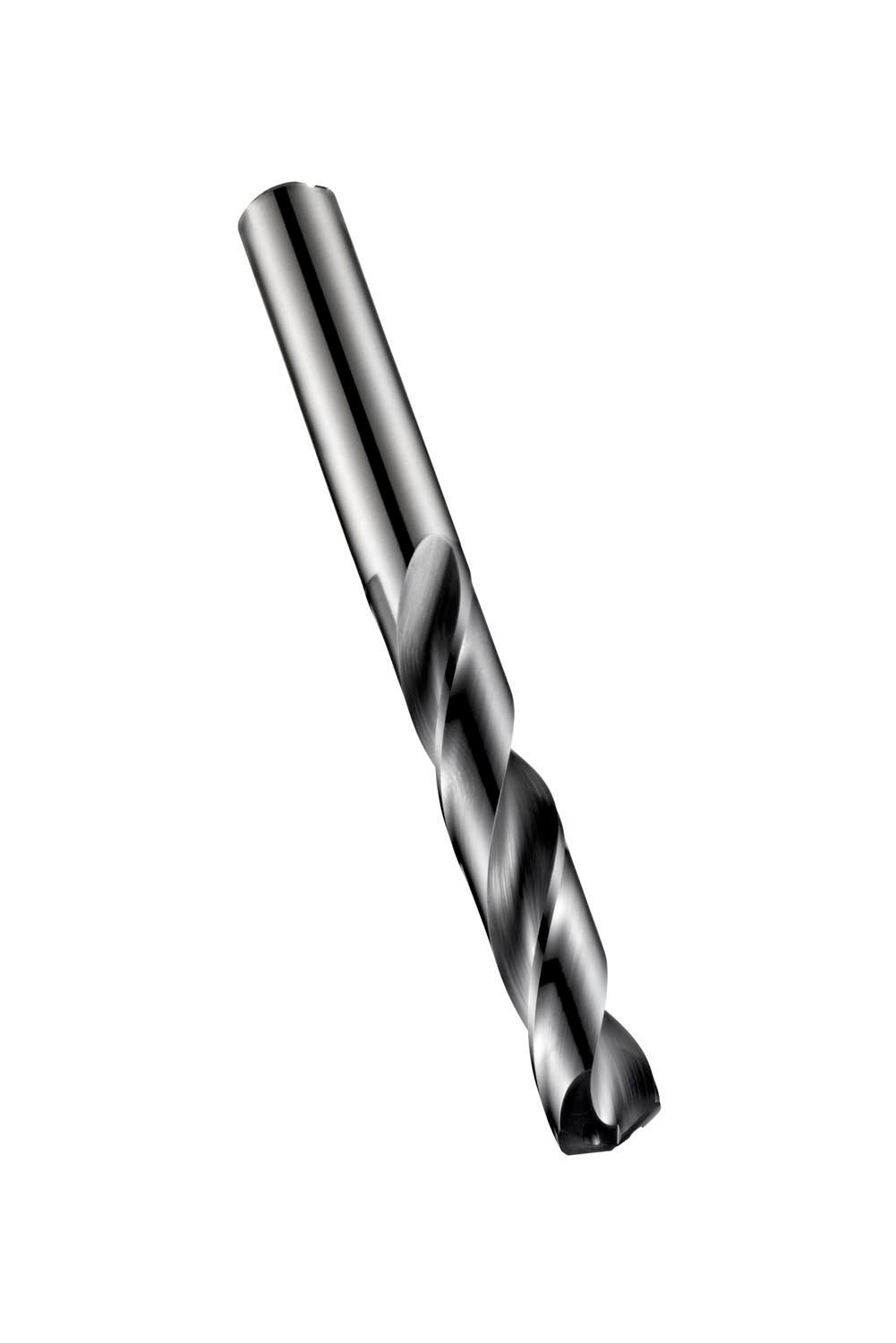

DORMER R45314.0 Carbide Drills

Product Code: R45314.0

$404.48$367.71 Ex. GST

Product Code: R45314.0 SKU R45314.0 Categories , ,
DORMER R45314.0 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

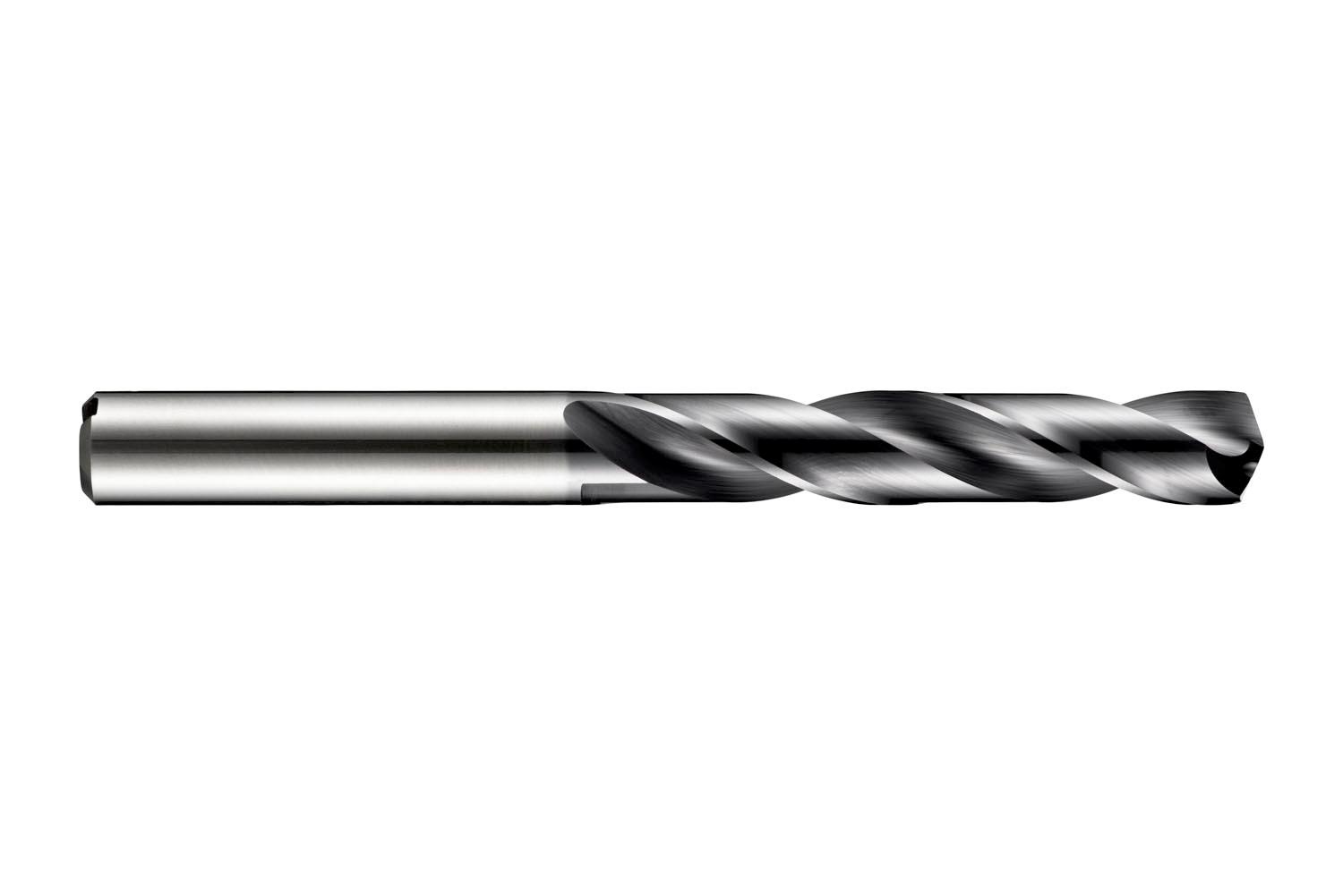

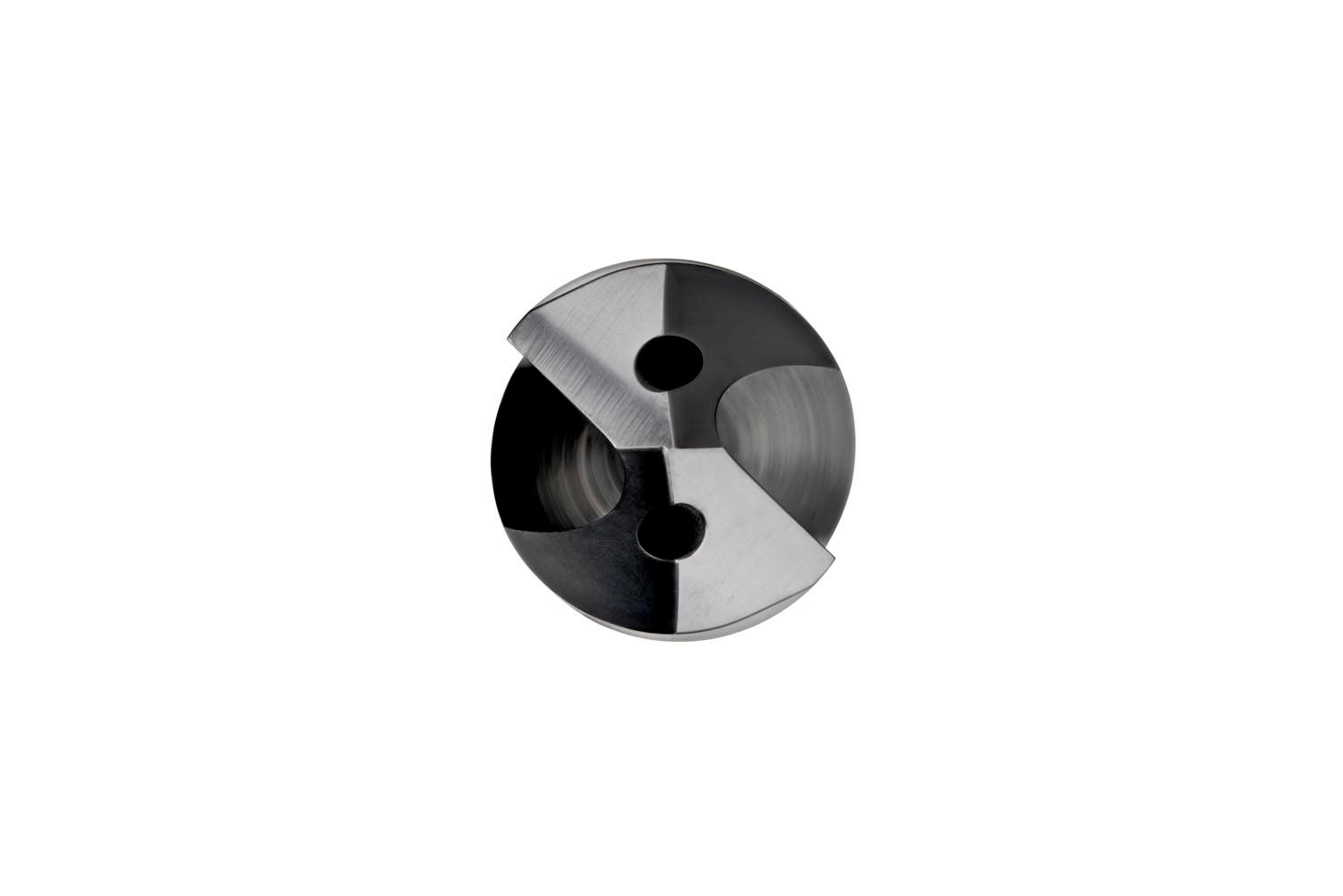

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 14mm with an overall length of 124mm and flute length of 76mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.3927 kg
Dimensions
barcode
Additional Information

Description: Value

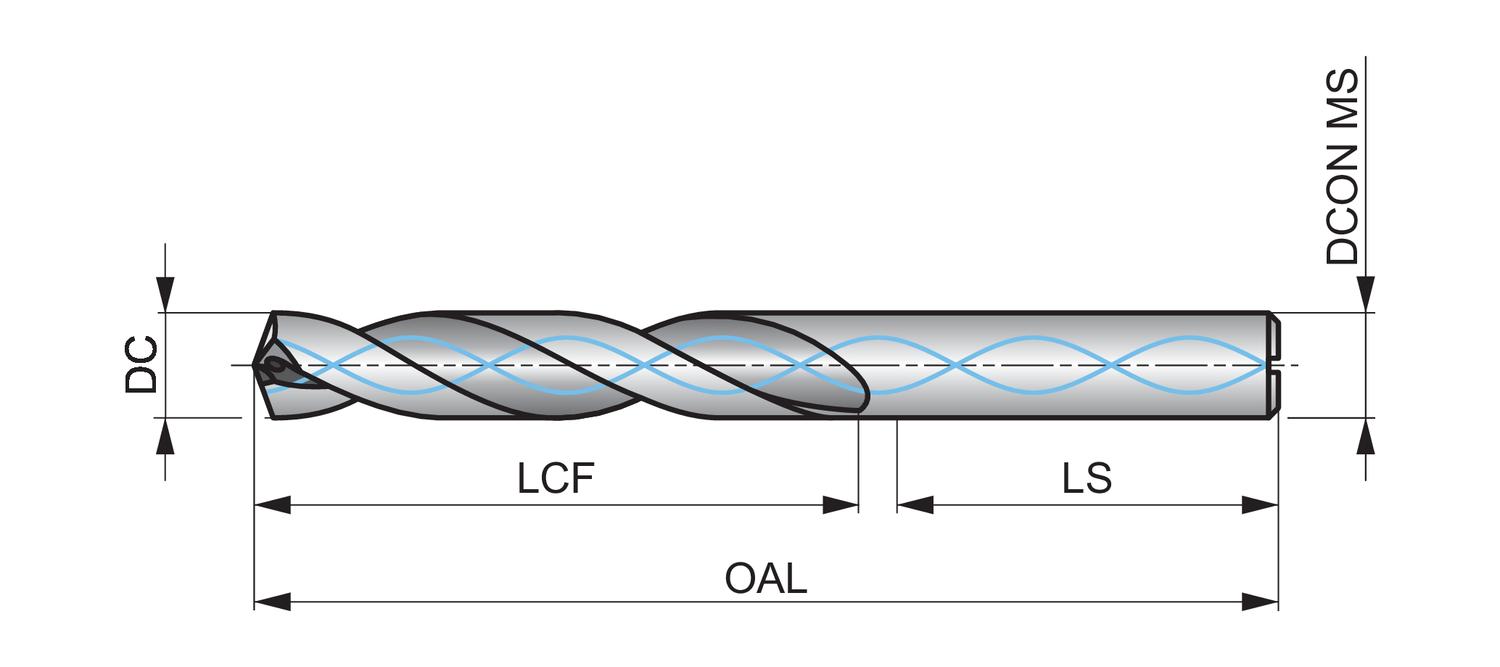

EAN number: 7320760613993 Product number (SAP): 86019006 Ordering code ANSI: R45314.0 Product Line: FORCE X Gross weight: 197 g Cutting diameter: 14 mm Cutting diameter: 0.5512 inch Length chip flute: 76 mm Overall length: 124 mm Shank length: 45 mm Connection diameter: 14 mm Length chip flute: 2.9921 inch ISO: R45314.0

Brand

DORMER
