DORMER R45315.8 Carbide Drills

Product Code: R45315.8

$520.05$472.77 Ex. GST

Product Code: R45315.8 SKU R45315.8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

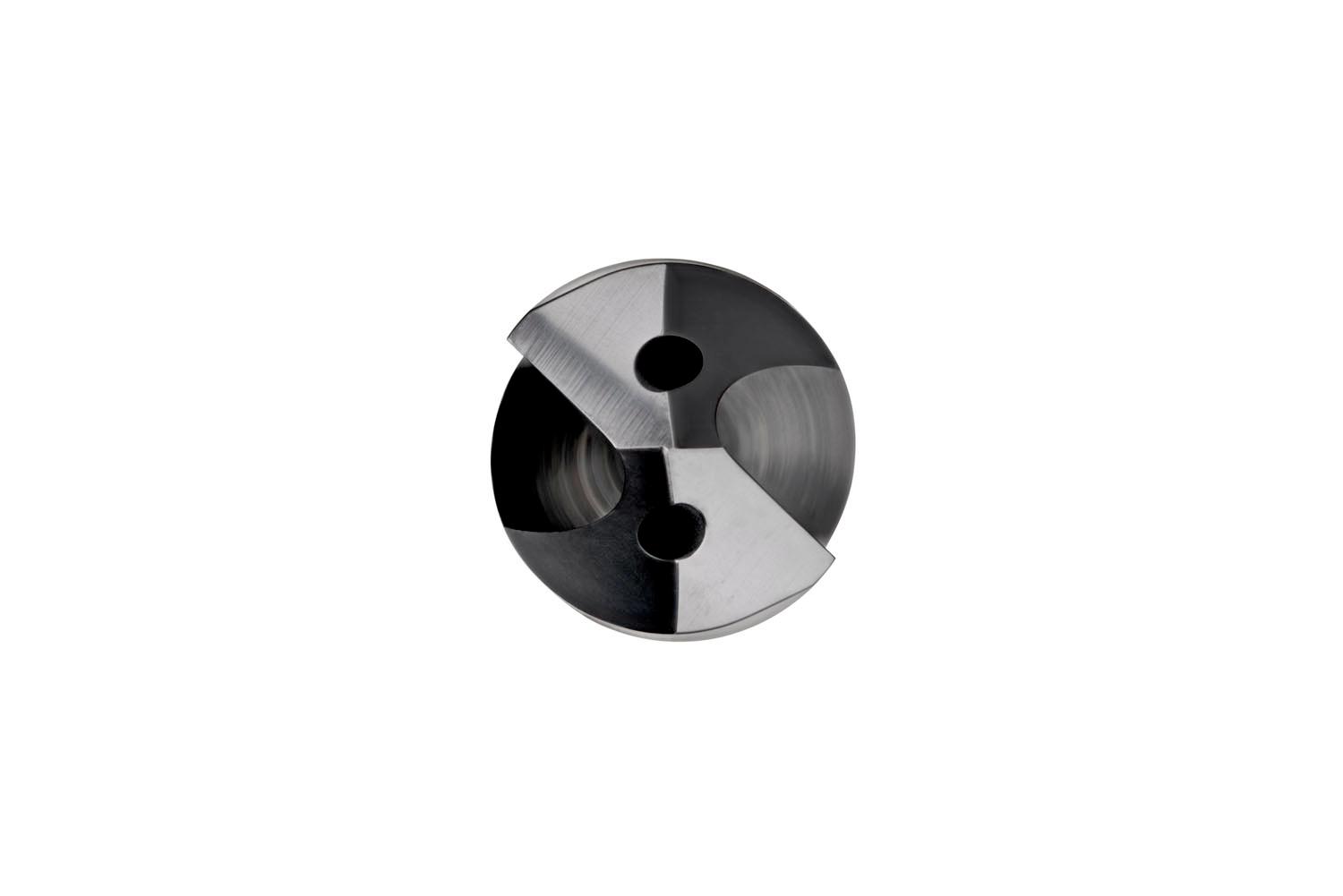

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 15.8mm with an overall length of 133mm and flute length of 82mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.5049 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760134429
Product number (SAP): 86019013
Ordering code ANSI: R45315.8
Product Line: FORCE X
Gross weight – grams: 273

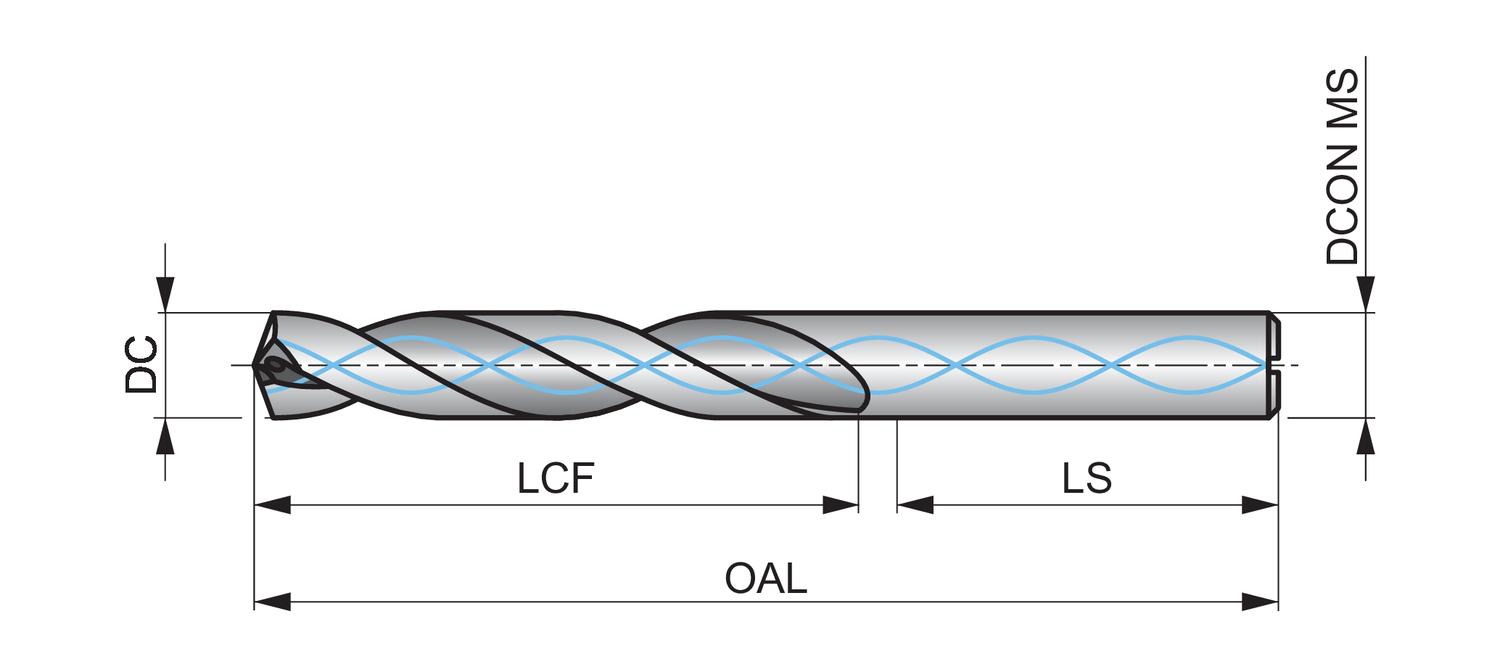

Cutting diameter – millimeter (DC): 15.8 mm
Cutting diameter – inch (DC): 0.622 inch
Length chip flute – millimeter (LCF): 82 mm
Overall length – millimeter (OAL): 133 mm
Shank length – millimeter (LS): 48 mm
Connection diameter – millimeter (DCON MS): 16 mm
Length chip flute – inch (LCF): 3.2283 inch
ISO: R45315.8

Brand

DORMER
