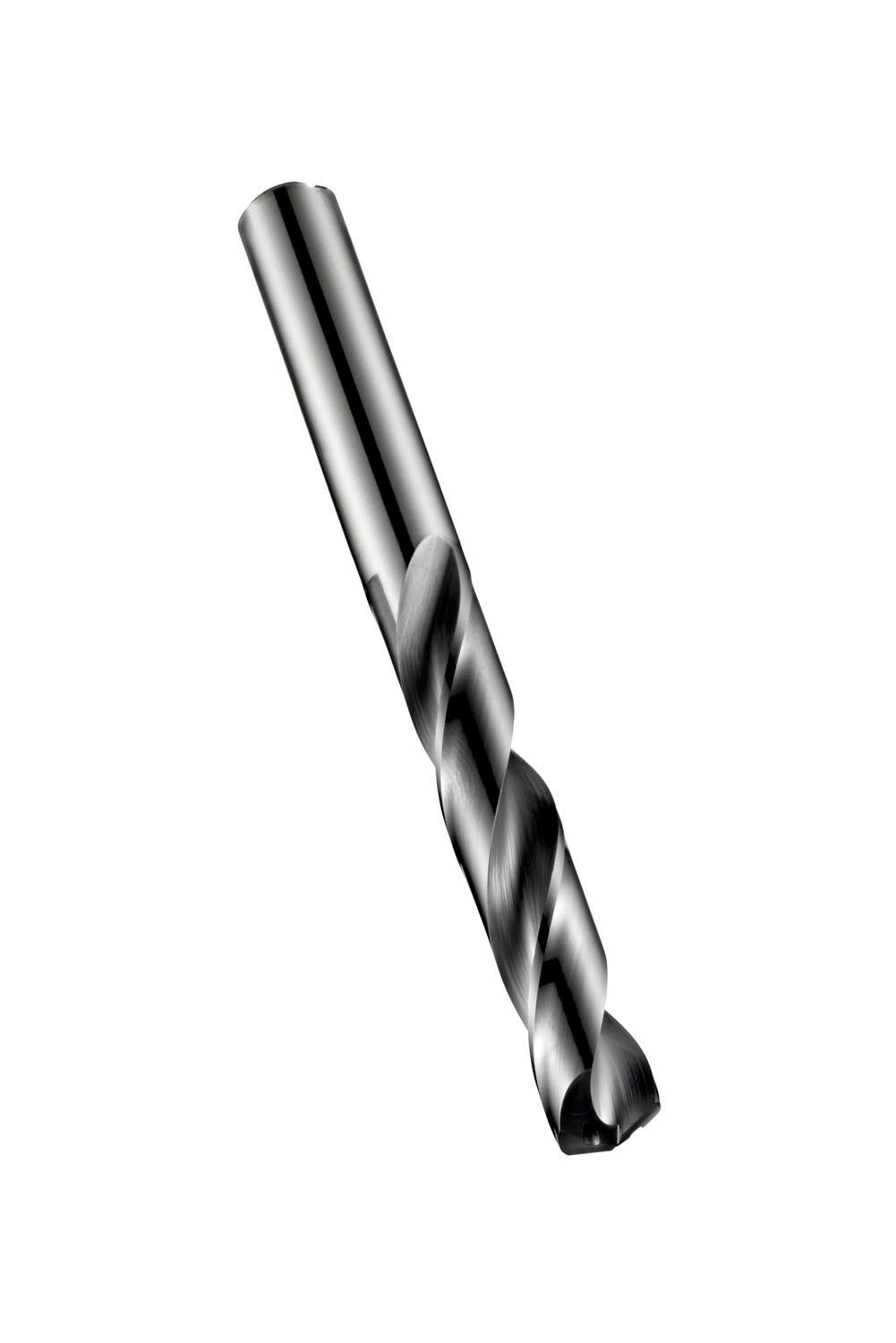

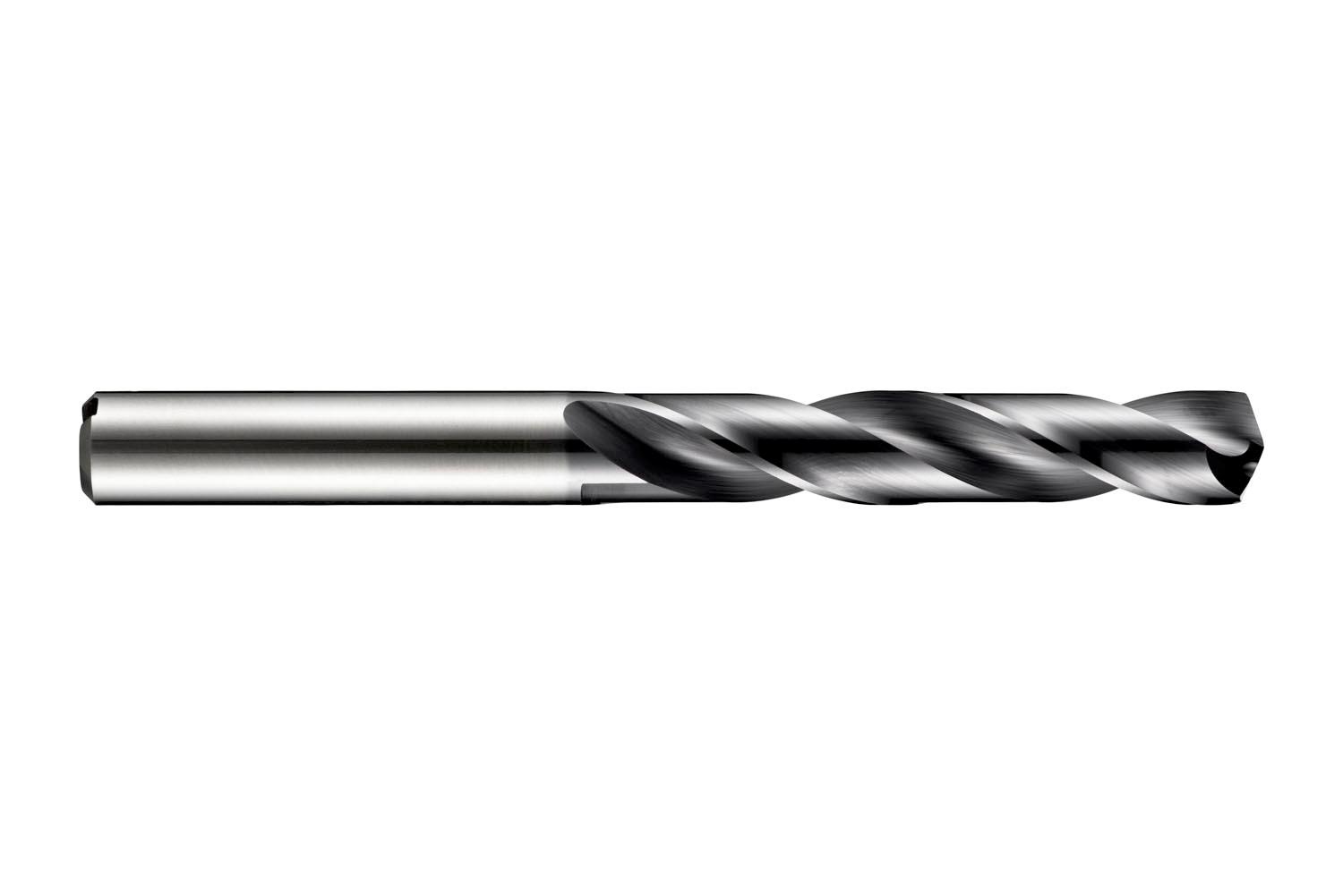

DORMER R45317.0 Carbide Drills

Product Code: R45317.0

$820.29$745.72 Ex. GST

Product Code: R45317.0 SKU R45317.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

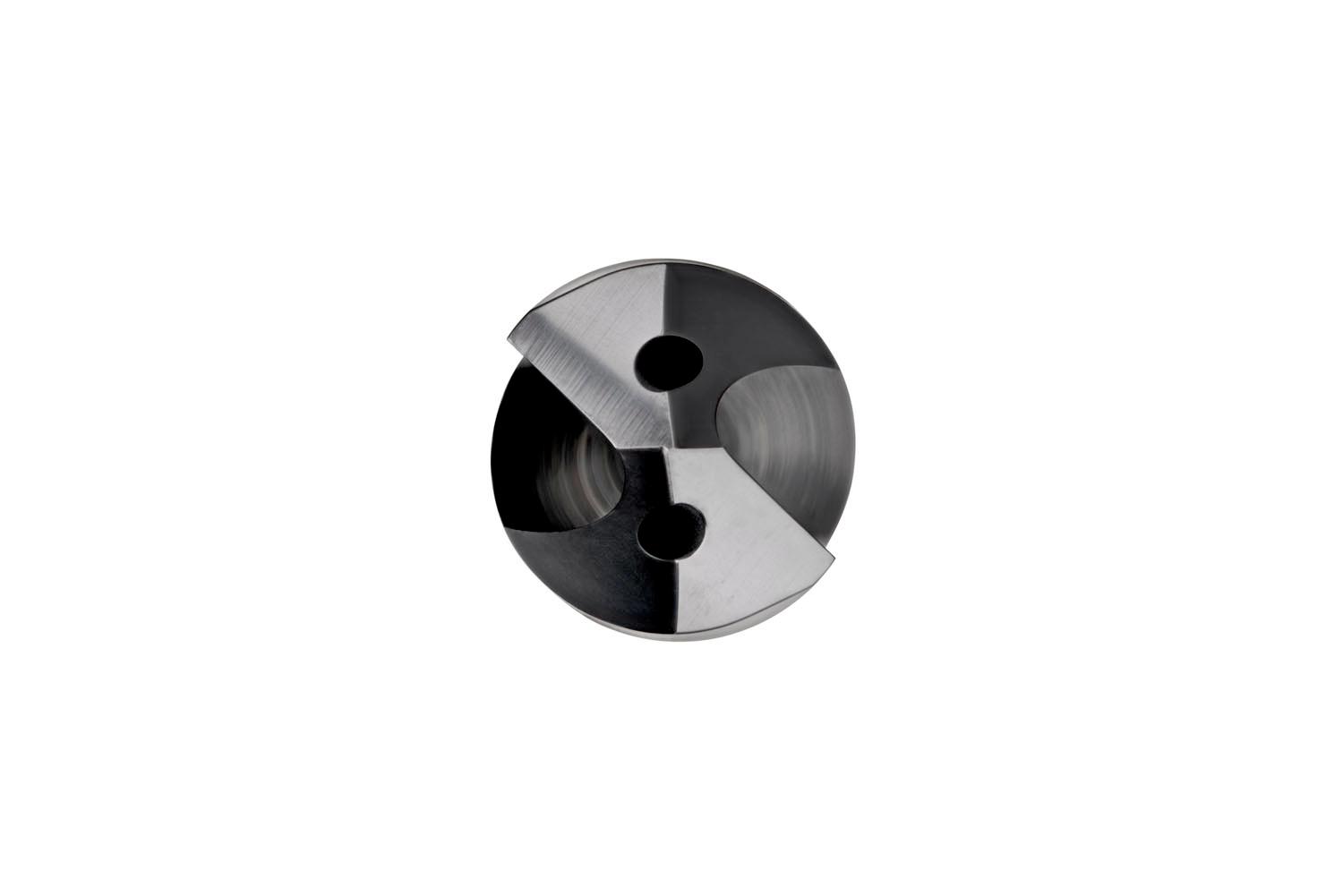

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 17mm with an overall length of 143mm and flute length of 91mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.7964 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760625316
Product number (SAP): 86019018
Ordering code ANSI: R45317.0
Product Line: FORCE X
Gross weight – grams: 345.3

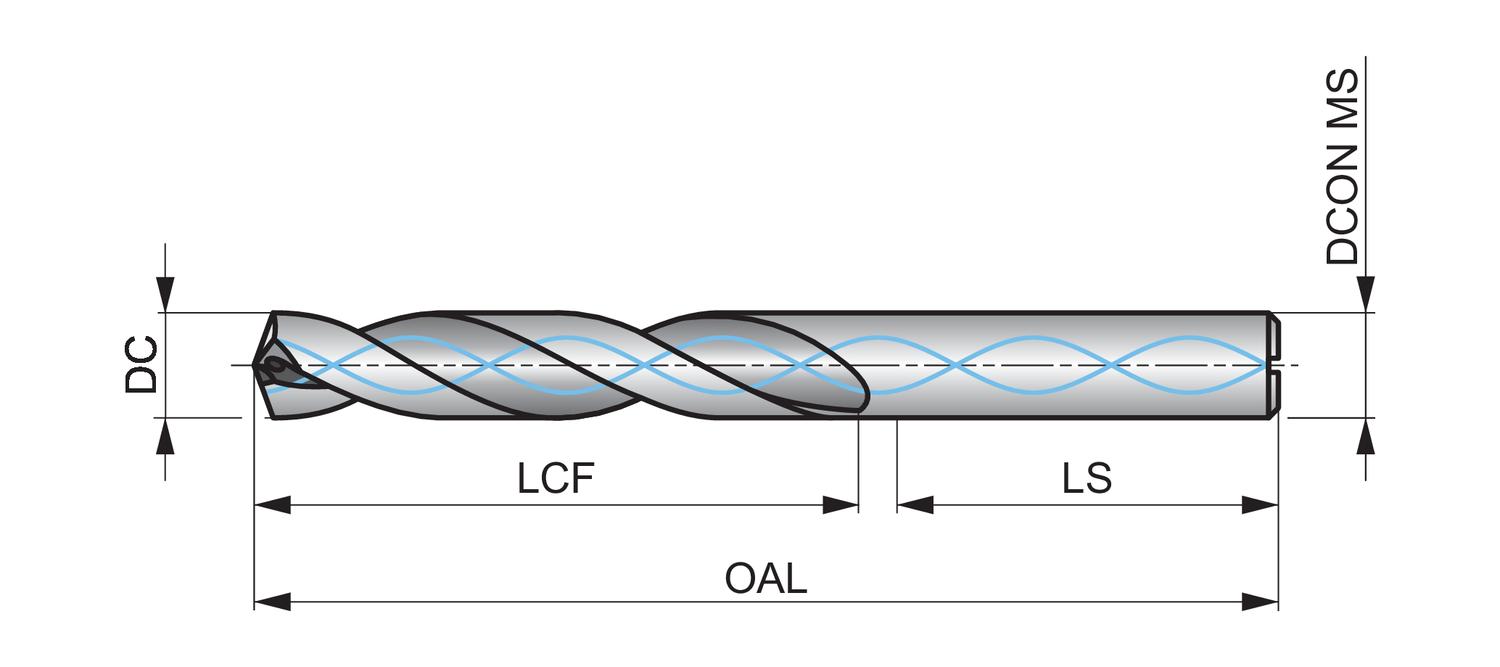

Cutting diameter – millimeter (DC): 17 mm
Cutting diameter – inch (DC): 0.6693 inch
Length chip flute – millimeter (LCF): 91 mm
Overall length – millimeter (OAL): 143 mm
Shank length – millimeter (LS): 48 mm
Connection diameter – millimeter (DCON MS): 18 mm
Length chip flute – inch (LCF): 3.5827 inch
ISO: R45317.0

Brand

DORMER
