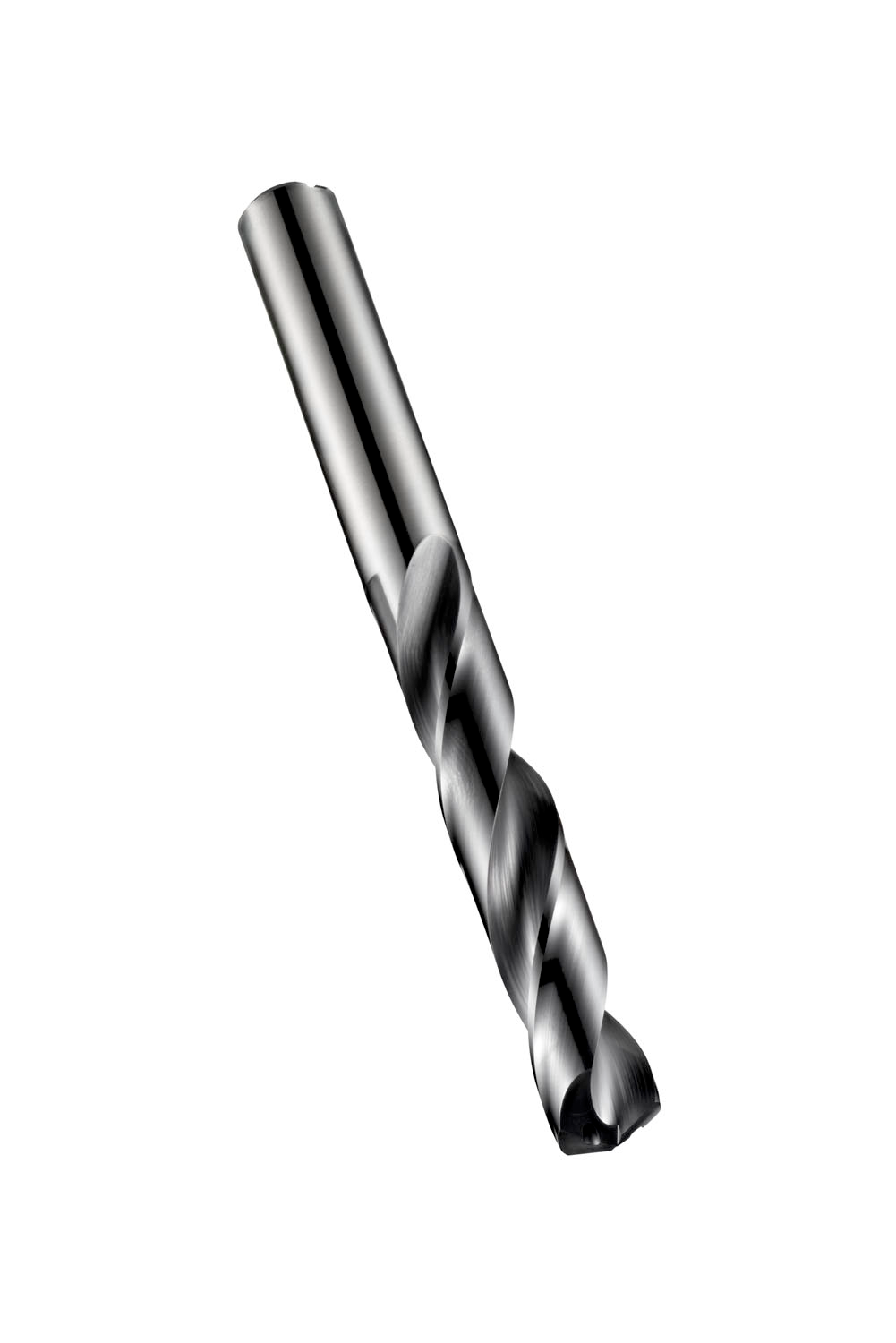

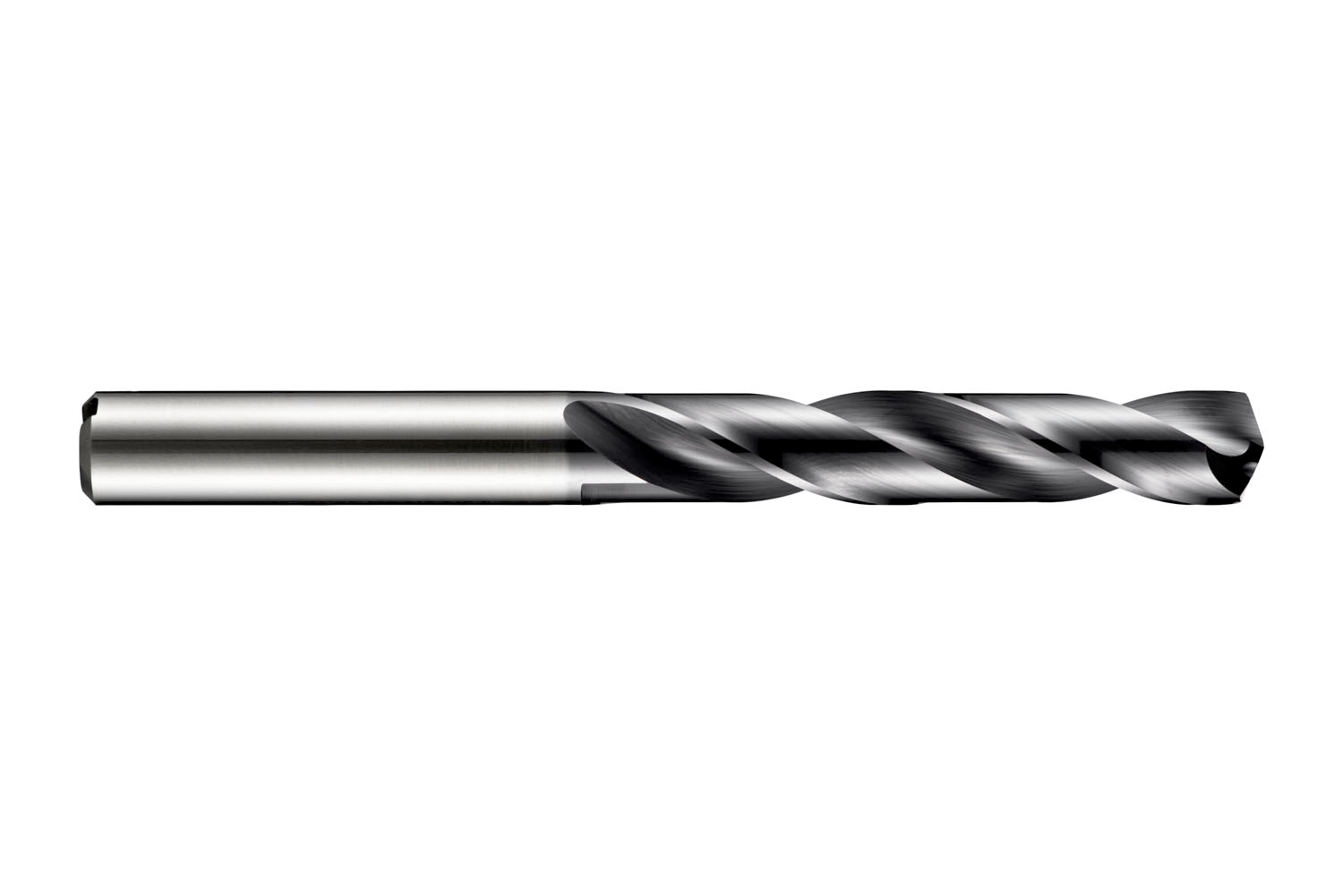

DORMER R4533/16 Carbide Drills

Product Code: R4533/16

$165.42$150.38 Ex. GST

Product Code: R4533/16 SKU R4533/16 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

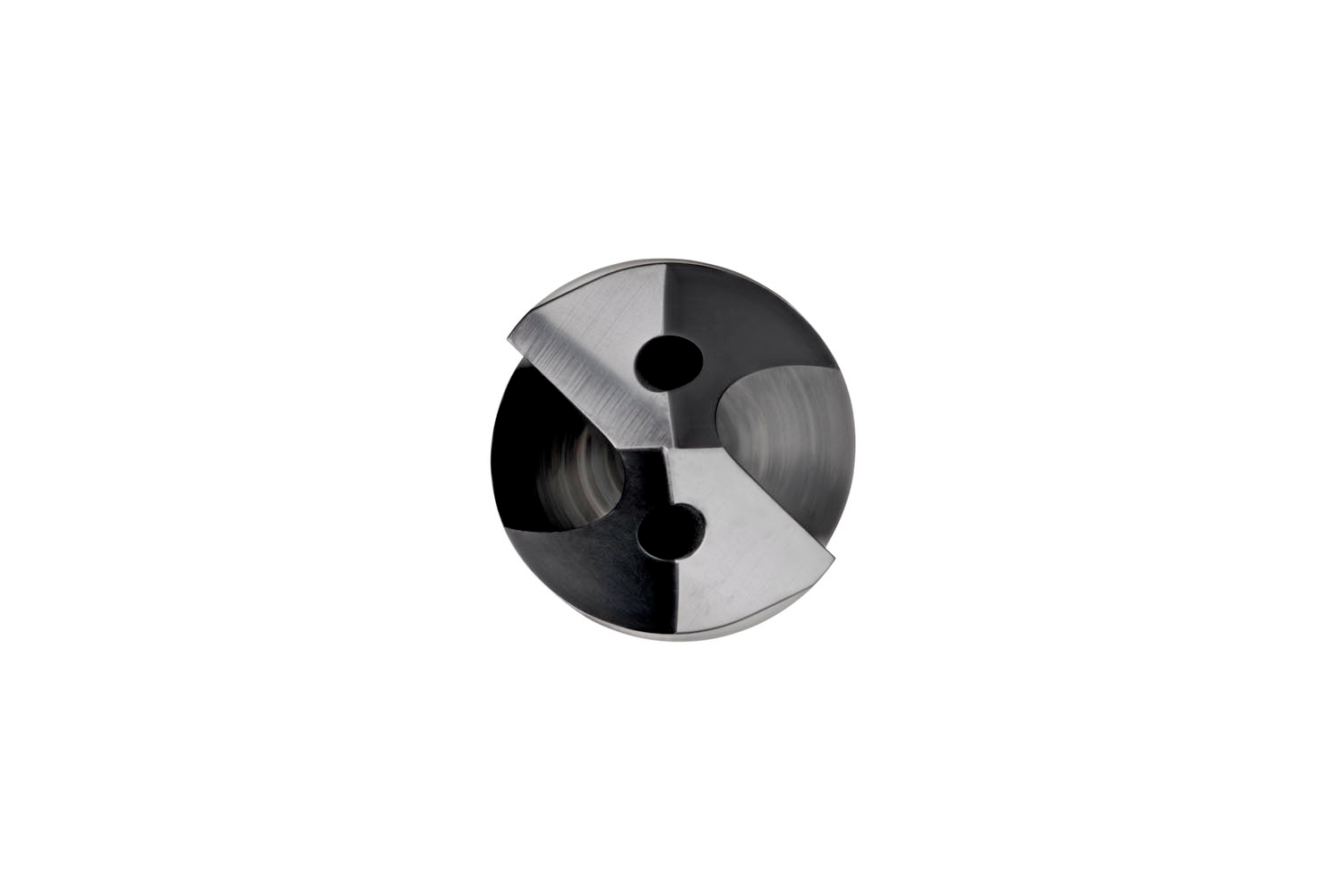

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.1875″ (3/16) with an overall length of 82mm and flute length of 44mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.1606 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760623800
Product number (SAP): 86019048
Ordering code ANSI: R4533/16
Product Line: FORCE X
Gross weight – grams: 22.8

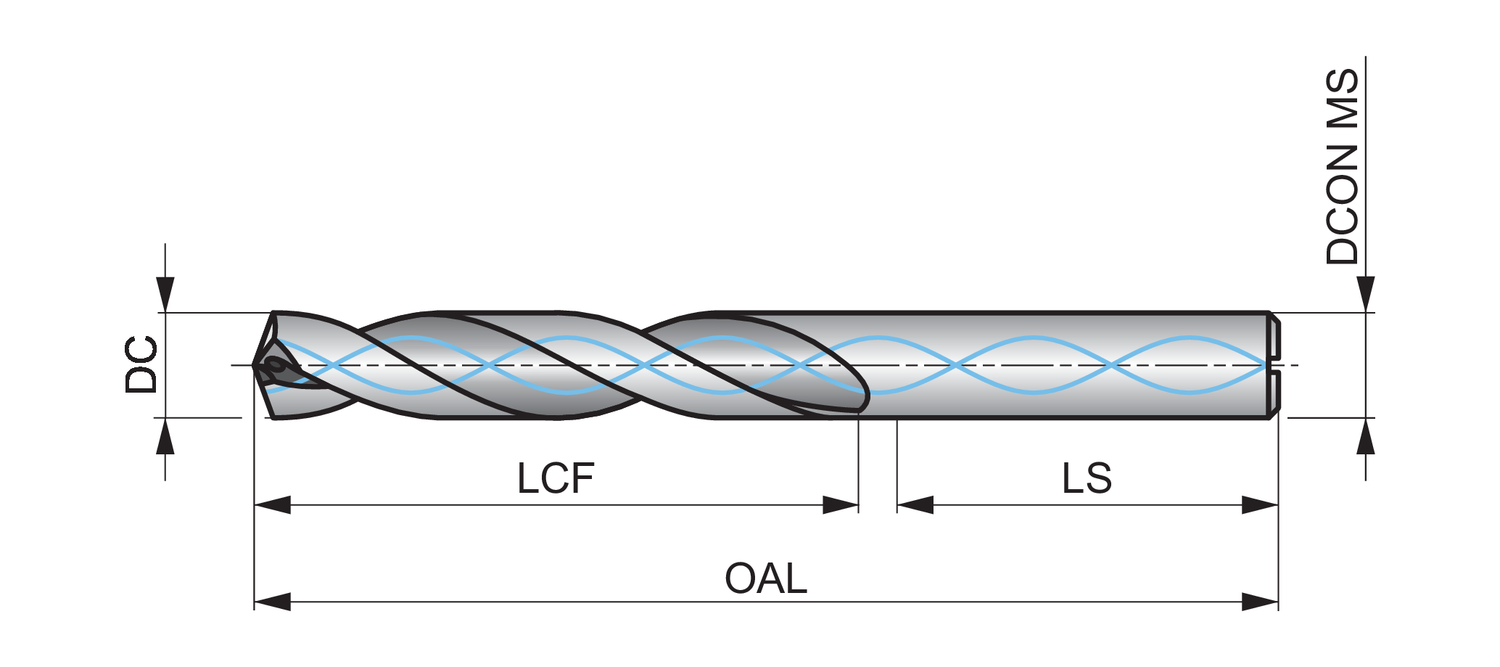

Cutting diameter – fractional inch (DC): 3/16
Cutting diameter – millimeter (DC): 4.76 mm
Cutting diameter – inch (DC): 0.1875 inch
Length chip flute – millimeter (LCF): 44 mm
Overall length – millimeter (OAL): 82 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 6 mm
Length chip flute – inch (LCF): 1.7323 inch
ISO: R4533/16
