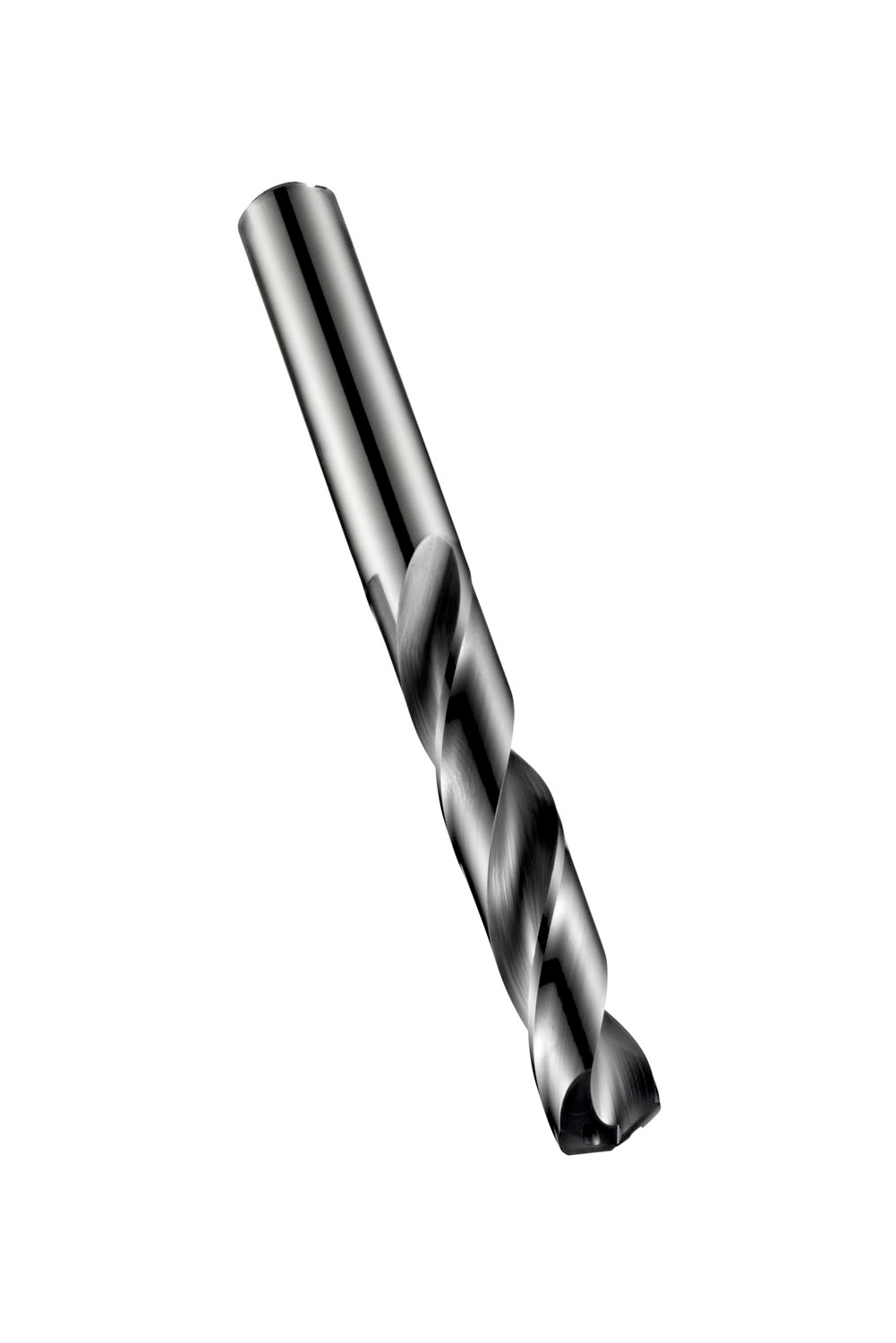

DORMER R4533.8 Carbide Drills

Product Code: R4533.8

$159.75$145.23 Ex. GST

Product Code: R4533.8 SKU R4533.8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

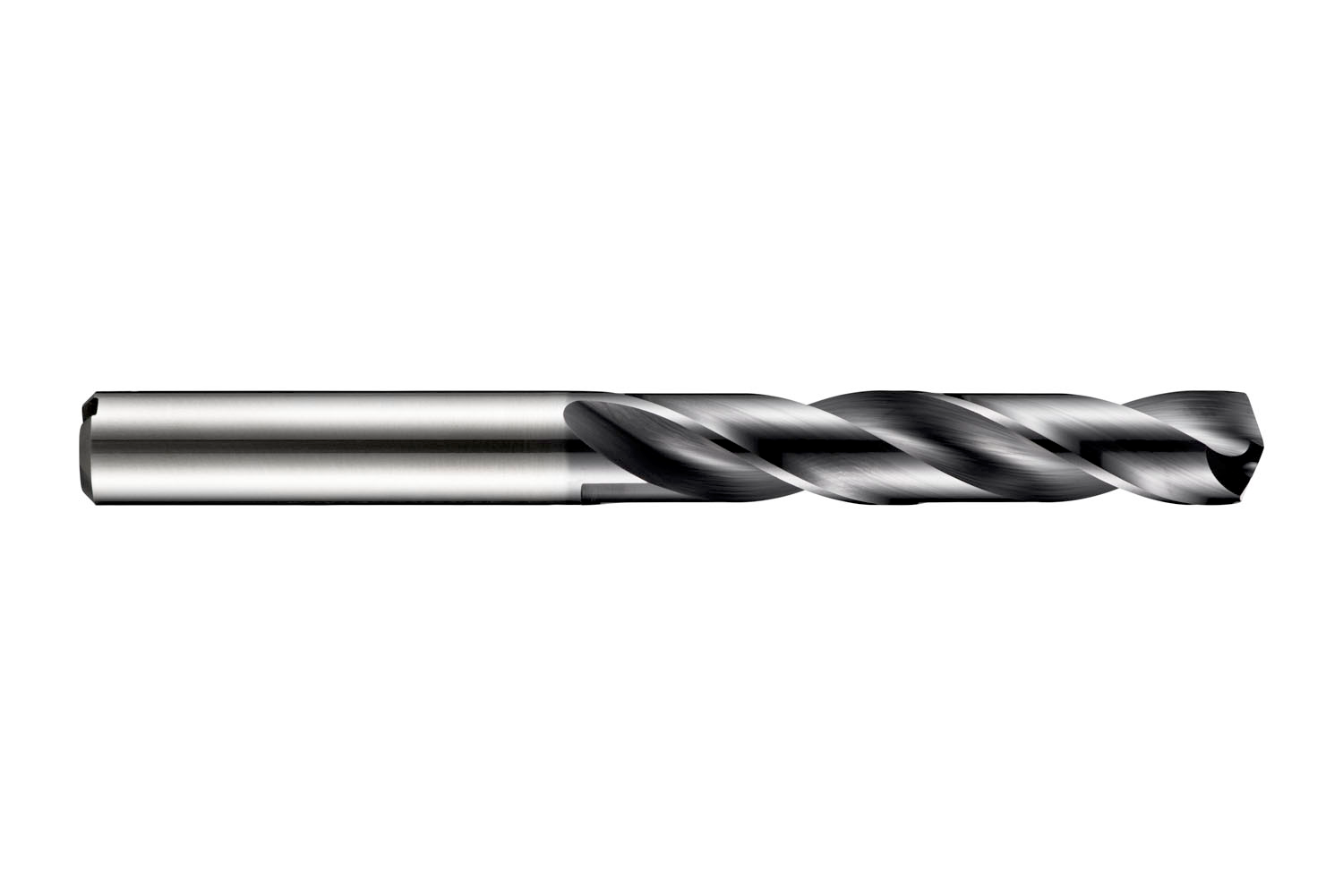

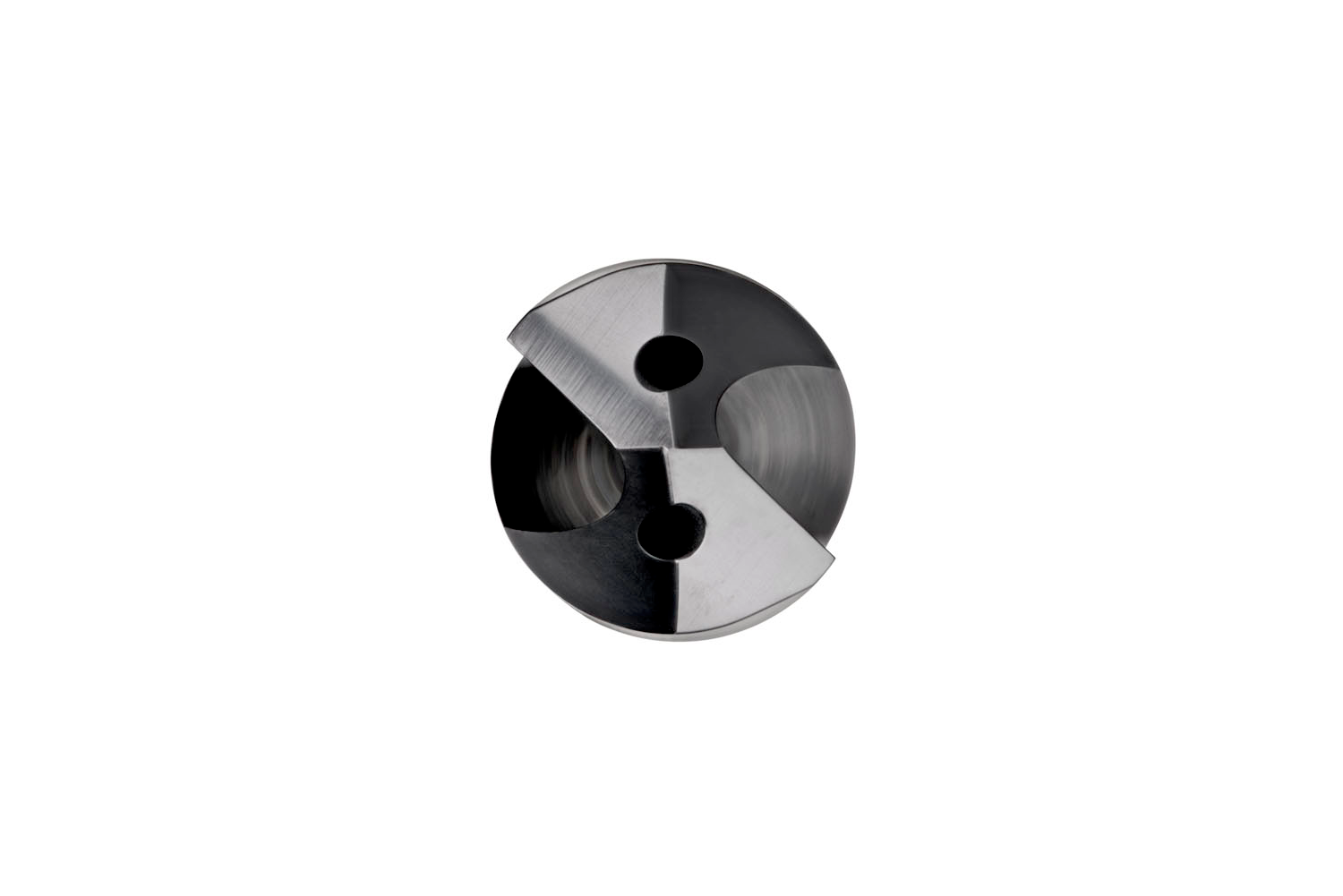

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 3.8mm with an overall length of 74mm and flute length of 36mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.1551 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760625422
Product number (SAP): 86019046
Ordering code ANSI: R4533.8
Product Line: FORCE X
Gross weight – grams: 19.6

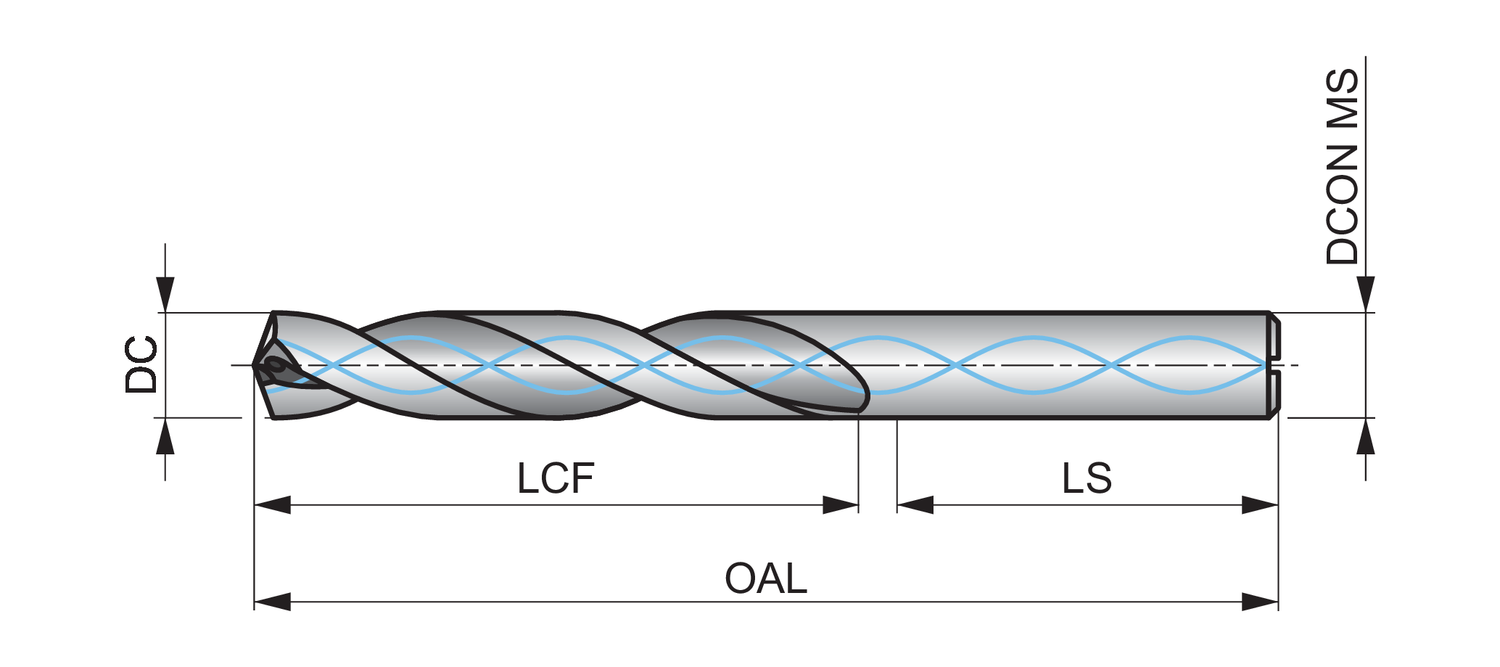

Cutting diameter – millimeter (DC): 3.8 mm
Cutting diameter – inch (DC): 0.1496 inch
Length chip flute – millimeter (LCF): 36 mm
Overall length – millimeter (OAL): 74 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 6 mm
Length chip flute – inch (LCF): 1.4173 inch
ISO: R4533.8

Brand

DORMER
