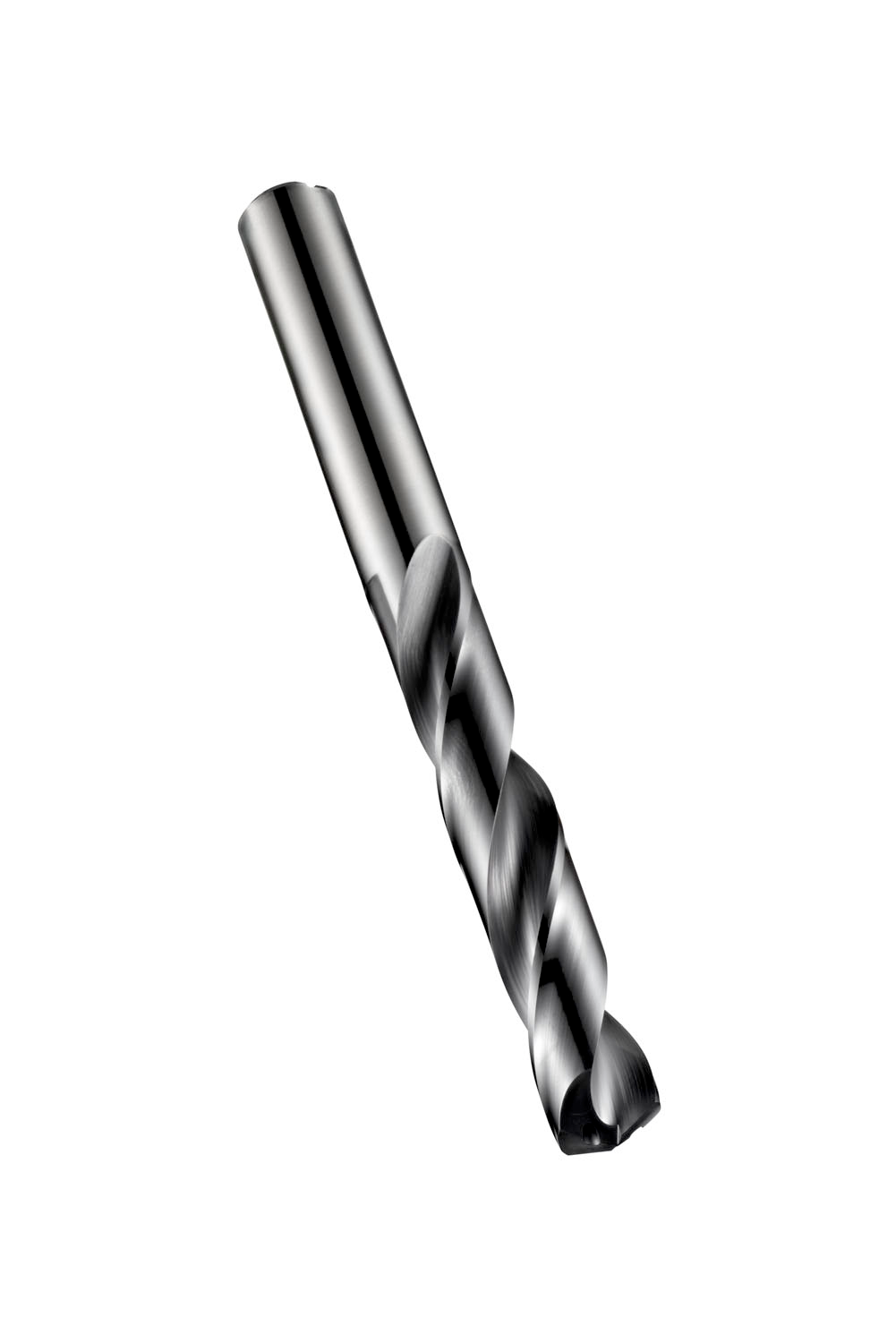

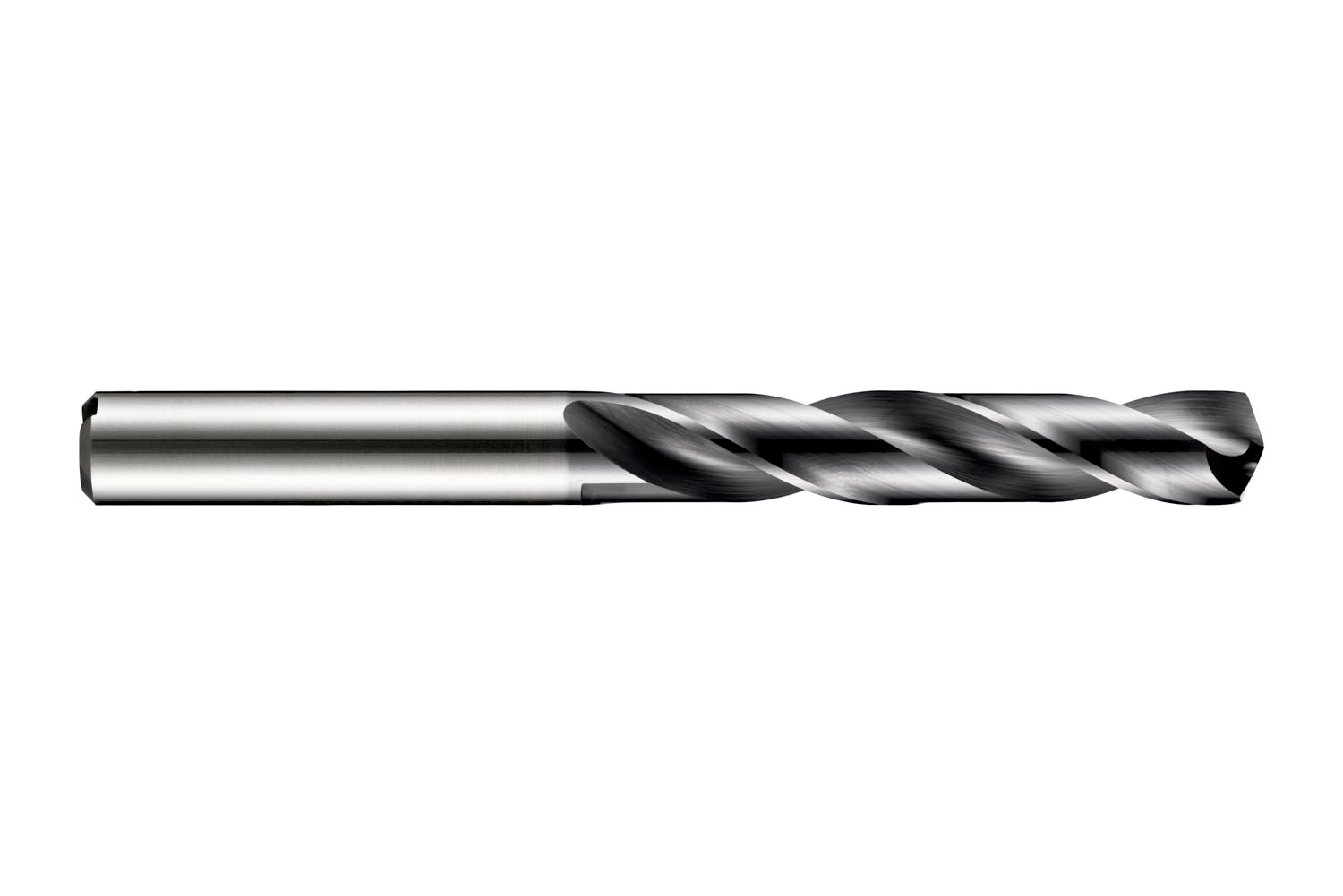

DORMER R45335/64 Carbide Drills

Product Code: R45335/64

$404.48$367.71 Ex. GST

Product Code: R45335/64 SKU R45335/64 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

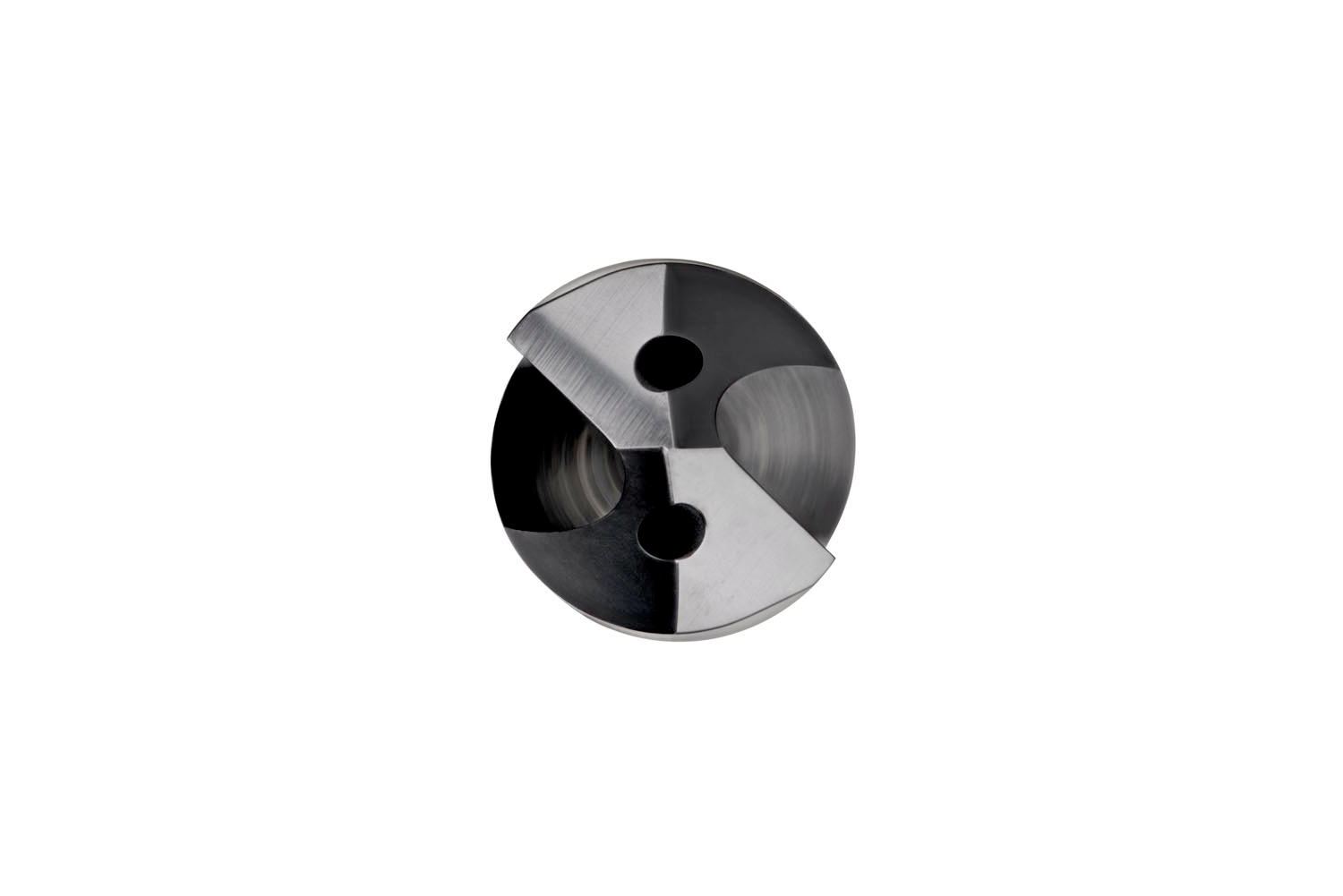

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.5469″ (35/64) with an overall length of 124mm and flute length of 76mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.3927 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760623855
Product number (SAP): 86019053
Ordering code ANSI: R45335/64
Product Line: FORCE X
Gross weight – grams: 195

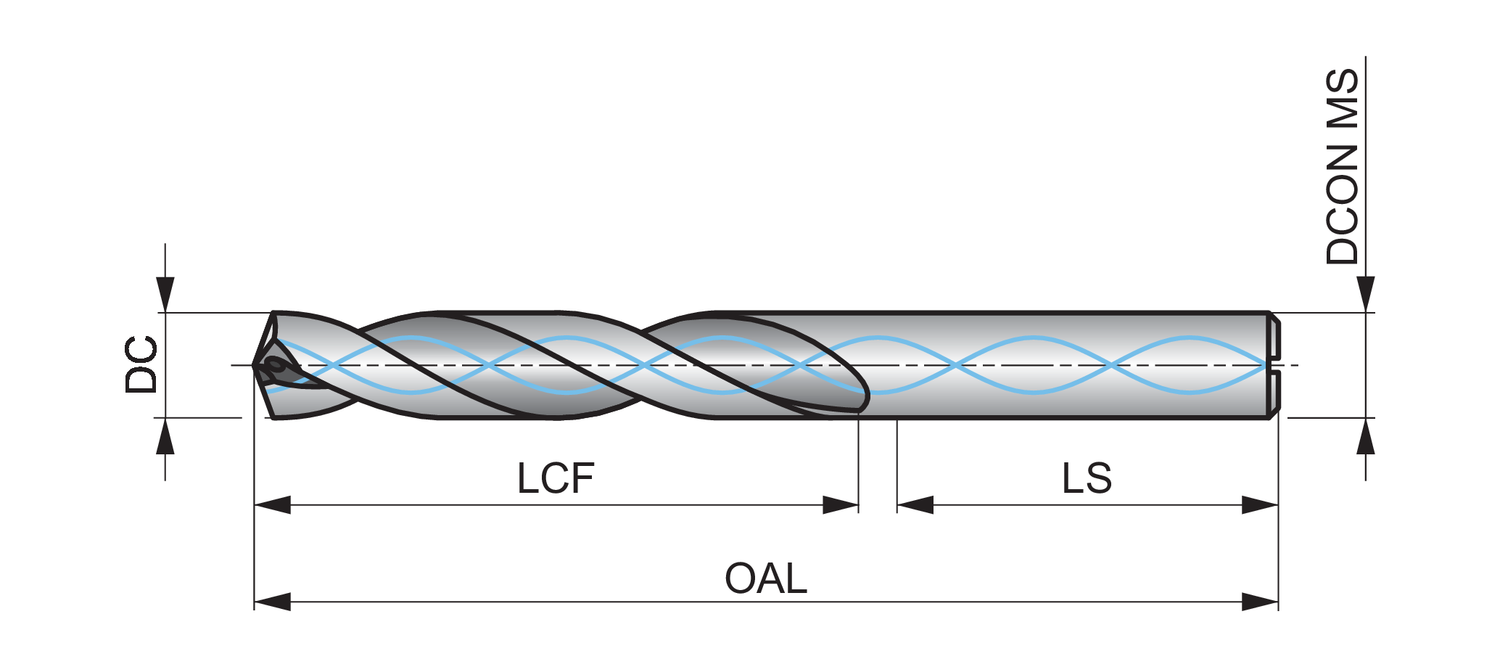

Cutting diameter – fractional inch (DC): 35/64
Cutting diameter – millimeter (DC): 13.89 mm
Cutting diameter – inch (DC): 0.5469 inch
Length chip flute – millimeter (LCF): 76 mm
Overall length – millimeter (OAL): 124 mm
Shank length – millimeter (LS): 45 mm
Connection diameter – millimeter (DCON MS): 14 mm
Length chip flute – inch (LCF): 2.9921 inch
ISO: R45335/64

Brand

DORMER
