DORMER R4534.4 Carbide Drills

Product Code: R4534.4

$165.42$150.38 Ex. GST

Product Code: R4534.4 SKU R4534.4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

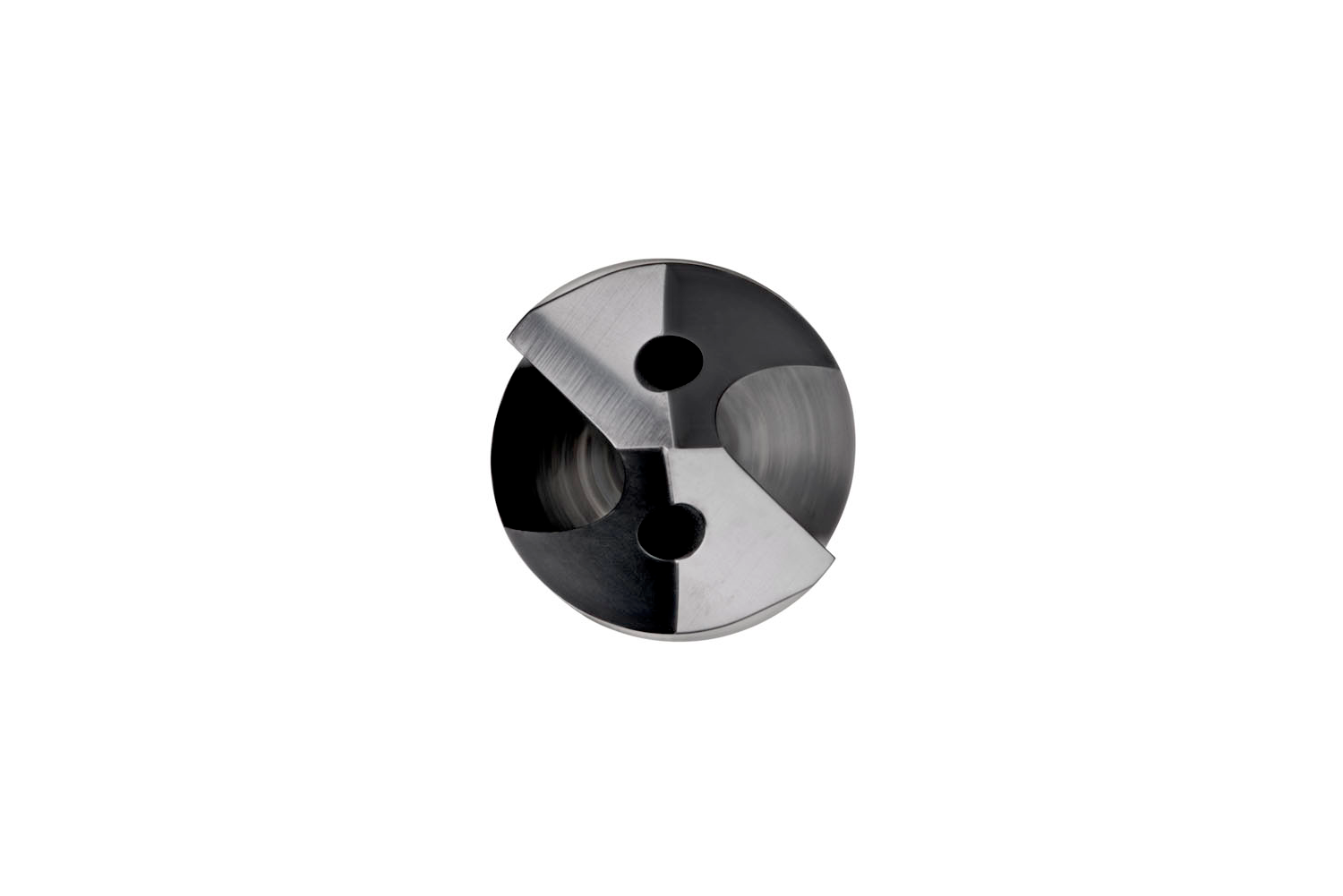

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 4.4mm with an overall length of 74mm and flute length of 36mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.1606 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760134191
Product number (SAP): 86019061
Ordering code ANSI: R4534.4
Product Line: FORCE X
Gross weight – grams: 21.4

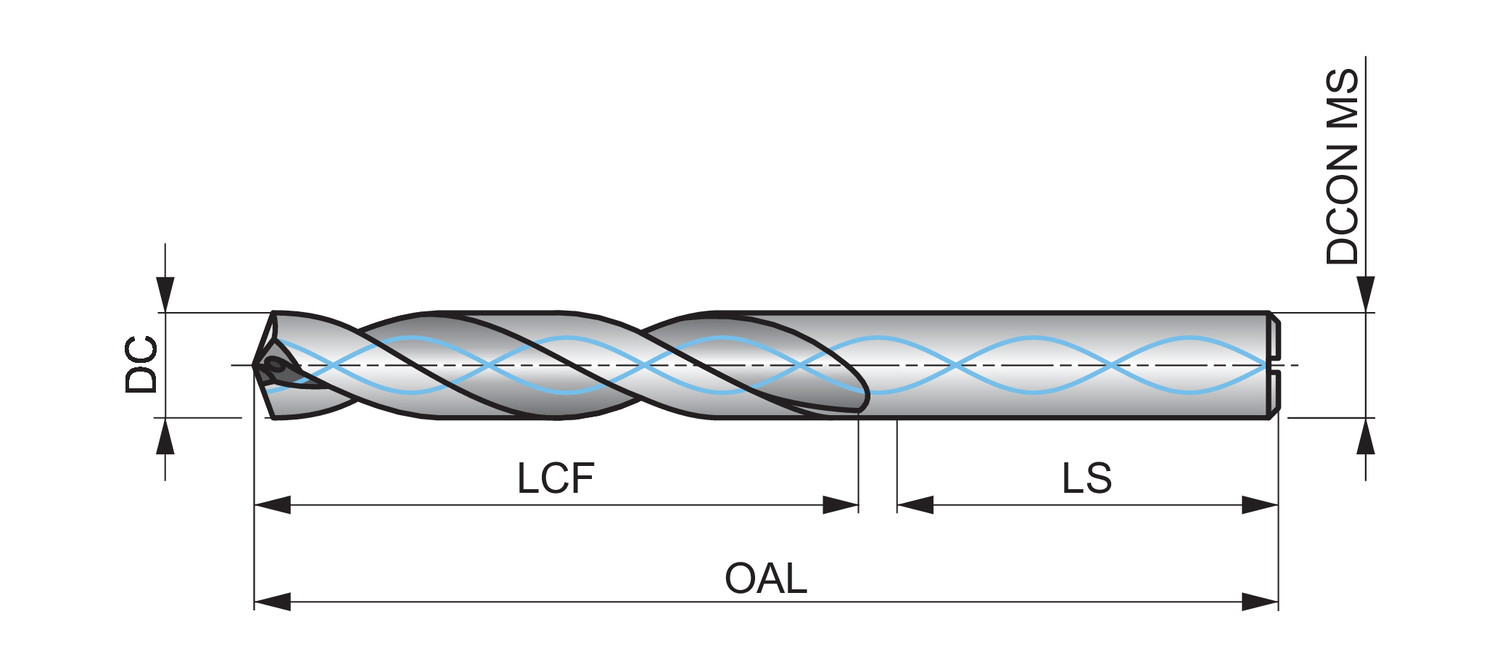

Cutting diameter – millimeter (DC): 4.4 mm
Cutting diameter – inch (DC): 0.1732 inch
Length chip flute – millimeter (LCF): 36 mm
Overall length – millimeter (OAL): 74 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 6 mm
Length chip flute – inch (LCF): 1.4173 inch
ISO: R4534.4

Brand

DORMER
