DORMER R45341/64 Carbide Drills

Product Code: R45341/64

$820.29$745.72 Ex. GST

Product Code: R45341/64 SKU R45341/64 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

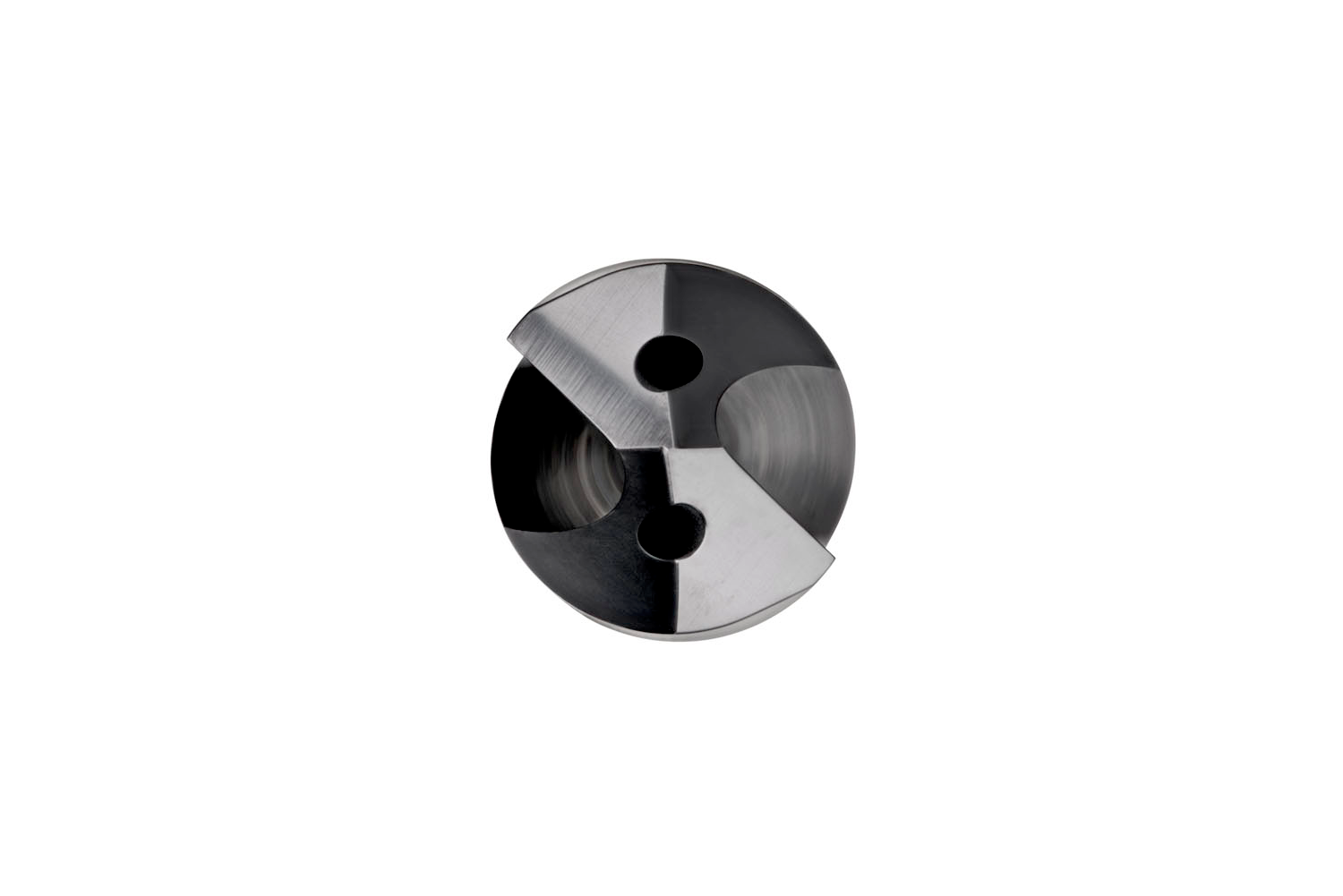

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.6406″ (41/64) with an overall length of 143mm and flute length of 91mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.7964 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760623886
Product number (SAP): 86019067
Ordering code ANSI: R45341/64
Product Line: FORCE X
Gross weight – grams: 341

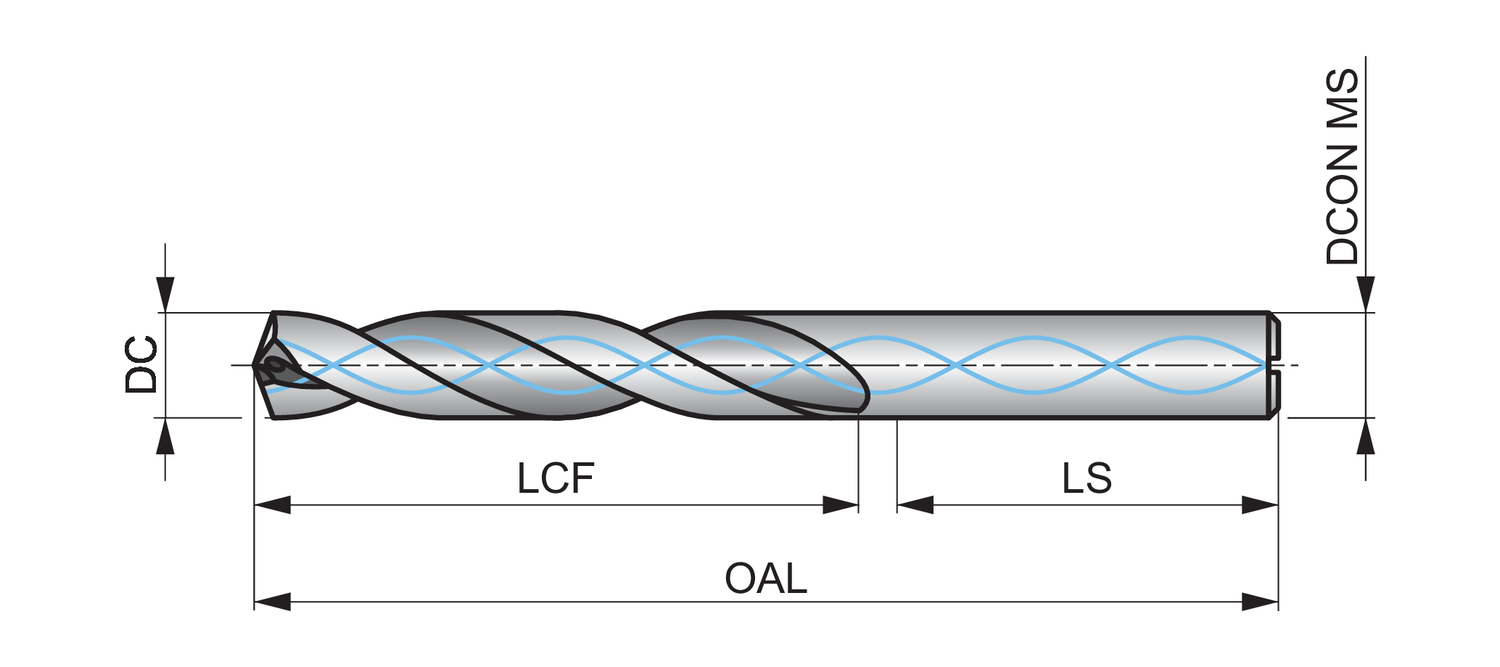

Cutting diameter – fractional inch (DC): 41/64
Cutting diameter – millimeter (DC): 16.27 mm
Cutting diameter – inch (DC): 0.6406 inch
Length chip flute – millimeter (LCF): 91 mm
Overall length – millimeter (OAL): 143 mm
Shank length – millimeter (LS): 48 mm
Connection diameter – millimeter (DCON MS): 18 mm
Length chip flute – inch (LCF): 3.5827 inch
ISO: R45341/64

Brand

DORMER
