DORMER R4535.9 Carbide Drills

Product Code: R4535.9

$165.42$150.38 Ex. GST

Product Code: R4535.9 SKU R4535.9 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

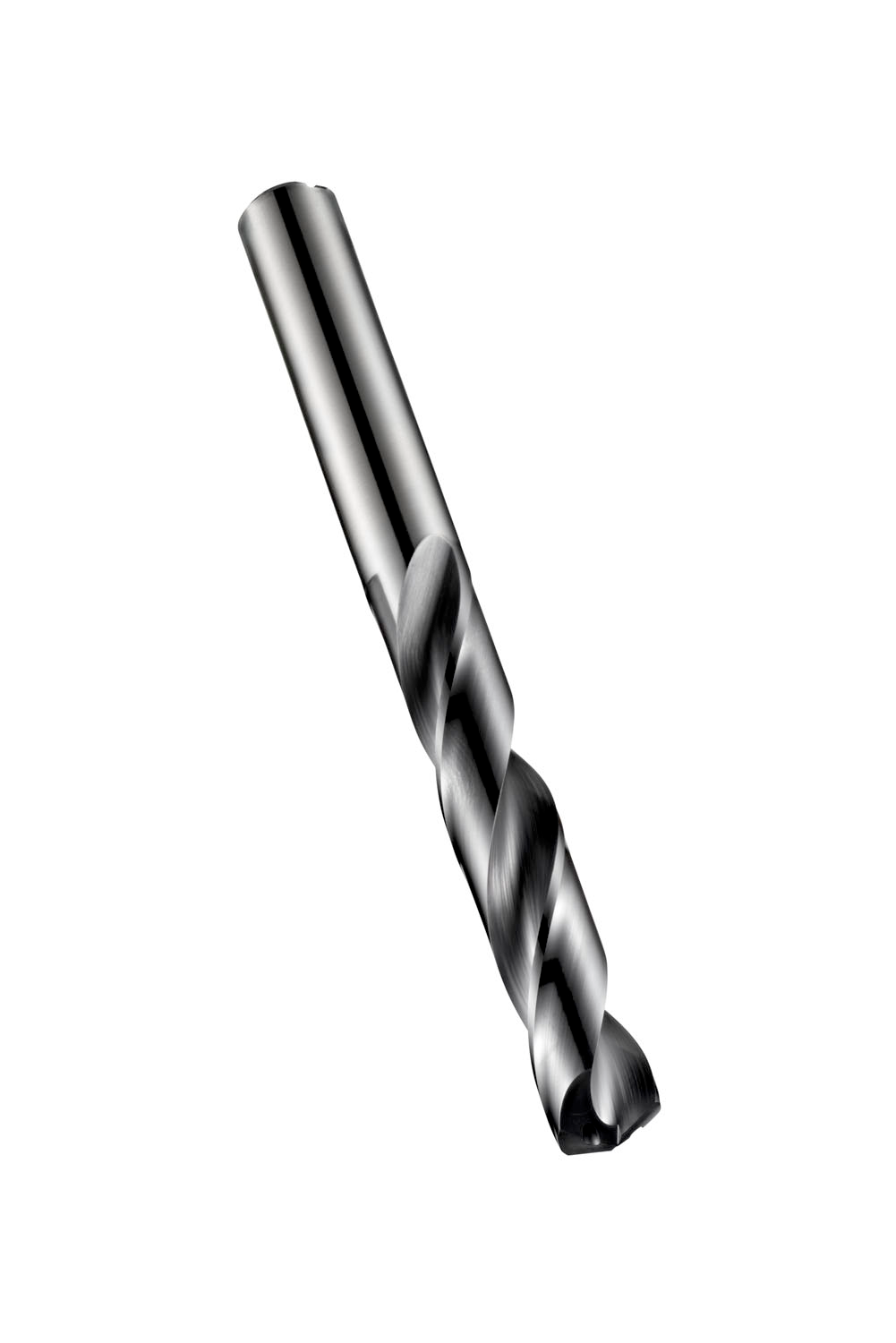

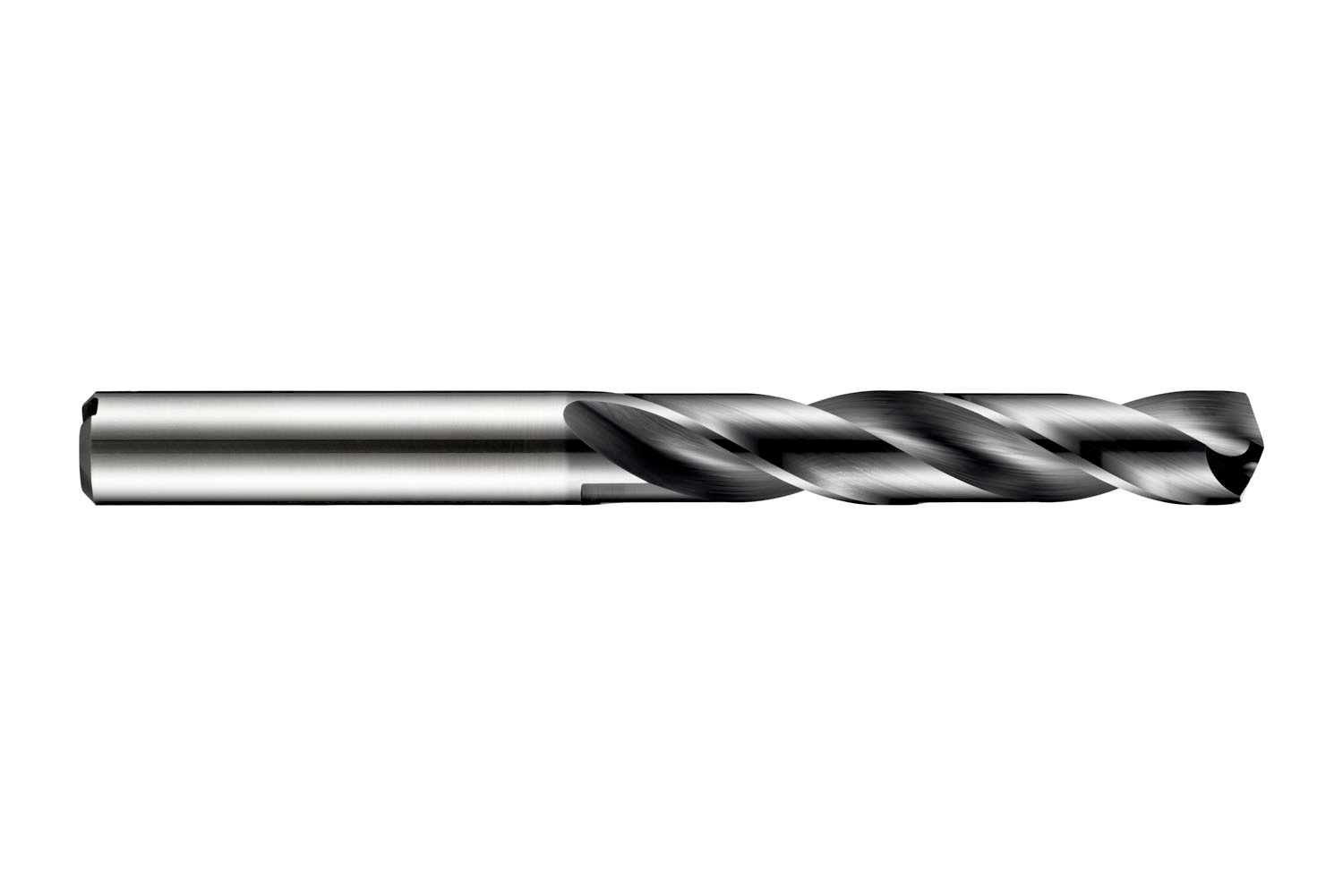

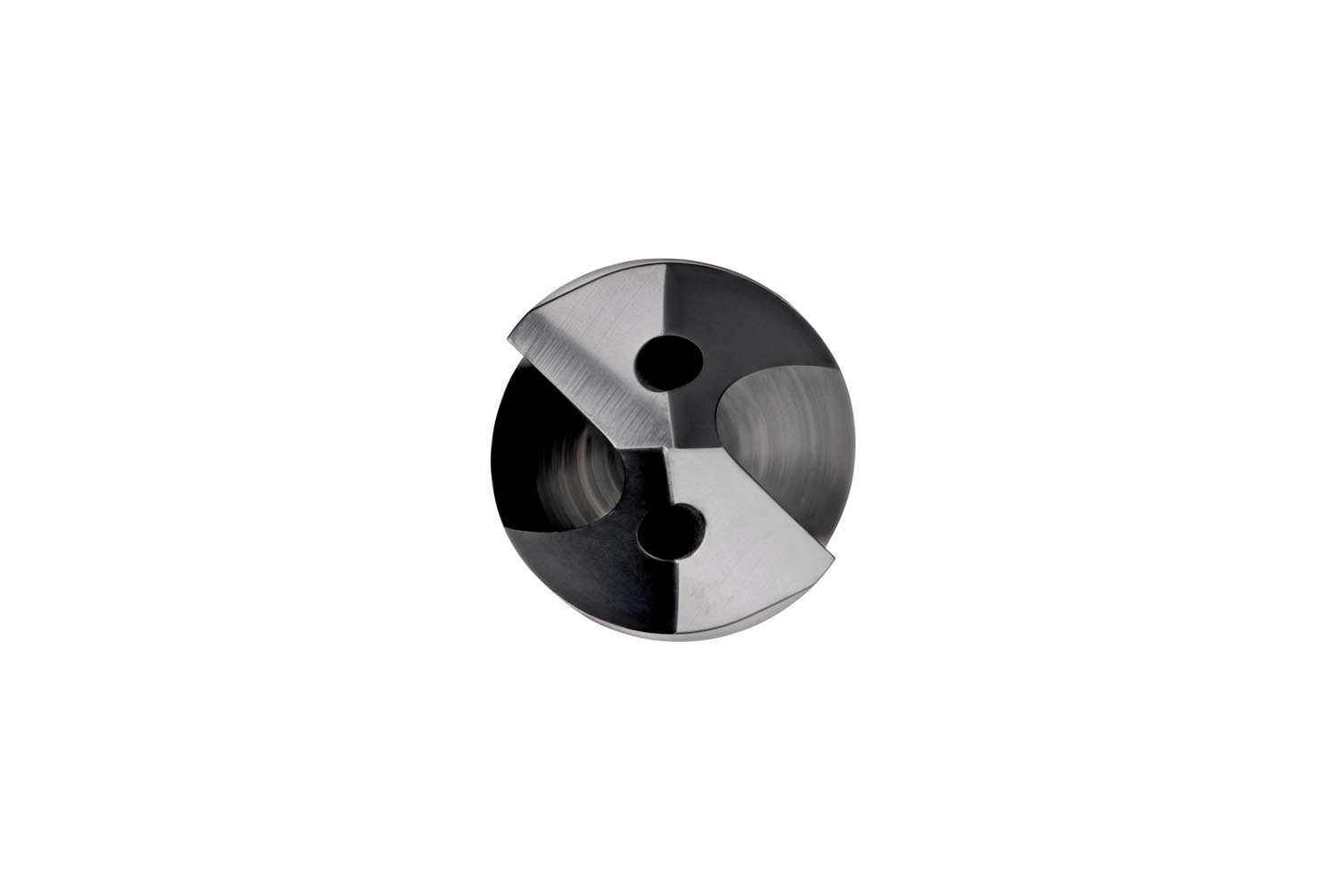

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 5.9mm with an overall length of 82mm and flute length of 44mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.1606 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760756492
Product number (SAP): 86032926
Ordering code ANSI: R4535.9
Product Line: FORCE X
Gross weight – grams: 24

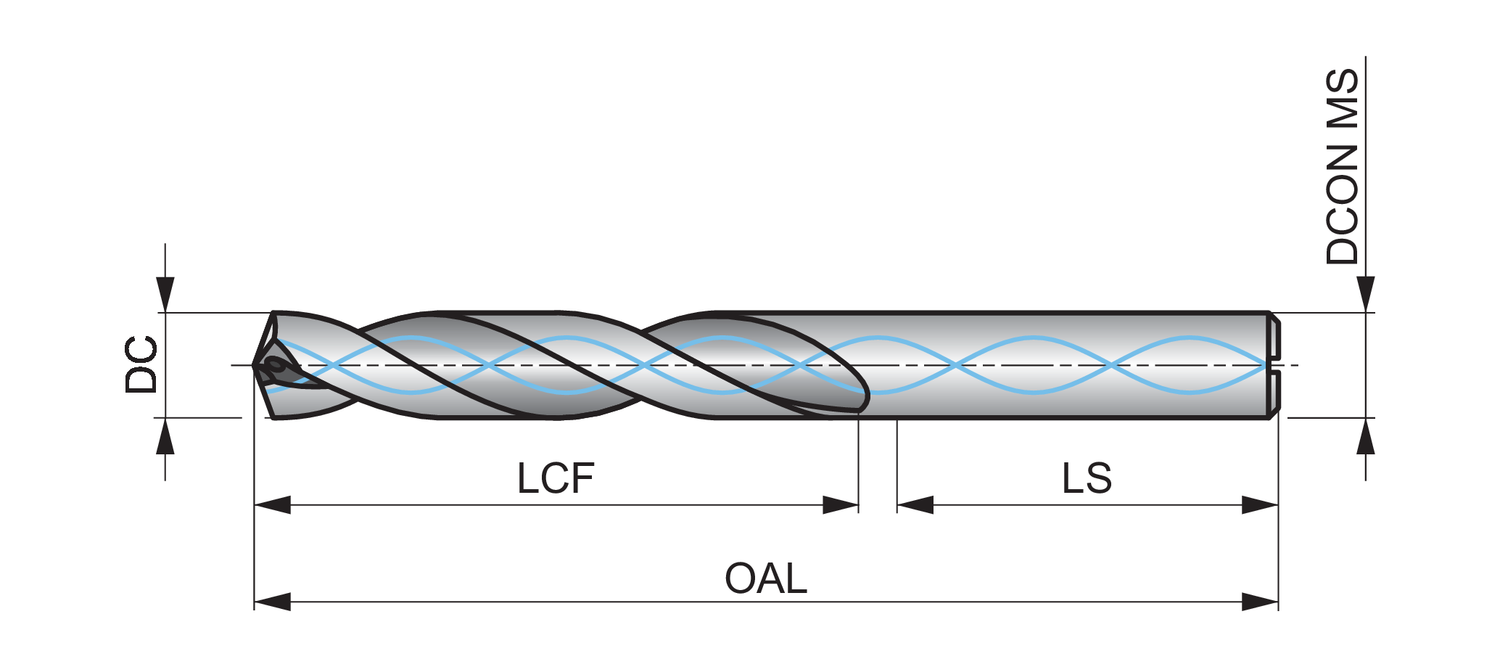

Cutting diameter – millimeter (DC): 5.9 mm
Cutting diameter – inch (DC): 0.2323 inch
Length chip flute – millimeter (LCF): 44 mm
Overall length – millimeter (OAL): 82 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 6 mm
Length chip flute – inch (LCF): 1.7323 inch
ISO: R4535.9

Brand

DORMER
