DORMER R4537.1 Carbide Drills

Product Code: R4537.1

$190.34$173.04 Ex. GST

Product Code: R4537.1 SKU R4537.1 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

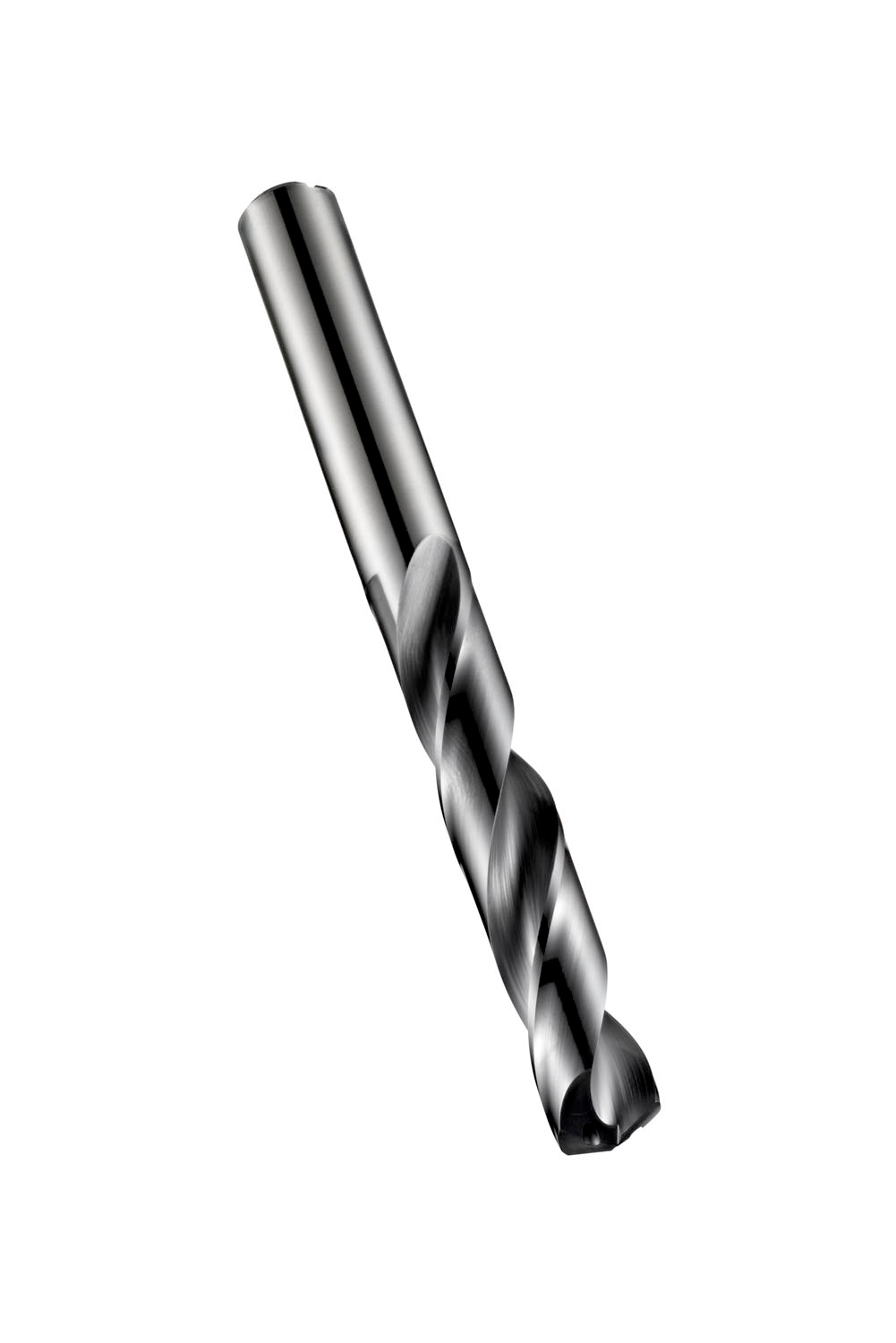

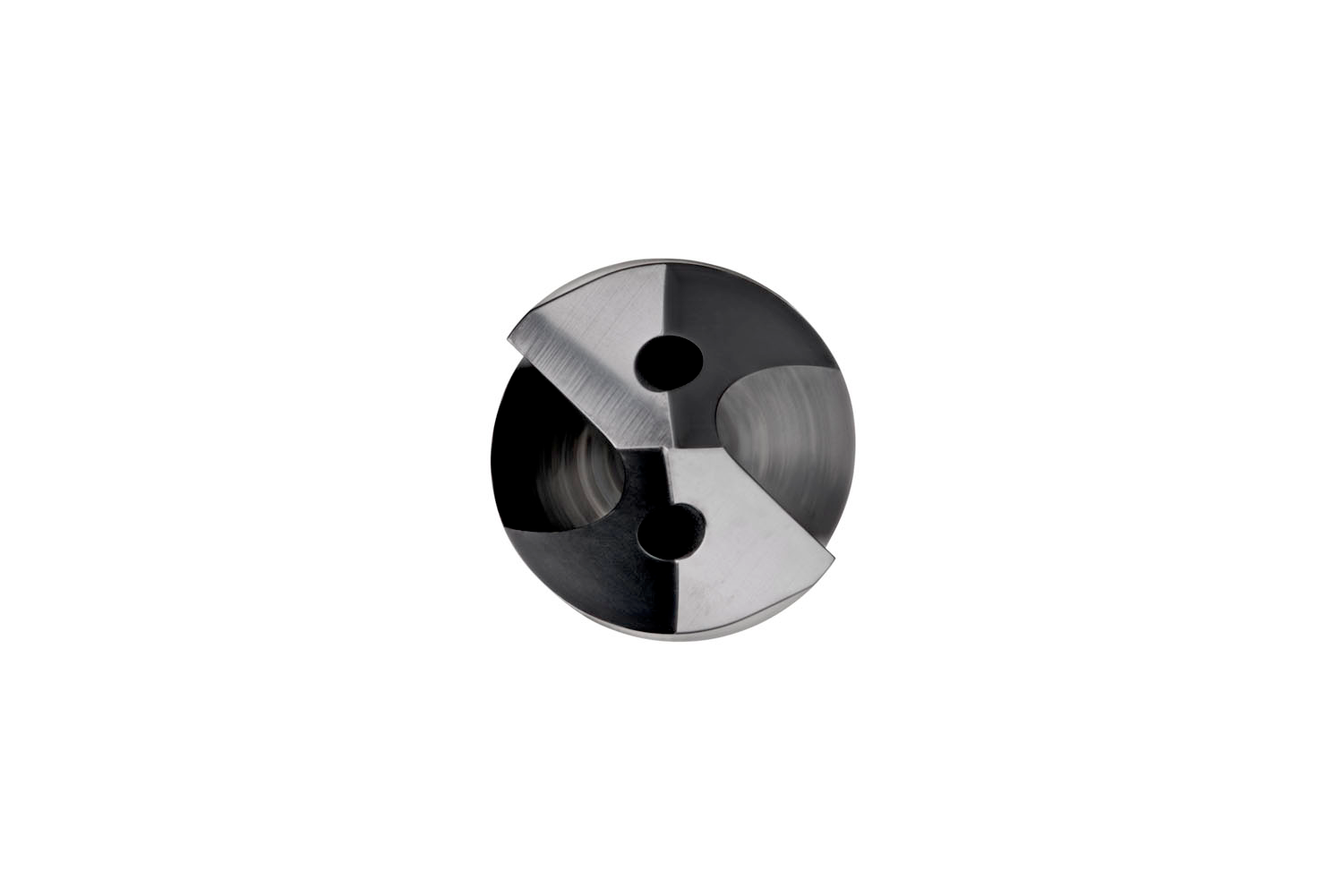

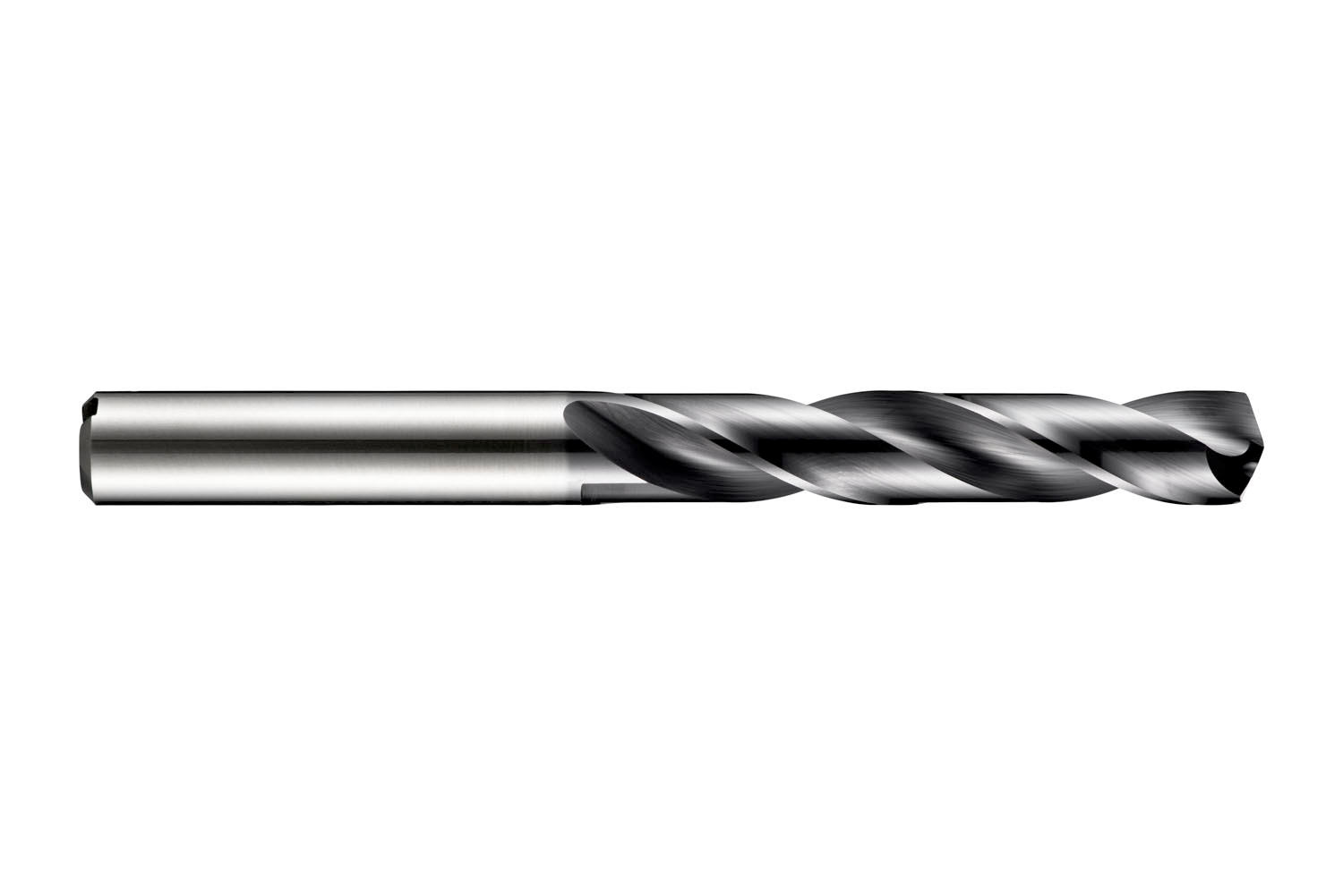

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 7.1mm with an overall length of 91mm and flute length of 53mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.1848 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760625552
Product number (SAP): 86019094
Ordering code ANSI: R4537.1
Product Line: FORCE X
Gross weight – grams: 47.7

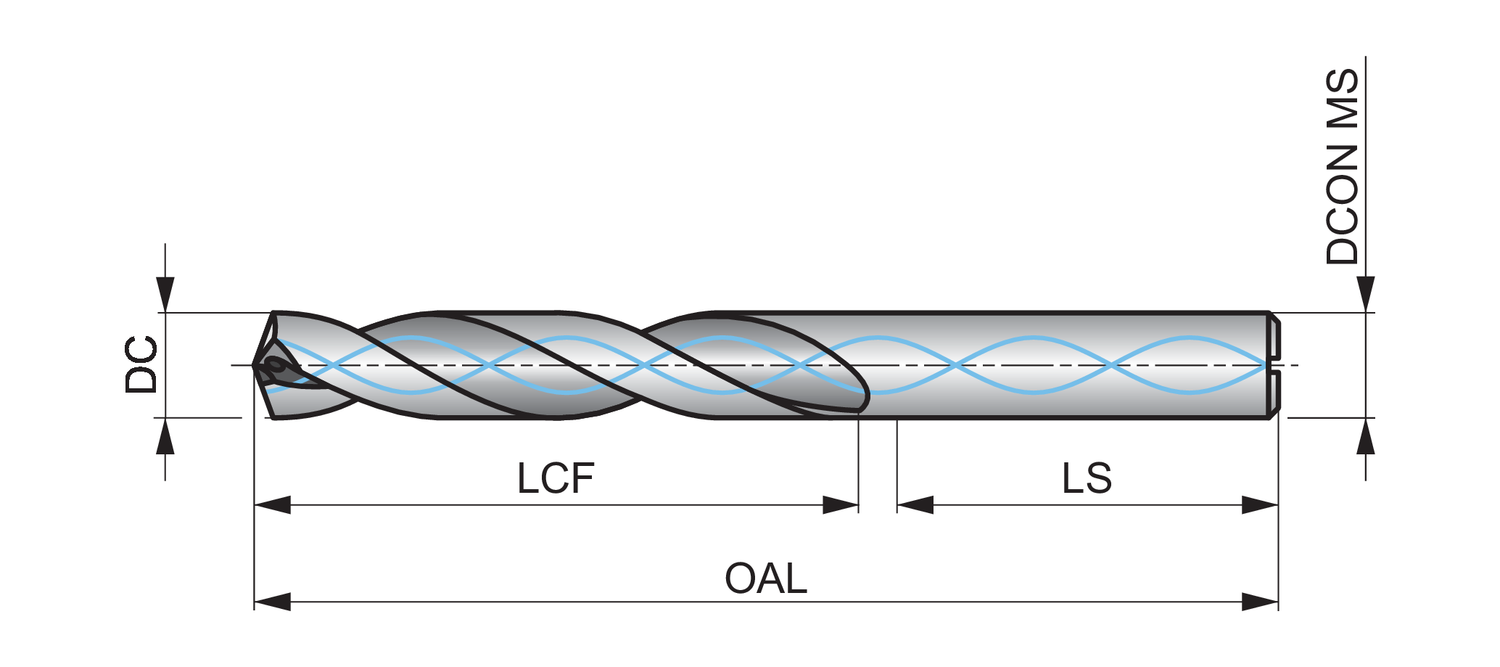

Cutting diameter – millimeter (DC): 7.1 mm
Cutting diameter – inch (DC): 0.2795 inch
Length chip flute – millimeter (LCF): 53 mm
Overall length – millimeter (OAL): 91 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 8 mm
Length chip flute – inch (LCF): 2.0866 inch
ISO: R4537.1

Brand

DORMER
