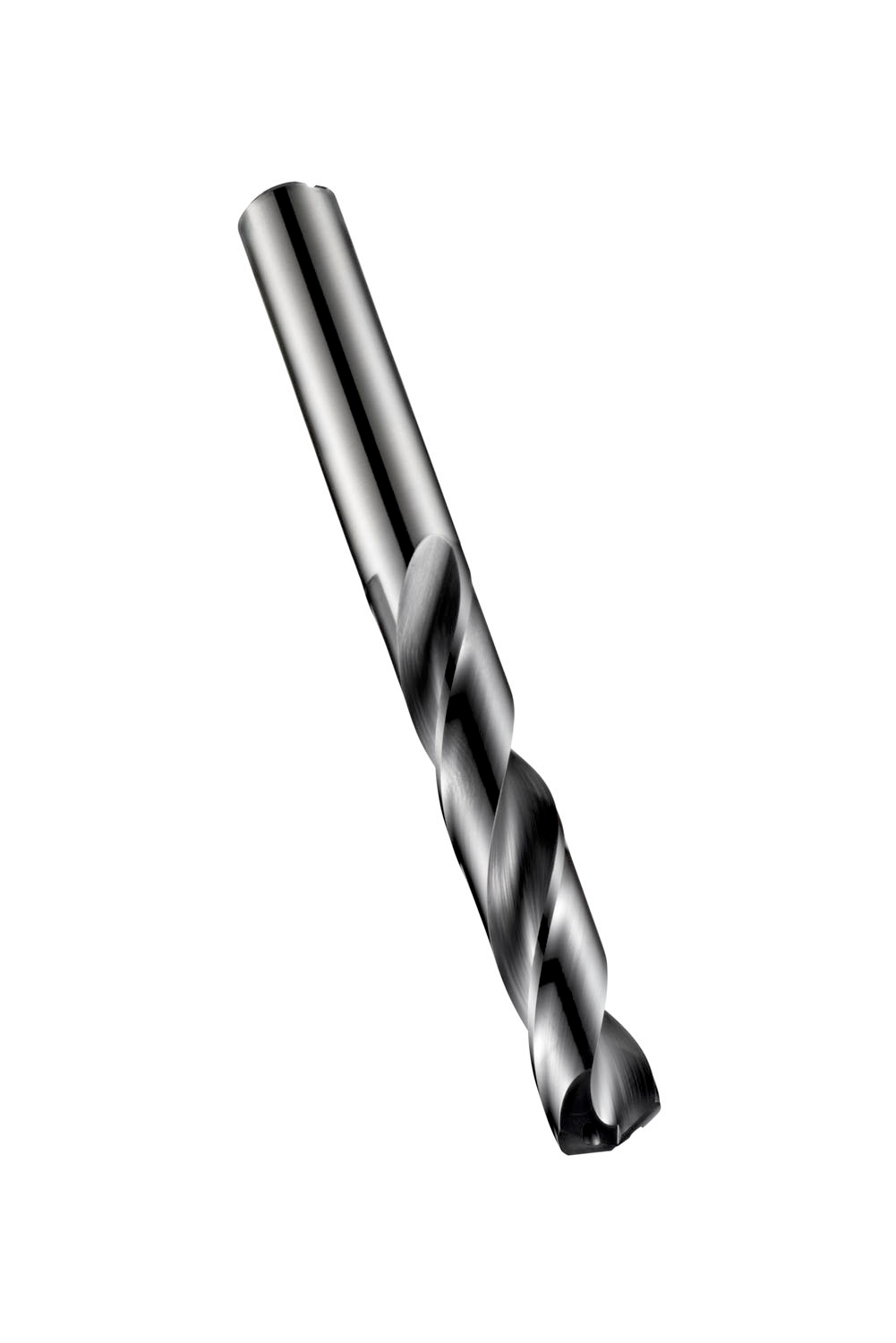

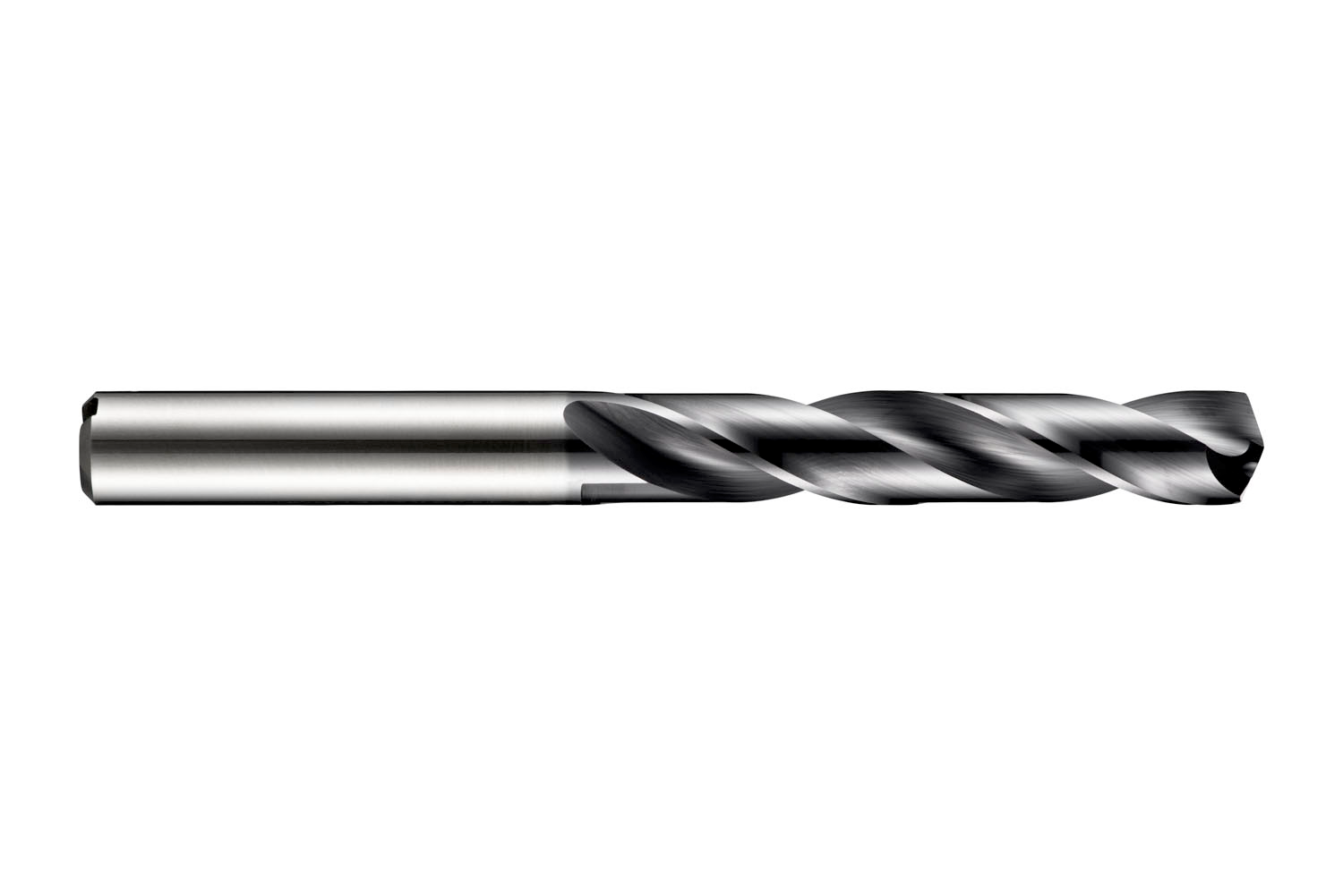

DORMER R4538.05 Carbide Drills

Product Code: R4538.05

$214.14$194.67 Ex. GST

Product Code: R4538.05 SKU R4538.05 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

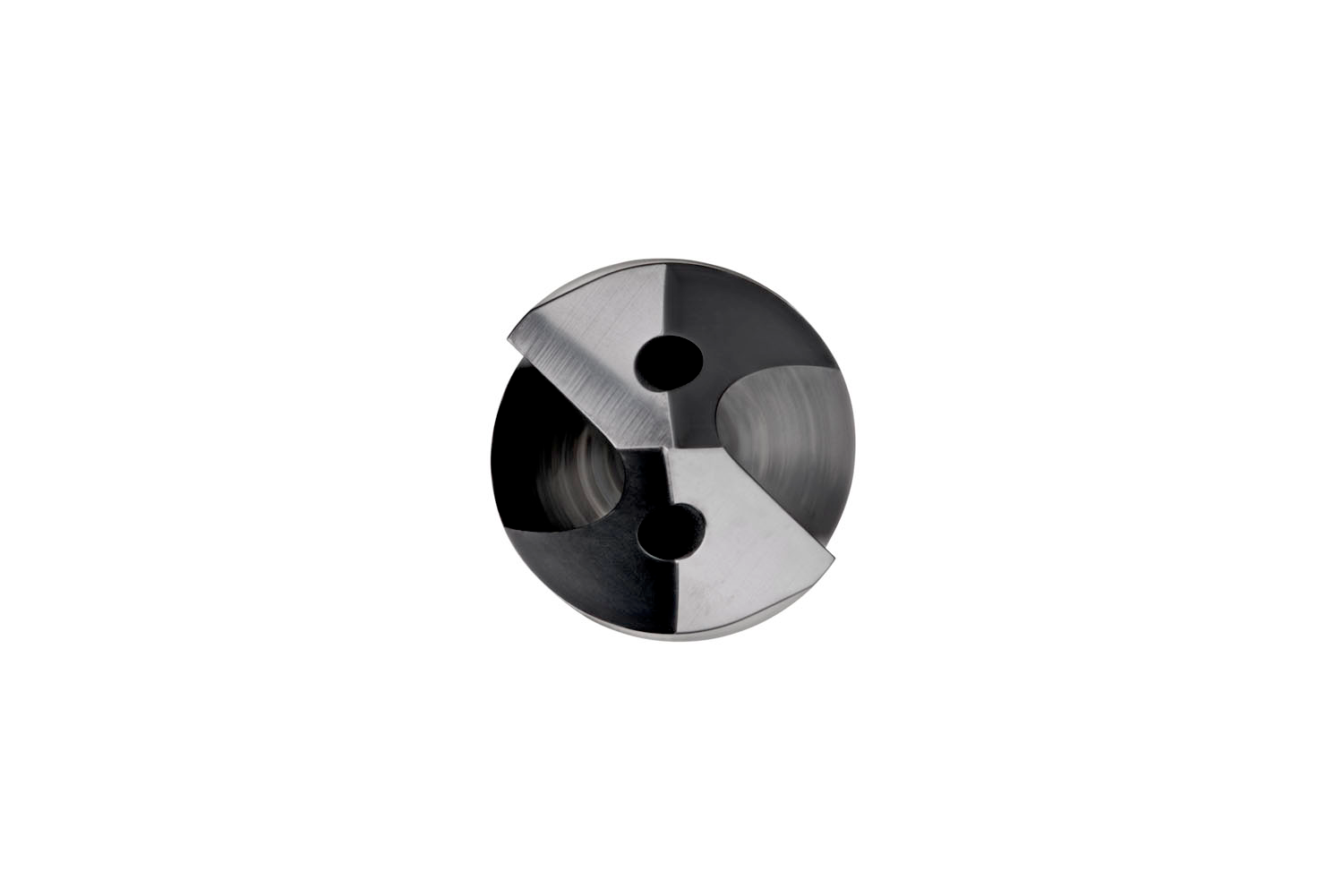

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 8.05mm with an overall length of 103mm and flute length of 61mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.2079 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760625590
Product number (SAP): 86019105
Ordering code ANSI: R4538.05
Product Line: FORCE X
Gross weight – grams: 71.8

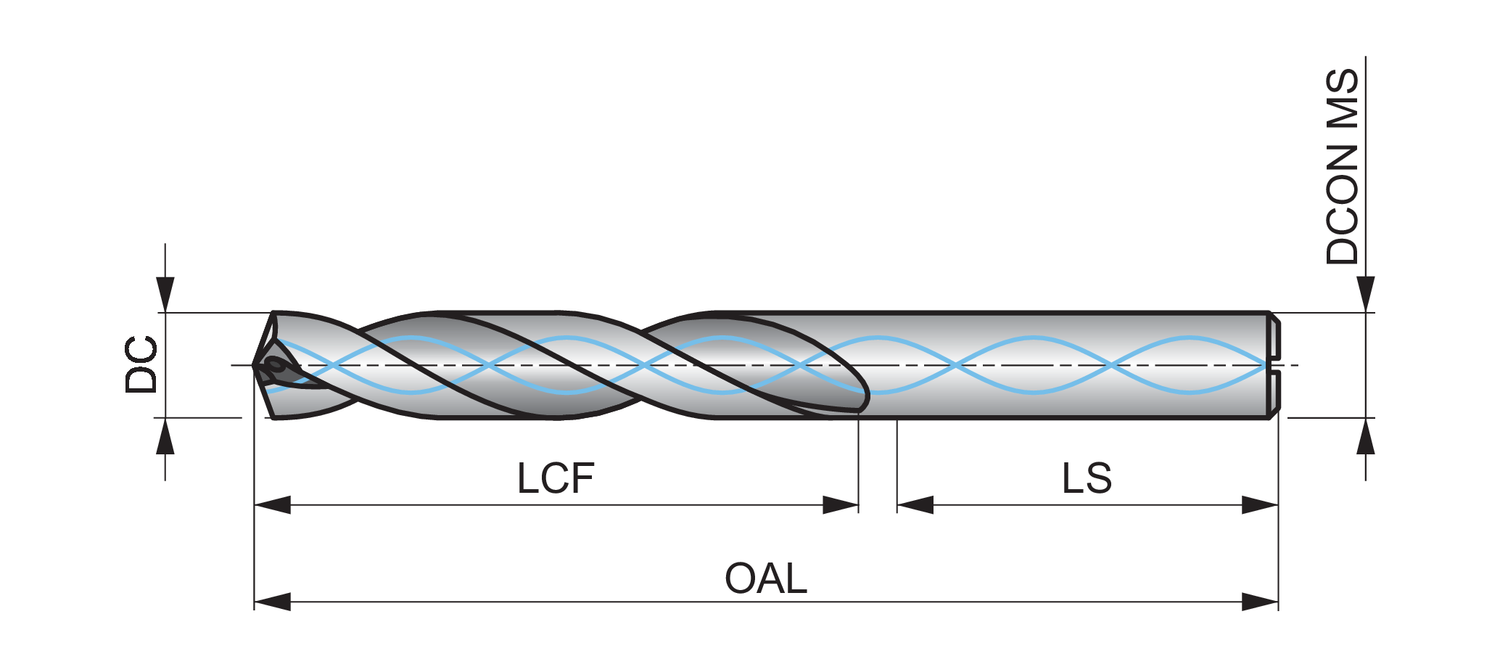

Cutting diameter – millimeter (DC): 8.05 mm
Cutting diameter – inch (DC): 0.3169 inch
Length chip flute – millimeter (LCF): 61 mm
Overall length – millimeter (OAL): 103 mm
Shank length – millimeter (LS): 40 mm
Connection diameter – millimeter (DCON MS): 10 mm
Length chip flute – inch (LCF): 2.4016 inch
ISO: R4538.05

Brand

DORMER
