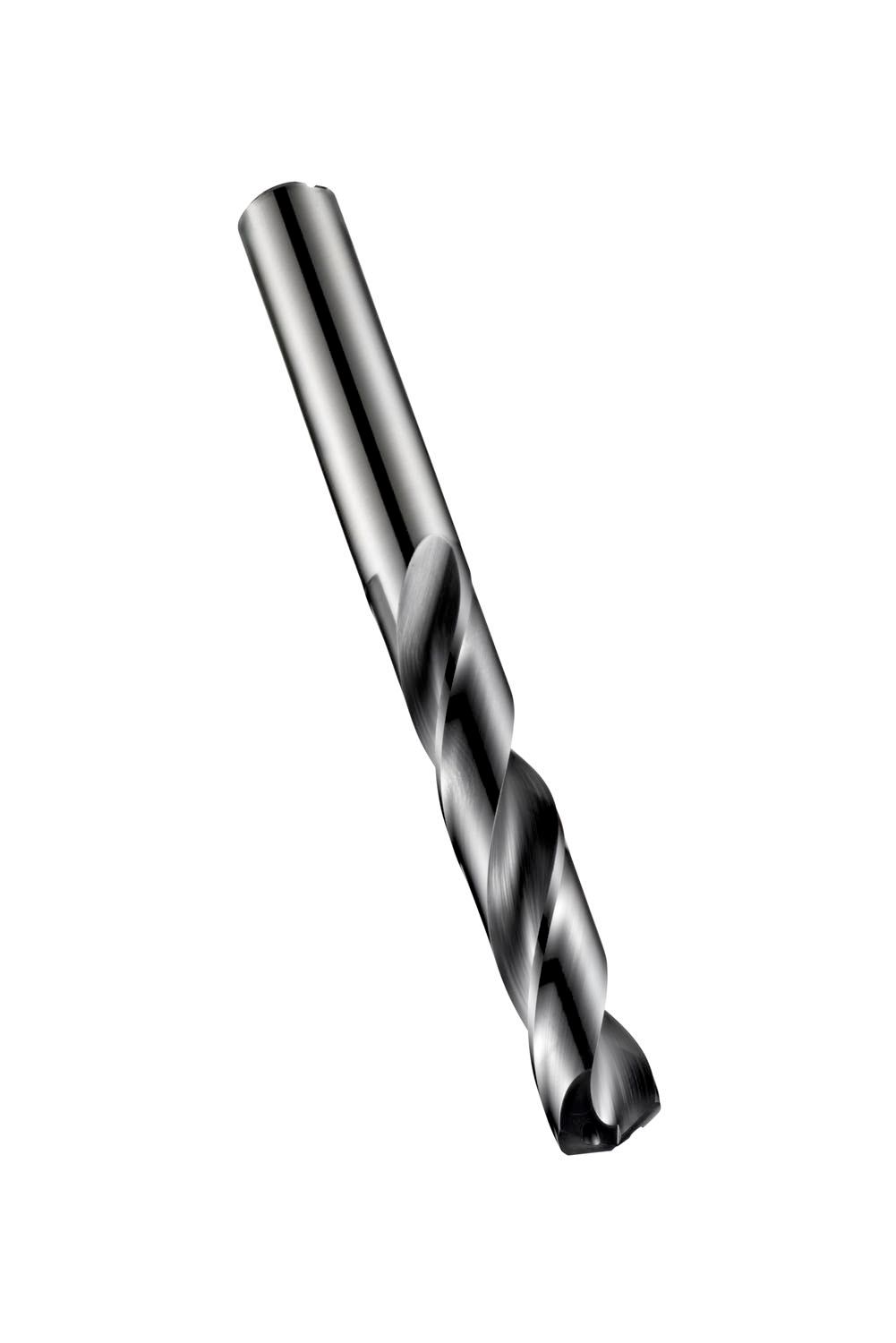

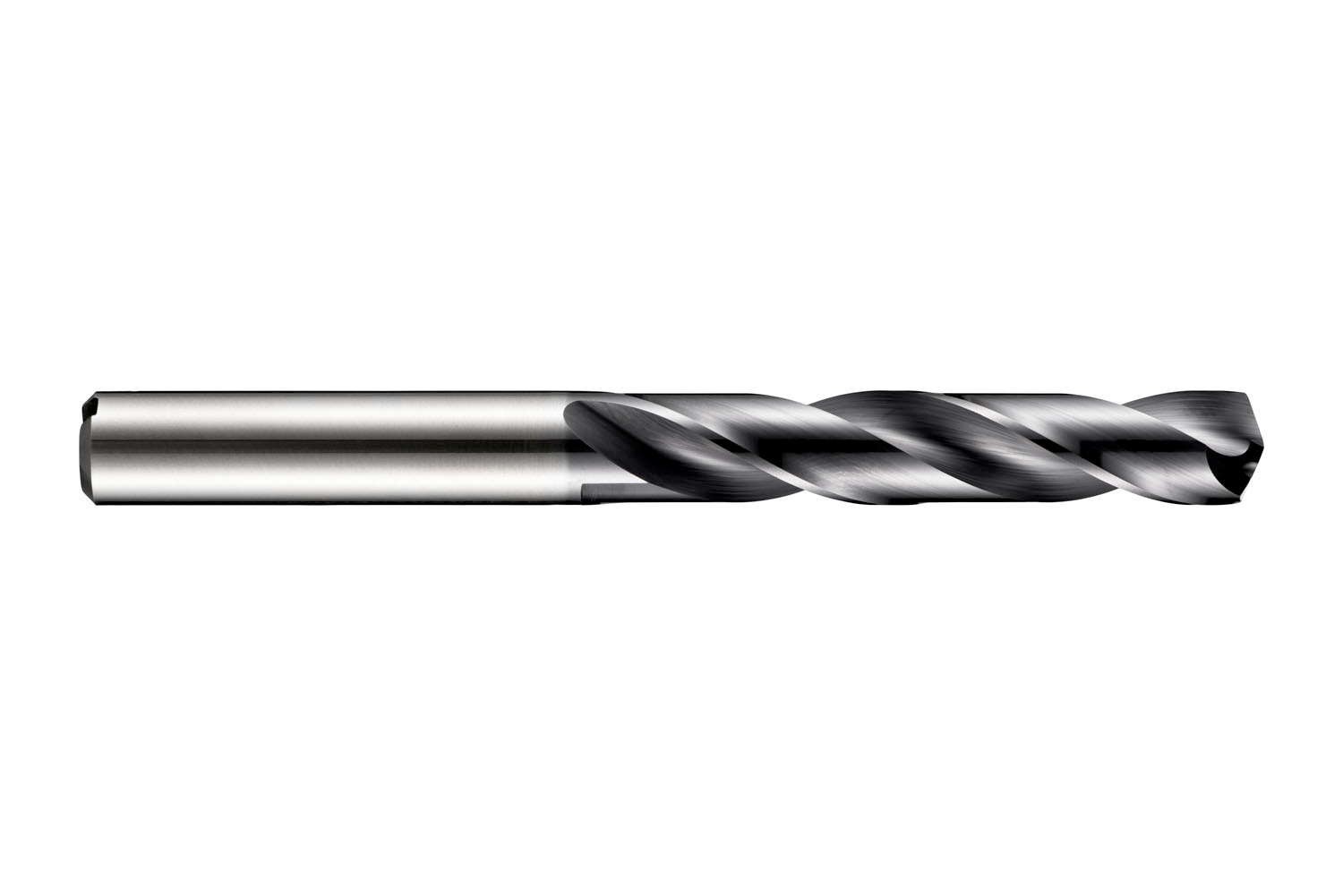

DORMER R4539/16 Carbide Drills

Product Code: R4539/16

$520.05$472.77 Ex. GST

Product Code: R4539/16 SKU R4539/16 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

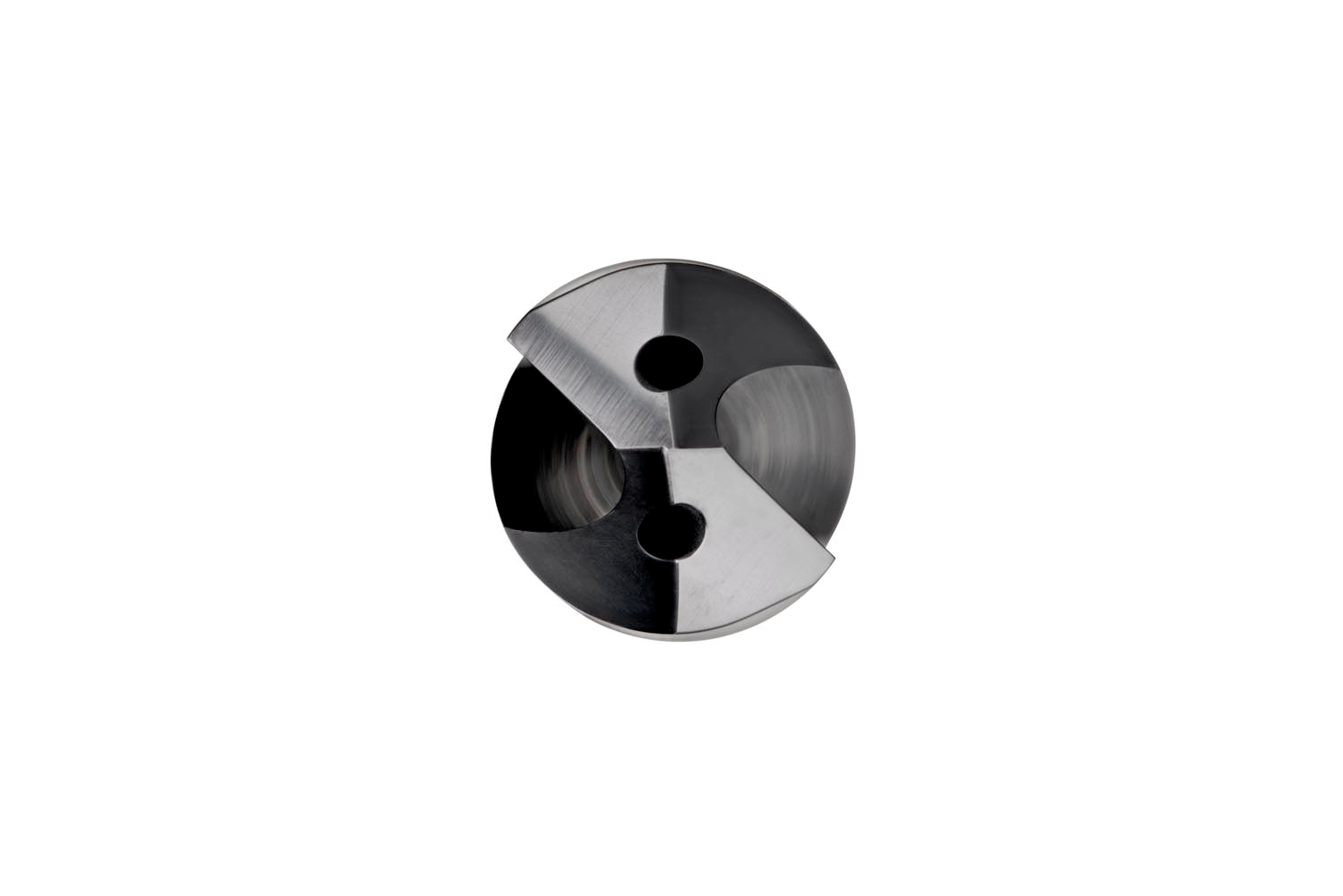

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.5625″ (9/16) with an overall length of 133mm and flute length of 82mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.5049 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760623978
Product number (SAP): 86019123
Ordering code ANSI: R4539/16
Product Line: FORCE X
Gross weight – grams: 243

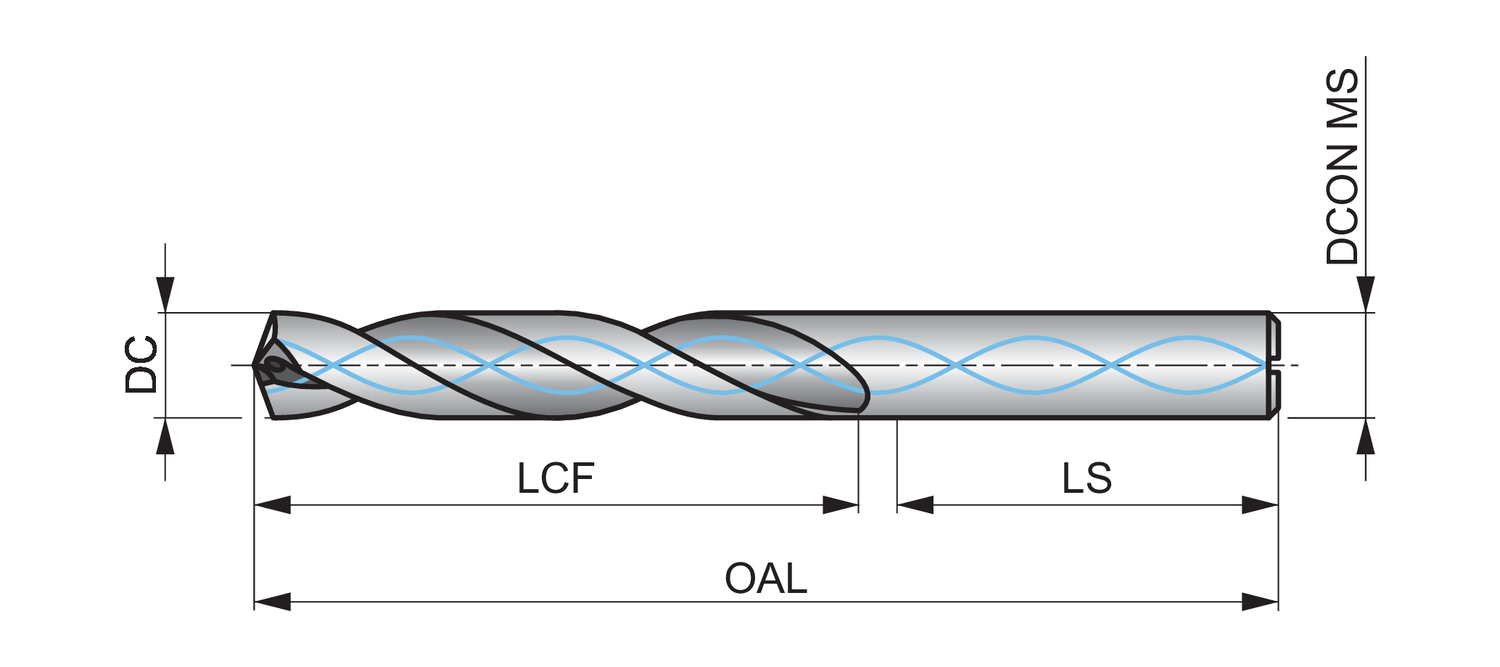

Cutting diameter – fractional inch (DC): 9/16
Cutting diameter – millimeter (DC): 14.29 mm
Cutting diameter – inch (DC): 0.5625 inch
Length chip flute – millimeter (LCF): 82 mm
Overall length – millimeter (OAL): 133 mm
Shank length – millimeter (LS): 48 mm
Connection diameter – millimeter (DCON MS): 16 mm
Length chip flute – inch (LCF): 3.2283 inch
ISO: R4539/16

Brand

DORMER
