DORMER R4539/64 Carbide Drills

Product Code: R4539/64

$159.75$145.23 Ex. GST

Product Code: R4539/64 SKU R4539/64 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.1406″ (9/64) with an overall length of 66mm and flute length of 28mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.1551 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760623992
Product number (SAP): 86019125
Ordering code ANSI: R4539/64
Product Line: FORCE X
Gross weight – grams: 7.52

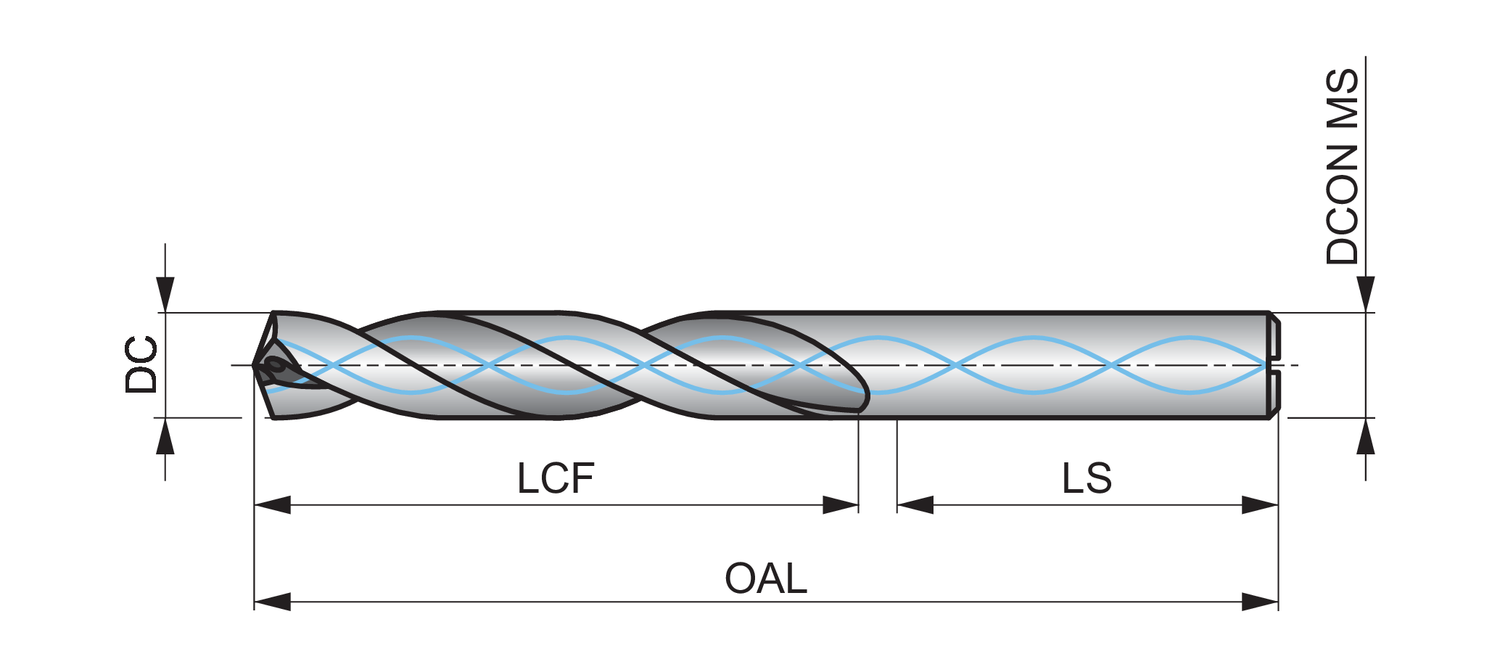

Cutting diameter – fractional inch (DC): 9/64
Cutting diameter – millimeter (DC): 3.57 mm
Cutting diameter – inch (DC): 0.1406 inch
Length chip flute – millimeter (LCF): 28 mm
Overall length – millimeter (OAL): 66 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 6 mm
Length chip flute – inch (LCF): 1.1024 inch
ISO: R4539/64

Brand

DORMER
