DORMER R4539.7 Carbide Drills

Product Code: R4539.7

$214.14$194.67 Ex. GST

Product Code: R4539.7 SKU R4539.7 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

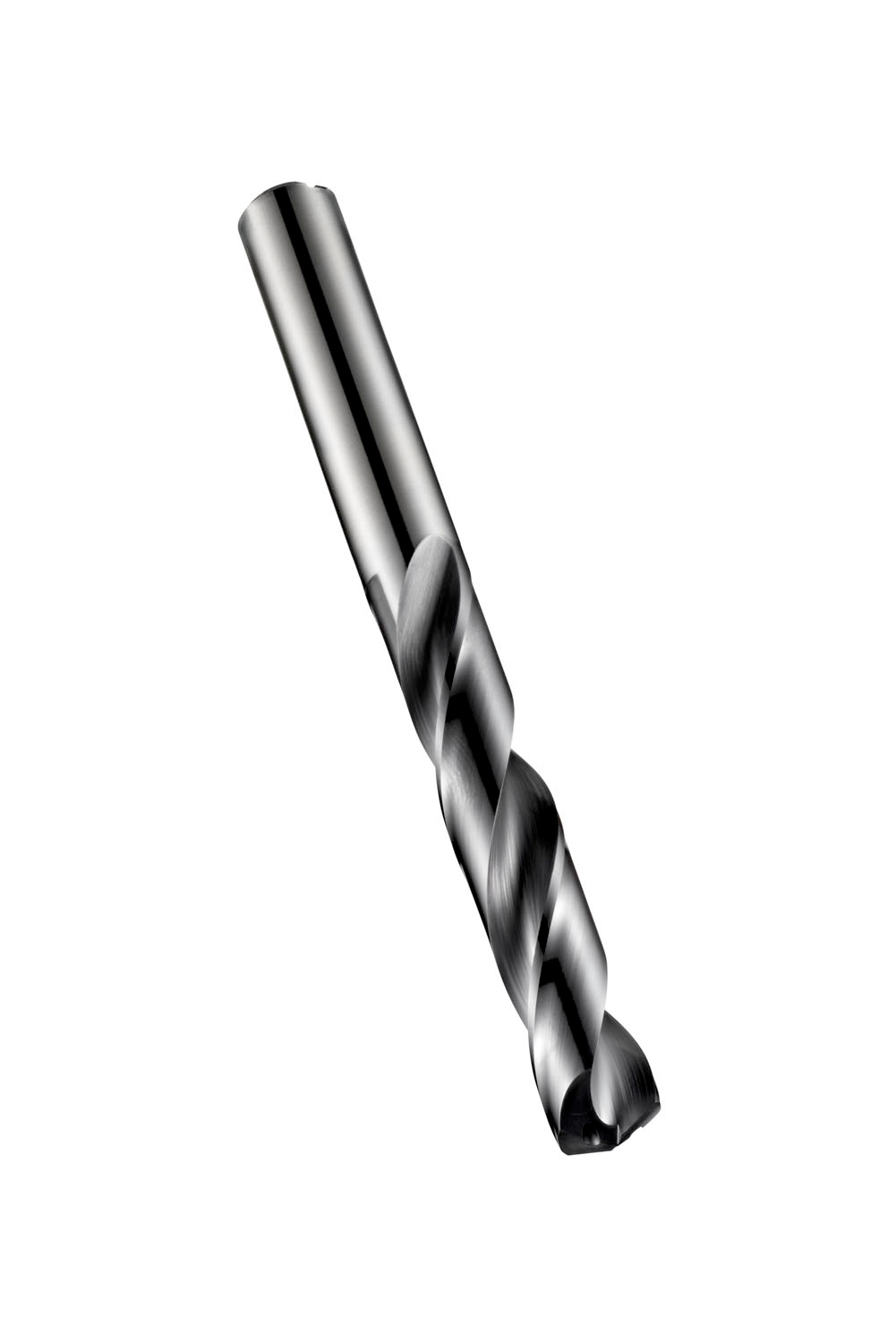

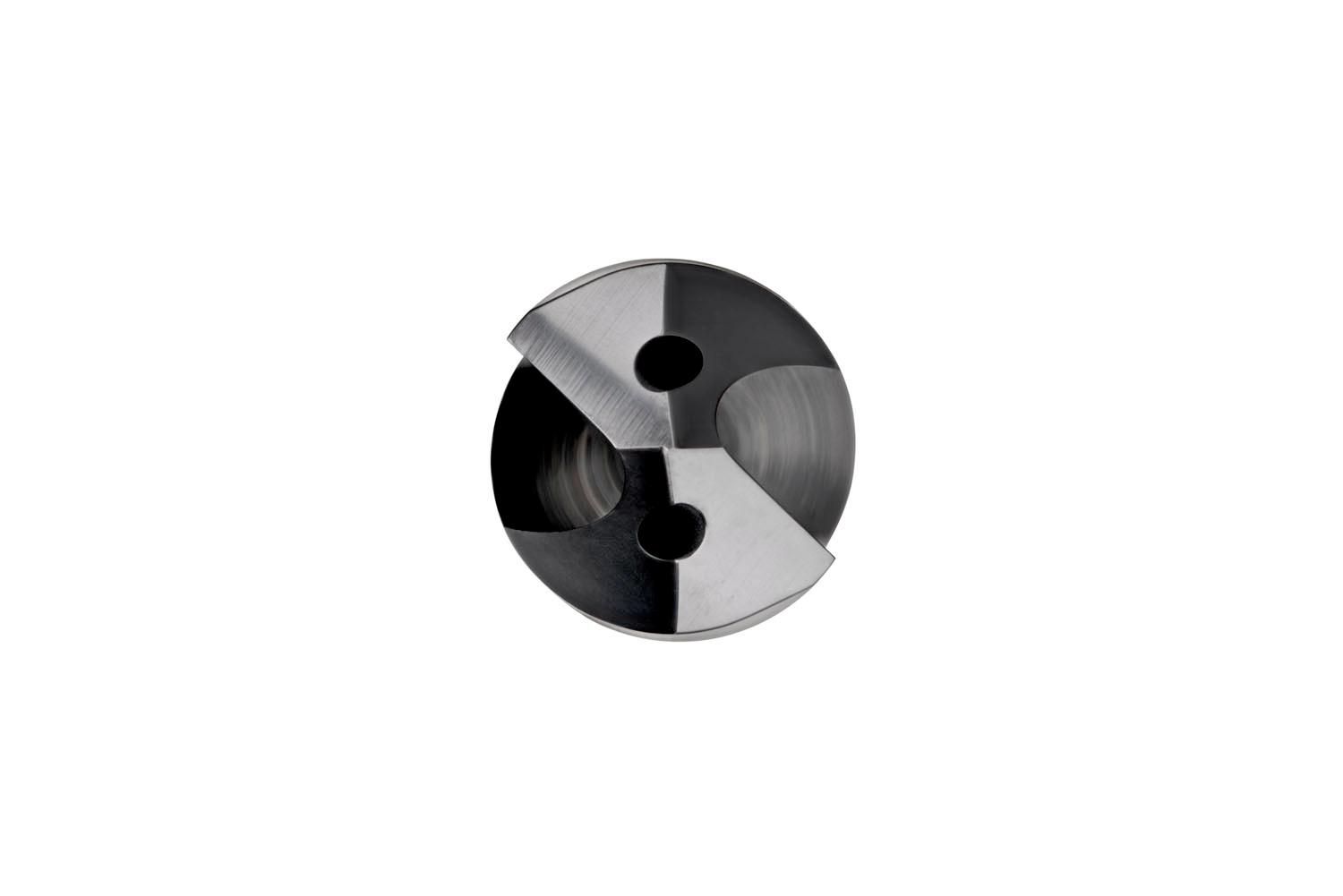

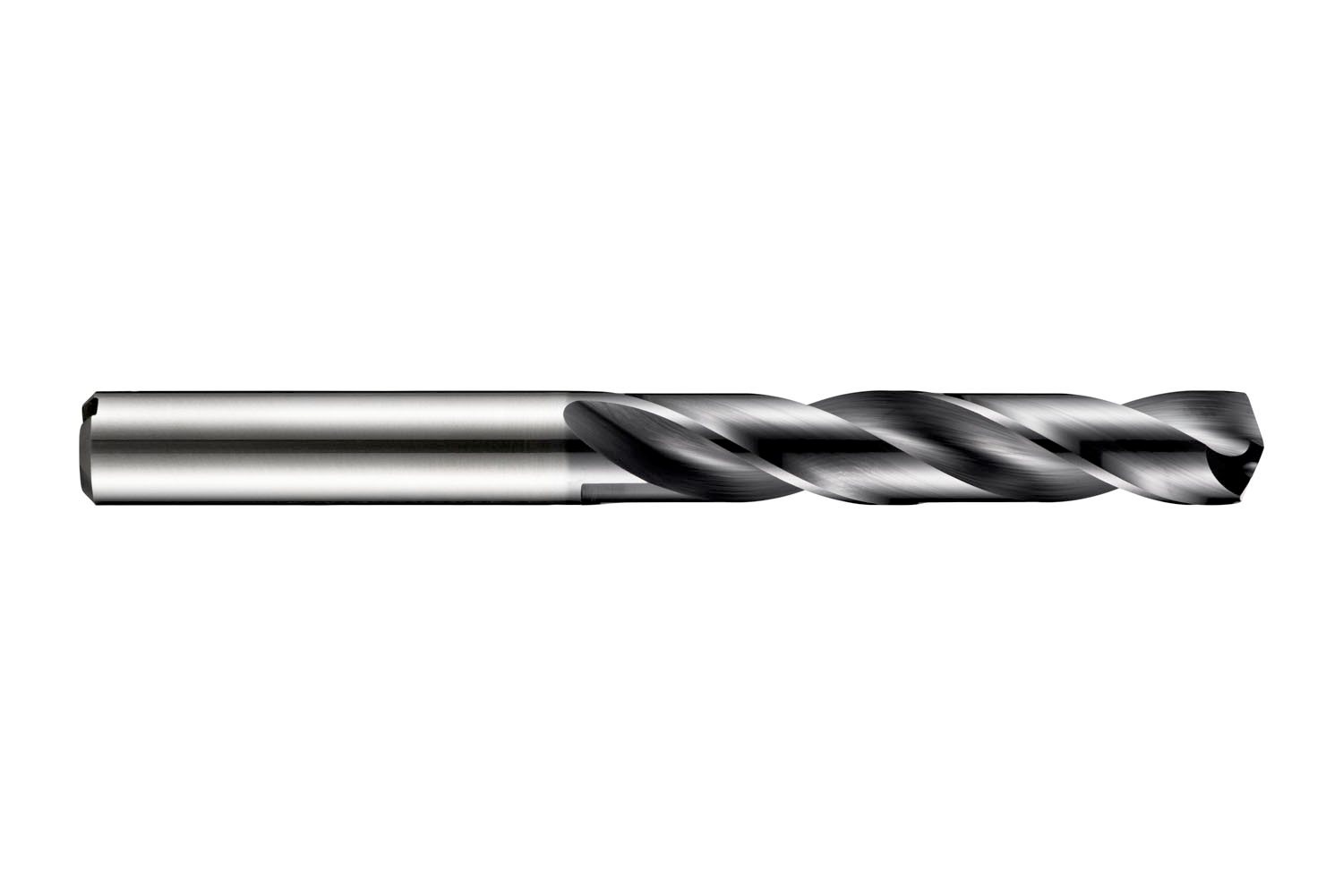

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 9.7mm with an overall length of 103mm and flute length of 61mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.2079 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760629055
Product number (SAP): 86019120
Ordering code ANSI: R4539.7
Product Line: FORCE X
Gross weight – grams: 84.5

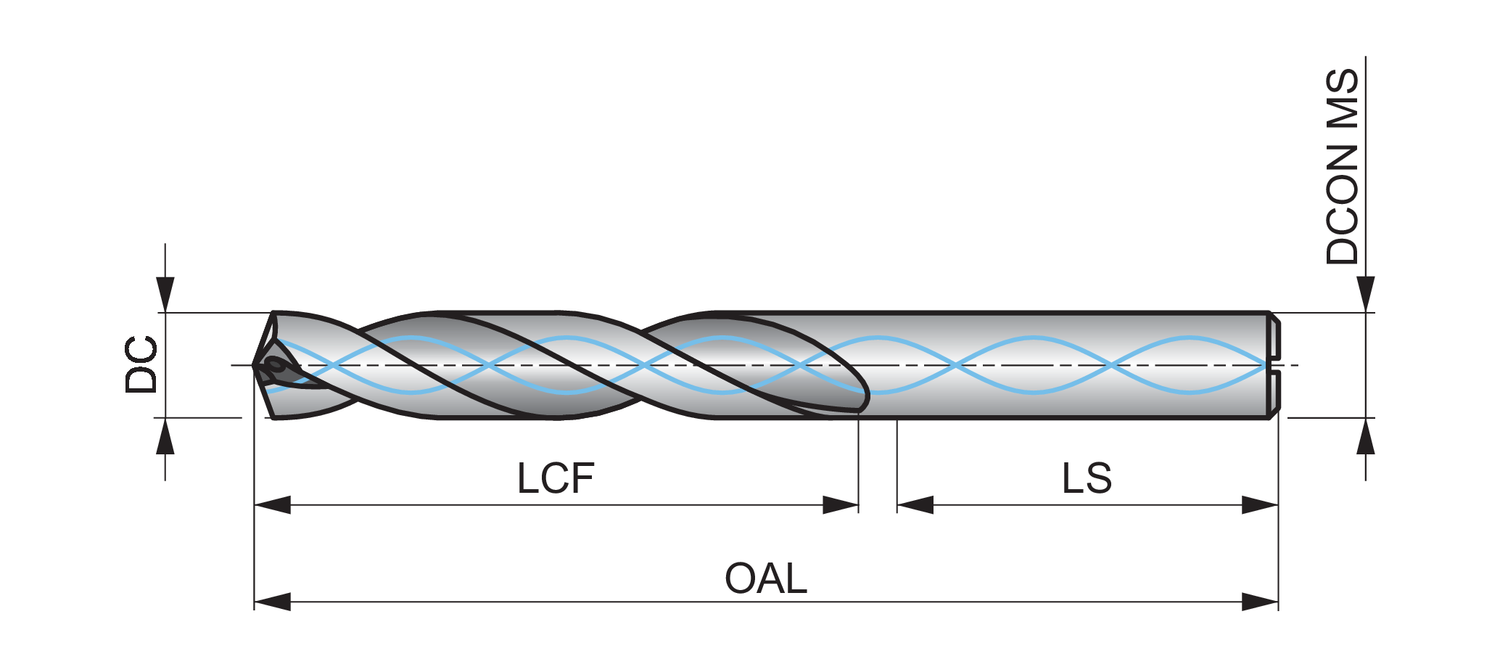

Cutting diameter – millimeter (DC): 9.7 mm
Cutting diameter – inch (DC): 0.3819 inch
Length chip flute – millimeter (LCF): 61 mm
Overall length – millimeter (OAL): 103 mm
Shank length – millimeter (LS): 40 mm
Connection diameter – millimeter (DCON MS): 10 mm
Length chip flute – inch (LCF): 2.4016 inch
ISO: R4539.7

Brand

DORMER
