DORMER R453C Carbide Drills

Product Code: R453C

$190.34$173.04 Ex. GST

Product Code: R453C SKU R453C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

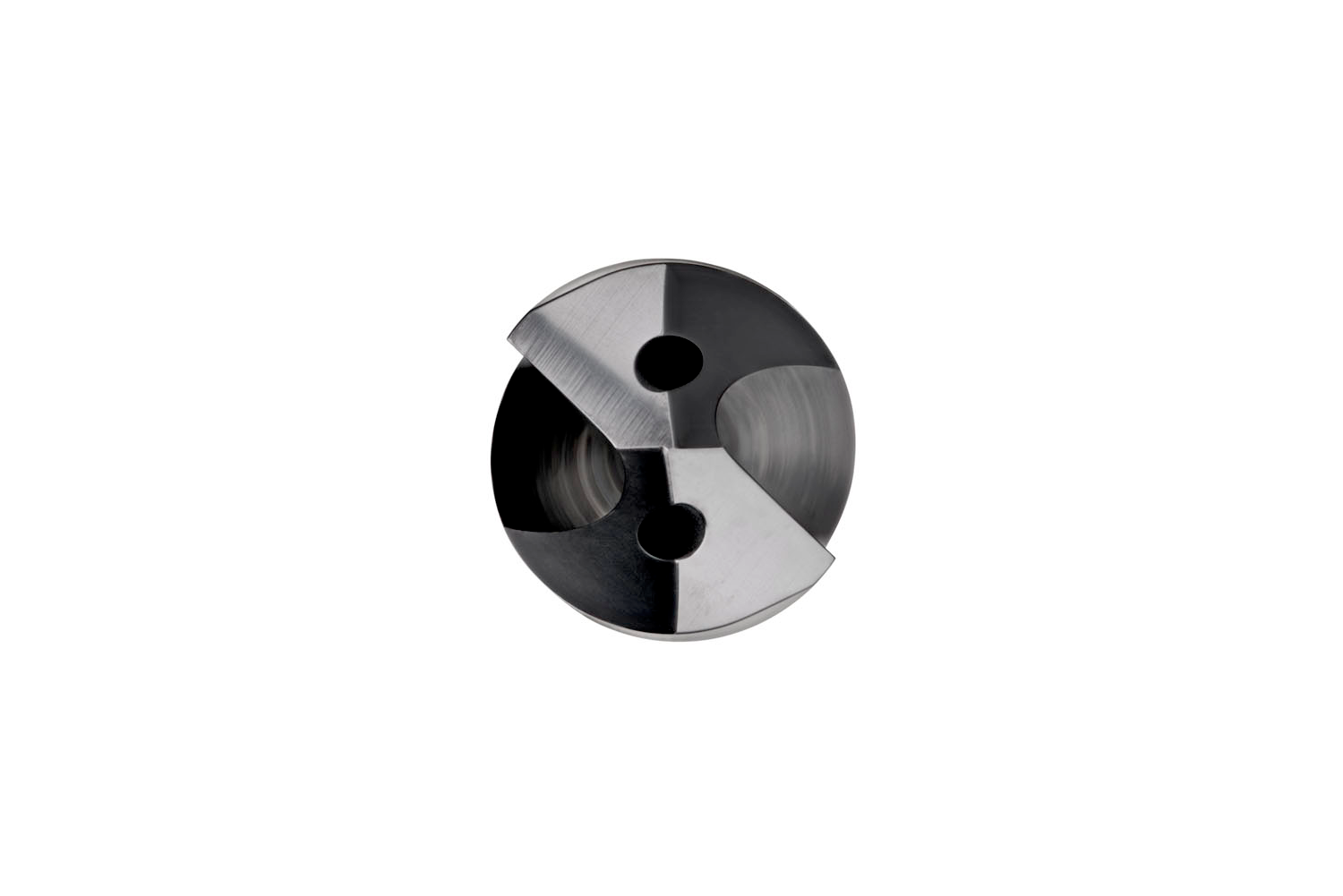

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.2421″ (C) with an overall length of 91mm and flute length of 53mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.1848 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760756515
Product number (SAP): 86032928
Ordering code ANSI: R453C
Product Line: FORCE X
Gross weight – grams: 40.7

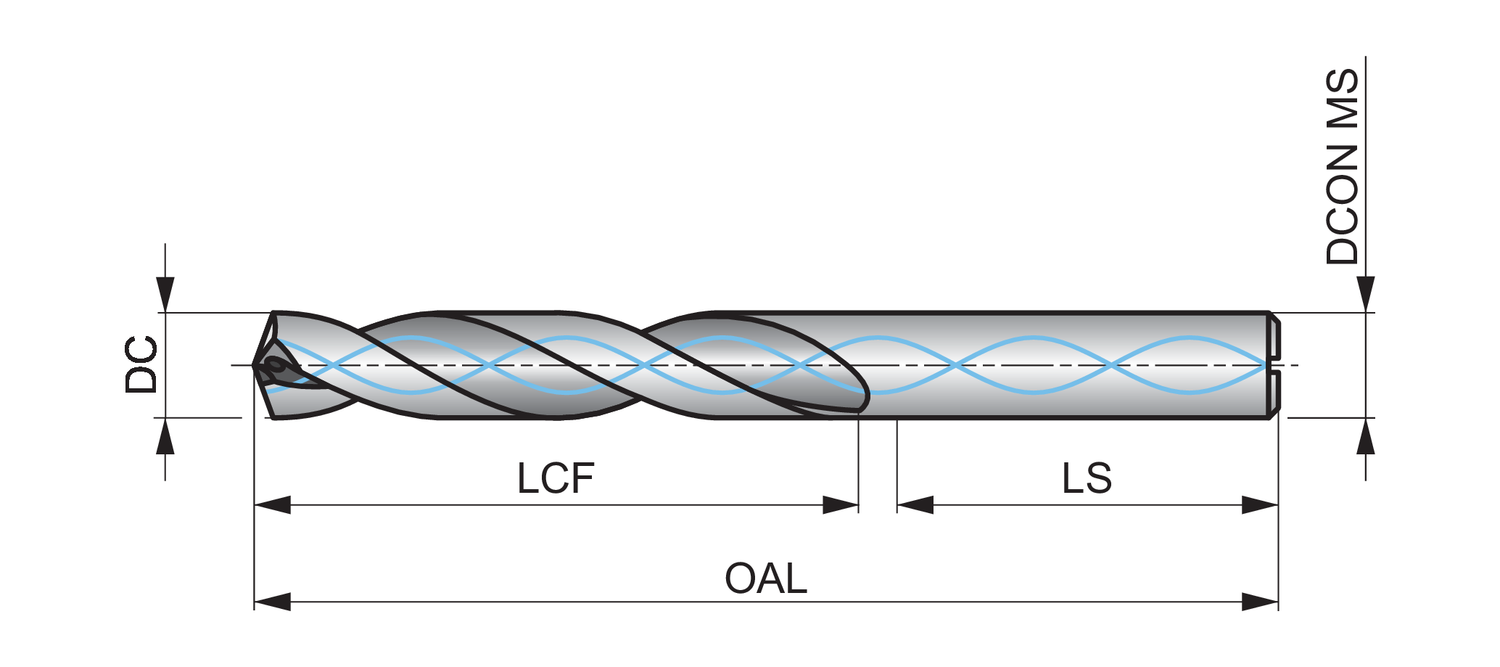

Cutting diameter – imperial letter (DC): C
Cutting diameter – millimeter (DC): 6.15 mm
Cutting diameter – inch (DC): 0.2421 inch
Length chip flute – millimeter (LCF): 53 mm
Overall length – millimeter (OAL): 91 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 8 mm
Length chip flute – inch (LCF): 2.0866 inch
ISO: R453C

Brand

DORMER
