DORMER R453N20 Carbide Drills

Product Code: R453N20

$165.42$150.38 Ex. GST

Product Code: R453N20 SKU R453N20 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

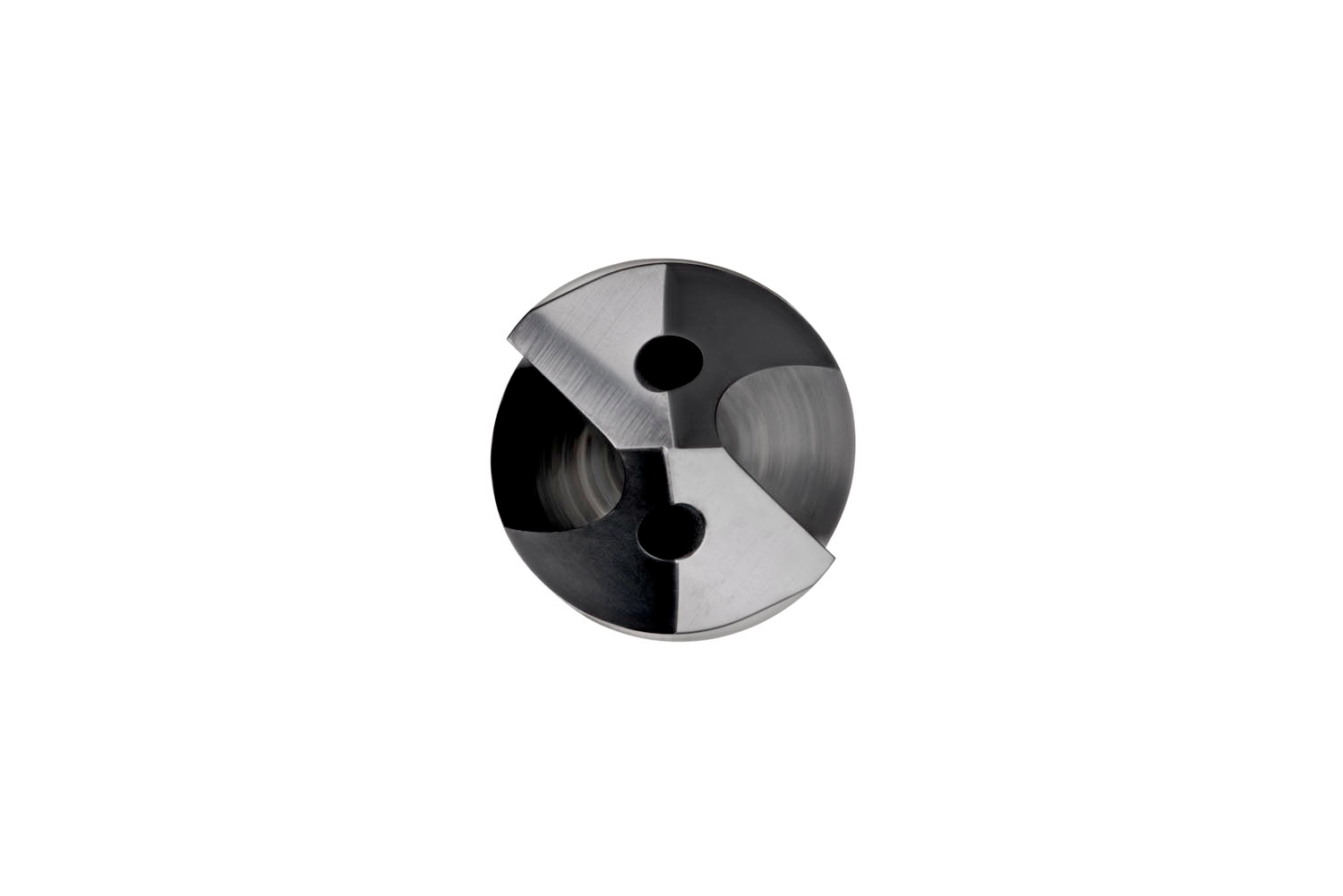

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.1610″ (N20) with an overall length of 74mm and flute length of 36mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.1606 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760040492
Product number (SAP): 86019144
Ordering code ANSI: R453N20
Product Line: FORCE X
Gross weight – grams: 20

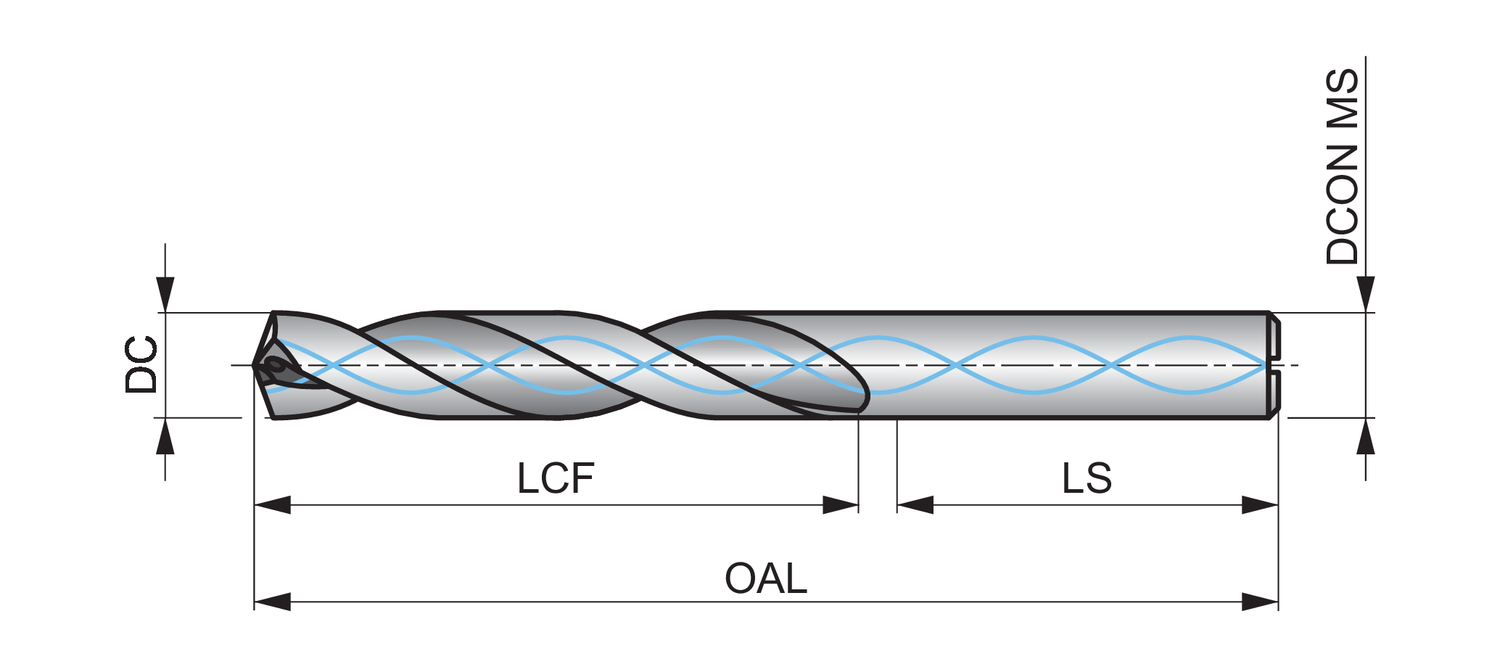

Cutting diameter (wire gauge size) (DC): N20
Cutting diameter – millimeter (DC): 4.09 mm
Cutting diameter – inch (DC): 0.161 inch
Length chip flute – millimeter (LCF): 36 mm
Overall length – millimeter (OAL): 74 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 6 mm
Length chip flute – inch (LCF): 1.4173 inch
ISO: R453N20

Brand

DORMER
