DORMER R453N29 Carbide Drills

Product Code: R453N29

$159.75$145.23 Ex. GST

Product Code: R453N29 SKU R453N29 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

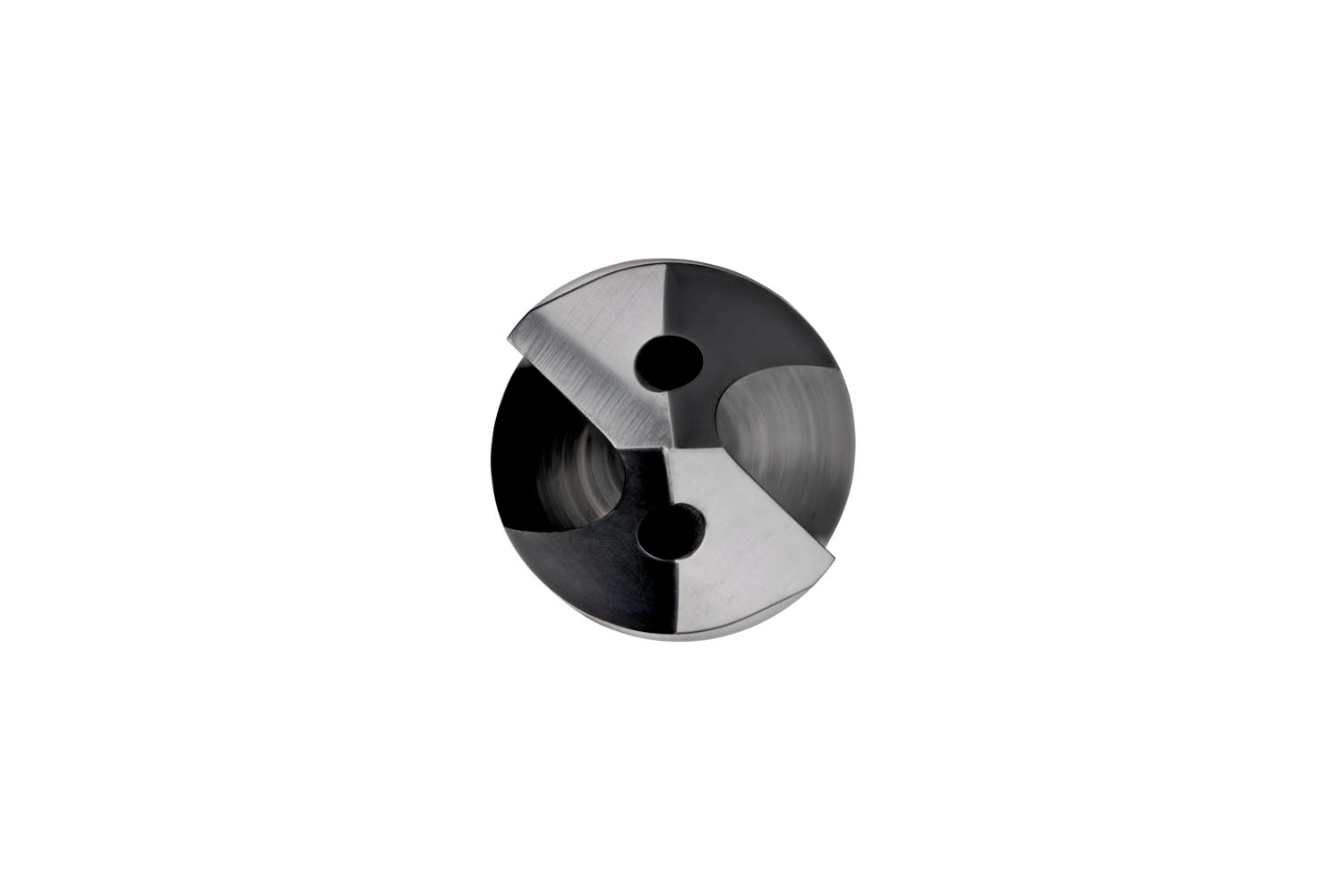

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.1360″ (N29) with an overall length of 66mm and flute length of 28mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Additional information

Weight 0.1551 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760040409
Product number (SAP): 86019153
Ordering code ANSI: R453N29
Product Line: FORCE X
Gross weight – grams: 19

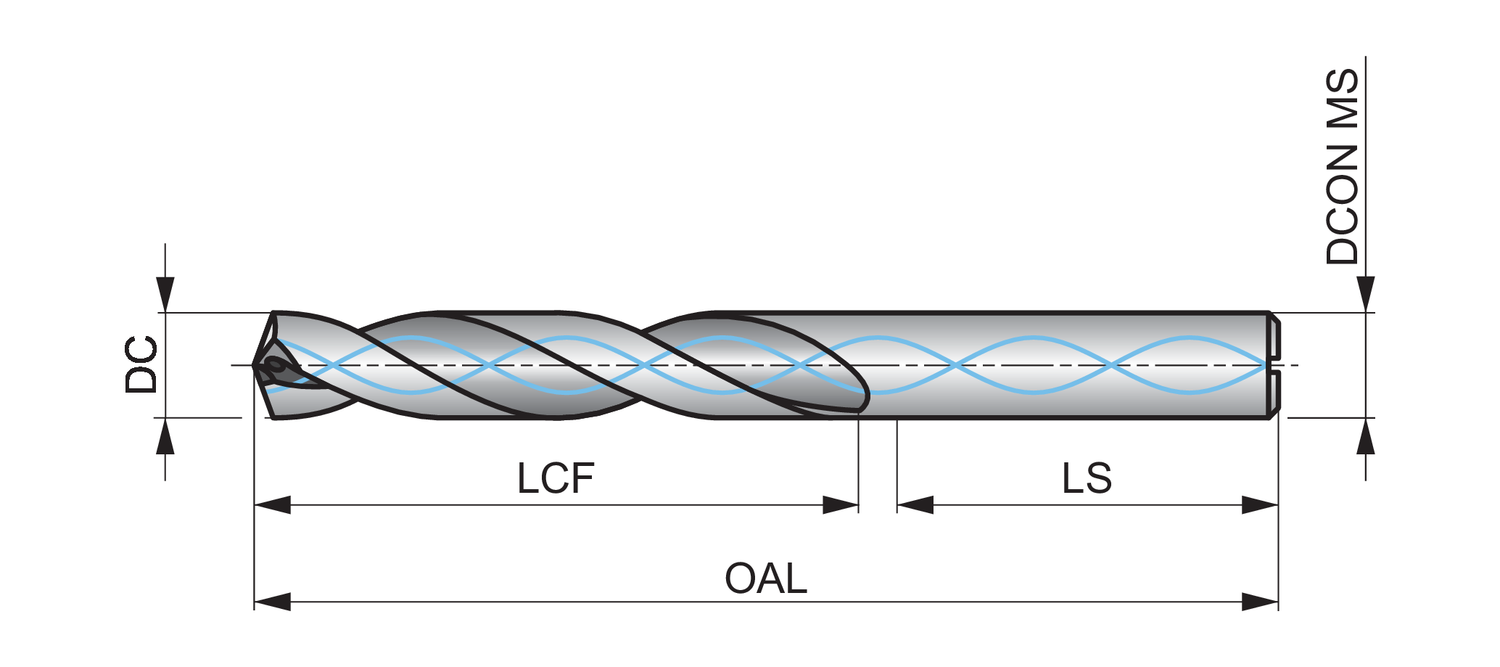

Cutting diameter (wire gauge size) (DC): N29
Cutting diameter – millimeter (DC): 3.45 mm
Cutting diameter – inch (DC): 0.136 inch
Length chip flute – millimeter (LCF): 28 mm
Overall length – millimeter (OAL): 66 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 6 mm
Length chip flute – inch (LCF): 1.1024 inch
ISO: R453N29

Brand

DORMER
