DORMER R45410.3 Carbide Drills

Product Code: R45410.3

$193.74$176.13 Ex. GST

Product Code: R45410.3 SKU R45410.3 Categories , ,

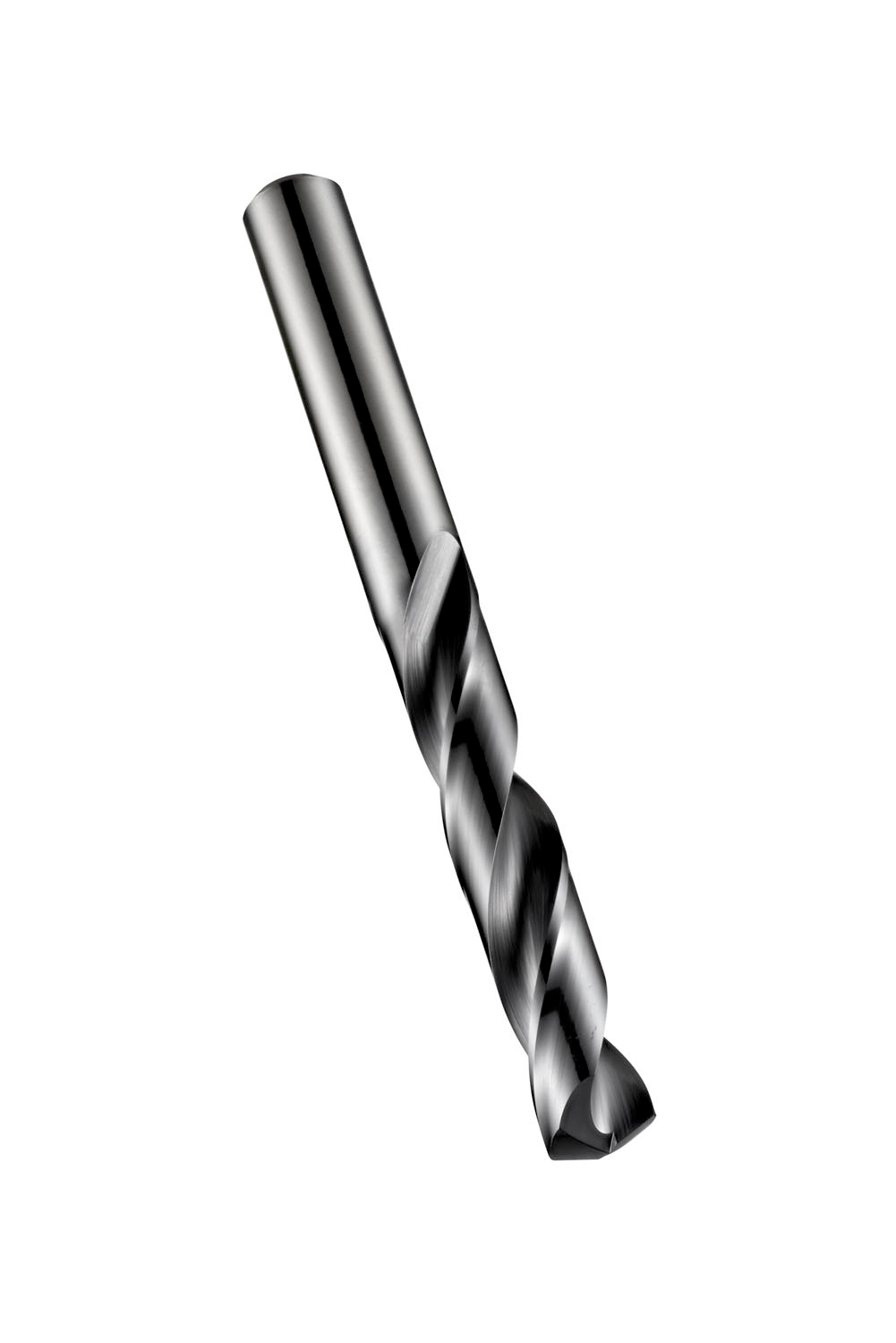

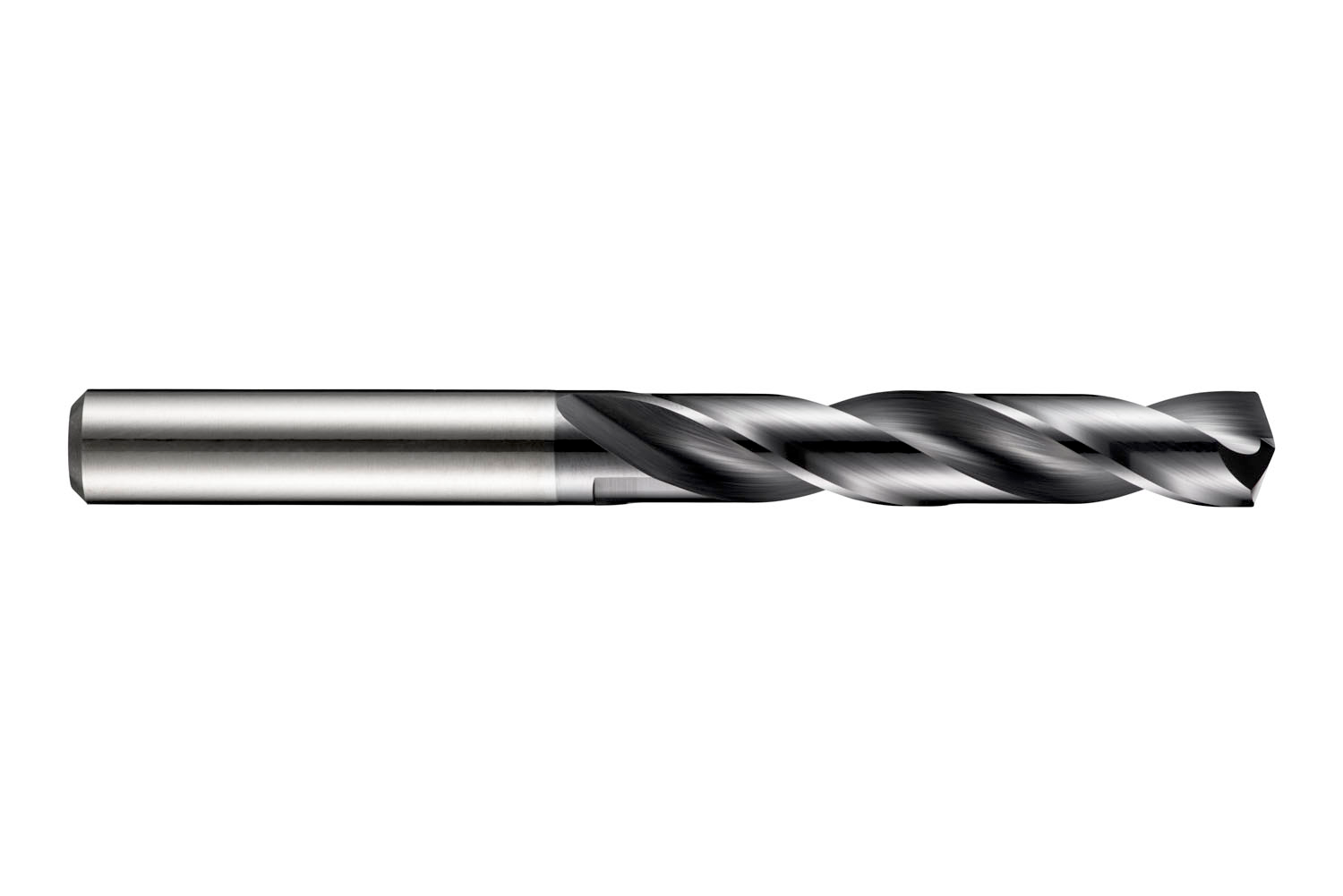

DORMER R45410.3 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

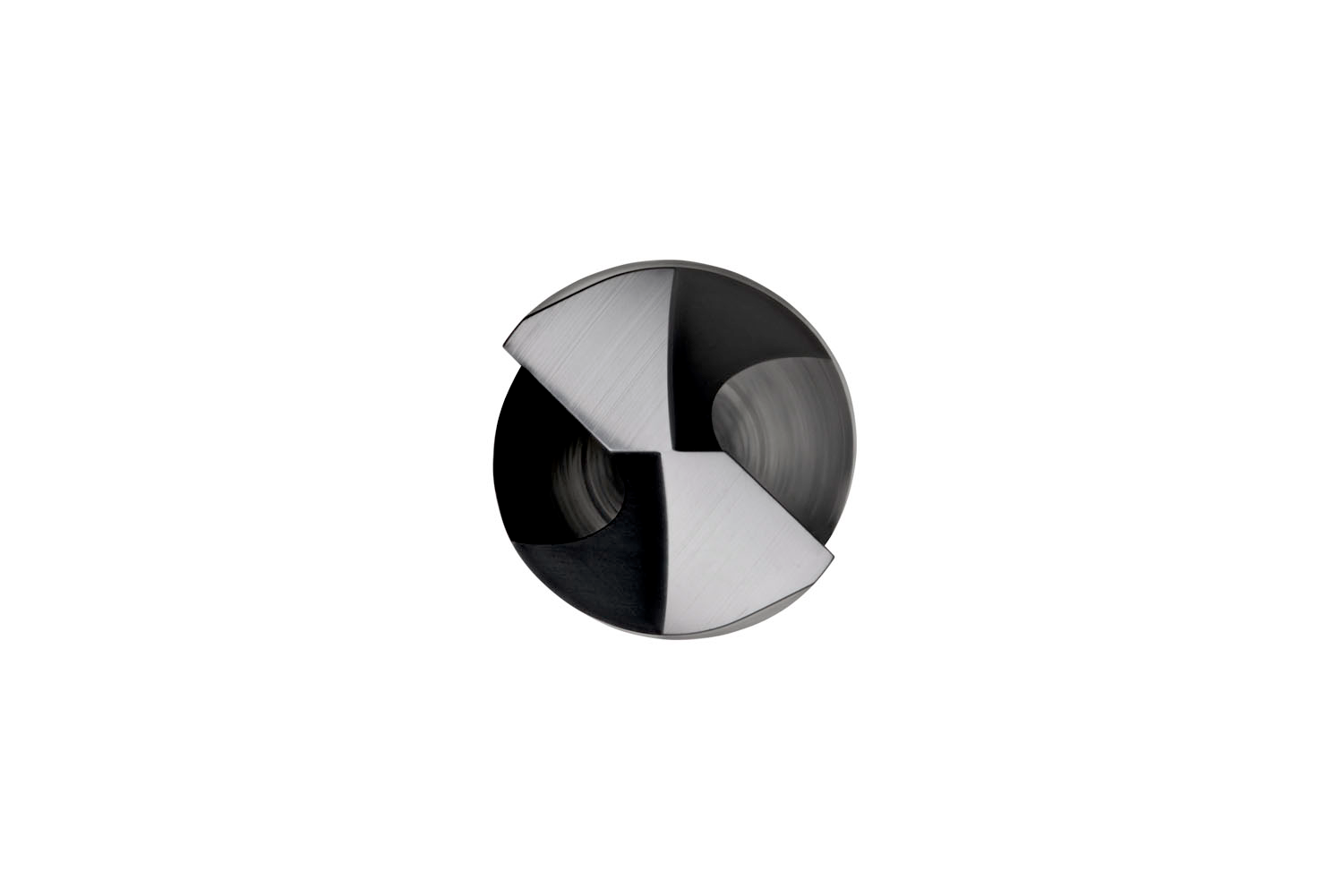

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 10.3mm with an overall length of 118mm and flute length of 70mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating and continiously thinned parallel web for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material and hardened material

Additional information

Weight 0.1881 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760614266
Product number (SAP): 86019175
Ordering code ANSI: R45410.3
Product Line: FORCE X
Gross weight – grams: 131

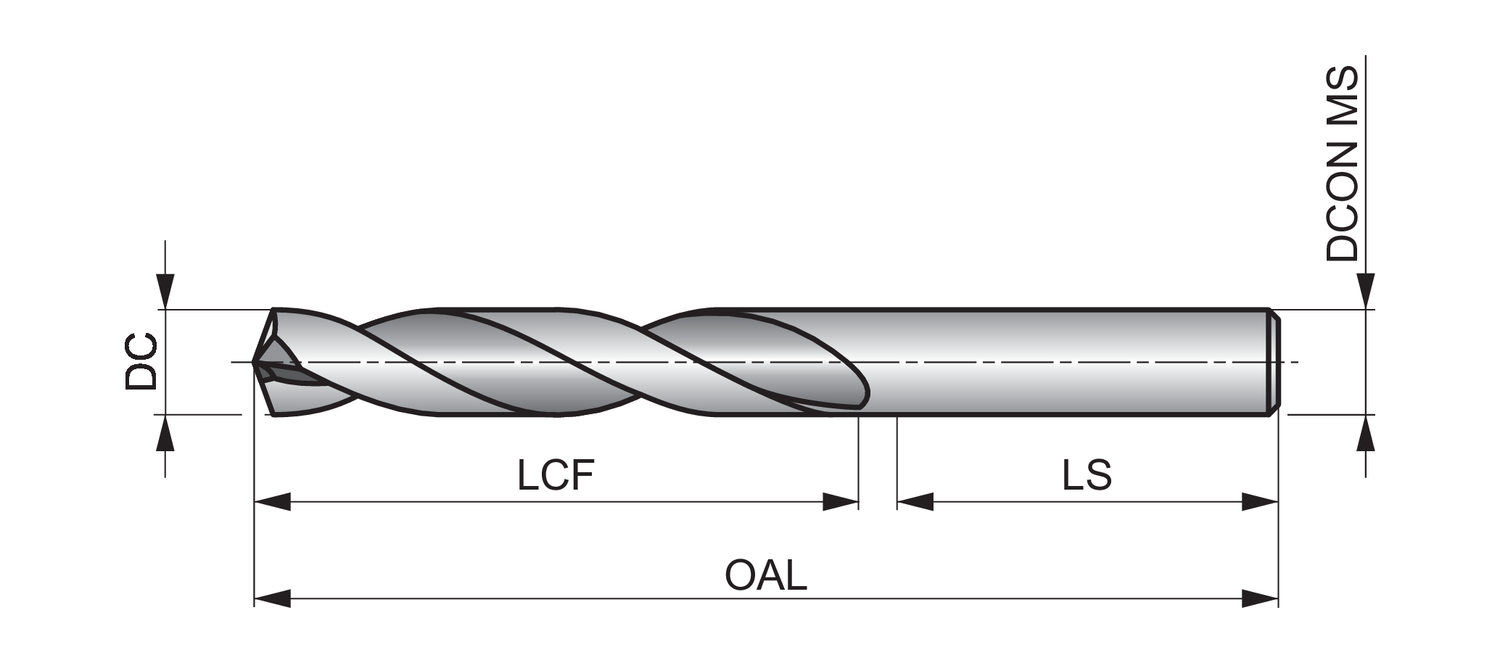

Cutting diameter – millimeter (DC): 10.3 mm
Cutting diameter – inch (DC): 0.4055 inch
Length chip flute – millimeter (LCF): 70 mm
Overall length – millimeter (OAL): 118 mm
Shank length – millimeter (LS): 45 mm
Connection diameter – millimeter (DCON MS): 12 mm
Length chip flute – inch (LCF): 2.7559 inch
ISO: R45410.3

Brand

DORMER
