DORMER R45413.5 Carbide Drills

Product Code: R45413.5

$251.53$228.66 Ex. GST

Product Code: R45413.5 SKU R45413.5 Categories , ,
DORMER R45413.5 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 13.5mm with an overall length of 124mm and flute length of 76mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating and continiously thinned parallel web for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material and hardened material

Additional information

Weight 0.2442 kg
Dimensions
barcode
Additional Information

Description: Value

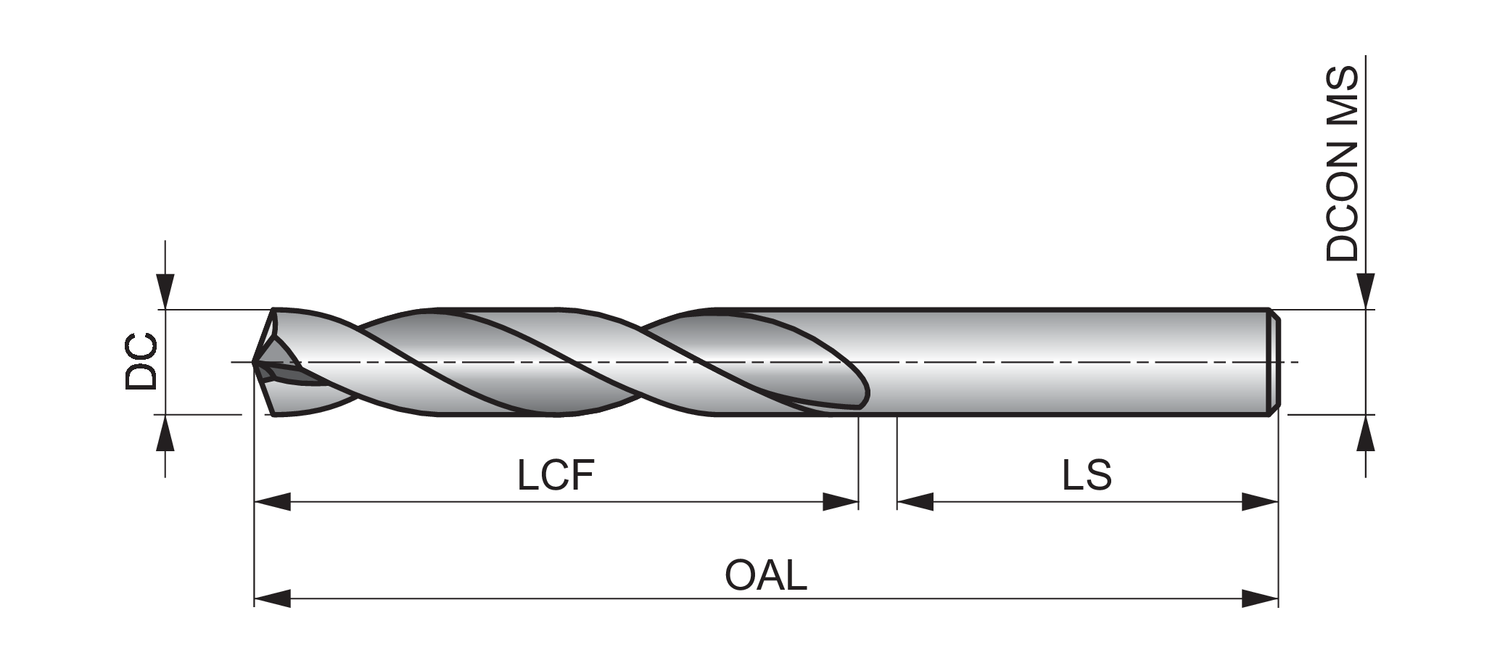

EAN number: 7320760614365 Product number (SAP): 86019195 Ordering code ANSI: R45413.5 Product Line: FORCE X Gross weight: 199.3 g Cutting diameter (DC): 13.5 mm Cutting diameter (DC): 0.5315 inch Length chip flute (LCF): 76 mm Overall length (OAL): 124 mm Shank length (LS): 45 mm Connection diameter (DCON MS): 14 mm Length chip flute (LCF): 2.9921 inch ISO: R45413.5

Brand

DORMER
