DORMER R45419.8 Carbide Drills

Product Code: R45419.8

$567.63$516.03 Ex. GST

Product Code: R45419.8 SKU R45419.8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

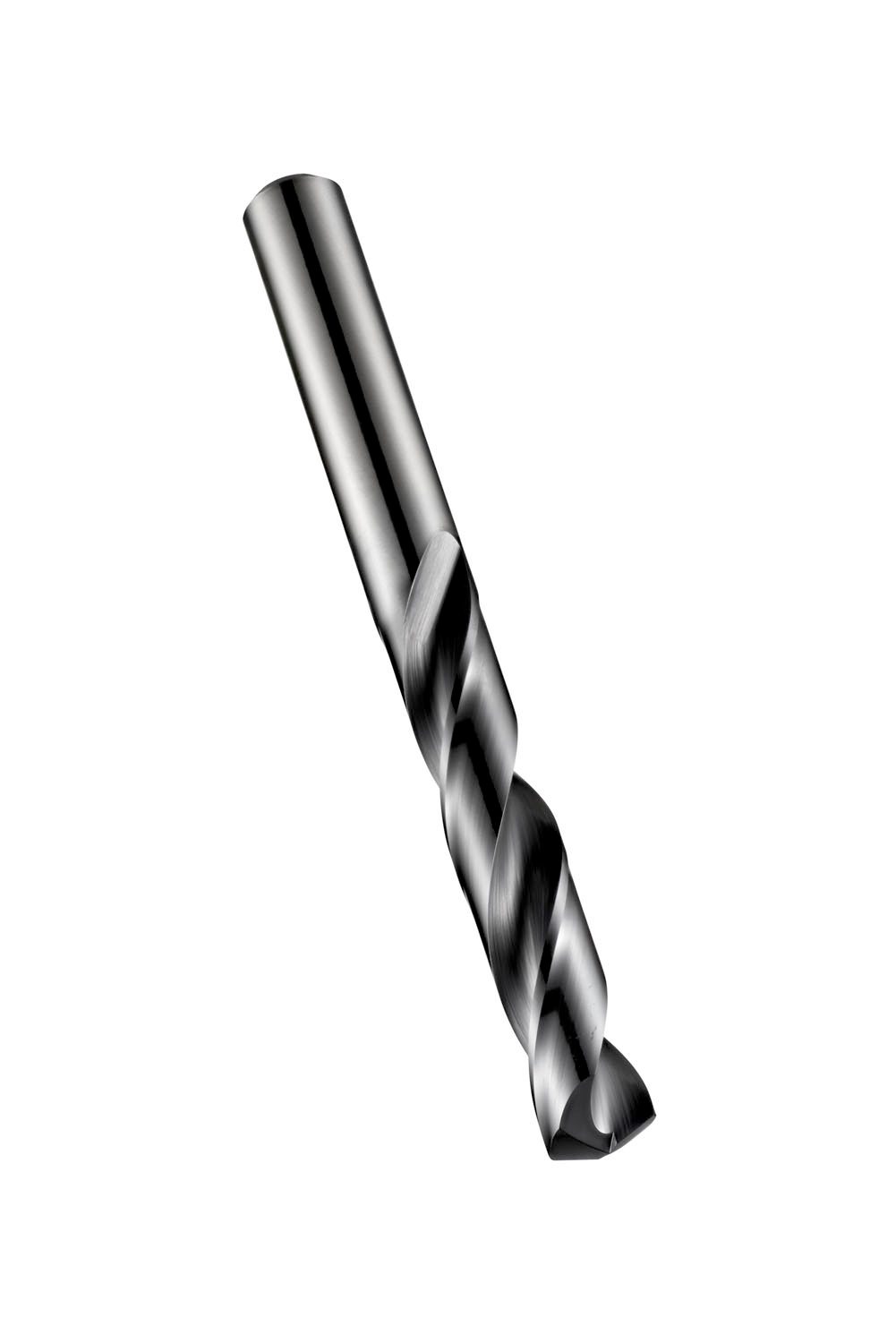

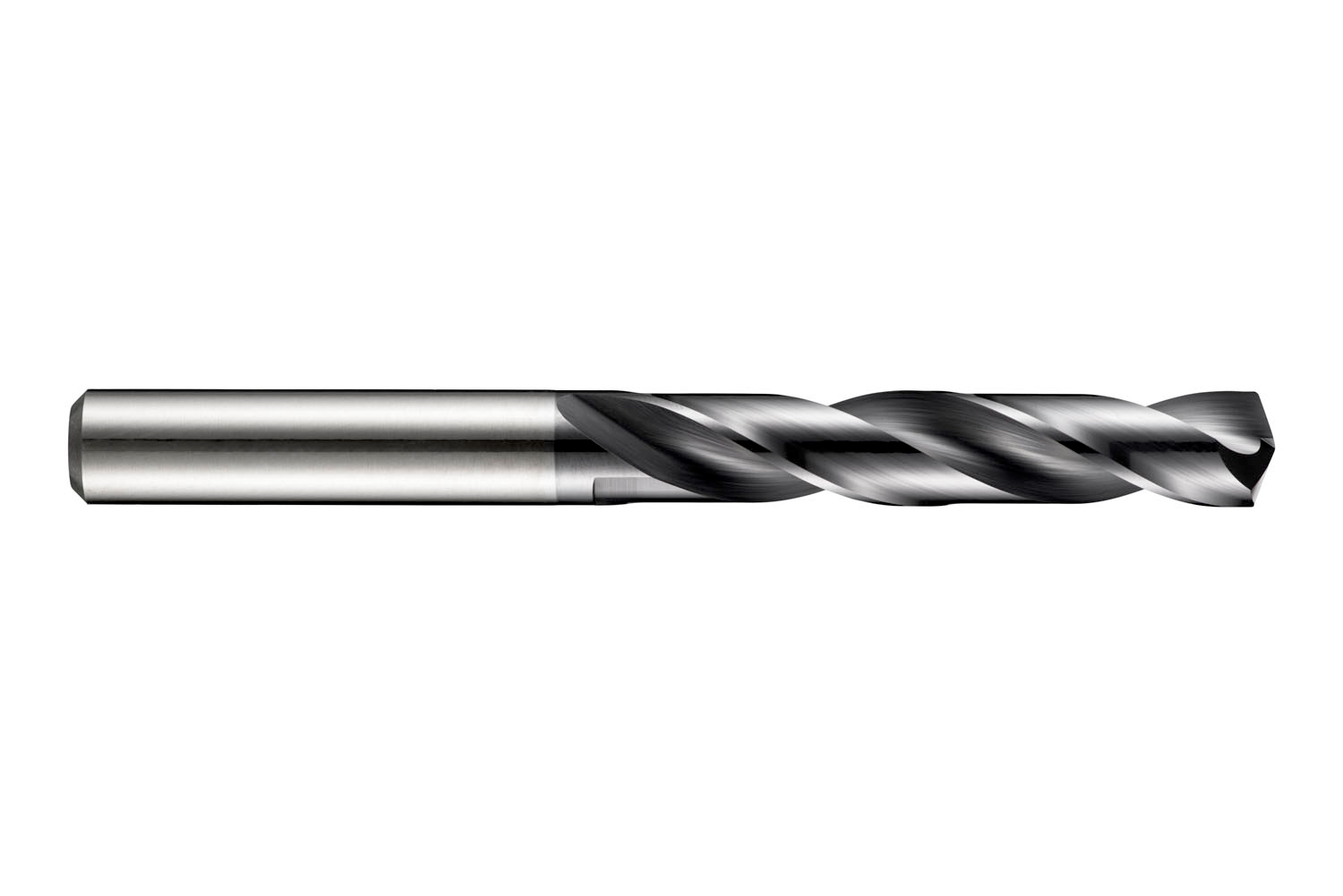

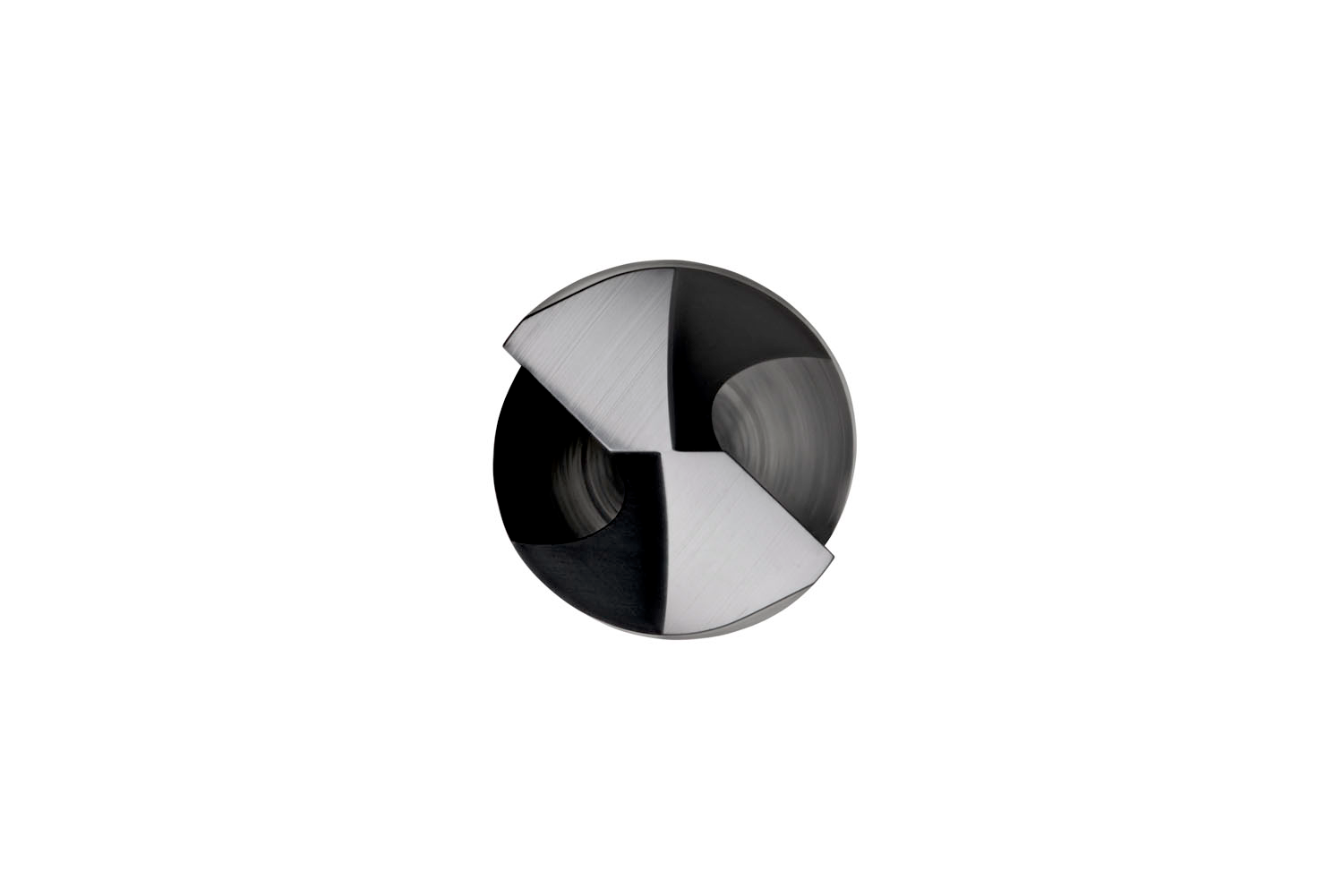

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 19.8mm with an overall length of 153mm and flute length of 99mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating and continiously thinned parallel web for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material and hardened material

Additional information

Weight 0.5511 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760134733
Product number (SAP): 86019220
Ordering code ANSI: R45419.8
Product Line: FORCE X
Gross weight – grams: 496.5

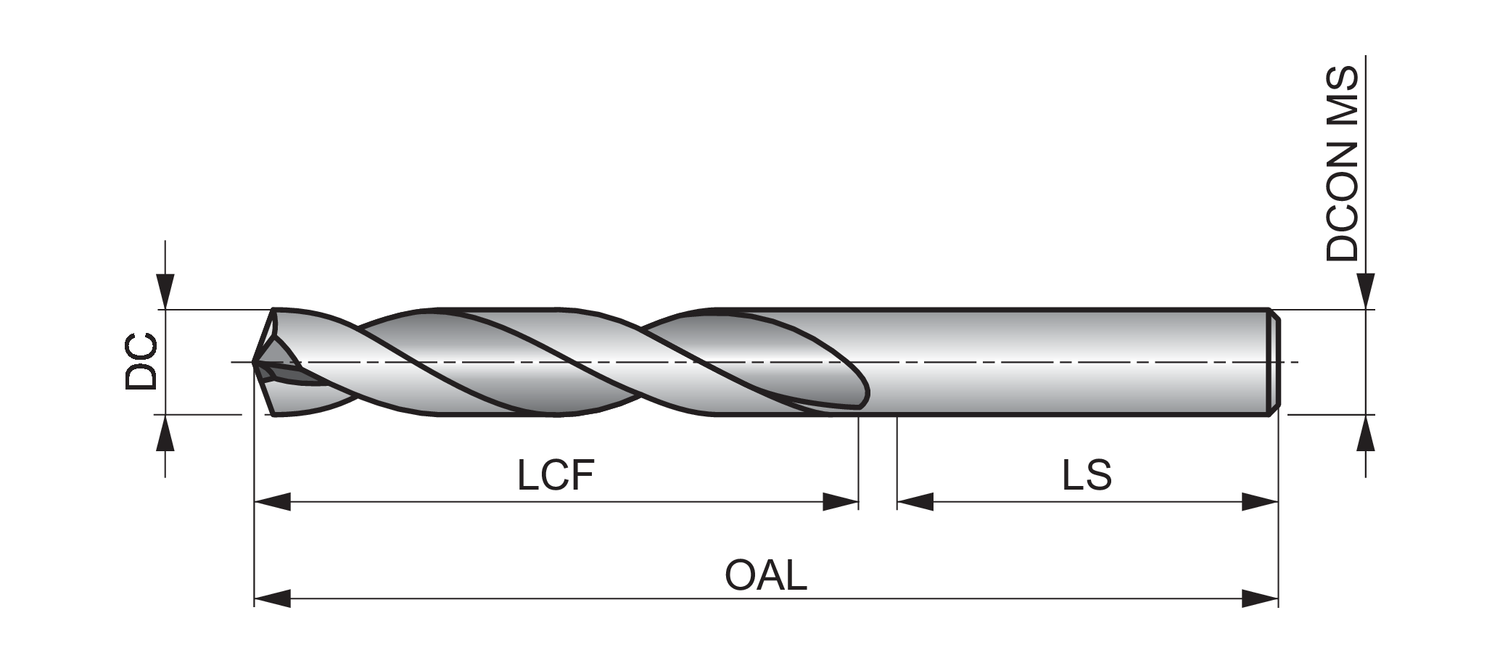

Cutting diameter – millimeter (DC): 19.8 mm
Cutting diameter – inch (DC): 0.7795 inch
Length chip flute – millimeter (LCF): 99 mm
Overall length – millimeter (OAL): 153 mm
Shank length – millimeter (LS): 50 mm
Connection diameter – millimeter (DCON MS): 20 mm
Length chip flute – inch (LCF): 3.8976 inch
ISO: R45419.8

Brand

DORMER
