DORMER R4543/16 Carbide Drills

Product Code: R4543/16

$102.54$93.22 Ex. GST

Product Code: R4543/16 SKU R4543/16 Categories , ,
DORMER R4543/16 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

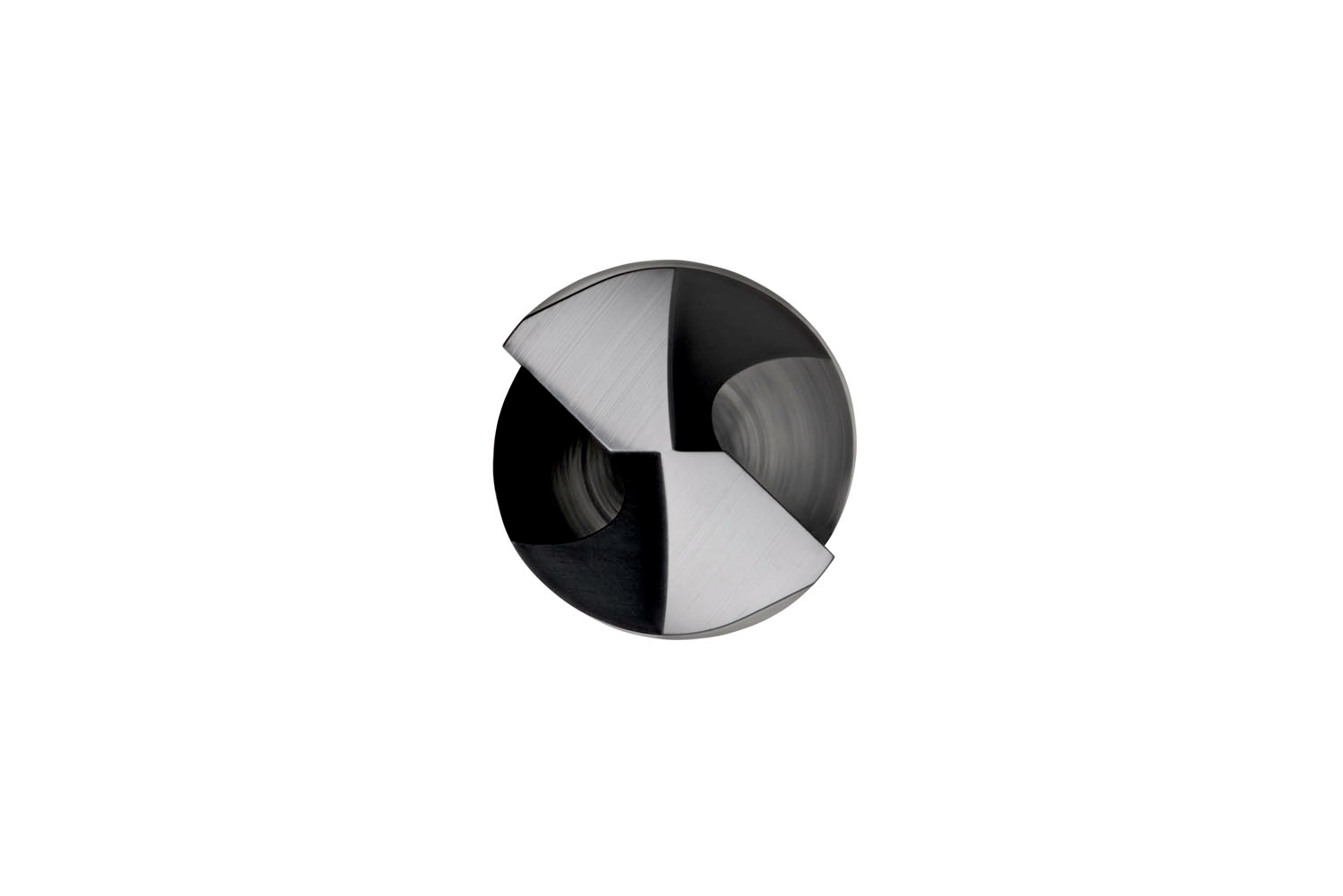

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.1875″ (3/16) with an overall length of 82mm and flute length of 44mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating and continiously thinned parallel web for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material and hardened material

Additional information

Weight 0.0996 kg
Dimensions
barcode
Additional Information

Description: Value

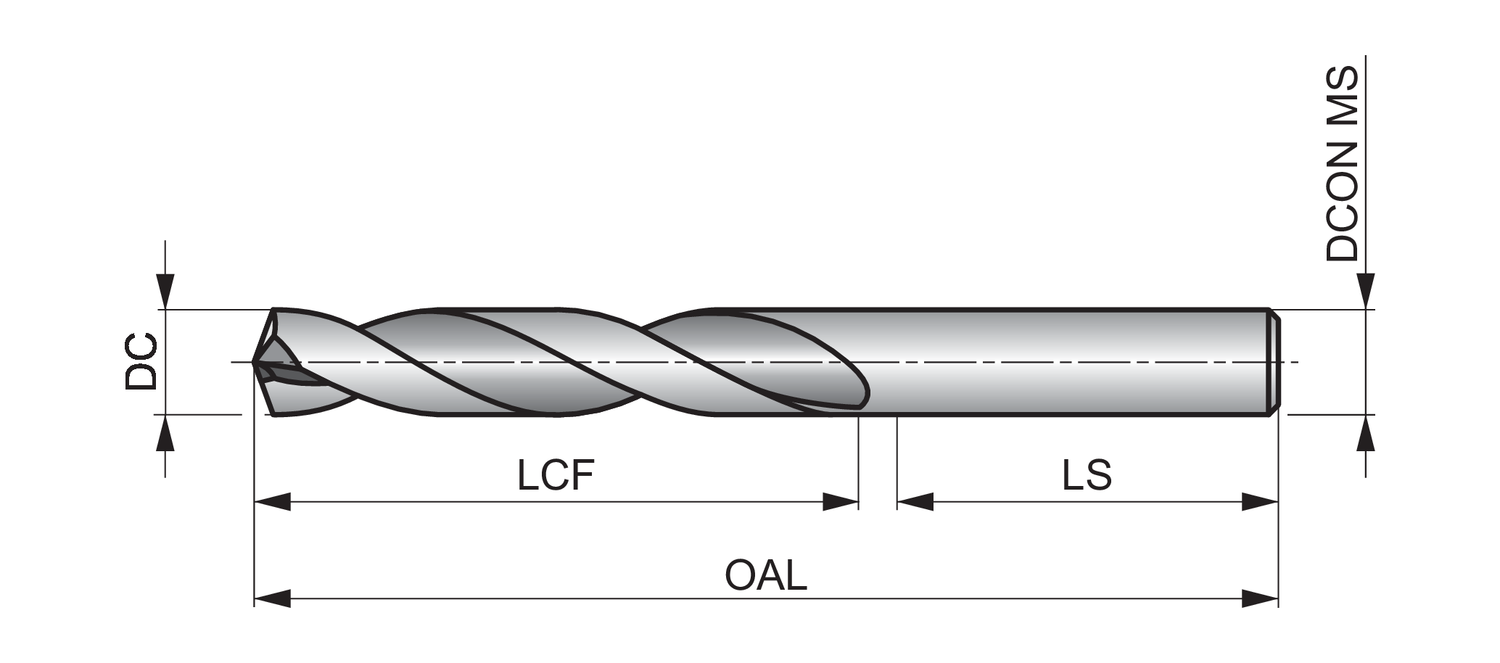

EAN number: 7320760624210 Product number (SAP): 86019241 Ordering code ANSI: R4543/16 Product Line: FORCE X Gross weight: 23.7 g Cutting diameter (DC): 4.76 mm Cutting diameter (DC): 0.1875 inch Length chip flute (LCF): 44 mm Overall length (OAL): 82 mm Shank length (LS): 36 mm Connection diameter (DCON MS): 6 mm Length chip flute (LCF): 1.7323 inch ISO: R4543/16

Brand

DORMER
