DORMER R4543.3 Carbide Drills

Product Code: R4543.3

$99.70$90.64 Ex. GST

Product Code: R4543.3 SKU R4543.3 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

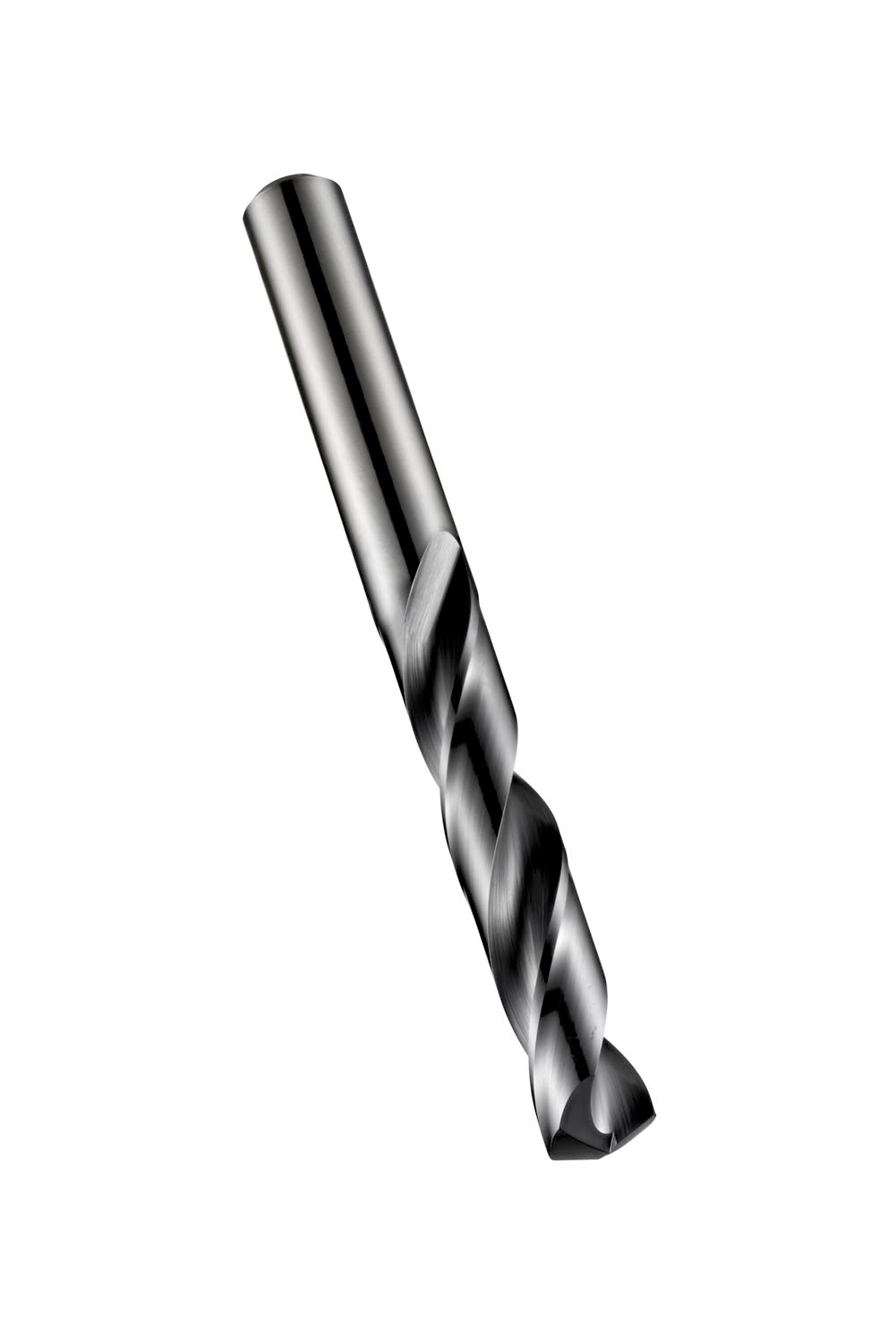

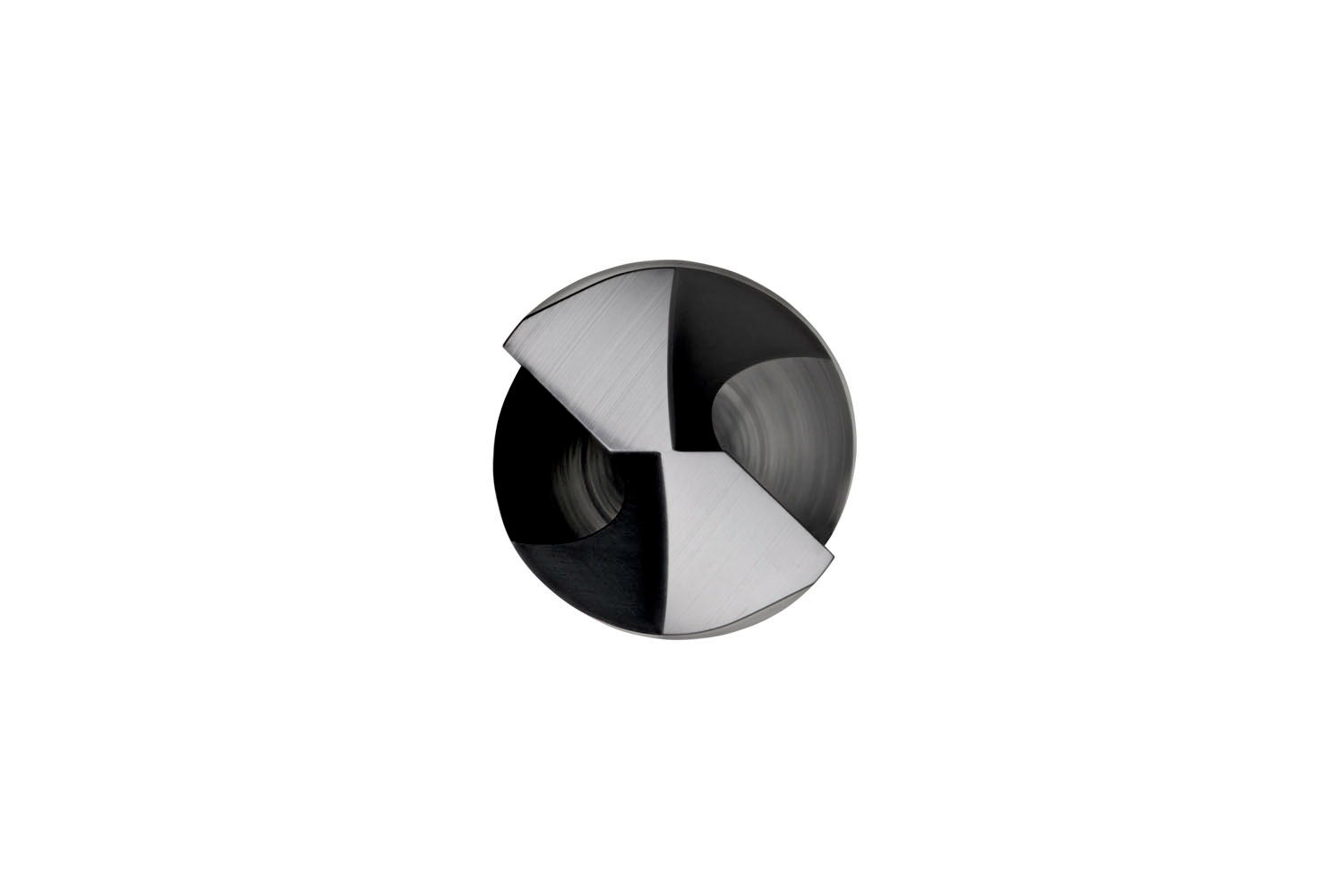

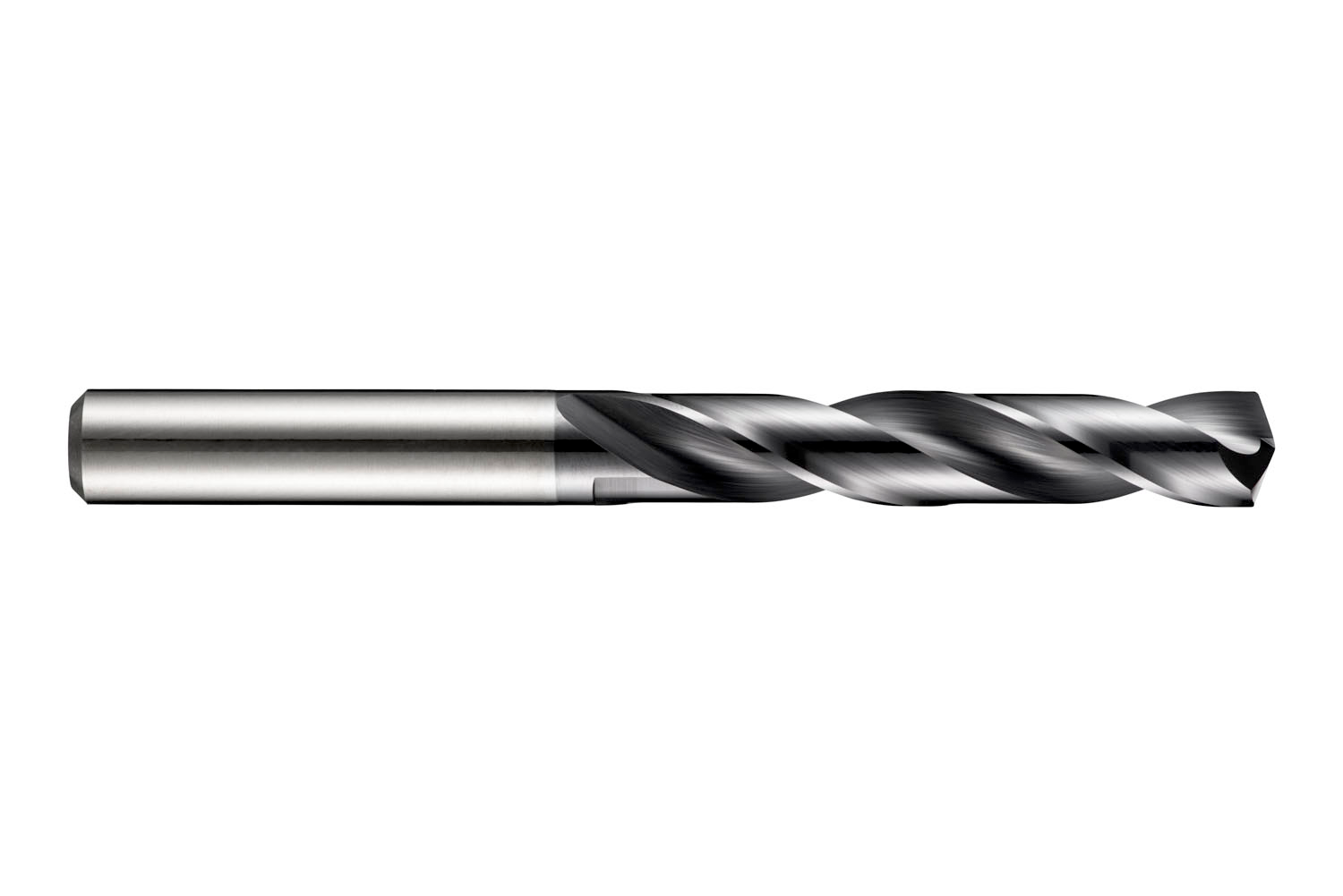

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 3.3mm with an overall length of 66mm and flute length of 28mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating and continiously thinned parallel web for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material and hardened material

Additional information

Weight 0.0968 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760614440
Product number (SAP): 86019234
Ordering code ANSI: R4543.3
Product Line: FORCE X
Gross weight – grams: 19.5

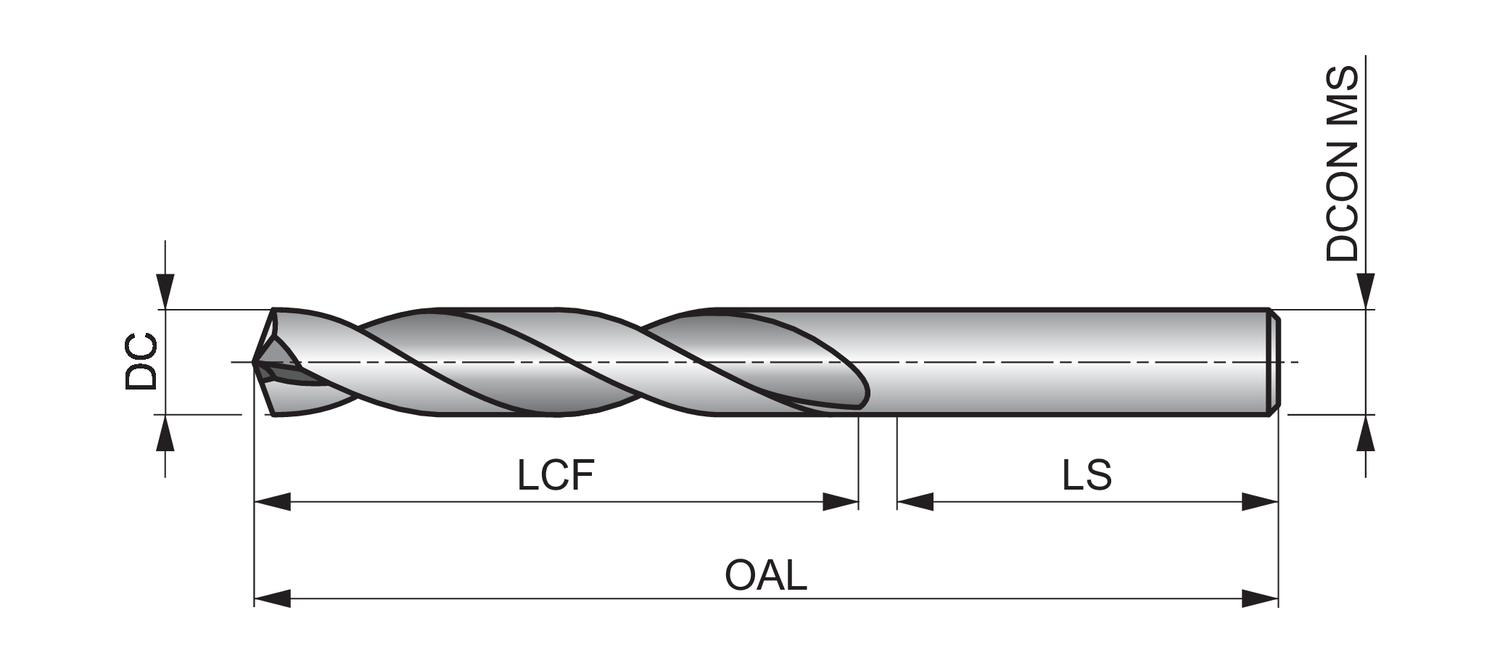

Cutting diameter – millimeter (DC): 3.3 mm
Cutting diameter – inch (DC): 0.1299 inch
Length chip flute – millimeter (LCF): 28 mm
Overall length – millimeter (OAL): 66 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 6 mm
Length chip flute – inch (LCF): 1.1024 inch
ISO: R4543.3

Brand

DORMER
