DORMER R4543/8 Carbide Drills

Product Code: R4543/8

$133.69$121.54 Ex. GST

Product Code: R4543/8 SKU R4543/8 Categories , ,
DORMER R4543/8 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

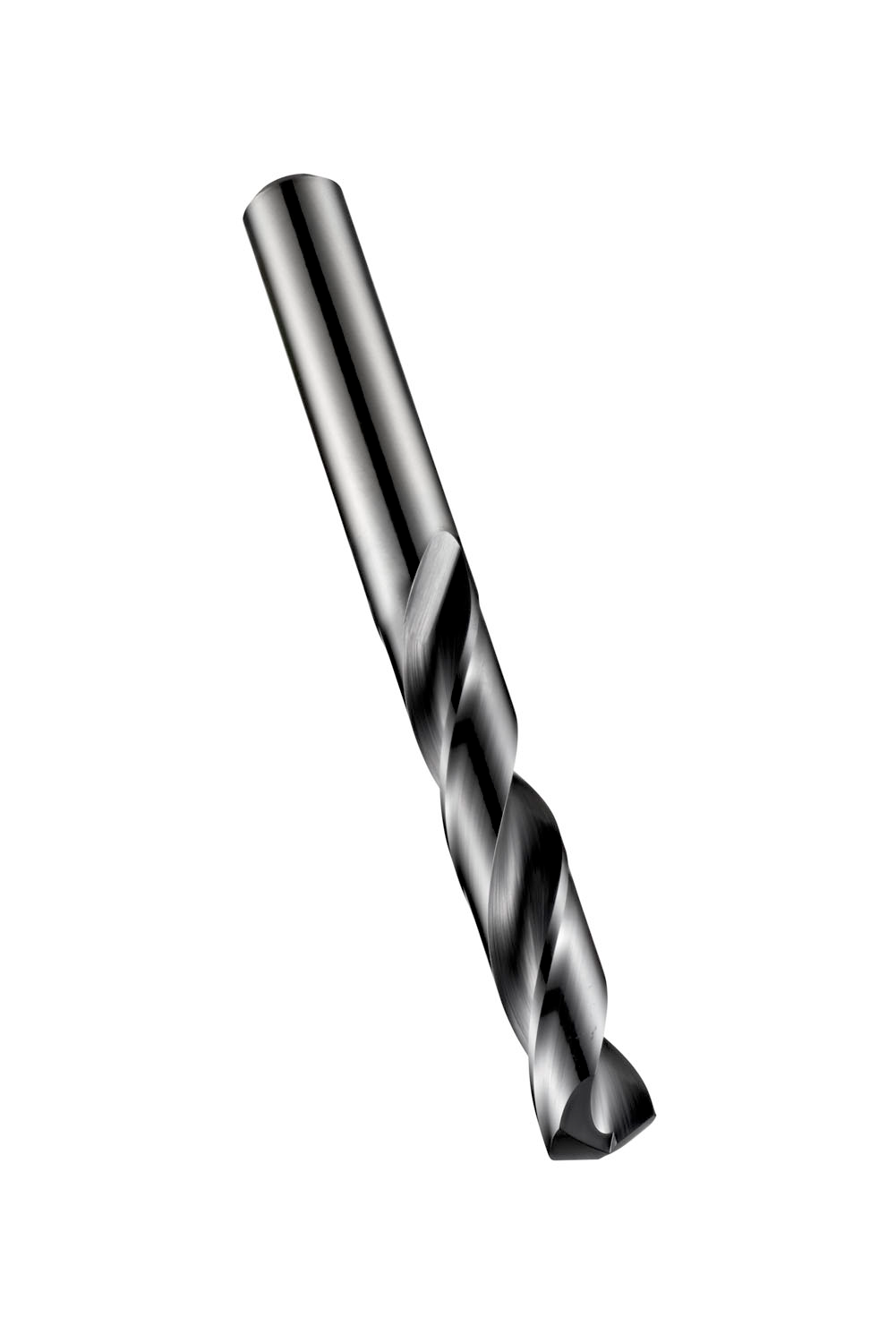

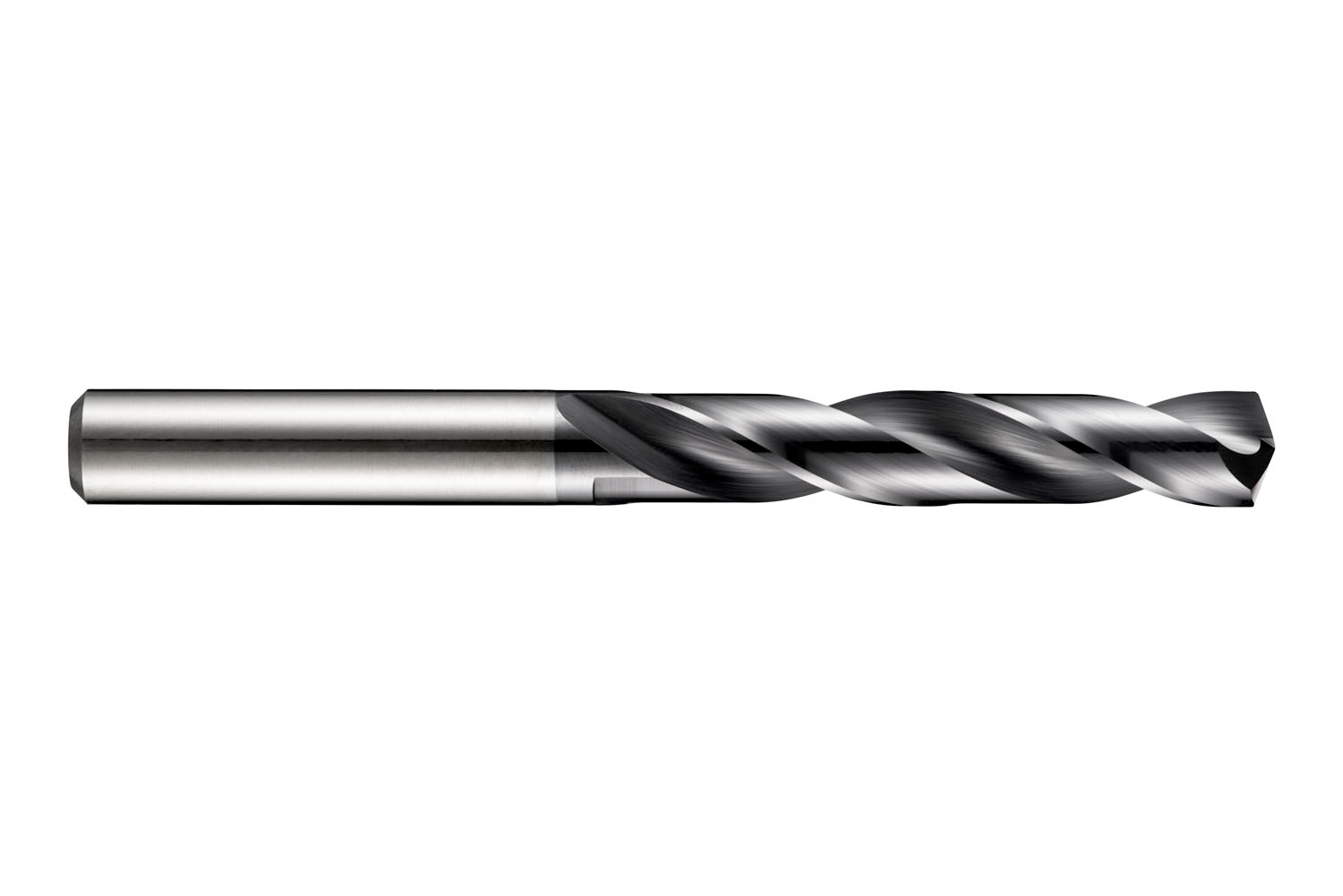

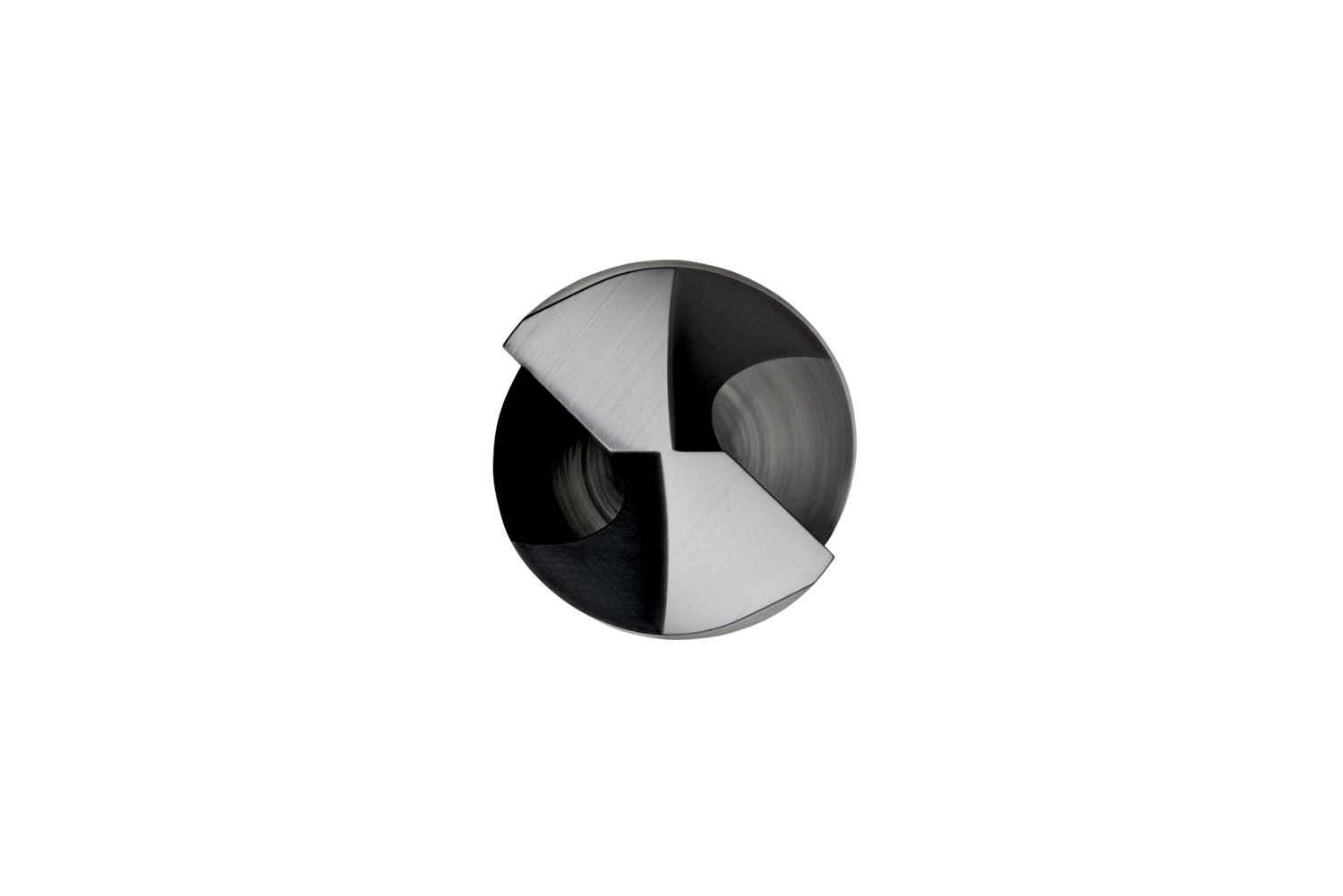

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.3750″ (3/8) with an overall length of 103mm and flute length of 61mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating and continiously thinned parallel web for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material and hardened material

Additional information

Weight 0.1298 kg
Dimensions
barcode
Additional Information

Description: Value

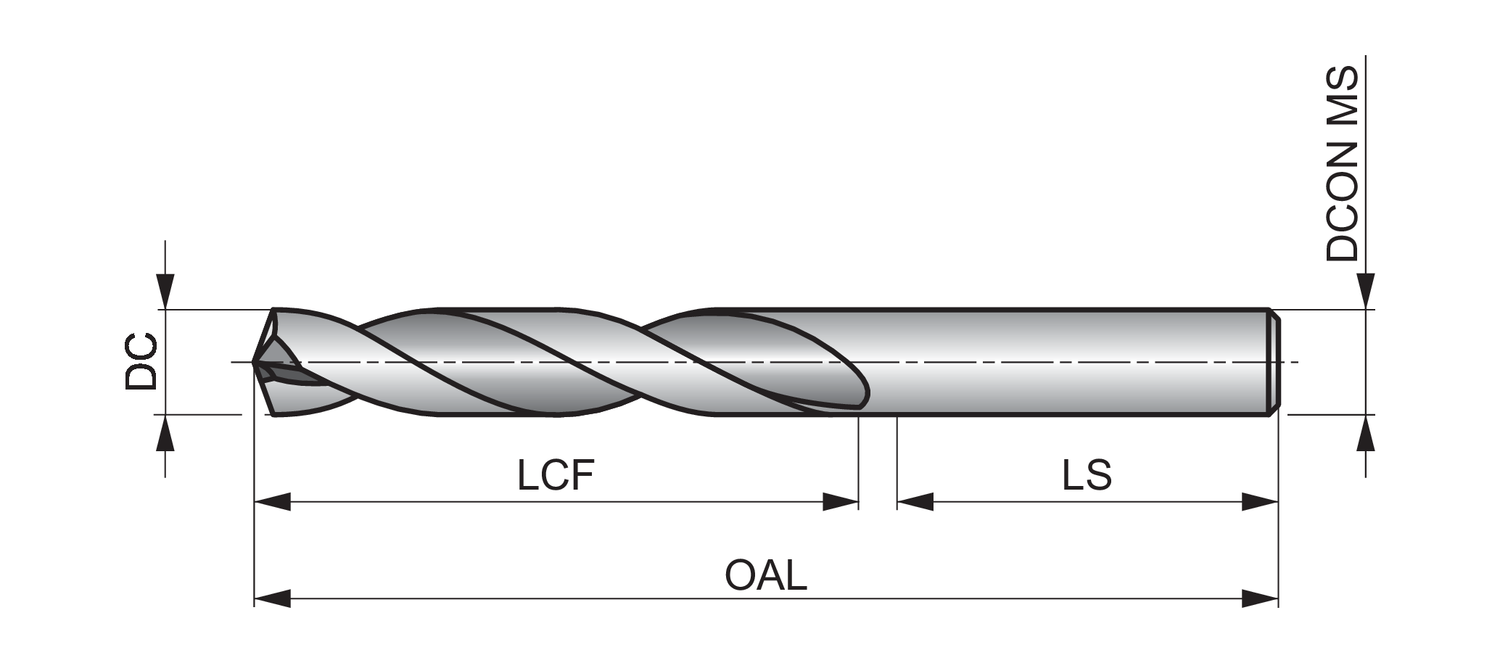

EAN number: 7320760624234 Product number (SAP): 86019243 Ordering code ANSI: R4543/8 Product Line: FORCE X Gross weight: 87.1 g Cutting diameter (DC): 9.53 mm Cutting diameter (DC): 0.375 inch Length chip flute (LCF): 61 mm Overall length (OAL): 103 mm Shank length (LS): 40 mm Connection diameter (DCON MS): 10 mm Length chip flute (LCF): 2.4016 inch ISO: R4543/8

Brand

DORMER
