DORMER R45437/64 Carbide Drills

Product Code: R45437/64

$322.91$293.55 Ex. GST

Product Code: R45437/64 SKU R45437/64 Categories , ,
DORMER R45437/64 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

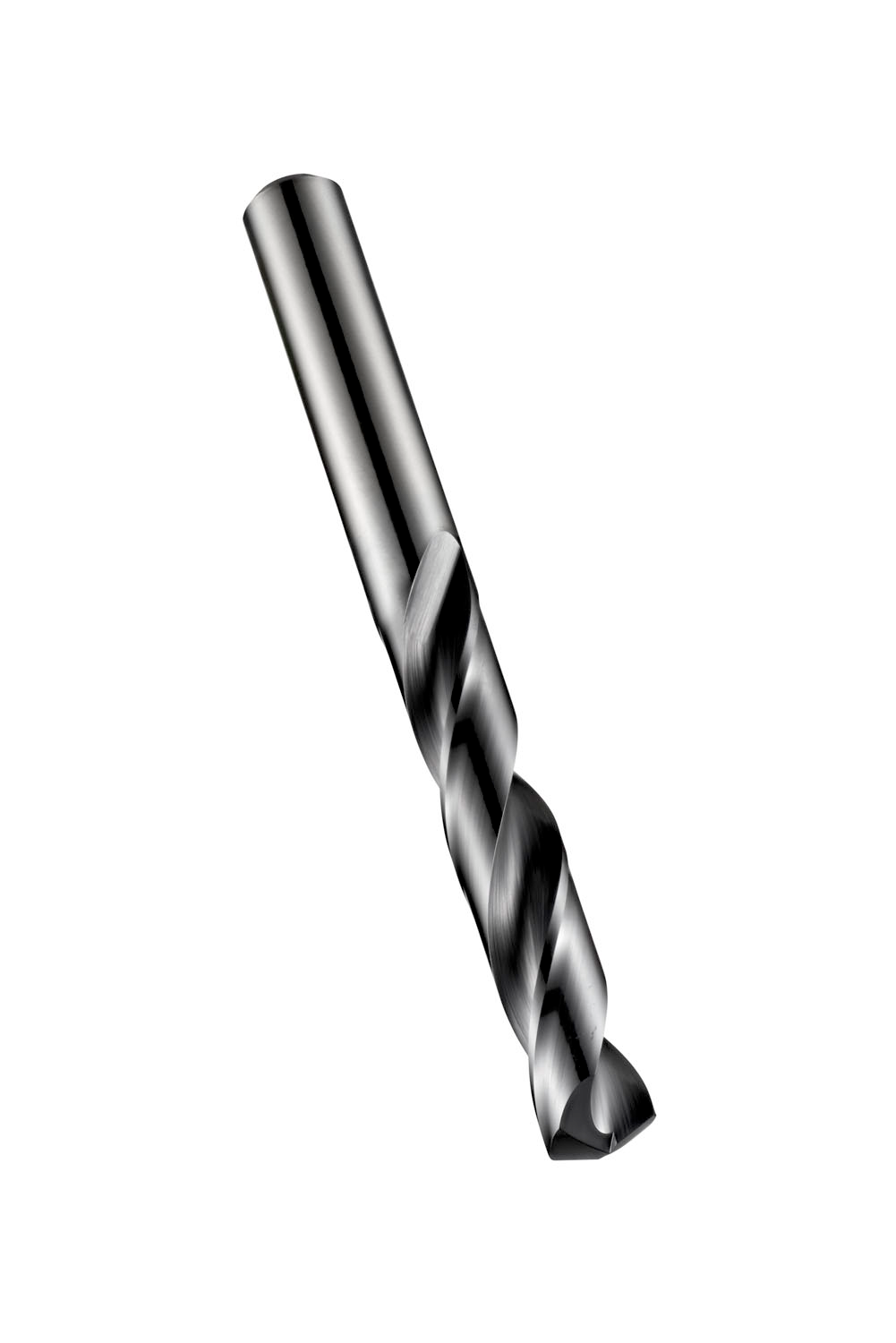

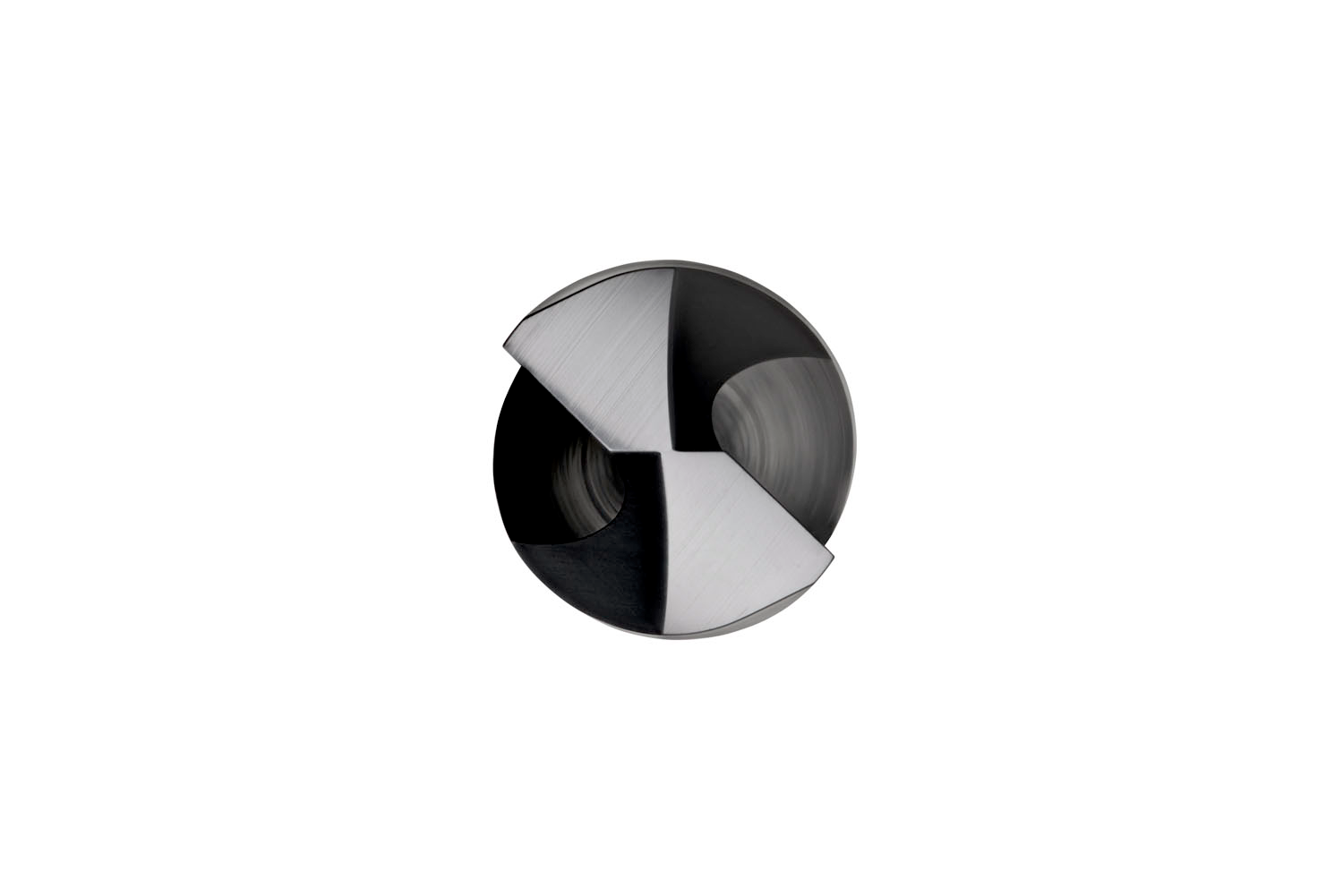

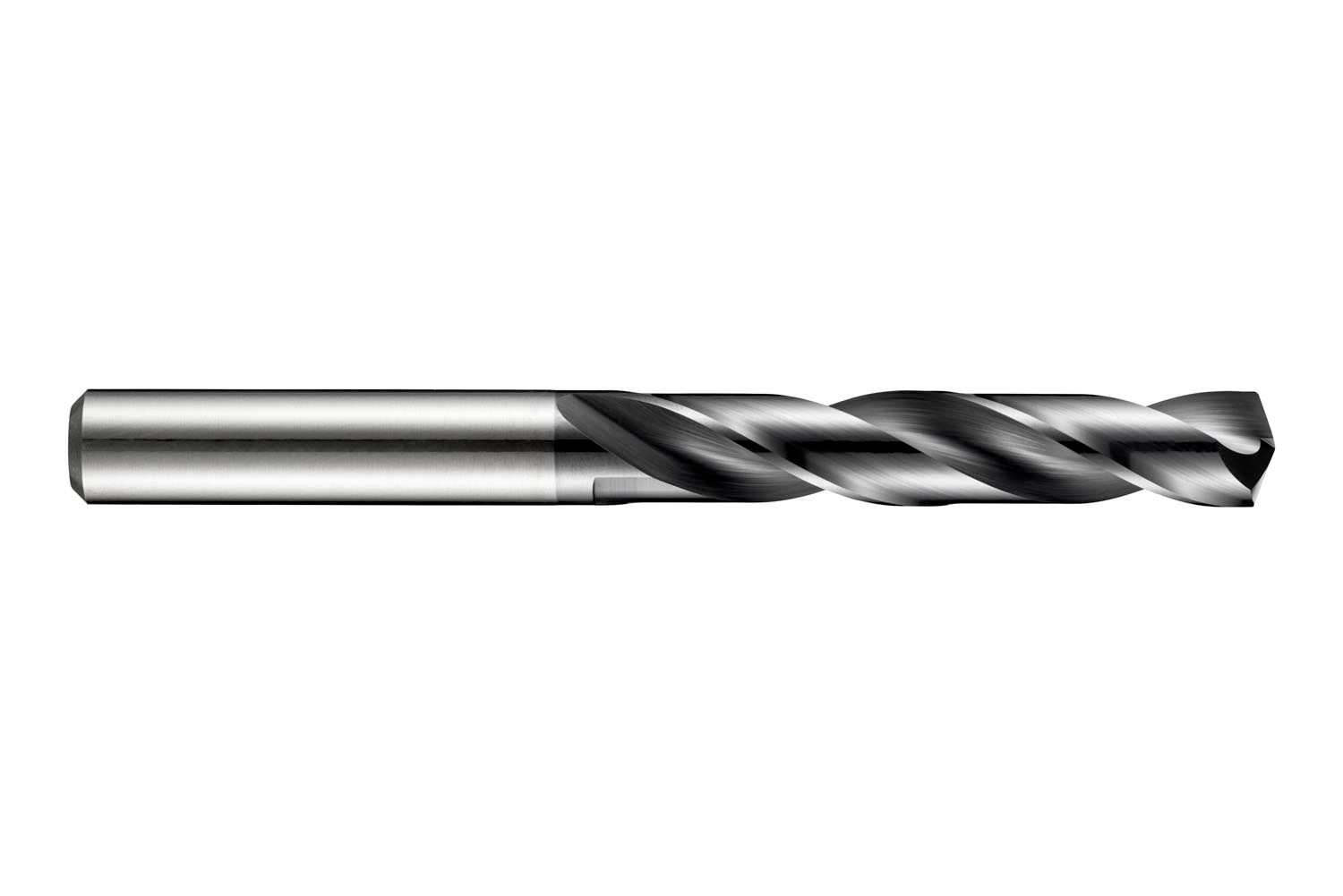

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.5781″ (37/64) with an overall length of 133mm and flute length of 82mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating and continiously thinned parallel web for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material and hardened material

Additional information

Weight 0.3135 kg
Dimensions
barcode
Additional Information

Description: Value

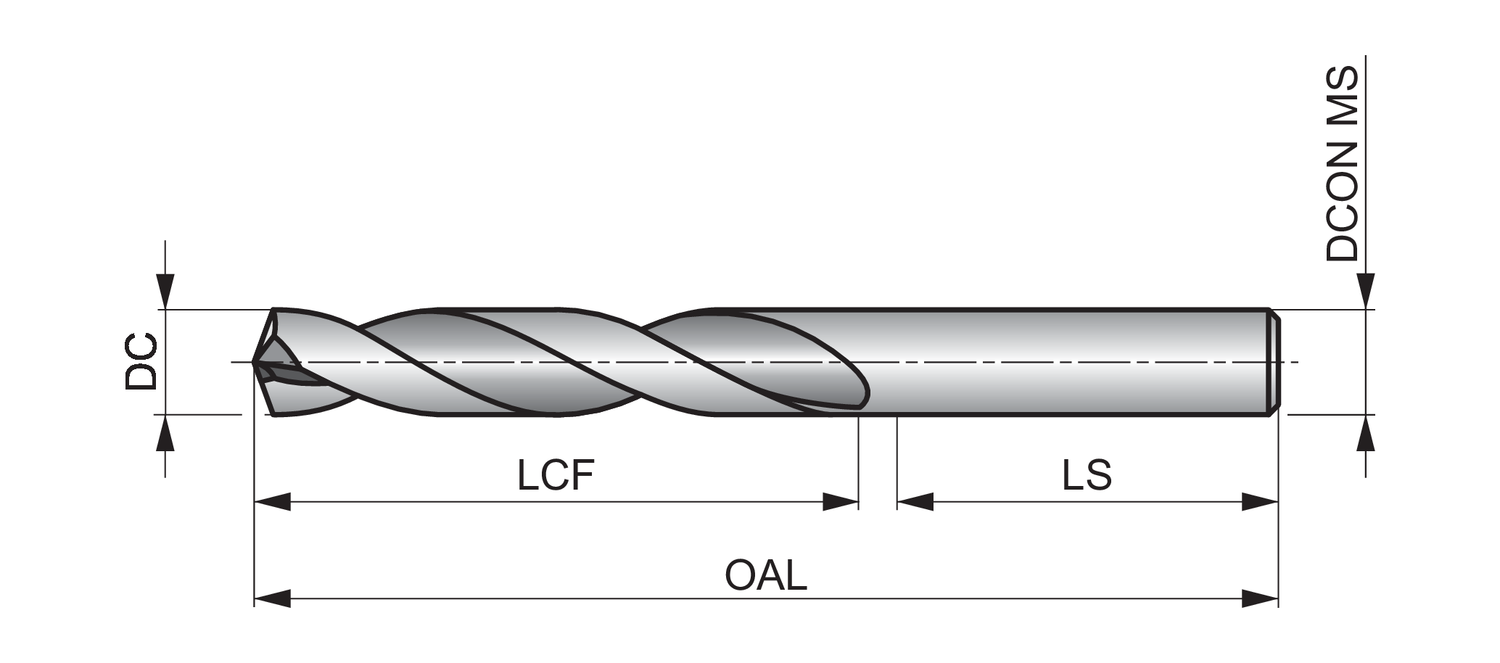

EAN number: 7320760624272 Product number (SAP): 86019247 Ordering code ANSI: R45437/64 Product Line: FORCE X Gross weight: 274 g Cutting diameter (DC): 14.68 mm Cutting diameter (DC): 0.5781 inch Length chip flute (LCF): 82 mm Overall length (OAL): 133 mm Shank length (LS): 48 mm Connection diameter (DCON MS): 16 mm Length chip flute (LCF): 3.2283 inch ISO: R45437/64

Brand

DORMER
