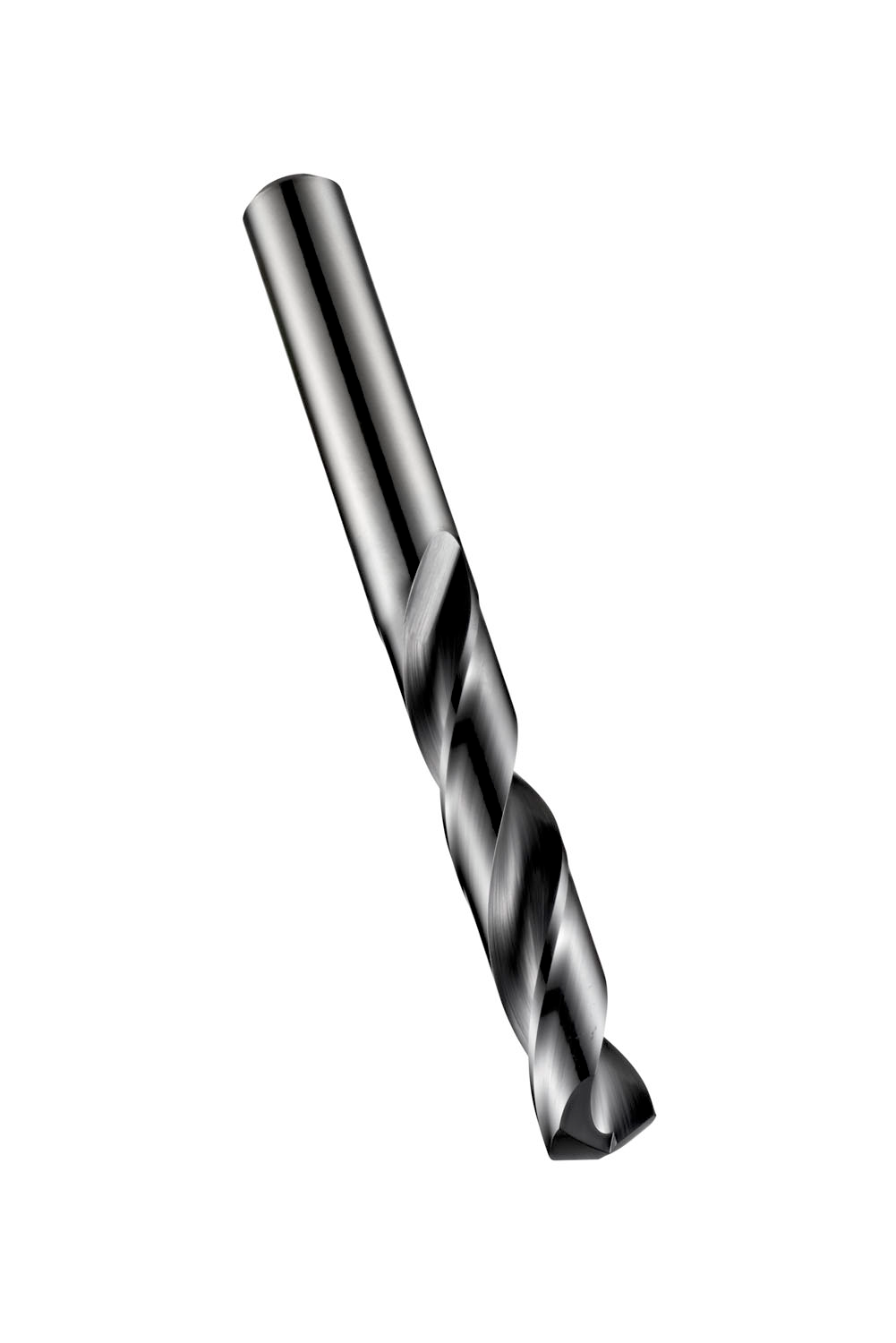

DORMER R4544.7 Carbide Drills

Product Code: R4544.7

$102.54$93.22 Ex. GST

Product Code: R4544.7 SKU R4544.7 Categories , ,
DORMER R4544.7 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

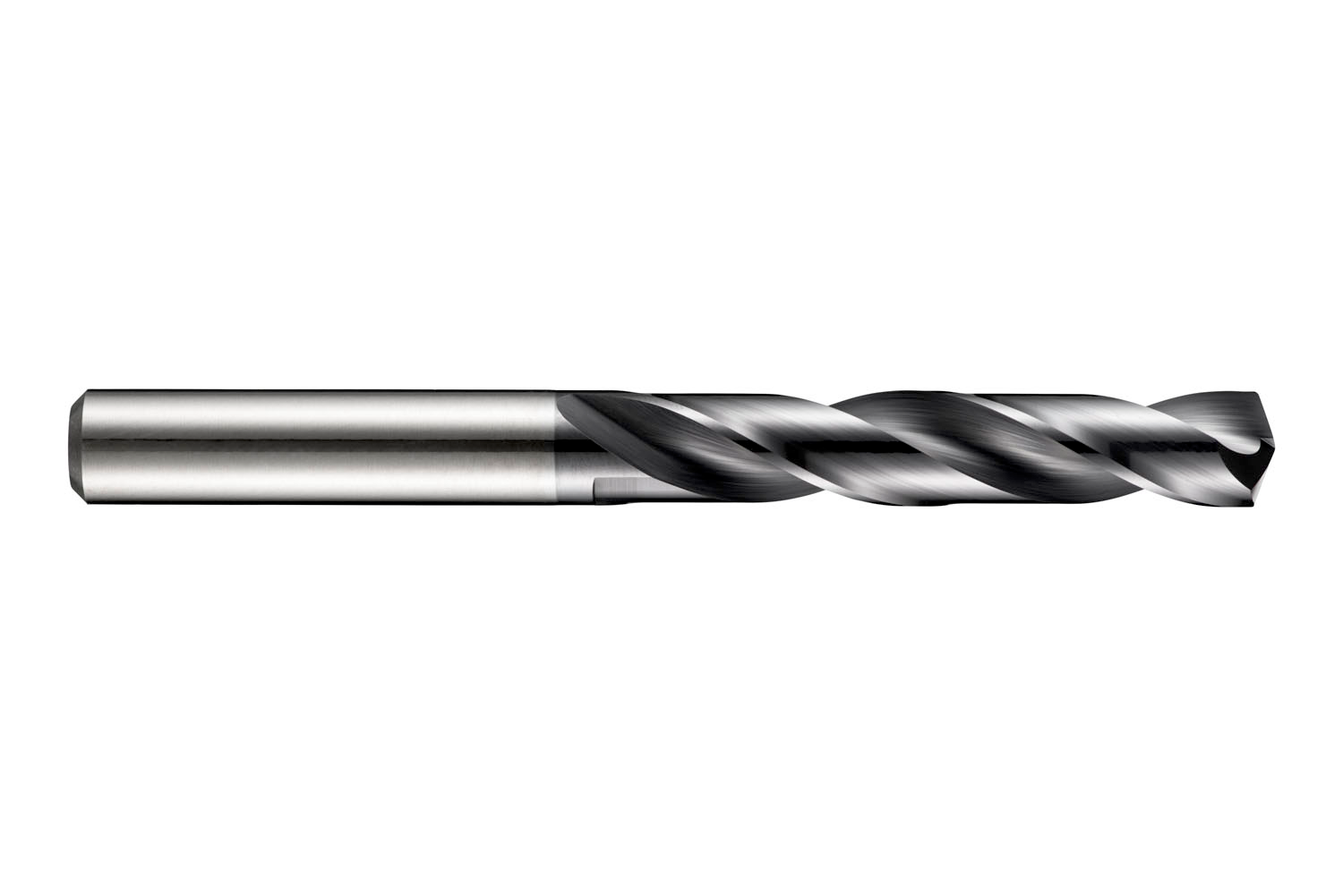

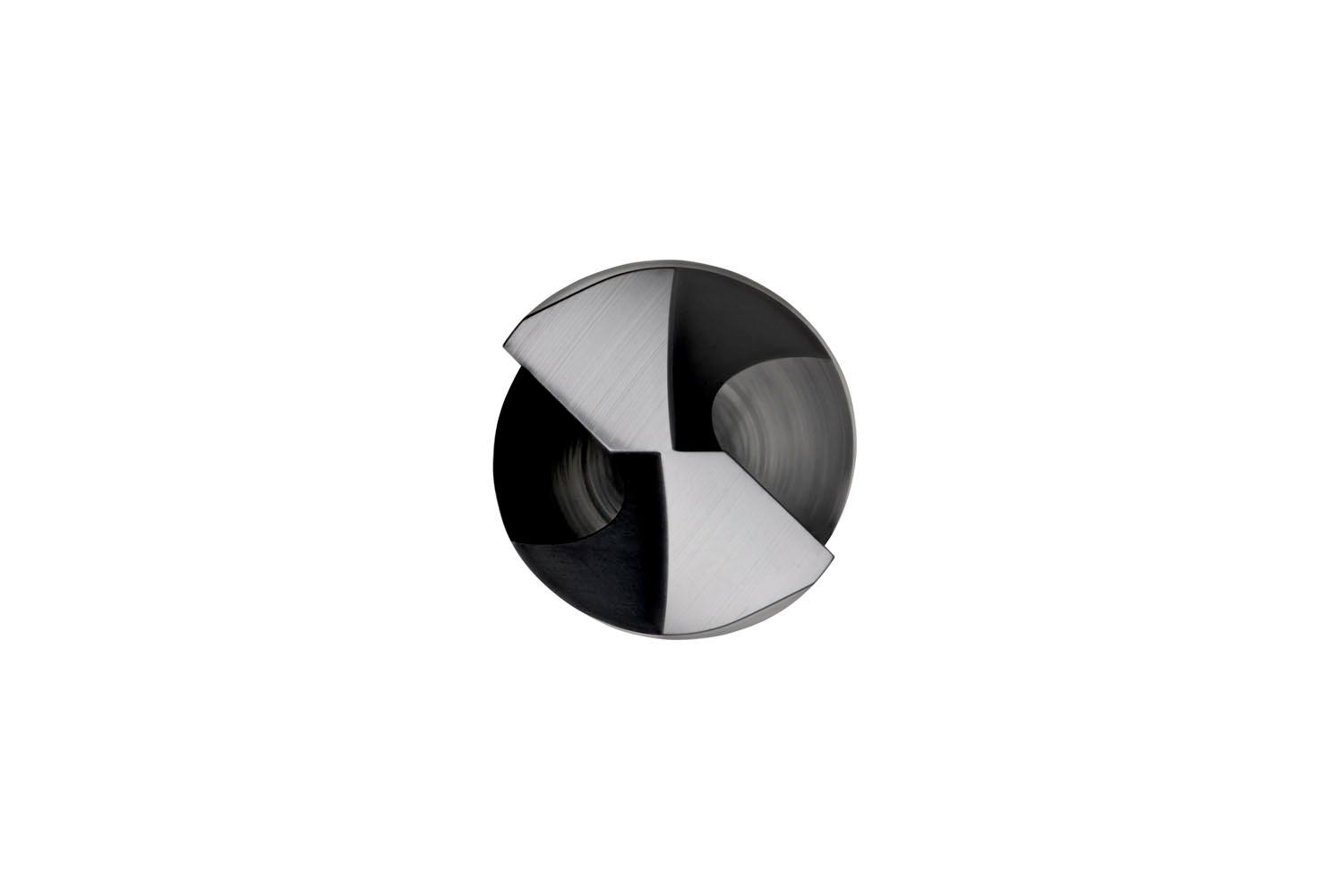

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 4.7mm with an overall length of 74mm and flute length of 36mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating and continiously thinned parallel web for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material and hardened material

Additional information

Weight 0.0996 kg
Dimensions
barcode
Additional Information

Description: Value

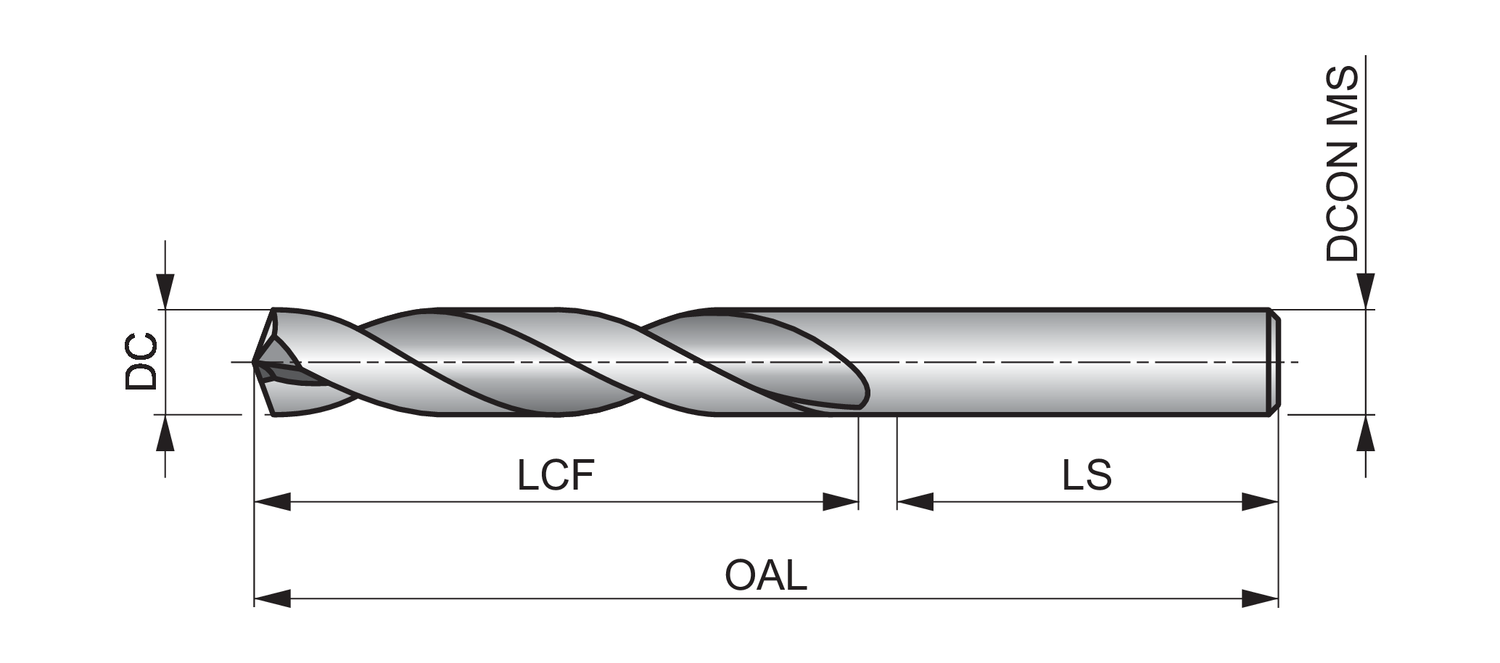

EAN number: 7320760625798 Product number (SAP): 86019256 Ordering code ANSI: R4544.7 Product Line: FORCE X Gross weight: 22.8 g Cutting diameter (DC): 4.7 mm Cutting diameter (DC): 0.185 inch Length chip flute (LCF): 36 mm Overall length (OAL): 74 mm Shank length (LS): 36 mm Connection diameter (DCON MS): 6 mm Length chip flute (LCF): 1.4173 inch ISO: R4544.7

Brand

DORMER
