DORMER R454I Carbide Drills

Product Code: R454I

$117.83$107.12 Ex. GST

Product Code: R454I SKU R454I Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

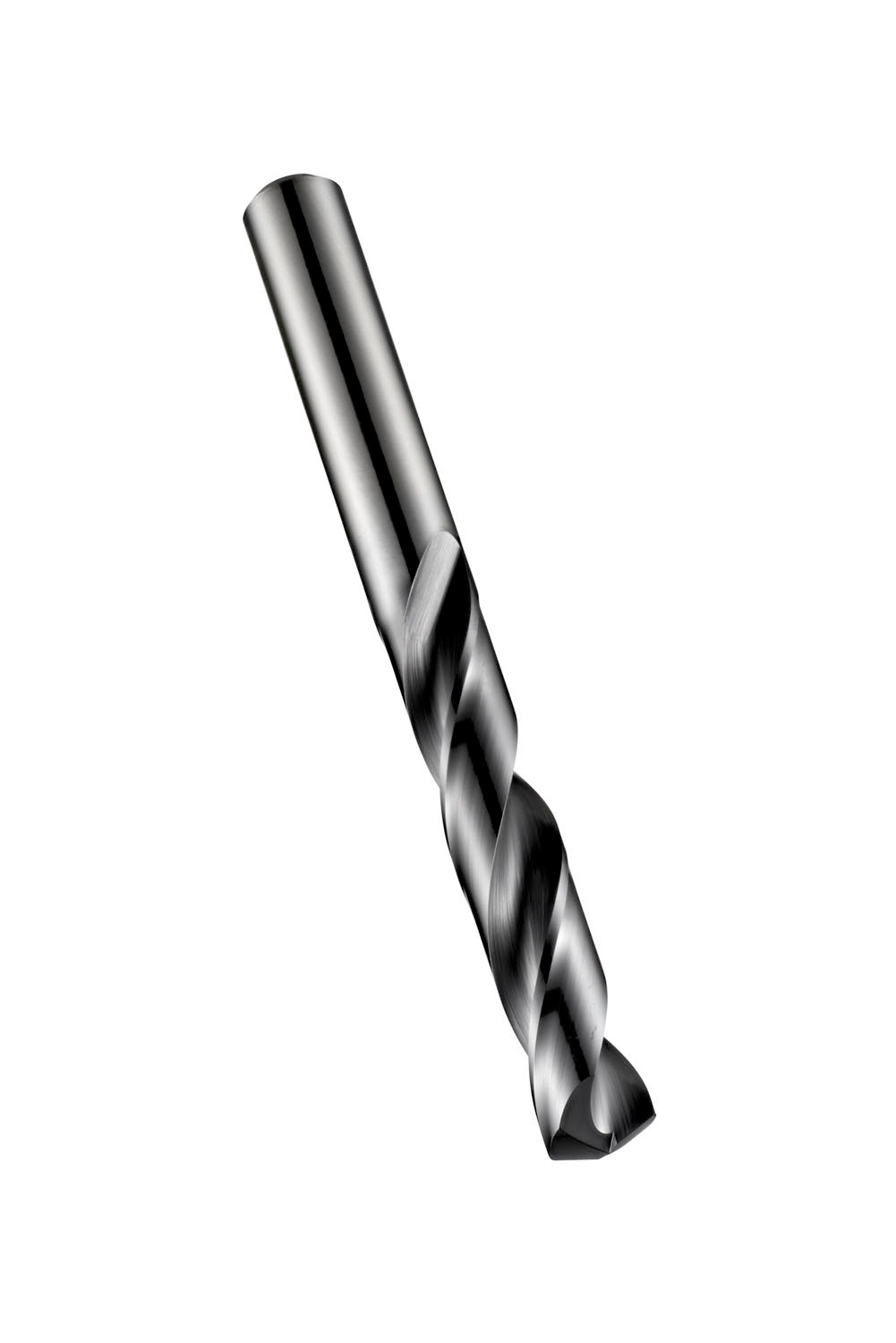

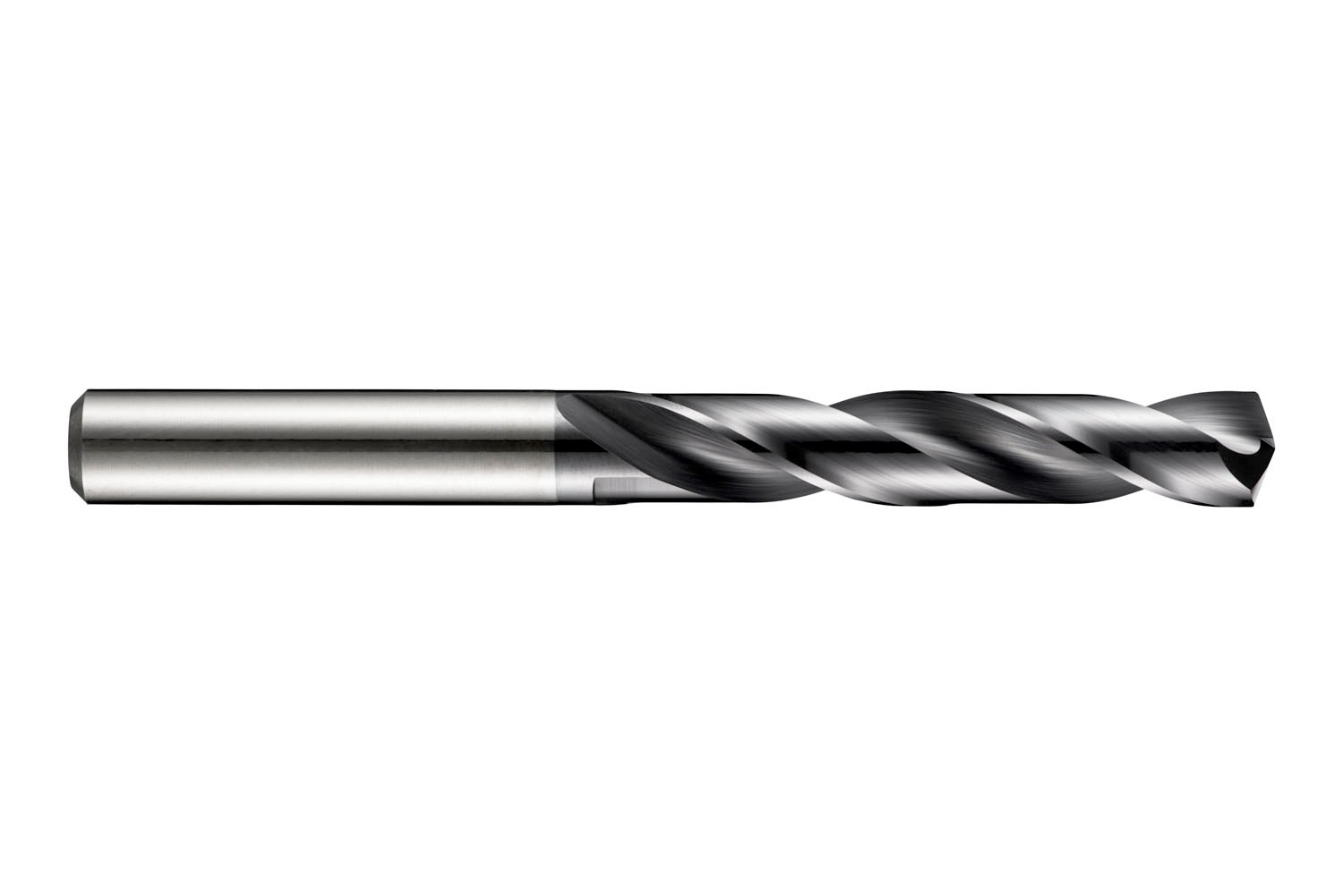

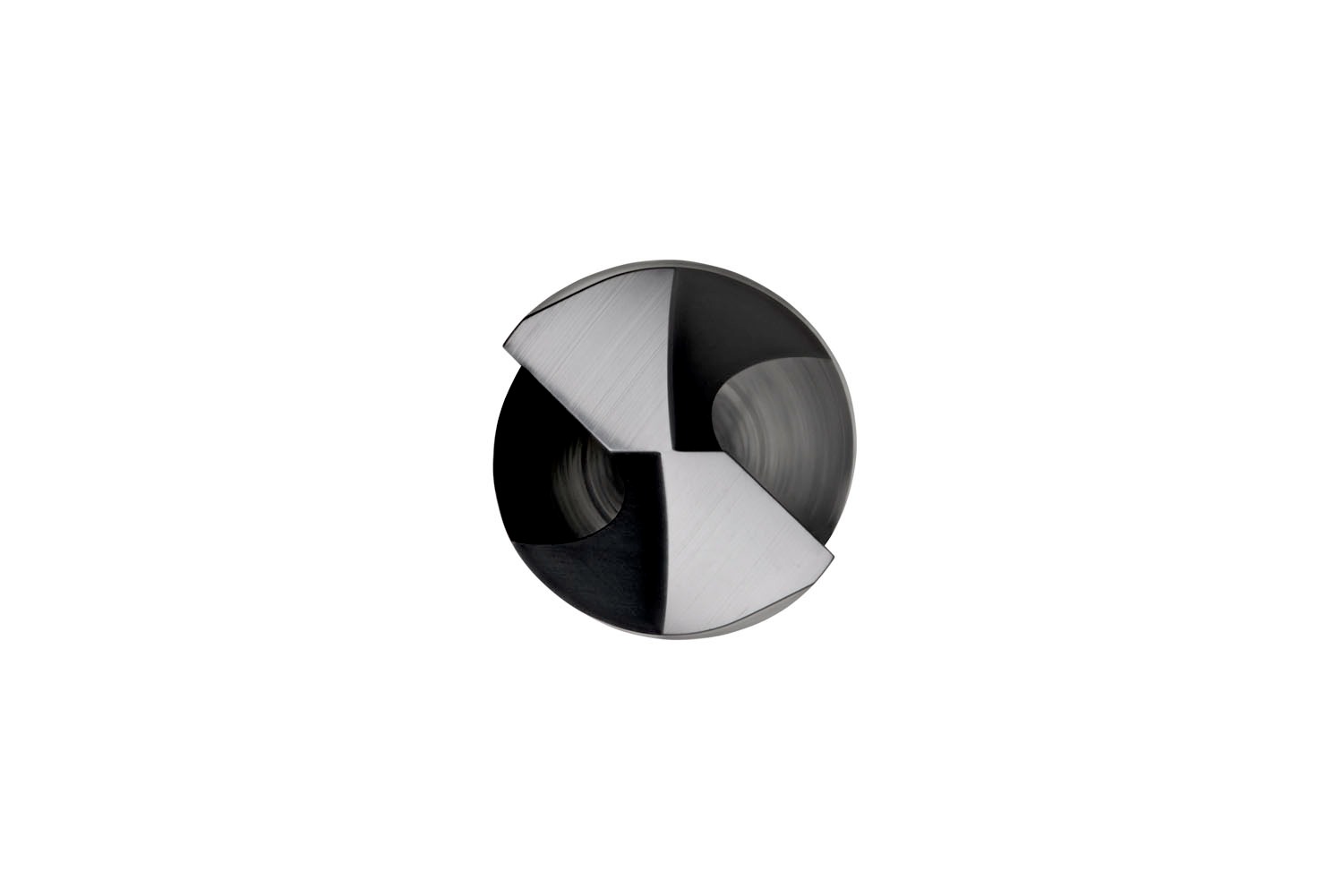

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.2720″ (I) with an overall length of 91mm and flute length of 53mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating and continiously thinned parallel web for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material and hardened material

Additional information

Weight 0.1144 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760756751
Product number (SAP): 86032952
Ordering code ANSI: R454I
Product Line: FORCE X
Gross weight – grams: 46

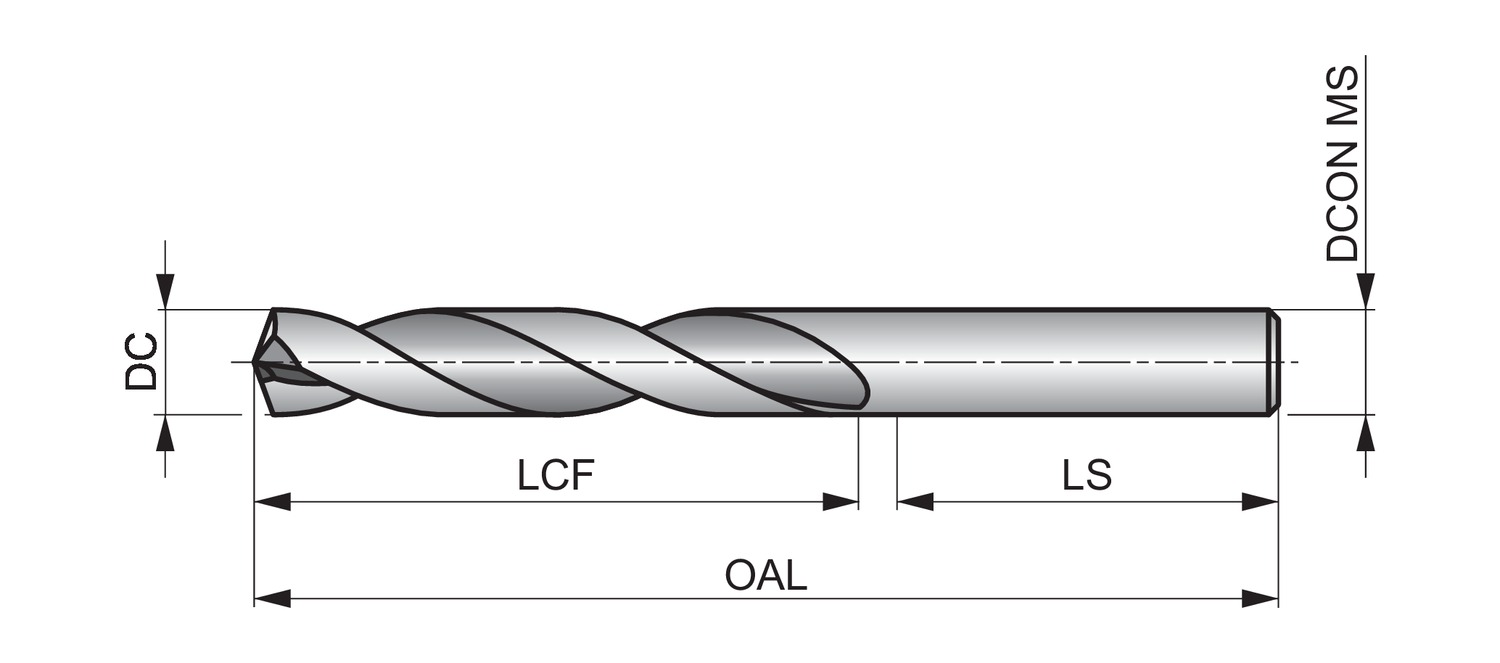

Cutting diameter – imperial letter (DC): I
Cutting diameter – millimeter (DC): 6.91 mm
Cutting diameter – inch (DC): 0.272 inch
Length chip flute – millimeter (LCF): 53 mm
Overall length – millimeter (OAL): 91 mm
Shank length – millimeter (LS): 36 mm
Connection diameter – millimeter (DCON MS): 8 mm
Length chip flute – inch (LCF): 2.0866 inch
ISO: R454I

Brand

DORMER
