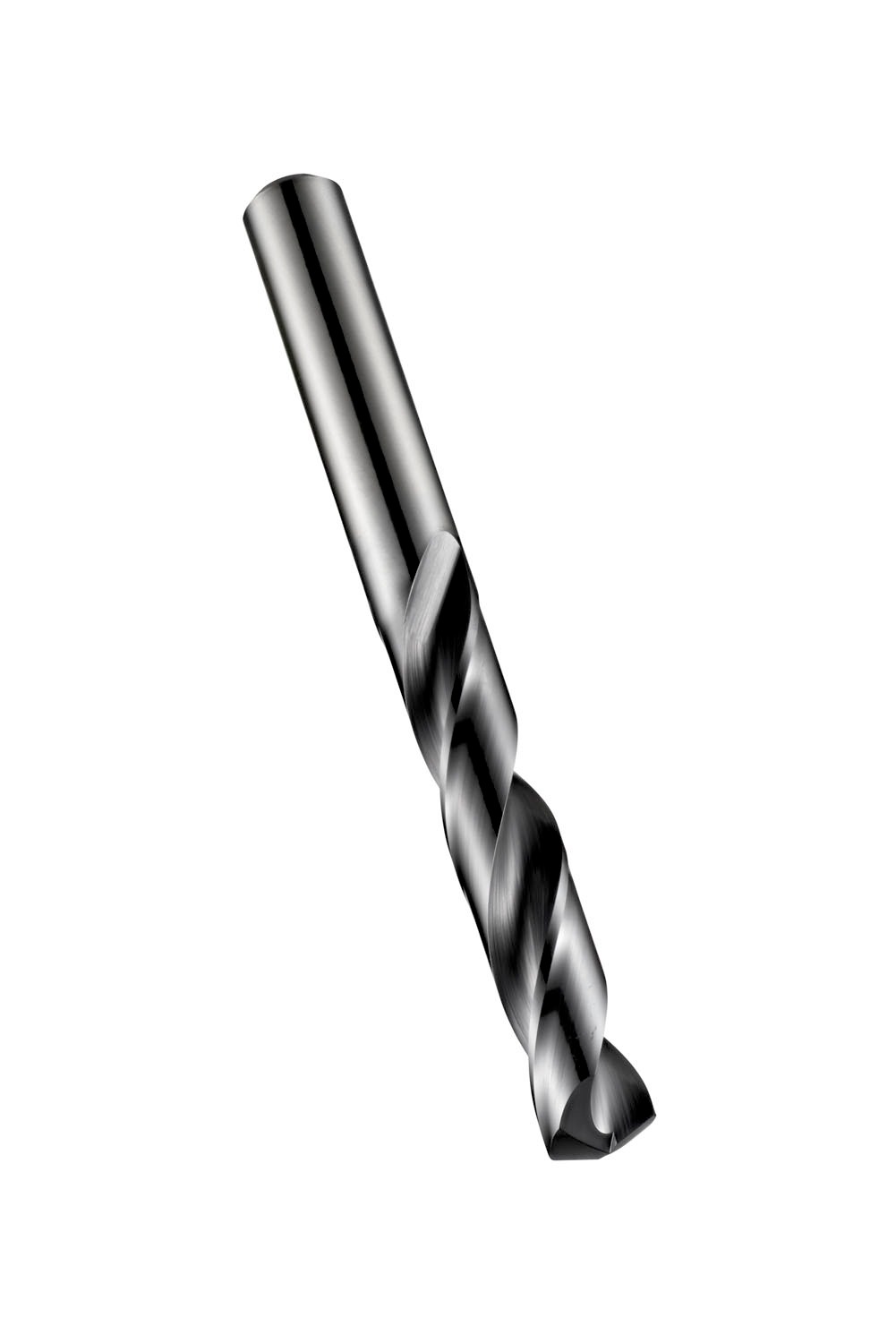

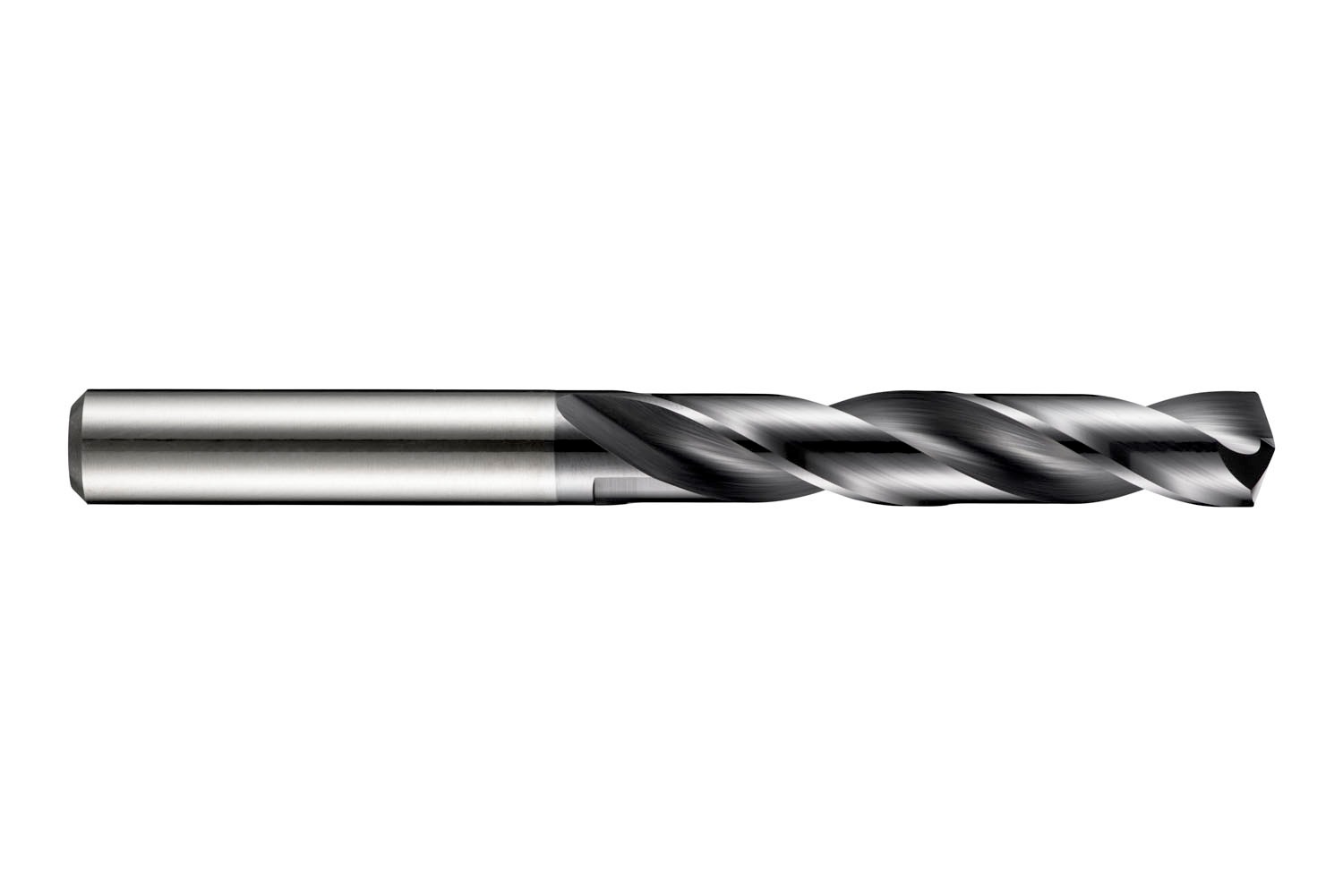

DORMER R454R Carbide Drills

Product Code: R454R

$133.69$121.54 Ex. GST

Product Code: R454R SKU R454R Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

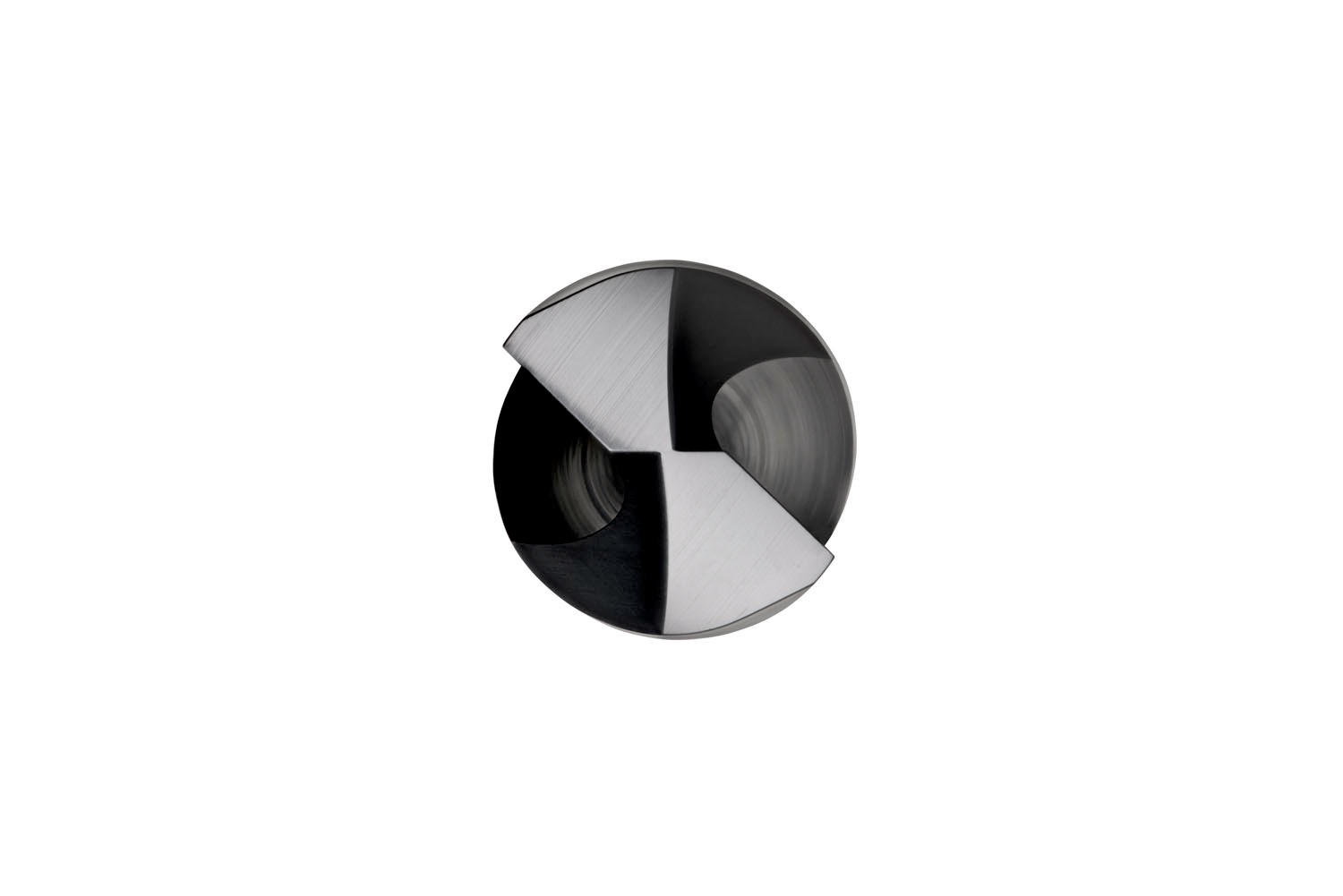

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.3390″ (R) with an overall length of 103mm and flute length of 61mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating and continiously thinned parallel web for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material and hardened material

Additional information

Weight 0.1298 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760756799
Product number (SAP): 86032956
Ordering code ANSI: R454R
Product Line: FORCE X
Gross weight – grams: 81.4

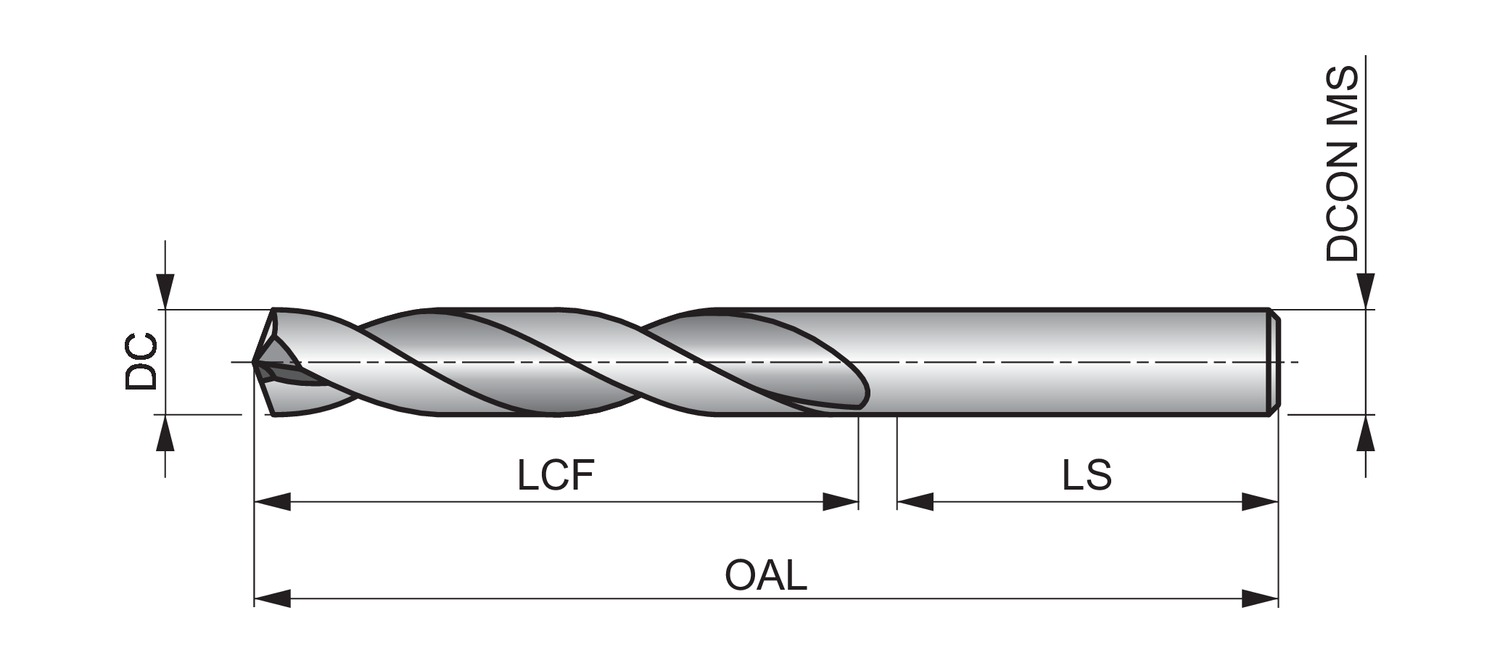

Cutting diameter – imperial letter (DC): R
Cutting diameter – millimeter (DC): 8.61 mm
Cutting diameter – inch (DC): 0.339 inch
Length chip flute – millimeter (LCF): 61 mm
Overall length – millimeter (OAL): 103 mm
Shank length – millimeter (LS): 40 mm
Connection diameter – millimeter (DCON MS): 10 mm
Length chip flute – inch (LCF): 2.4016 inch
ISO: R454R

Brand

DORMER
